Cargo Equipment Corp L-Track Threaded Stud Fitting | 1 in Stud or Double Lug | 1,000 lb or 2,166 lb WLL

Cargo Equipment Corp L-Track Threaded Stud Fitting

These Cargo Equipment Corp threaded stud fittings add a bolt-on anchor point to L-track. Four versions are listed: the 1 in threaded stud fitting, a double lug fitting, a double lug fitting with a 2 in threaded stud, and a double lug fitting with a knob.

The 1 in fitting has a 1,000 lb working load limit and a 3,000 lb break strength. All three double lug versions step up to a 2,166 lb working load limit.

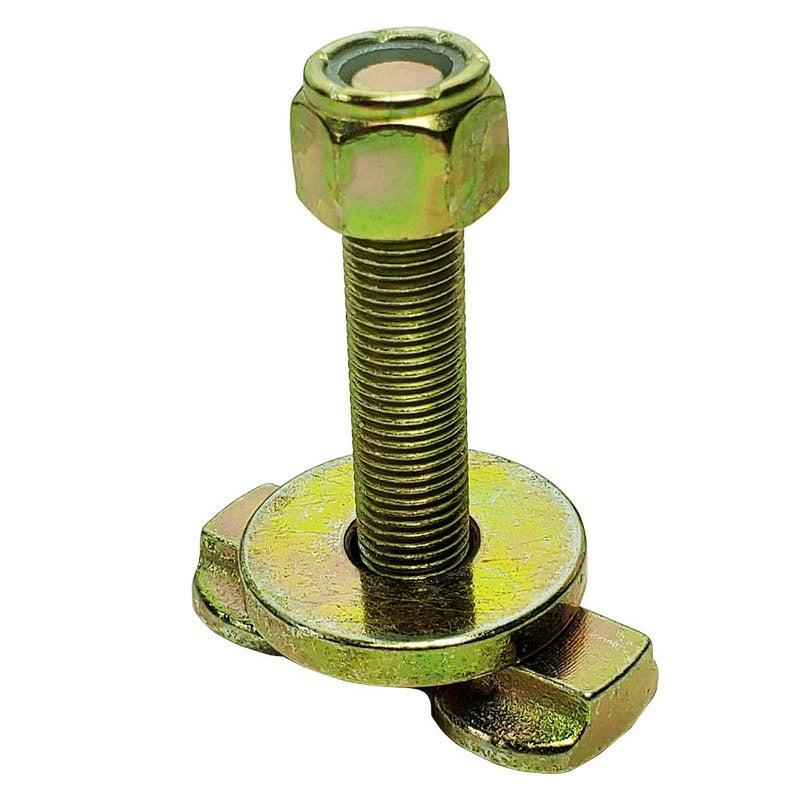

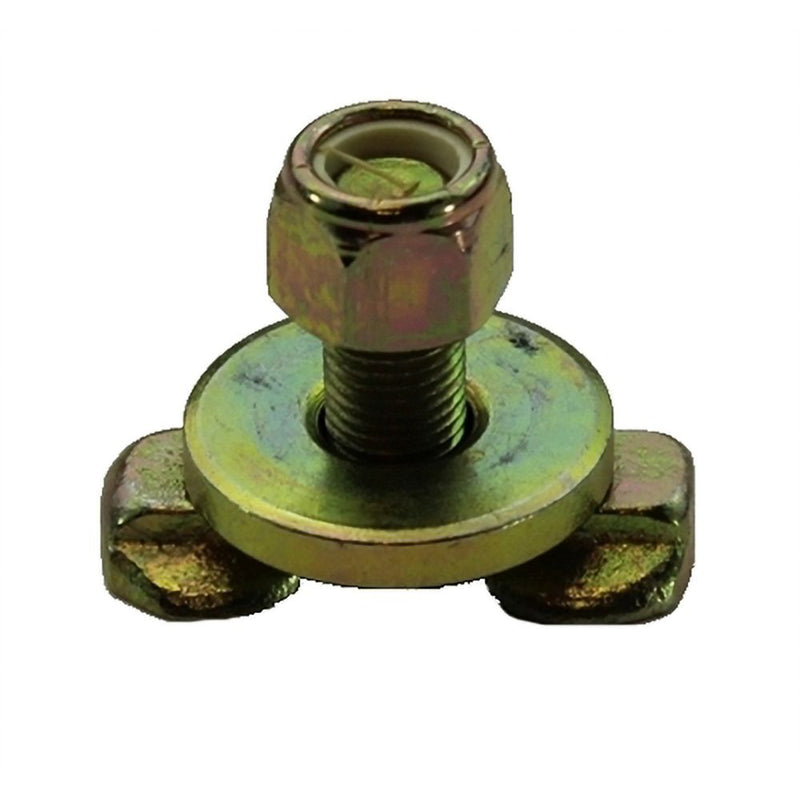

On the double lug and 2 in double lug fittings, a milled washer with two oval dimples seats in the track to hold the fitting in position, and the bolt threads are 3/8-24. Those two and the 1 in fitting are made of AISI 1045-1050 carbon steel with a zinc plated finish.

Threaded Stud Fitting Features

• Bolt-on anchor points for L-track

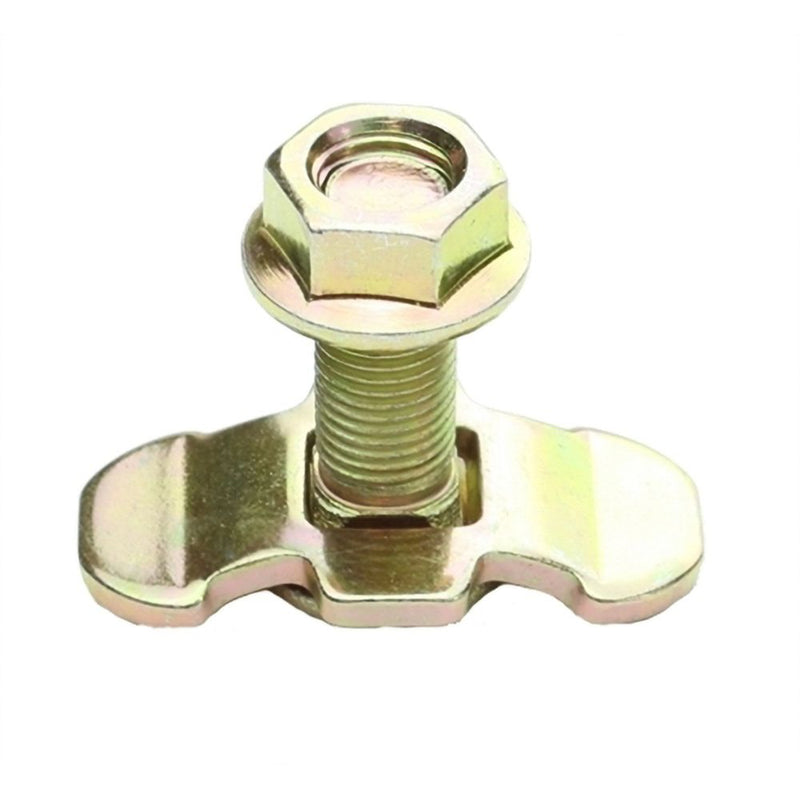

• 1 in threaded stud fitting: 1,000 lb working load limit, 3,000 lb break strength
• Double lug versions: 2,166 lb working load limit
• 3/8-24 bolt threads on the double lug and 2 in double lug fittings
• Milled washer with two oval dimples on the double lug and 2 in double lug fittings
• Zinc plated AISI 1045-1050 carbon steel on the three versions without a knob

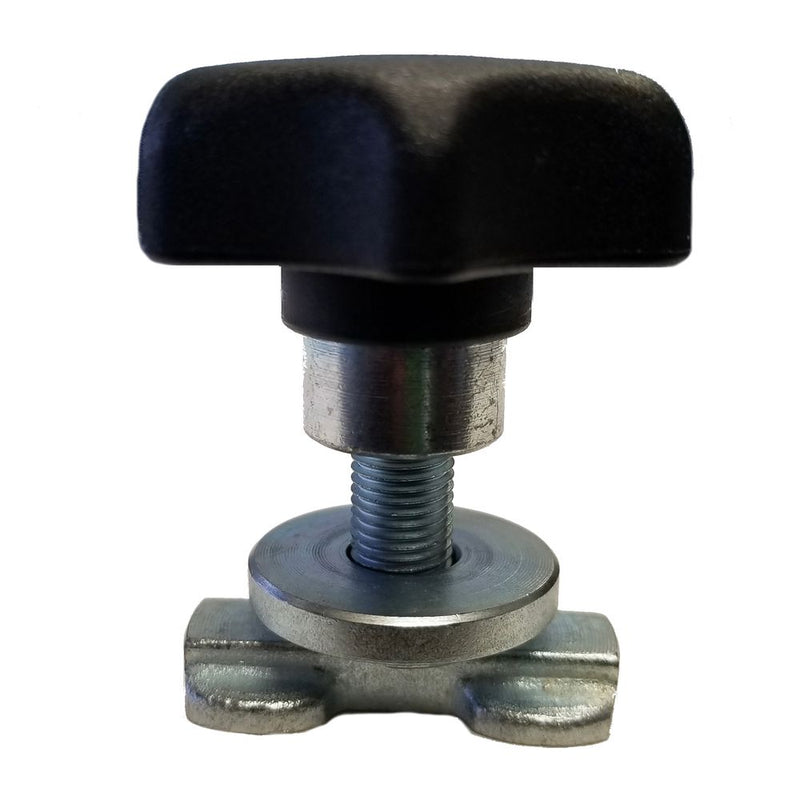

• Knob version attaches directly to L-track

Manufacture Guarantee

Cargo Equipment Corp Guarantee

Cargo Equipment Corp guarantees that its products are free of defects at the time of receipt. If a part arrives defective, Cargo Equipment Corp will repair or replace it, and its total liability is limited to that repair or replacement.

Inspection and Use

The user is responsible for inspecting the product before, during and after each use. Cargo Equipment Corp is not liable for special, indirect or consequential damages, or for the loss of any vehicle, cargo or profits.

Reporting a Defect

To report a defective part, contact Select Ramps and we will open the claim with Cargo Equipment Corp.
