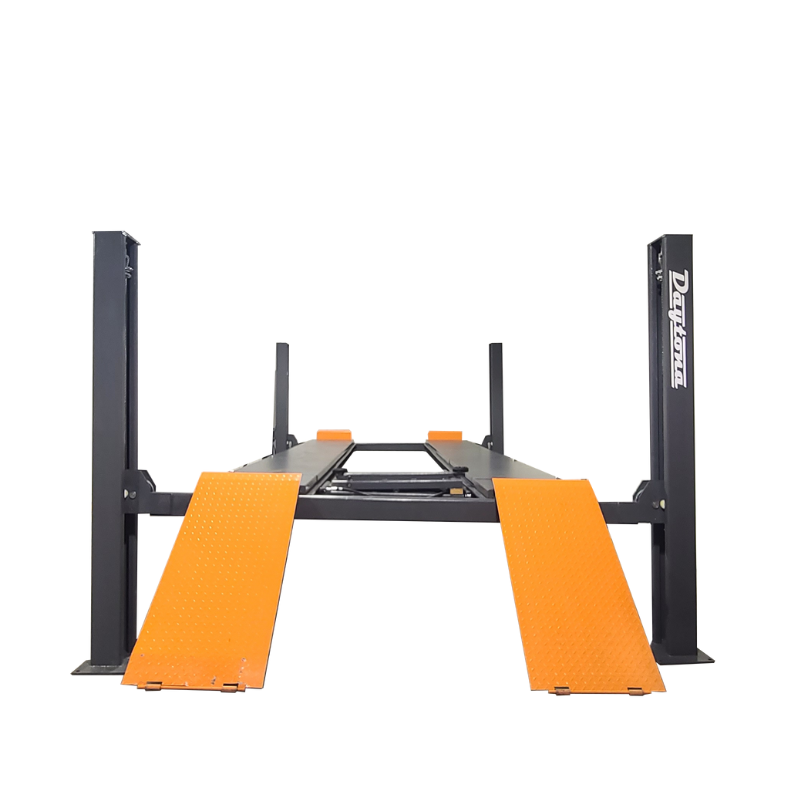

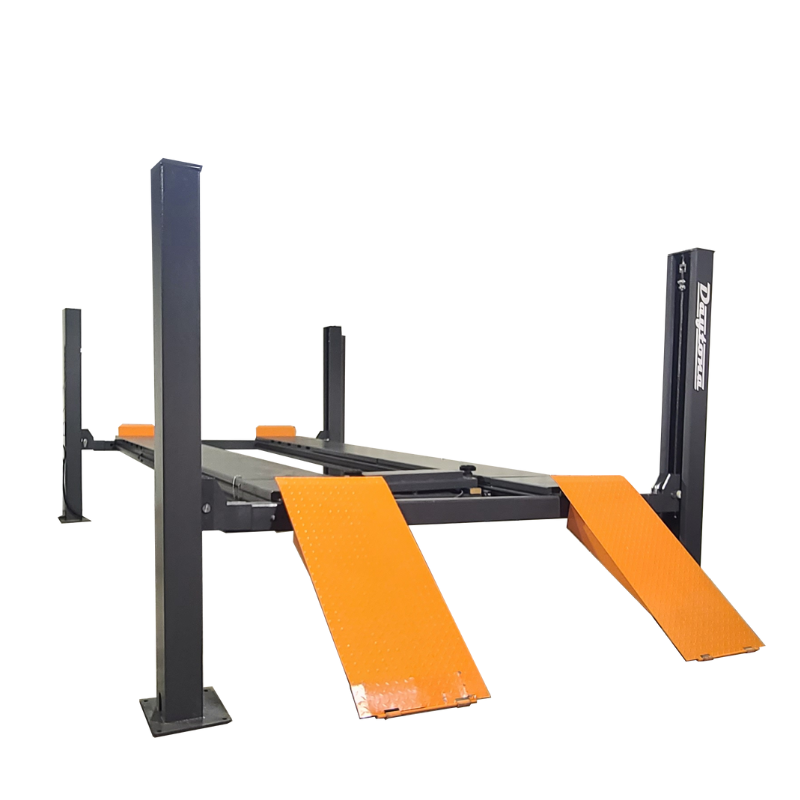

Daytona LFPA12 12,000 lb 4-Post Alignment Lift with Slip Plates and Turntables
The Daytona LFPA12 is a 12,000 lb 4-post alignment lift for busy automotive shops and serious mechanics, and it has the most compact footprint in the Daytona alignment range. It handles cars, SUVs and larger trucks, including dual rear wheel pickups, on 25.5 in. wide runways.
Built-in slip plates and adjustable turntables speed up alignment work, and a ladder lock system with a manual release gives you multiple locking positions for control while lifting. Aircraft-grade cables and a 5 in. hydraulic cylinder, driven by a 4 HP, 240V motor, provide smooth and steady lifting.
Bright orange tilting ramps make vehicle loading safer, and a matte dark grey powder coat finish and sturdy posts hold up to daily shop use. The alignment computer and rolling jacks are sold separately. The Daytona RAJ8 8,000 lb rolling jack is built to fit this lift.
Key Features
- Ladder-lock system with lock positions every 3.5 in.
- Built-in rear slip plates and adjustable turntable positions
- Tilting approach ramps
- Alignment computer and rolling jacks are sold separately
Specifications
- Capacity: 12,000 lbs
- Overall length: 236.5 in.
- Overall width: 143.5 in.
- Overall height: 101 in.
- Runway size: 25.5 x 217.25 in.
- Power: 240V / 4 HP / 15A / 1PH / 60Hz
- Shipping weight: 4,490 lbs
- Rise / drop time: 110 sec.
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
