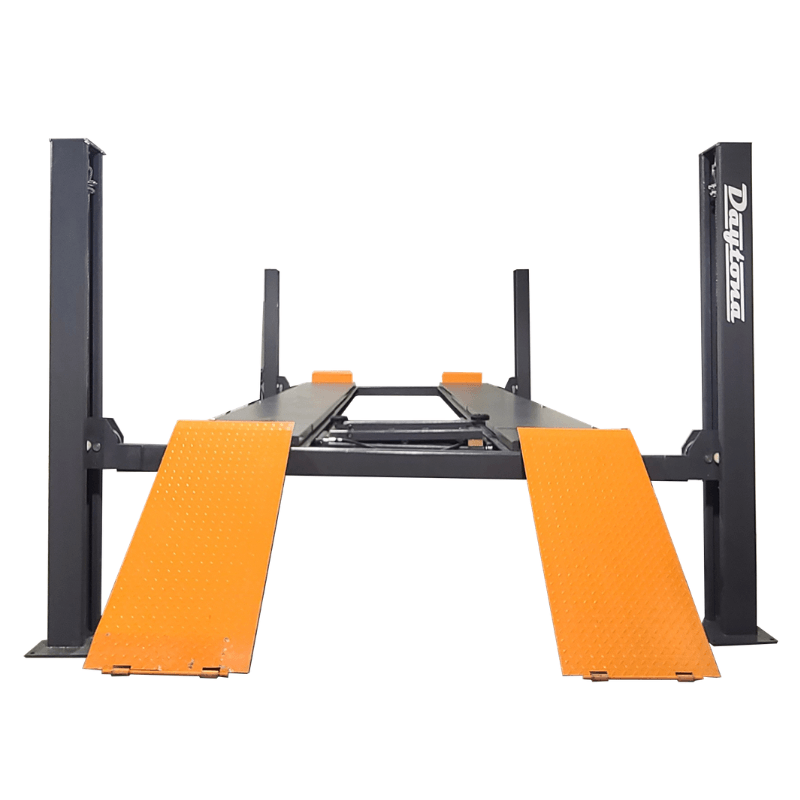

Daytona LFPA24 24,000 lb Heavy Duty 4-Post Alignment Lift with Slip Plates and Turntables
Fleet vehicles, commercial vans, large trucks and dual-wheel pickups take more capacity and alignment capability than a standard lift offers. When a lift falls short, work slows down, alignment accuracy suffers and some vehicles have to be turned away.
The Daytona LFPA24 answers that with 24,000 lb of capacity, twice the rating of the LFPA12, and the longest runways in the Daytona alignment range at 284.6 in. Fleet maintenance facilities, dealerships and alignment centers get commercial-grade strength with alignment-ready features built in.
Built-in rear slip plates and adjustable turntables support accurate alignments, and dual rear wheel truck capability covers heavier work trucks. A ladder lock system with positions every 3.5 in. secures the load, and rugged industrial construction stands up to high-volume commercial use. The alignment computer and rolling jacks are sold separately, and the Daytona RAJ12 12,000 lb rolling jack is designed for this lift.
Key Features
- Ladder-lock system with lock positions every 3.5 in.
- Built-in rear slip plates and adjustable turntable positions
- Dual rear-wheel-truck capability
- Alignment computer and rolling jacks are sold separately
Specifications
- Capacity: 24,000 lbs
- Overall length: 330.5 in.
- Overall width: 155.1 in.
- Overall height: 87.9 in.
- Runway size: 25.6 x 284.6 in.
- Clearance: 69.3 in.
- Power: 240V / 4 HP / 15A / 1PH / 60Hz
- Shipping dimensions: 278 x 33 x 65 in.
- Shipping weight: 7,800 lbs
- Runway inner width: 43.7 in.
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
