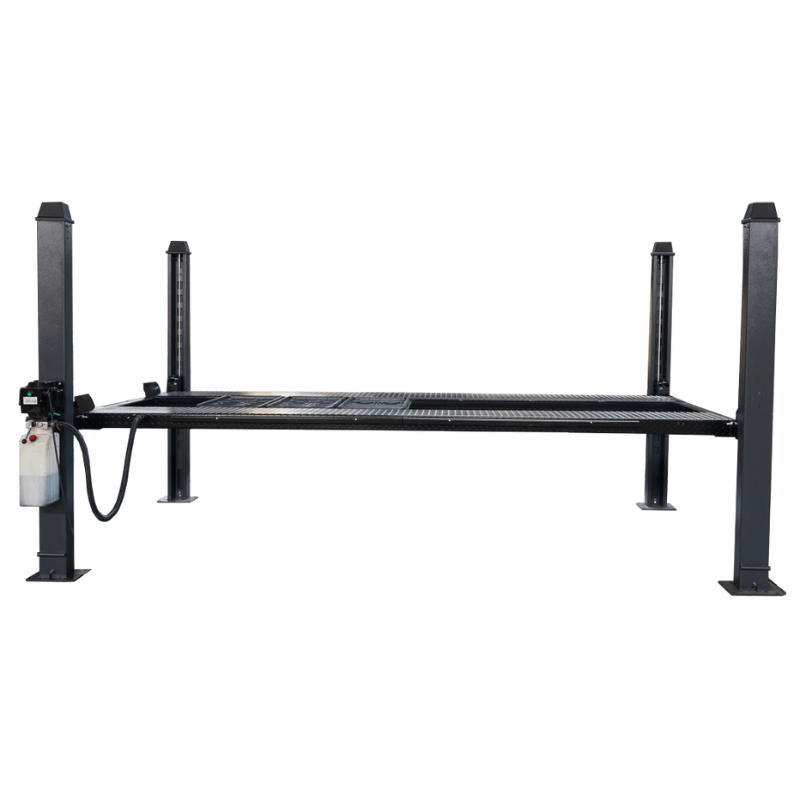

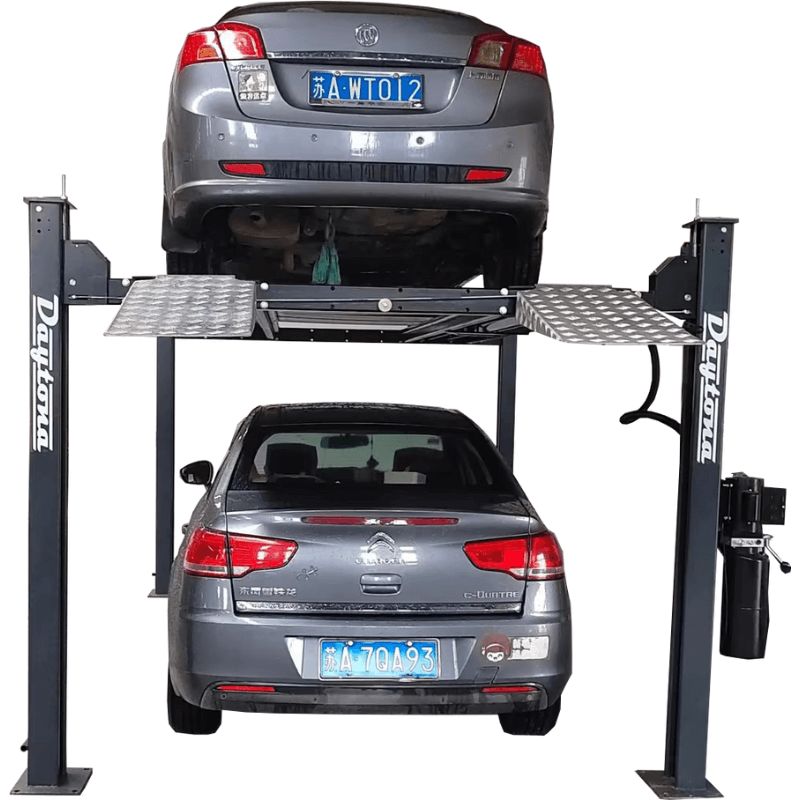

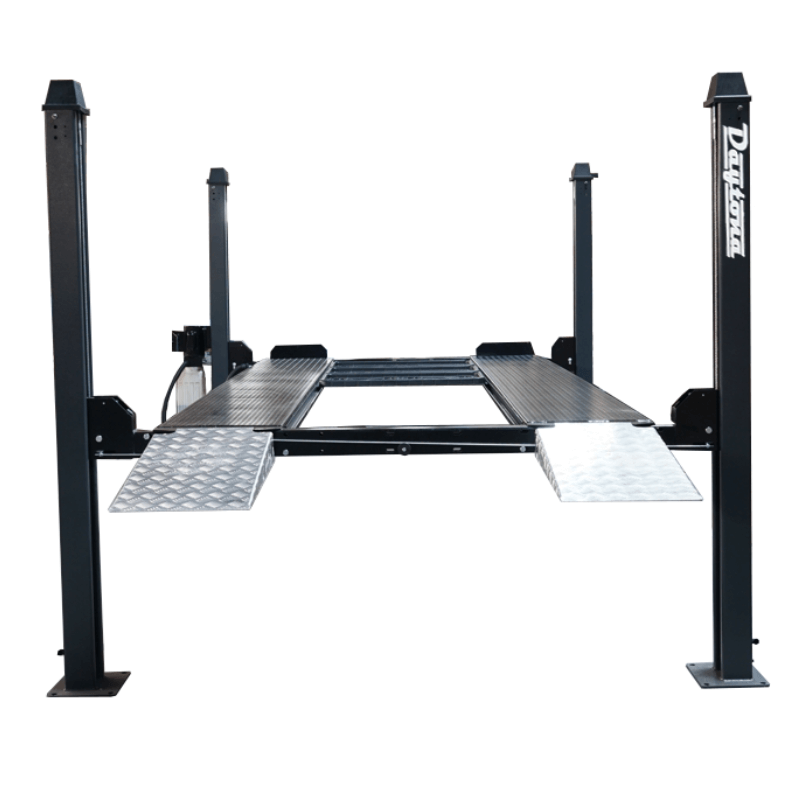

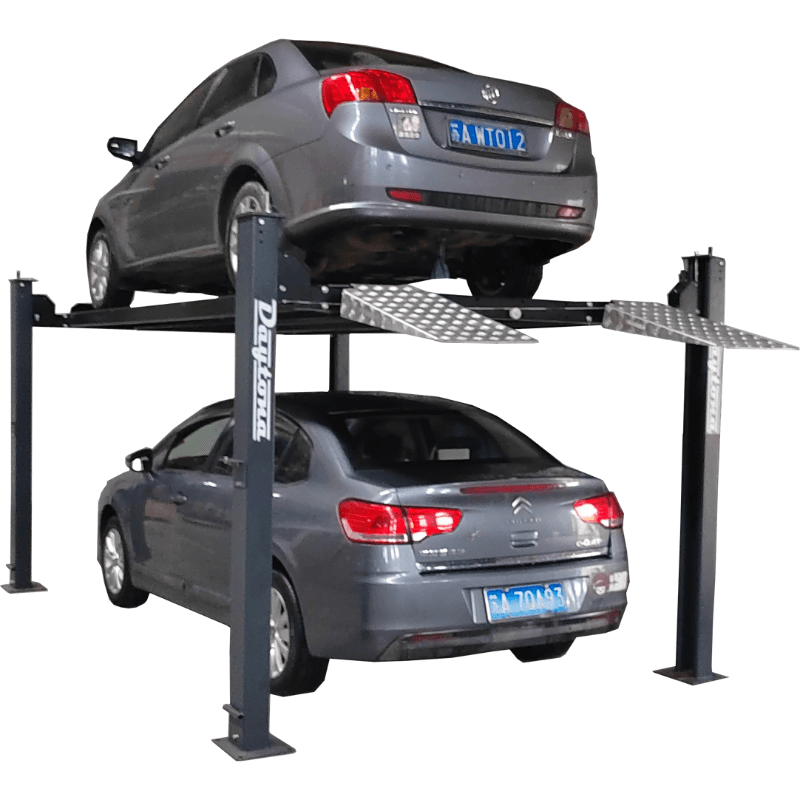

Daytona LFPP10 10,000 lb 4-Post Parking and Storage Lift
The Daytona LFPP10 steps up to 10,000 lb of capacity and a wider 122 in. frame with adjustable runways, giving cars, SUVs and light-duty trucks more room than the 9,000 lb model. It is designed for personal garages and commercial shops alike, whether the job is long-term vehicle storage or routine maintenance.
Four mechanical locking devices with primary and secondary safety locks secure the runways, while aircraft-grade cables and a 3.5 in. heavy-duty cylinder handle the lifting. The hydraulic pump can be mounted in more than one position, so you can place it where it fits your layout.
A removable aluminum approach ramp and adjustable runways make it easy to set up for different vehicles. Three plastic drip trays and a steel jack tray are included to keep the floor below clean, and the powder-coated finish is built to last.
Key Features
- Four mechanical locking devices with primary and secondary safety locks
- Removable aluminum approach ramps
- Adjustable runways
- 3.5 in. hydraulic cylinder and lifting cables
- Steel tray and three plastic drip trays included
- Optional wheel kit is sold separately
Specifications
- Capacity: 10,000 lbs
- Overall height: 98.3 in.
- Overall width: 122 in.
- Overall length, excluding ramps: 197.6 in.
- Power: 120V / 1.5 HP / 26A / 1PH / 60Hz
- Shipping dimensions: 191 x 26 x 34 in.
- Shipping weight: 2,500 lbs
- Optional wheel-kit dimensions / weight: 40 x 24 x 10 in. / 120 lbs
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
