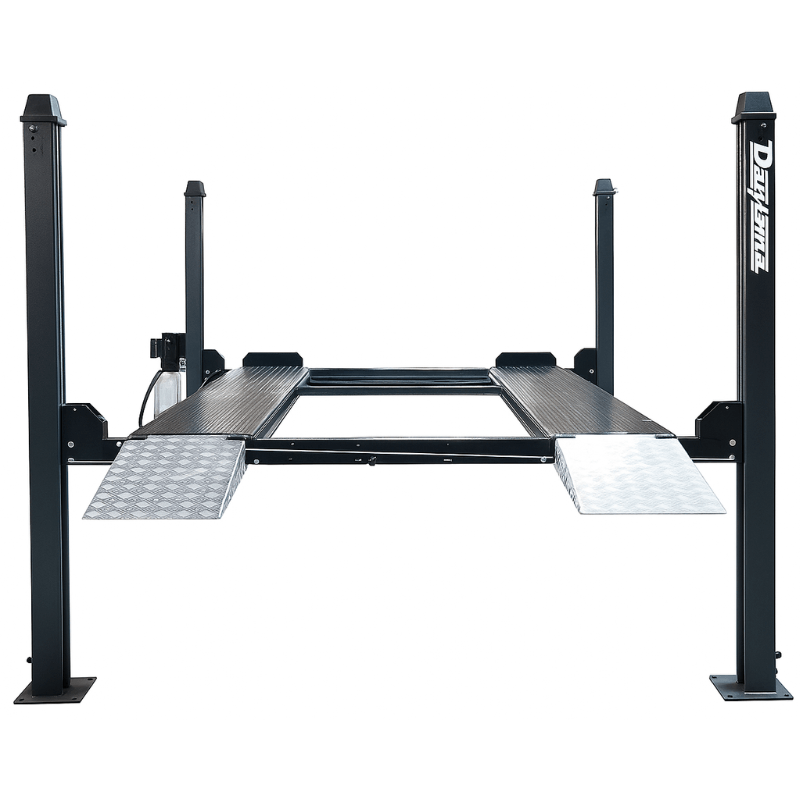

Daytona LFPP10-XLT 10,000 lb Extra Long, Extra Tall 4-Post Parking and Storage Lift
The Daytona LFPP10-XLT is the extra long, extra tall version of the 10,000 lb 4-post parking lift, built for trucks, SUVs and extended-length vehicles. It is the longest and tallest lift in the Daytona 4-post parking range, with 196.9 in. runways and up to 85 in. of maximum clearance for the vehicle parked underneath.
It works in residential garages and commercial facilities alike for stacking and storing vehicles safely. Four mechanical locking devices each include primary and secondary safety locks, and a single-point manual release frees them for lowering. Aircraft-grade cables and a large 3.5 in. hydraulic cylinder provide a smooth, consistent lift.
Loading is straightforward with removable aluminum ramps and adjustable runways, and the powder-coated finish holds up over time. The lift ships with three plastic drip trays and a steel tool tray. Optional rolling jacks and wheel kits, sold separately, add service and mobility options.
Key Features
- Four mechanical locking devices with primary and secondary safety locks
- Removable aluminum approach ramps
- Adjustable runways
- 3.5 in. hydraulic cylinder and lifting cables
- One steel tray and three plastic drip trays included
- Rolling jacks and wheel kits are sold separately
Specifications
- Capacity: 10,000 lbs
- Overall length: 245 in.
- Overall width: 122 in.
- Overall height: 105.2 in.
- Runway size: 18.6 x 196.9 in.
- Maximum clearance: 85 in.
- Power: 120V / 1.5 HP / 26A / 1PH / 60Hz
- Shipping dimensions: 207 x 22 x 33 in.
- Shipping weight: 2,700 lbs
- Optional wheel-kit dimensions / weight: 40 x 24 x 10 in. / 120 lbs
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
