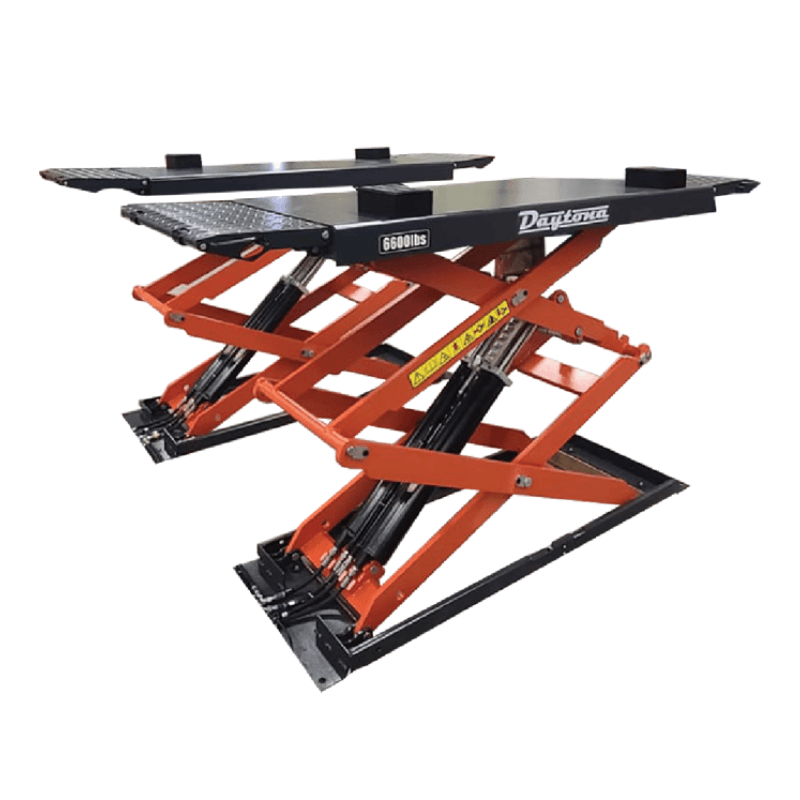

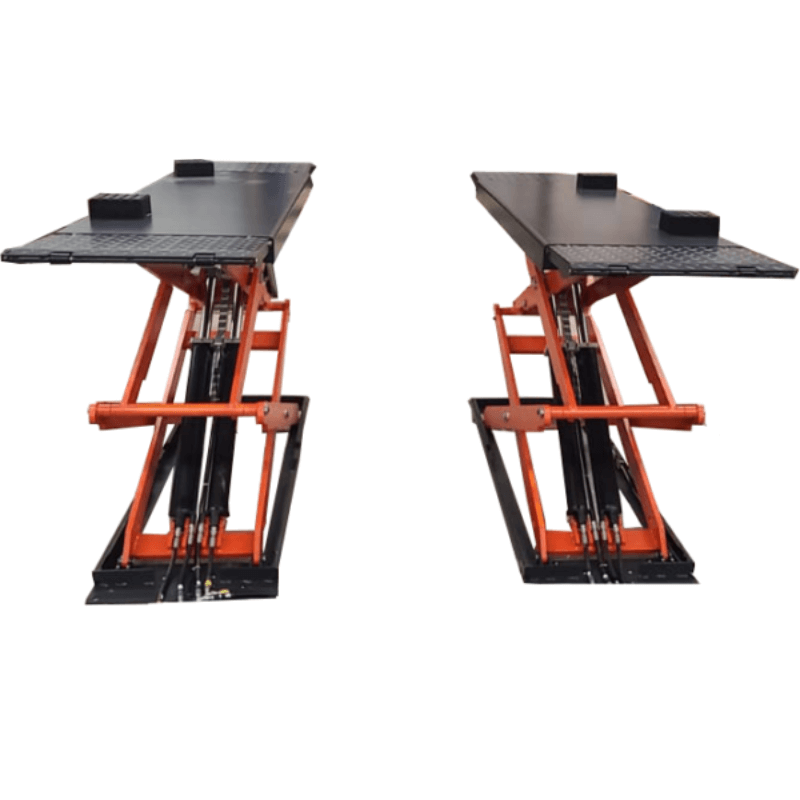

Daytona LHS7 6,600 lb High-Rise Scissor Lift with Extension Ramps
The Daytona LHS7 is a 6,600 lb high-rise scissor lift that raises a vehicle to a full 74.5 in., the highest lift in the Daytona scissor range, while using far less floor space than a post lift. It suits garages, tire shops and service bays that want full working height without columns.
Solid steel construction and a double hydraulic equalizing system keep the platforms stable and even. A pneumatic-actuated safety lock holds the lift at multiple working heights, and the powder-coated finish protects it over years of use. At just 5 in. lowered, it fits under vehicles with minimal ground clearance.
The approach ramps double as platform extensions, stretching the platforms to support a wider range of wheelbases. Lift controls and the hydraulic power unit share one integrated control station for a tidy work area. The LHS7 reaches full height in about one minute and comes with four lift blocks and a 9-foot hose to connect the power unit.
Key Features
- Dual hydraulic equalizing system
- Pneumatic-actuated safety lock
- Approach ramps double as platform extensions
- Power unit and controls integrated into the control station
Specifications
- Capacity: 6,600 lbs
- Maximum lift height: 74.5 in.
- Maximum lock height: 71 in.
- Platform size: 59 x 25 in.
- Platform length including ramps: 83 in.
- Power: 240V / 3 HP / 12A / 1PH / 60Hz
- Shipping weight: 1,700 lbs
- Lowered height: 4.5 to 5.0 in.
- Rise time: Approx. 1 minute
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
