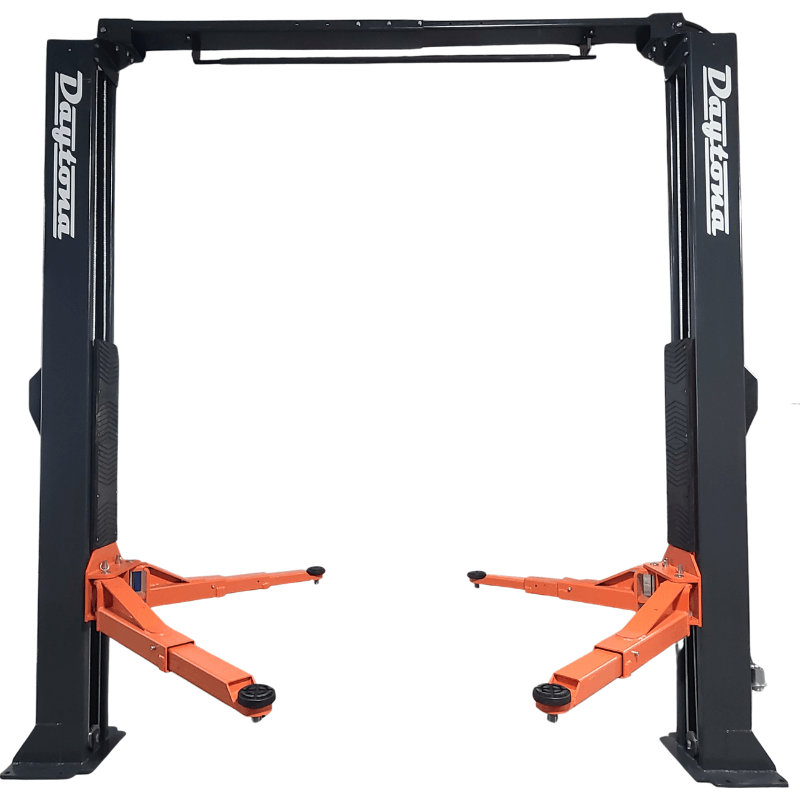

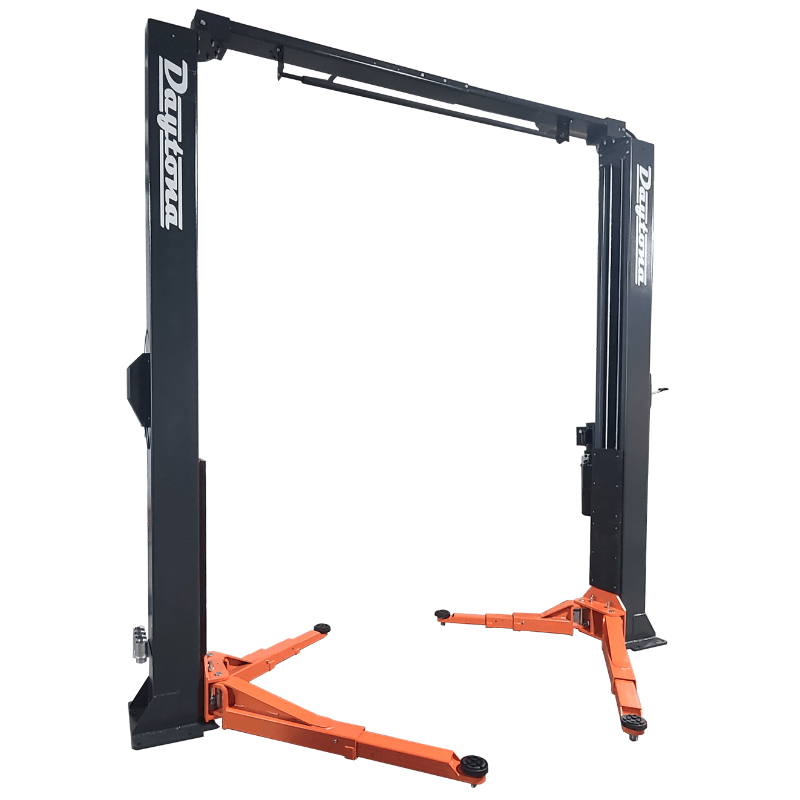

Daytona LTPA10 10,000 lb Adjustable Width Overhead 2-Post Lift
The Daytona LTPA10 is a 10,000 lb adjustable width 2-post lift for professional technicians and serious home mechanics who work on everything from compact cars to full-size trucks. Three width settings let you space the columns to suit your vehicles and your bay, and dual 6-foot direct drive cylinders with cable equalization keep both carriages rising together.
Automatic safety locks secure the vehicle at working height, with a single-point release for lowering. High polymer polyethylene slide blocks reduce wear on the moving parts, and a powder coat finish holds up to corrosion and daily shop use.

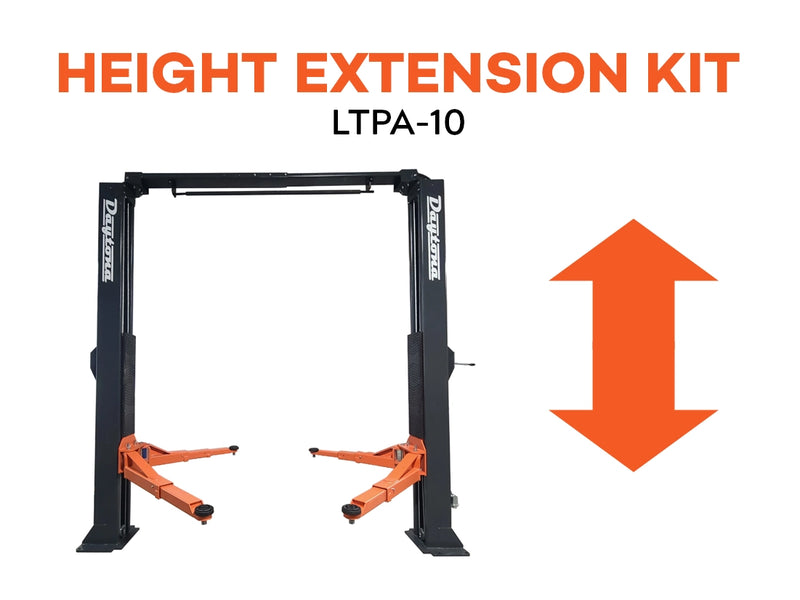

Three-stage front arms with 3-stage screw-up pads reach a wide spread of lifting points. Truck adapters are included for servicing taller vehicles. Rubber door guards and a height limit switch come standard. For shops with more ceiling height, an optional 2 ft height extension kit adds clearance.
Key Features
- Automatic safety-lock system with single-point release
- Dual direct-drive hydraulic cylinders with cable equalization
- Three-stage front arms with screw-type lifting pads
- Height-limit switch, door guards, and truck adapters included
- Optional height-extension kit is sold separately
Specifications
- Capacity: 10,000 lbs
- Drive-through width settings: 88.6 / 94.5 / 100.4 in.
- Inner width settings: 100.8 / 106.7 / 112.6 in.
- Overhead clearance: 134.2 in.
- Arm clearance: 70.9 in.
- Minimum lifting-pad height: 4.5 in.
- Power: 240V / 3 HP / 13A / 1PH / 60Hz
- Lift shipping dimensions: 145 x 30 x 26 in.
- Lift shipping weight: 1,700 lbs
- Concrete guidance: Minimum 6 in. / 4,000 PSI
- Outer width, post-base outsides: 126.8 / 132.7 / 138.6 in.
- Outer width, posts outsides: 118.9 / 124.8 / 130.7 in.
- Control box / switch height: 67.9 in.
- Post base width: 15.7 in.
- Post width: 9.1 in.
- Pump shipping dimensions / weight: 31 x 12 x 11 in. / 60 lbs
- Optional height-kit shipping dimensions / weight: 30 x 15 x 11 in. / 165 lbs
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
