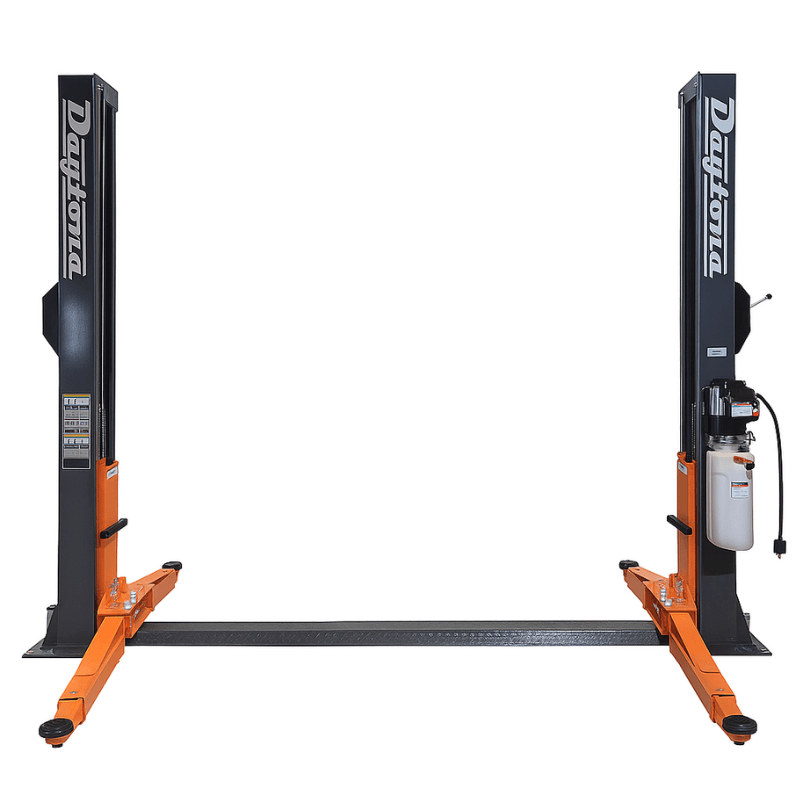

Daytona LTPF9 9,000 lb Floorplate 2-Post Lift
The Daytona LTPF9 is the 9,000 lb floorplate model in the Daytona 2-post range, sized for home garages and professional shops that work mostly on cars, light trucks and SUVs. The floorplate base runs between the columns at floor level, so nothing spans the top of the lift.
Chain-over hydraulic cylinders give a smooth, controlled rise. Automatic safety locks hold the carriages as they go up, and a single-point release frees both sides at once when you are ready to lower. High polymer polyethylene slide blocks resist wear, which keeps maintenance down over the life of the lift.
Three-stage front arms and screw-up pads make it simple to line up with each vehicle's lift points, and truck adapters come standard. A height limit switch, rubber door guards and a powder-coated finish add day-to-day safety and durability.
Key Features
- Automatic safety-lock system with single-point release
- Chain-over hydraulic cylinders
- Three-stage front arms with screw-type lifting pads
- Truck adapters, door guards, and height-limit protection included
Specifications
- Capacity: 9,000 lbs
- Overall width: 131.2 in.
- Drive-through width: 98.9 in.
- Inside width between columns: 110.5 in.
- Lifting-height range: 4.5 to 74.8 in.
- Power: 240V / 3 HP / 13A / 1PH / 60Hz
- Lift shipping dimensions: 114 x 18 x 30 in.
- Lift shipping weight: 1,300 lbs
- Concrete guidance: 4 to 6 in. / 3,000 to 4,000 PSI per Daytona product guidance
- Pump shipping dimensions / weight: 31 x 12 x 11 in. / 60 lbs
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
