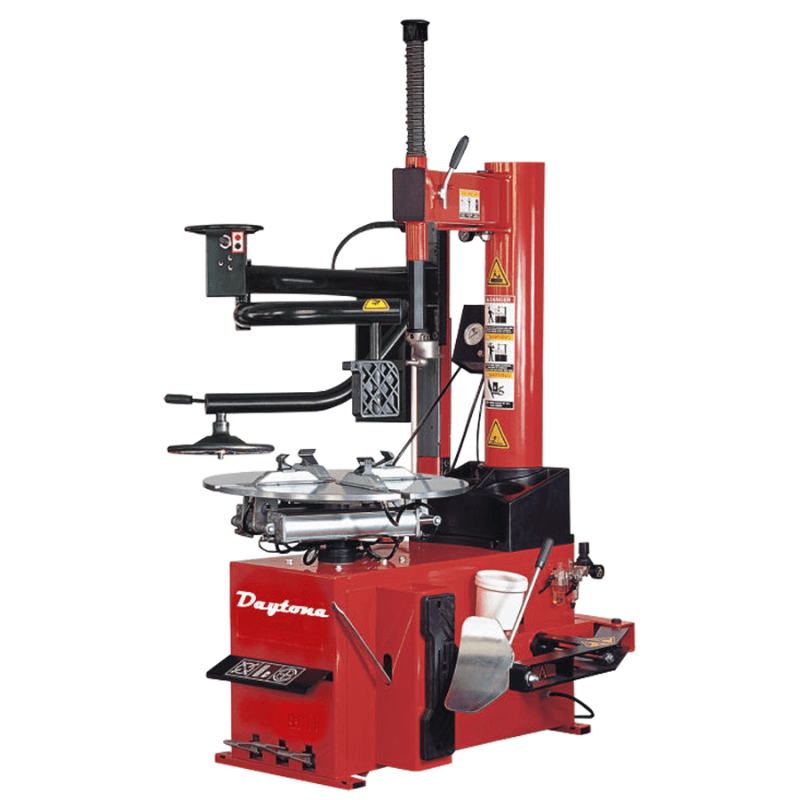

Daytona TC-890 Mid-Size Tire Changer with Air Bead Press for Low-Profile Tires
The Daytona TC-890 is the mid-size model in the Daytona tire changer range, built for busy auto shops and professional garages that see stiff, wide and low-profile tires every day. It handles tires up to 40 in. in diameter and 15 in. wide.
An air-operated bead lifting and pressing system works with the self-centering turntable to make mounting and demounting quicker and easier on tough tires. An oversized air blaster seats beads fast, an adjustable inflation device gives precise air control, and rubber rim clamp shoes help protect chrome wheels.
Air preparation is built in, with an integrated lubricator, water trap and air regulator, plus a soap reservoir at the machine. Clamping ranges of 13 to 26 in. inside and 13 to 28 in. outside cover most standard vehicle wheels.
Key Features
- Self-centering turntable with four clamping jaws
- Integrated bead breaker and oversized bead-seating air blaster
- Designed for stiff, wide, and low-profile tires
- Air preparation system included
Specifications
- Inside clamping range: 13 to 26 in.
- Outside clamping range: 13 to 28 in.
- Maximum tire diameter: 40 in.
- Maximum tire width: 15 in.
- Power: 120V / 1.5 HP / 20A / 1PH / 60Hz
- Required air supply: 120 to 145 PSI
- Machine footprint: 82 x 48 x 76 in.
- Main-body shipping dimensions / weight: 48 x 38 x 43 in. / 700 lbs
- Arm shipping dimensions / weight: 51 x 22 x 18 in. / 250 lbs
- Bead breaker force: 2.75 tons / 2,500 kg
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
