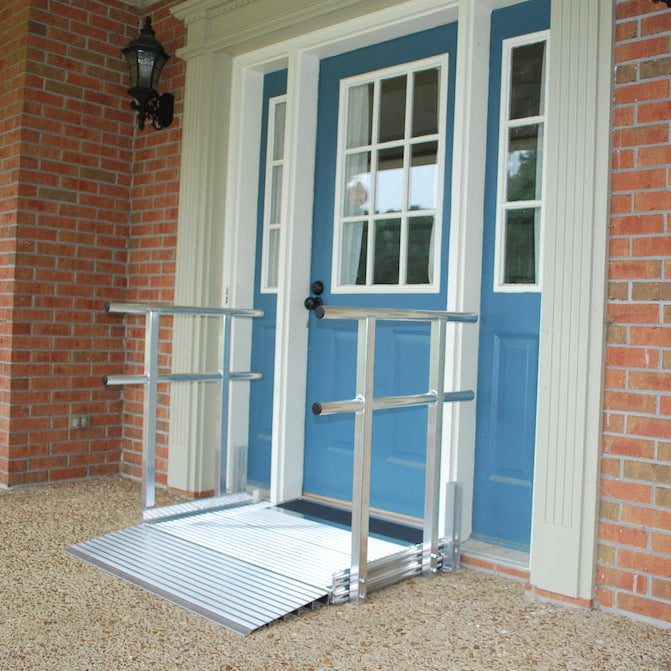

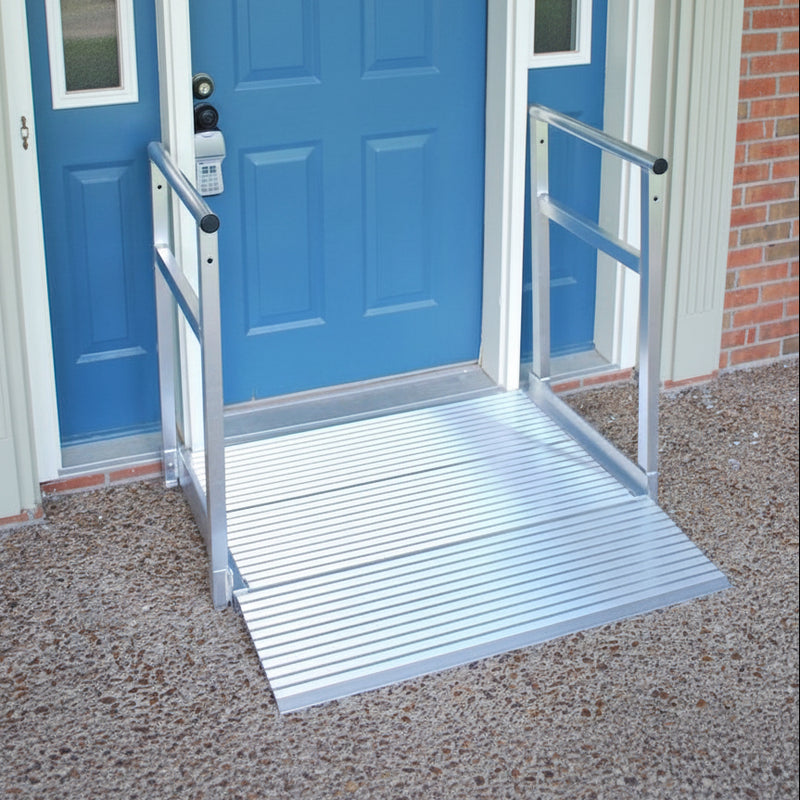

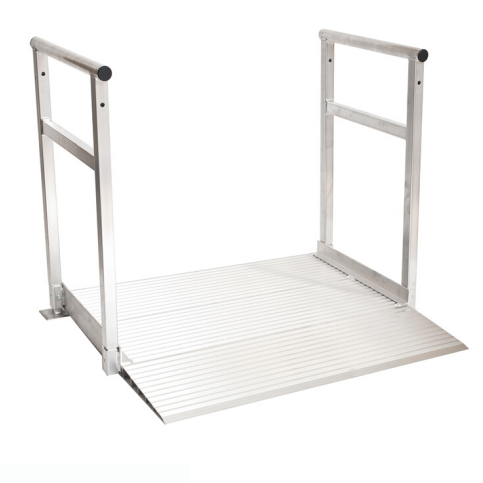

Big Lug Aluminum Modular Ramp 3'–6' | Includes Handrails | American Access

The American Access Big Lug is a modular aluminum ramp built for doorway thresholds, small curbs, and raised landings where width and stability matter most. With a full 42" wide deck and optional handrails, the Big Lug accommodates wheelchairs, walkers, and unsteady foot traffic alongside storm doors, screen doors, and patio doors. Available in lengths from 3' to 6', this ramp combines an 800 lb weight capacity with a fully adjustable modular design that assembles on site.

Key features

• Four length options: 3', 4', 5', and 6'
• 42" inside deck width (45" overall)
• 800 lb weight capacity
• Modular, fully adjustable design
• Durable aluminum construction
• Stainless steel hardware
• Non-skid surface for traction in wet and dry conditions
• Manufactured in Jackson, TN, USA by American Access
• 3-year manufacturer warranty

Full 42" width for stability

The Big Lug is engineered to provide a wide, stable path of travel in front of doorways and across small curbs. The 42" interior deck gives wheelchairs, scooters, and walkers ample clearance, and the matching 42" width works well in front of storm doors, screen doors, and patio doors. When handrails are added, the spacing between them is designed to maintain wheelchair and walker clearance without crowding the path.

Handrails for added security

The ramp comes with handrails to provide added support for users who need a little extra stability transitioning through a doorway. The handrails stand 34" tall and run the full length of the ramp on both sides, anchored with stainless steel hardware.

Modular installation

The Big Lug ships as a modular kit that assembles on site with a basic socket wrench. Channel-slot stringers let you slide handrail and leg bolts into position before tightening. Most installations take a single person under an hour. The included transition tread bridges the ramp surface to the threshold for a smooth roll-over.

Durable aluminum construction

Manufactured from high-grade aluminum with stainless steel hardware throughout, the Big Lug is built for everyday outdoor use. Unlike wood ramps, the aluminum won't rot, warp, or splinter, and unlike steel ramps, it won't rust. The non-skid deck surface is part of the aluminum extrusion itself, so it won't peel, wear off, or need refinishing.

Common applications

• Residential front doors, back doors, and patio thresholds
• Storm doors and screen door entries
• Sliding glass doors
• Small curbs and step-downs
• Raised landings and concrete pads
• Mobile home entries
• Commercial doorways requiring ADA-compliant access transitions
• Garage and shed entrances

What's included

• Aluminum ramp deck with slotted stringers
• 8" U-leg supports
• 9.5" × 34" transition plate
• Stainless steel carriage bolts, flange nuts, and TEK screws
• Round end caps for handrails
• Installation guide

Warranty

3-Year Limited Warranty

This is covered by American Access, Inc.'s 3-year limited manufacturer warranty. As an authorized dealer, we facilitate warranty claims between you and the manufacturer.

Coverage Period

3 years from the date of original purchase.

What Is Covered

American Access warrants that this equipment will be free from defects in material and workmanship under normal use and service. This limited warranty applies to defective metal structural components only.

What Is Not Covered

• Powder-coated finish

• Normal wear, tear, and deterioration

• Damage from misuse, vandalism, negligence, alteration, or accident

• Damage from improper loads or improper installation

• Equipment repaired outside of the manufacturer's place of business

• Corrosion or damage caused by rain, fire, earthquake, or other natural causes or acts of nature

Who Is Covered

This limited warranty applies to the original purchaser only and is non-transferable.

How to File a Claim

• Locate your serial number on the Hero Starter Plank (Part #HSP)

• Register your warranty at www.americanaccess.com
• To submit a claim, contact American Access directly
