AMGO 408-P 4 Post Parking Lift | 8,000 lb | Deluxe

by AMGO Authorized Dealer SKU: 408-P-110v
$3,335.00 - $3,335.00
$3,335.00
$3,335.00 - $3,335.00
$3,335.00
Availability:
in stock
Availability:
in stock

Product Highlights

  • 8,000 lb with a wider entrance and longer platforms than the 407-P
  • Anchor bolts supplied, and AMGO recommends them for service use
  • Moves on the optional 40801 caster kit instead of being relocated
Choose a Voltage
BrochureInstruction Manual

Delivery Options

Questions about delivery or pickup? Call or text (916) 249-7214

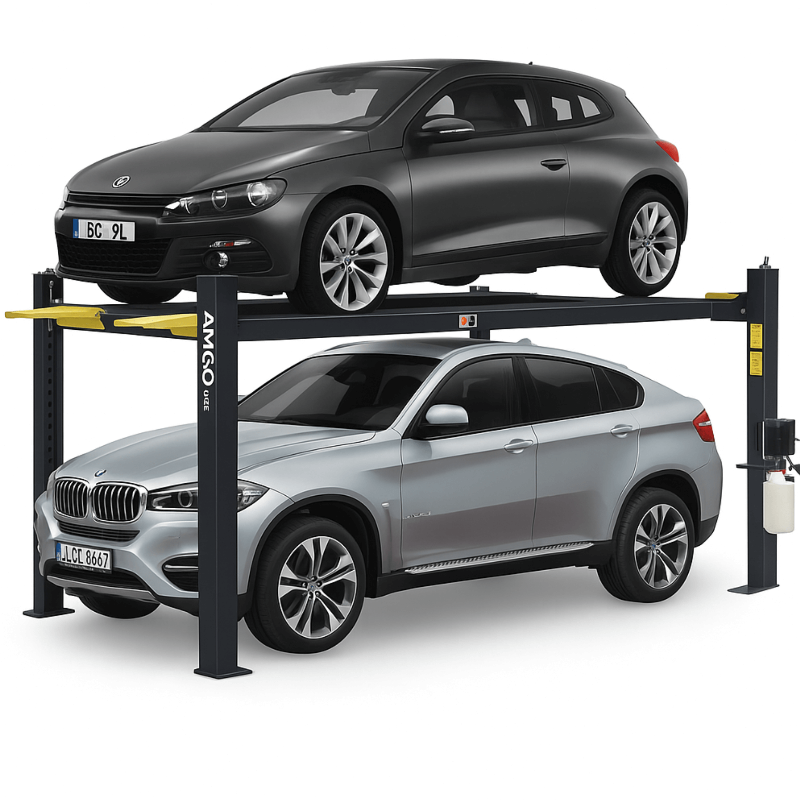

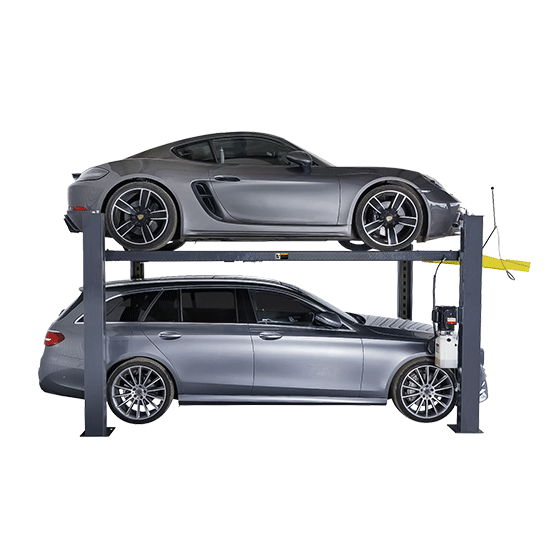

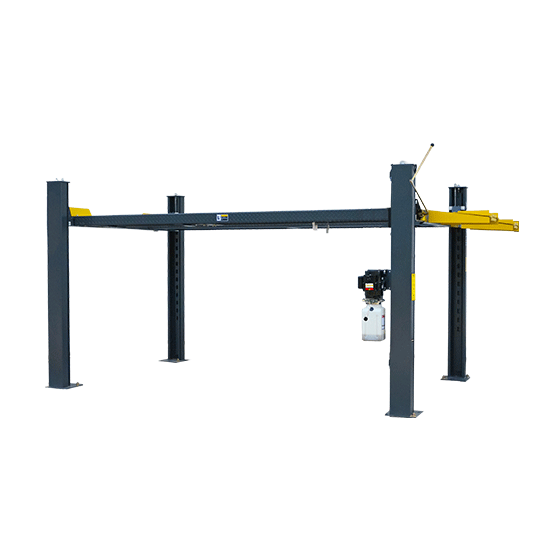

AMGO 408-P 4 Post Parking Lift

The AMGO 408-P is a deluxe four post parking lift rated at 8,000 lb, with a wider entrance and longer platforms than the 407-P. Anchor bolts are supplied with the lift, and AMGO recommends using them wherever the lift will be used for maintenance or service work. Where the lift is not anchored, AMGO's manual requires each column to be plumb and the floor to be level before anything is raised.

Dual hydraulic direct-drive cylinders raise the platforms on aero standard cables, taking about 114 seconds for a full raise. Double-shaped columns carry the load, the runways are non-slip with foldable drive-in ramps, and the power side column installs at any corner. Two lifts can go in back to back. Paired with the optional caster kit the whole lift can be repositioned rather than relocated.

AMGO's patented concealed safety lock control device with a manual single-point lock release handles the locking, with double safety locks behind it. The AMGO power unit is ETL certified and runs on a 1.0 HP motor.

408-P Features

  • 8,000 lb lifting capacity
  • Deluxe four post design with wider entrance and longer platforms
  • Anchor bolts supplied, recommended by AMGO for maintenance and service use
  • 114 second lifting time
  • Dual hydraulic direct-drive cylinders
  • AMGO patented concealed safety lock control with manual single-point release
  • Double safety locks
  • Aero standard cables included
  • Double-shaped columns for added strength
  • Non-slip runways with foldable drive-in ramps
  • Power side column installable at any corner
  • Supports back-to-back installation
  • ETL certified AMGO power unit, 1.0 HP

Safety

Once the lift is raised it has to be lowered onto its safety locks before anyone works on or near the vehicle. Working under a lift that is held on hydraulics alone risks the vehicle coming down.

Optional Accessories (sold separately)

  • RJ-5H sliding jack with hand pump, 5,000 lb
  • 40801 caster kit
  • 40802 90 degree motor mounting plate
  • 40806 plastic oil tray
  • 40810 motor protective cover with emergency stop
  • 40811 rubber wheel chock
  • 40812 storage wave panels
Warranty

Backed by AMGO's 5-3-2 Warranty

Every AMGO lift ships with an owner's manual that walks through installation step by step, sets out the maintenance schedule and covers troubleshooting, along with AMGO's official warranty card, so the lift goes in correctly, runs predictably day to day and stays safe under load.

AMGO Hydraulic Corporation backs its equipment with the 5-3-2 warranty:

  • Steel structural components: 5 years
  • Hydraulic parts: 3 years
  • Other parts, including electrical components and the power unit: 2 years

Specifications

AMGO 408-P 4 Post Parking Lift | 8,000 lb | Deluxe dimensions diagram
Model 408-P
Lifting Capacity 8,000 lbs
Lifting Time 114s
Overall Length (Inc Ramps) A 208 1/16"
Outside Edge of Crossbeams B 167 5/8"
Overall Width C 102 1/2"
Width Between Posts D 92 13/16"
Max. Lifting Height E 73 11/16"
Max. Lock Height E 70 15/16"
Overall Height F 82 7/8"
Minimum Height G 5 11/16"
Max. Underneath Height H 69"
Max. Underneath Lock Height H 66 1/4"
Drive-Thru Clearance I 81 5/8"
Width Between Runways J 37"
Outside Edge of Runways K 74 7/16"
Gross Weight 1,563 lbs
Motor 1.0HP,110V/60Hz

Feature images

AMGO's patented design: concealed safety lock control with a manual single-point release.
AMGO's patented design: concealed safety lock control with a manual single-point release.
Support back-to- back installation to save space.
Support back-to- back installation to save space.
Double safety locks provide additional safety.
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
90° motor installing plate. P/N: 40802
Optional caster kits help easily move the parking lift. One set (4 pcs). Kits no: 40801.
Optional caster kits help easily move the parking lift. One set (4 pcs). Kits no: 40801.
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N.: 40815, each lift needs 2 units.
Optional extended aluminum drive-in ramp. P/N.: 40815, each lift needs 2 units.
Optional adjustable Jack Tray (adj. range: 36 1/4"-46 1/2"). Kits no.40816.
Optional adjustable Jack Tray (adj. range: 36 1/4"-46 1/2"). Kits no.40816.
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional storage wave panels Kits No.: 40812.
Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.

Shipping information

Single unit packing dimensions (LxWxH): 167 3/4" x 20 1/2" x 29 5/16". Packed with Power Unit.
Single unit packing dimensions (LxWxH): 167 3/4" x 20 1/2" x 29 5/16". Packed with Power Unit.
Packaging dimensions (3 units) (LxWxH) : 167 3/4" x 20 1/2" x 87 3/8"
Packaging dimensions (3 units) (LxWxH) : 167 3/4" x 20 1/2" x 87 3/8"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
