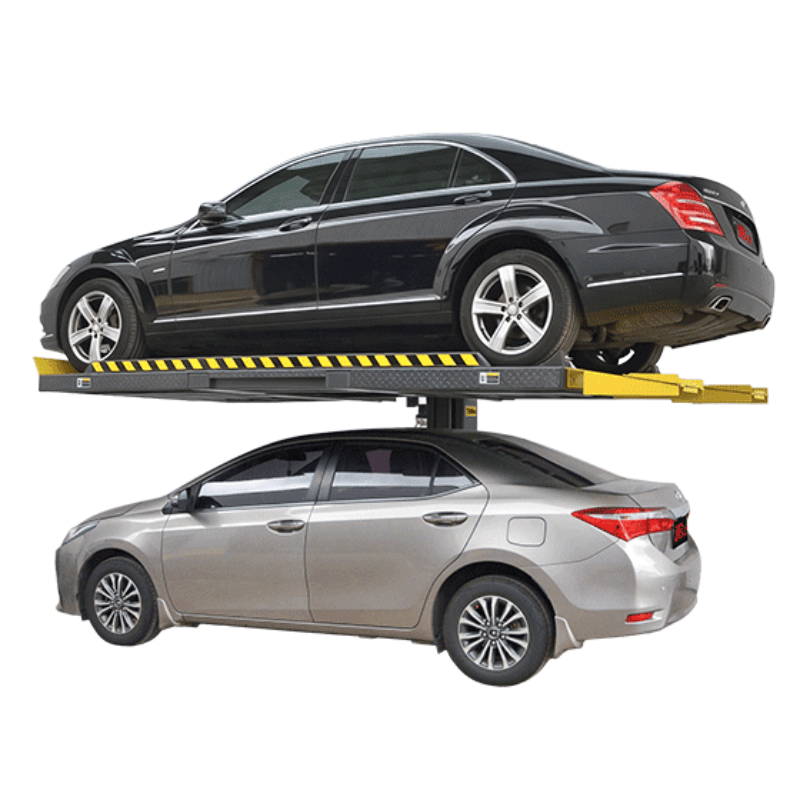

Amgo SPL-7 7,000lbs Capacity Single Post Parking Lift Side View with one car at the top and one car under

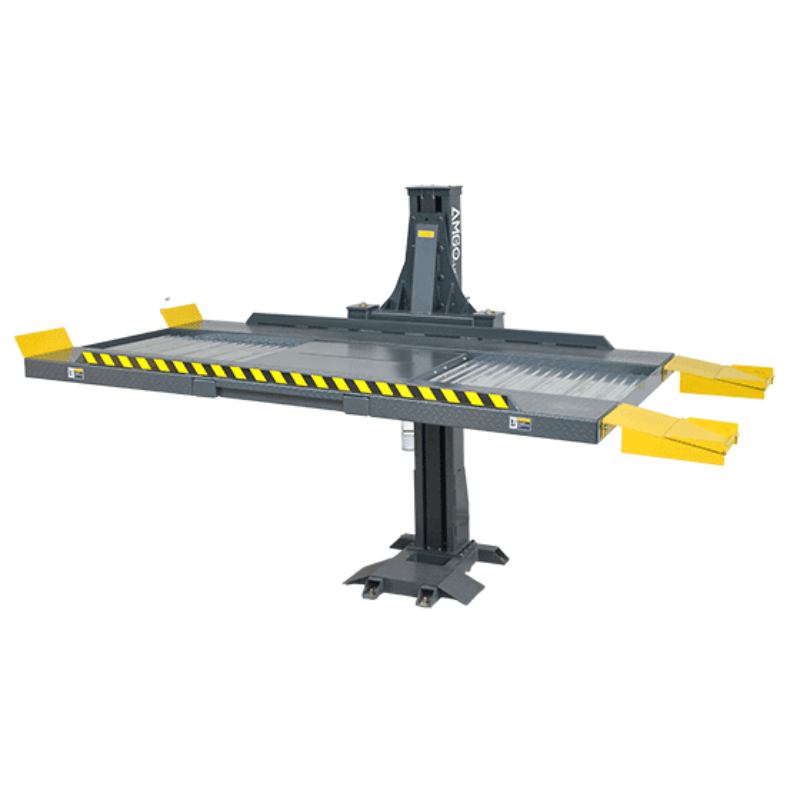

SPL-7 7,000lbs Capacity Single Post Parking Lift Side View without a car

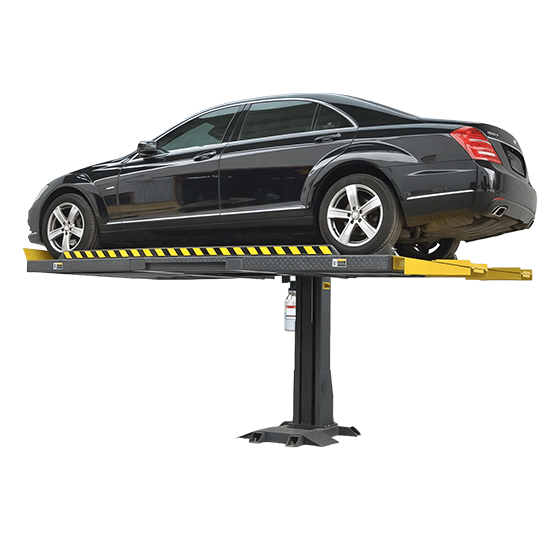

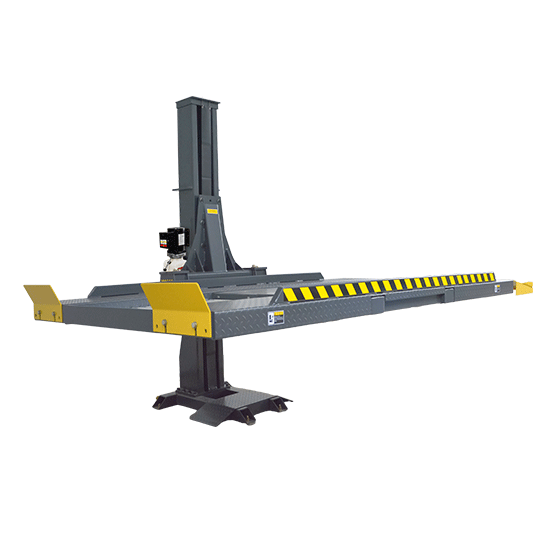

AMGO SPL-7 Single Post Parking Lift | 7,000 lb | Fits 110 in Ceilings
AMGO SPL-7 Single Post Parking Lift | 7,000 lb | Fits 110 in Ceilings
Amgo SPL-7 7,000lbs Capacity Single Post Parking Lift Side View with one car at the top and one car under
SPL-7 7,000lbs Capacity Single Post Parking Lift Side View without a car

AMGO SPL-7 Single Post Parking Lift | 7,000 lb | Fits 110 in Ceilings

by AMGO Authorized Dealer SKU: SPL-7
$4,500.00 - $4,500.00
$4,500.00
$4,500.00 - $4,500.00
$4,500.00
Availability:
in stock

Product Highlights

  • Fits ceilings as low as 110 in, low enough for a home garage
  • A single column instead of four, for garages short on floor space
  • Storage wave panels and rubber wheel chocks included as standard
BrochureInstruction Manual

Delivery Options

Questions about delivery or pickup? Call or text (916) 249-7214

AMGO SPL-7 Single Post Parking Lift

The AMGO SPL-7 is a single post parking lift rated at 7,000 lb, built for storing a vehicle above another where there is neither the floor space for a four post lift nor the ceiling height most parking lifts need. It fits ceilings as low as 110 in, which is what puts it into ordinary residential garages.

A single column means the lift takes up a fraction of the floor a four post lift needs, and the interchangeable H-shaped non-slip platforms can be arranged to suit the vehicle. Foldable drive-on ramps and a guide ramp come standard, so drive-under access is straightforward.

Dual safety devices with a single-point release lock handle the safety side, and no external air source is needed to operate them. Storage wave panels and rubber wheel chocks are included rather than sold separately, and a durable fabric chain cover protects the cylinder and tidies the appearance.

The power unit runs on a 1.0 HP motor.

SPL-7 Features

  • 7,000 lb lifting capacity
  • Fits ceilings as low as 110 in
  • Compact single post design
  • Commercial-grade reinforced steel construction
  • Dual safety devices with single-point release lock
  • No external air source required
  • Interchangeable H-shaped non-slip platforms
  • Foldable drive-on ramps included, two per lift
  • Guide ramp included for drive-under access
  • Storage wave panels included as standard
  • Rubber wheel chocks included as standard
  • Durable fabric chain cover protecting the cylinder
  • 1.0 HP power unit

Optional Accessories (sold separately)

  • 40807 plastic oil tray
Warranty

Backed by AMGO's 5-3-2 Warranty

Every AMGO lift ships with an owner's manual that walks through installation step by step, sets out the maintenance schedule and covers troubleshooting, along with AMGO's official warranty card, so the lift goes in correctly, runs predictably day to day and stays safe under load.

AMGO Hydraulic Corporation backs its equipment with the 5-3-2 warranty:

  • Steel structural components: 5 years
  • Hydraulic parts: 3 years
  • Other parts, including electrical components and the power unit: 2 years

Specifications

AMGO SPL-7 Single Post Parking Lift | 7,000 lb | Fits 110 in Ceilings dimensions diagram
Model SPL-7
Lifting Capacity 7,000 lbs
Lifting Time 84s
Overall Height A 109 7/16"
Max. Lifting Height B 74"
Max. Lock Height B 70 3/16"
Max. Underneath Height C 69 5/16"
Max. Underneath Lock Height C 65 1/2"
Minimum Height D 6 1/8"
Overall Width E 111"
Width Between Runways F 42 3/8"
Overall Length G 192 1/8"
Drive-Thru Clearance H 79 1/4"
Gross Weight 3,241 lbs
Motor 1.0HP,110V/60Hz

Feature images

Dual safety devices with a single-point release lock, no air source needed.
Dual safety devices with a single-point release lock, no air source needed.
Foldable drive-on ramps come standard (each lift 2 units). P/N: 1104533025C-01
Foldable drive-on ramps come standard (each lift 2 units). P/N: 1104533025C-01
A durable fabric chain cover protects the cylinder and provides a clean appearance.
A durable fabric chain cover protects the cylinder and provides a clean appearance.
Storage wave panels come standard.
Storage wave panels come standard.
Rubber wheel chocks come standard. P/N: 40811
Rubber wheel chocks come standard. P/N: 40811
Optional aluminum alloy drive-in ramp (1pc), P/N: 40815
Optional aluminum alloy drive-in ramp (1pc), P/N: 40815

Shipping information

Carriage connecting component and base, 4 units as a package, packing dimension (LxWxH): 49 5/8" x 41 5/16" x 57 15/16"
Carriage connecting component and base, 4 units as a package, packing dimension (LxWxH): 49 5/8" x 41 5/16" x 57 15/16"
Column, platform, guide ramp and storage wave panels. 2 units as a package, packing dimension (LxWxH): 156 11/16" x 21 1/4" x 66 1/8". (Packed with Power unit)
Column, platform, guide ramp and storage wave panels. 2 units as a package, packing dimension (LxWxH): 156 11/16" x 21 1/4" x 66 1/8". (Packed with Power unit)
