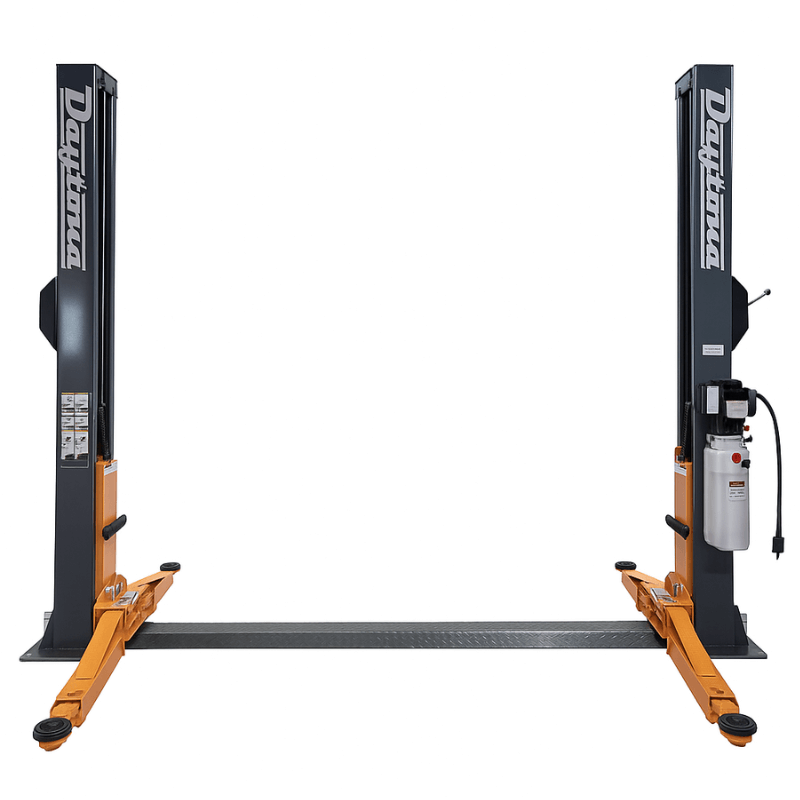

Daytona LTPF12 12,000 lb Floorplate 2-Post Lift
The Daytona LTPF12 is a 12,000 lb floorplate 2-post lift for repair shops and service centers that handle a steady mix of cars, trucks and SUVs. At 114 in. overall, it has the shortest overall height in the Daytona 2-post range, which makes it a practical fit for bays where the ceiling rules out a taller model.
Dual hydraulic cylinders work with a chain drive system to raise the load smoothly and evenly. Automatic safety locks hold the carriages in place during service, and a single-point release disengages them for lowering. High polymer polyethylene slide blocks keep wear low and extend the life of the lift.
Screw-up pads and standard truck adapters reach lift points on everything from passenger cars to pickups, while rubber door guards protect vehicle doors as you work. A height limit switch stops the carriages before they over-travel, and the powder-coated finish helps the lift resist corrosion.
Key Features
- Automatic safety-lock system with single-point release
- Dual chain-drive hydraulic cylinders
- Three-stage front arms with screw-type lifting pads
- Truck adapters included
- Powder-coated finish
Specifications
- Capacity: 12,000 lbs

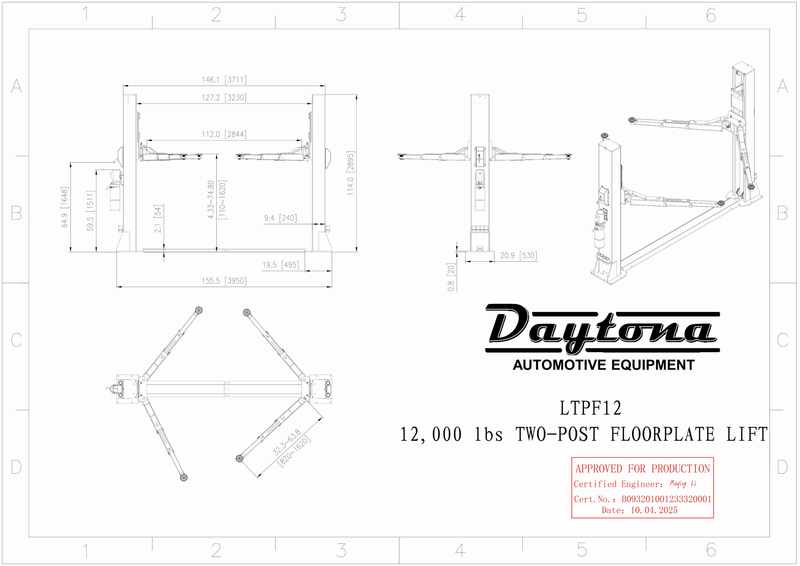

- Overall height: 114 in.
- Lifting-height range: 4.33 to 74.8 in.
- Power: 240V / 3 HP / 13A / 1PH / 60Hz
- Lift shipping dimensions: 116 x 22 x 39 in.
- Lift shipping weight: 2,200 lbs
Warranty
Daytona 5-2-1 Limited Warranty
Daytona equipment is covered by the Daytona 5-2-1 Limited Warranty against defects in material and workmanship. Coverage starts on the date of your purchase invoice and applies to the original owner.
- 5 years: structural components
- 2 years: power units, cylinders and seal kits
- 1 year: all other defective parts, minus the exclusions below
Daytona replaces parts that prove defective on inspection and pays the freight to ship covered replacement parts to you anywhere in Canada and the continental US.
How to Make a Claim
Contact Select Ramps with a copy of your purchase invoice and the serial number of your equipment. We submit the claim to the Daytona warranty department, which may ask for photos or video of the problem. Stop using the equipment while the claim is under review, because continued use during a warranty investigation voids coverage.
What Is Not Covered
- Wear parts, including cables, hoses, slider blocks, chains and rubber pads
- Parts and labor for normal maintenance such as cable adjustment and lubrication, plus on-site labor and service call fees
- Damage from improper installation, storage, operation or lifting, overloading, abuse, or poor maintenance, including missed annual safety inspections
- Equipment installed or used outdoors, modified from its original design, or improperly repaired
- Damage from flood, fire, corrosion or other acts of God, and cosmetic defects such as paint scratches that do not affect function
All Daytona equipment is designed for indoor installation and use only. Follow the installation, operation and maintenance instructions in the equipment manual to keep your coverage in effect. The warranty is not transferable, and Daytona makes the final decision on all warranty claims.
