HD Ramps Aluminum Heavy Equipment Ramps | 7,000-12,000 lb per Axle | Hook End | 7 ft 6 in - 14 ft L x 14-16 in W | Sold in Pairs

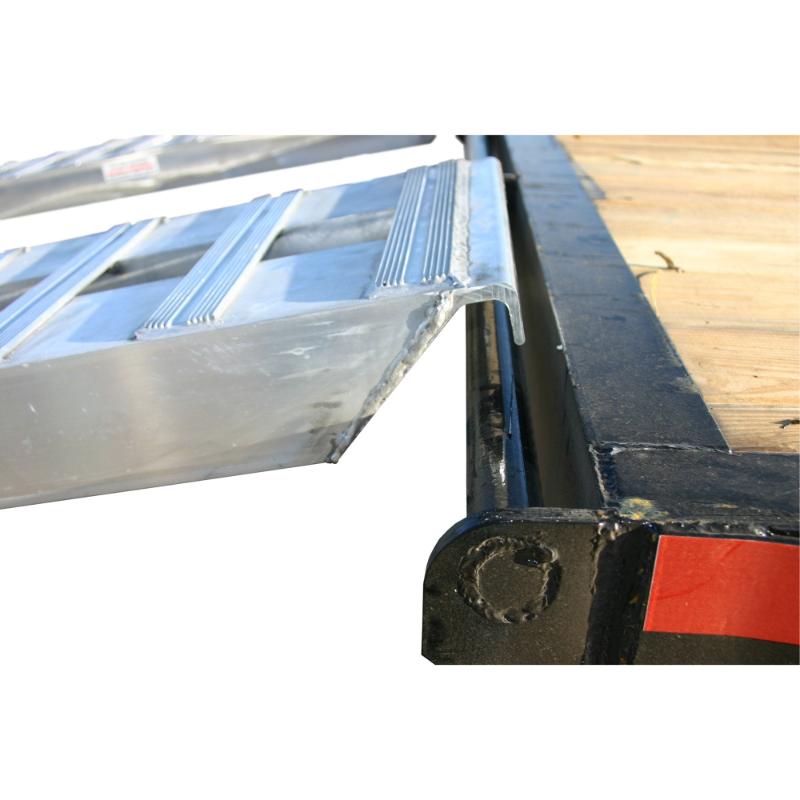

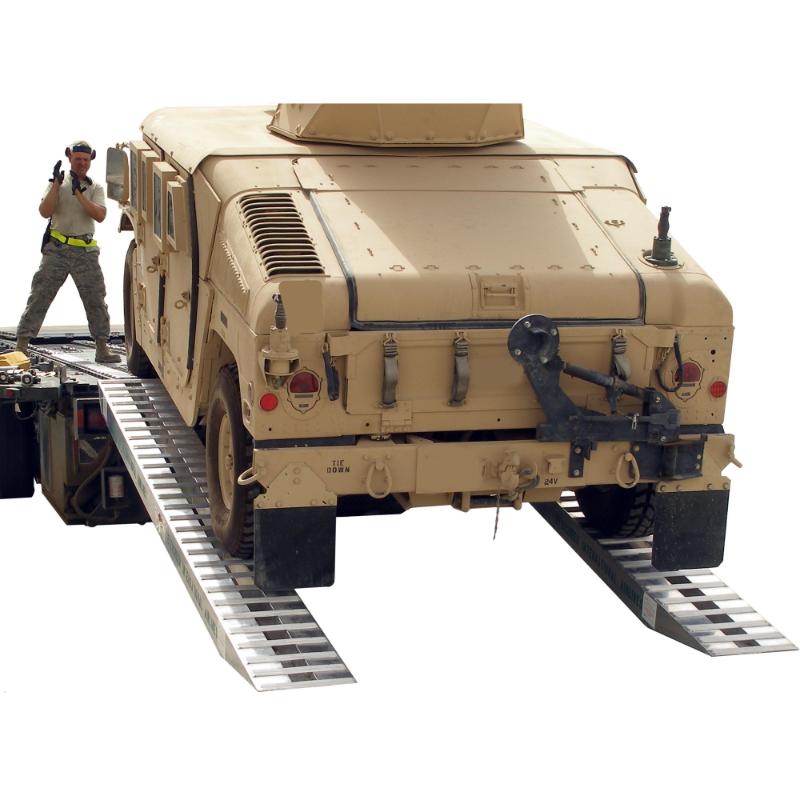

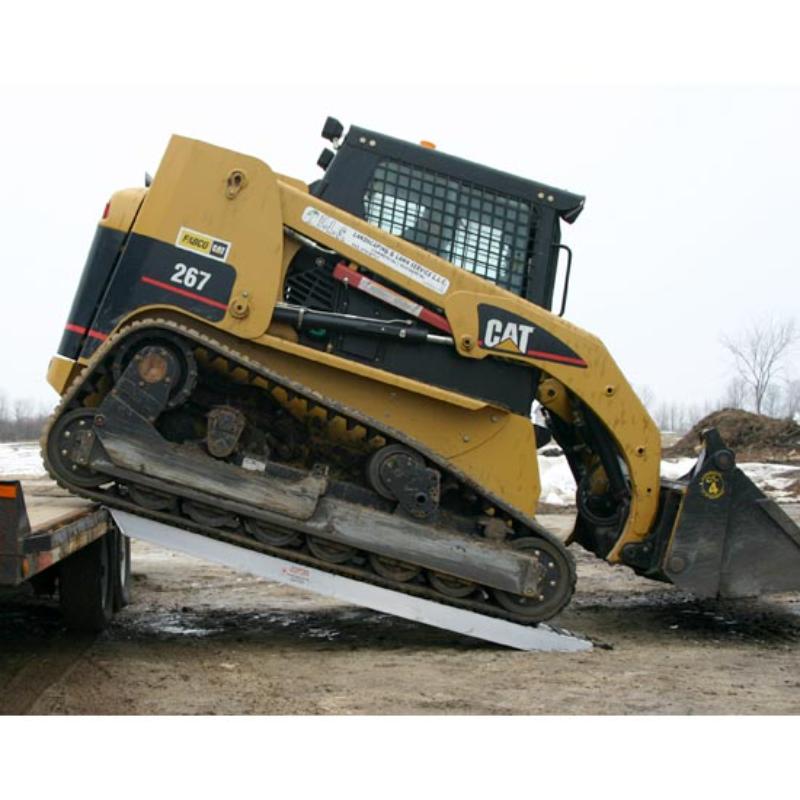

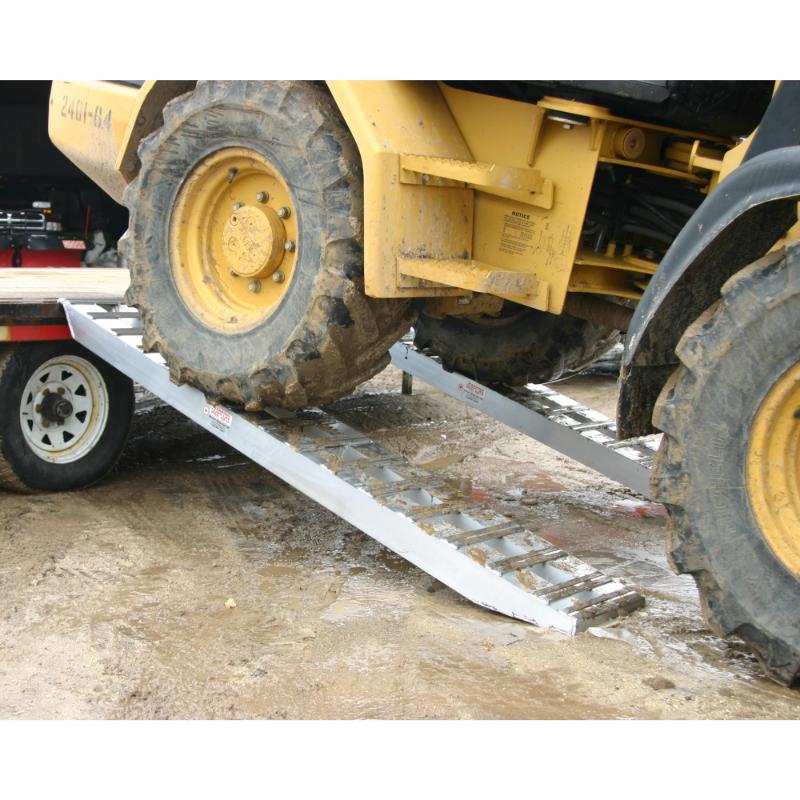

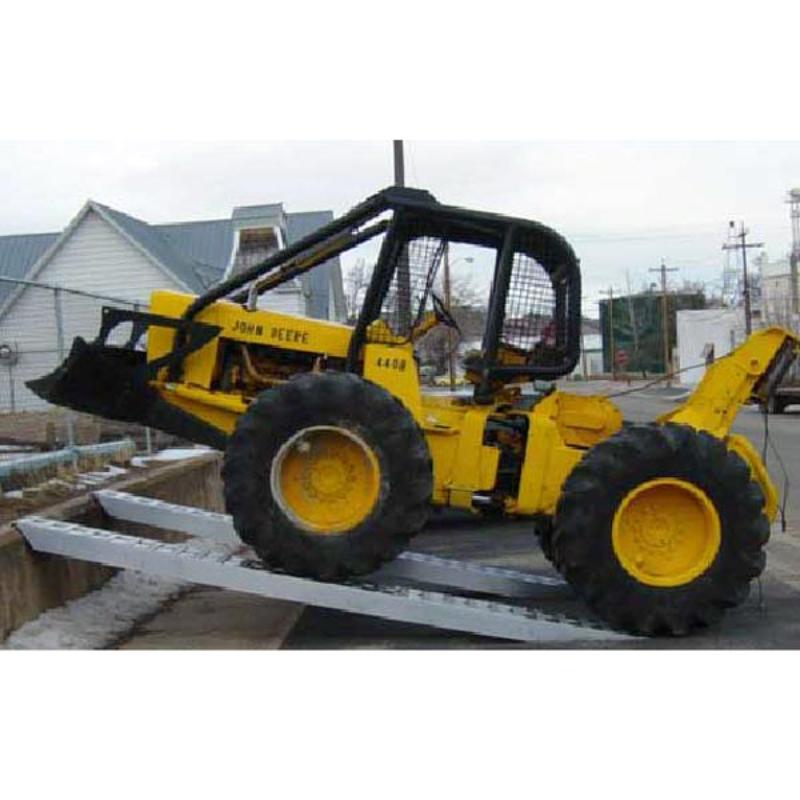

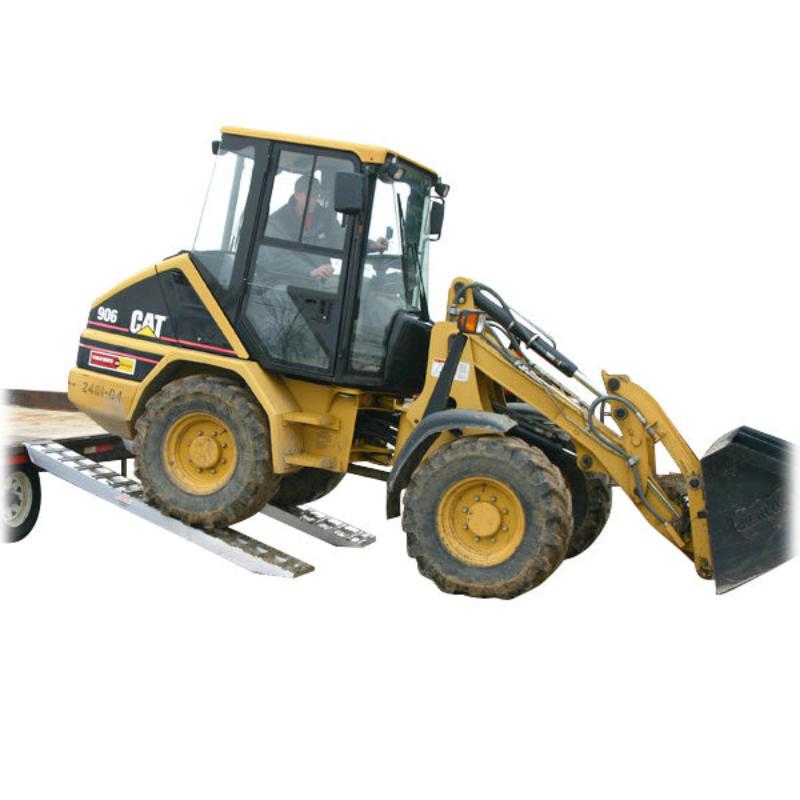

These aluminum heavy equipment ramps use a hook attaching end that drops over the trailer's angle iron or rub rail — no brackets, no hardware, no bolt-up — and come in four capacity and size combinations from 7,000 lb to 12,000 lb per axle. That range covers everything from loading a car or light equipment onto a utility trailer up to putting a loaded skid steer on a tandem-axle deck. Every version uses a serrated rung surface for traction in rain, snow, and mud.

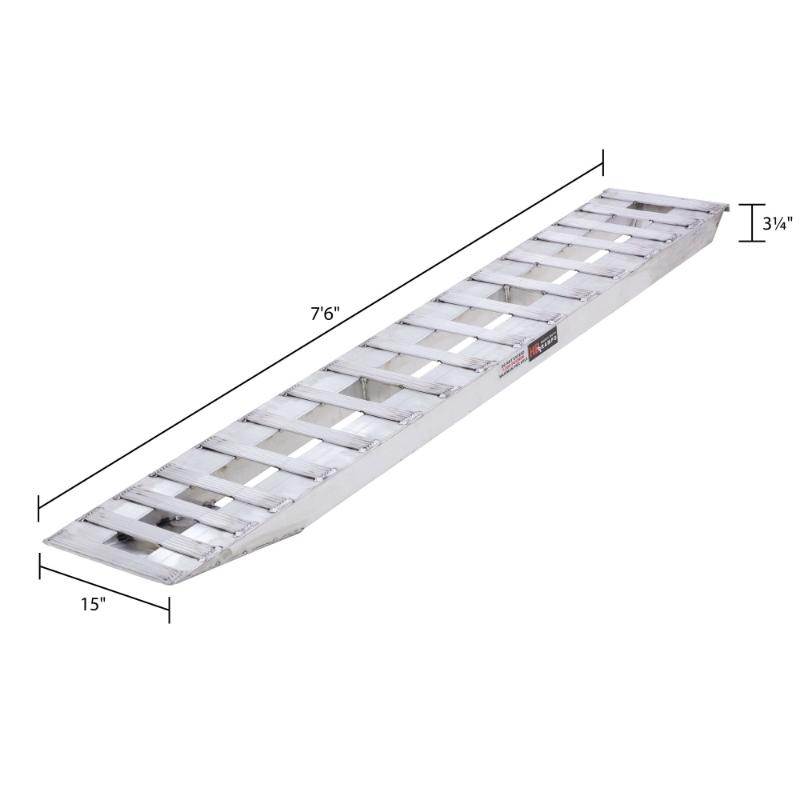

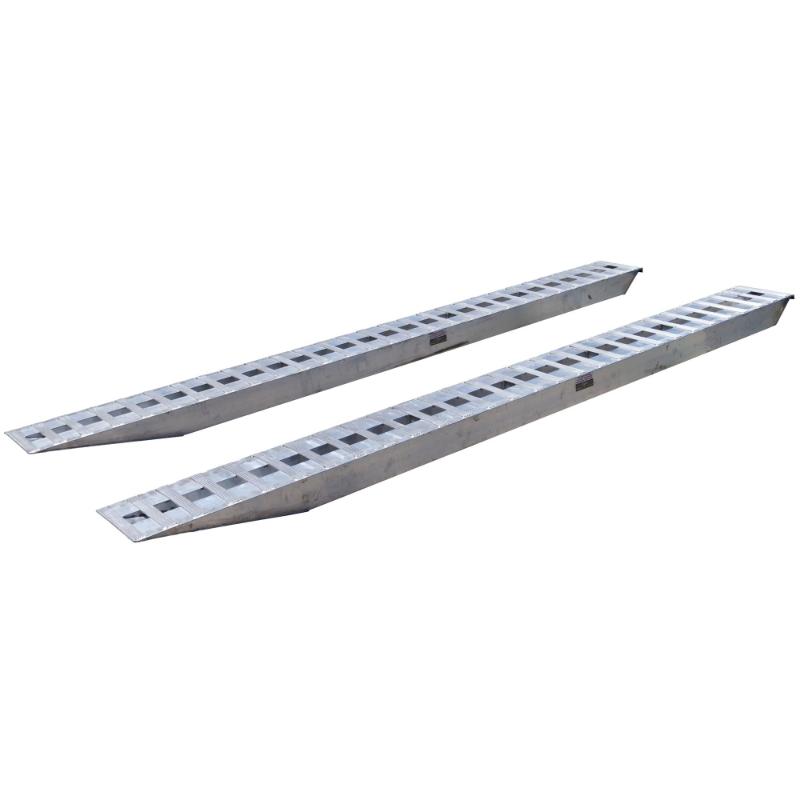

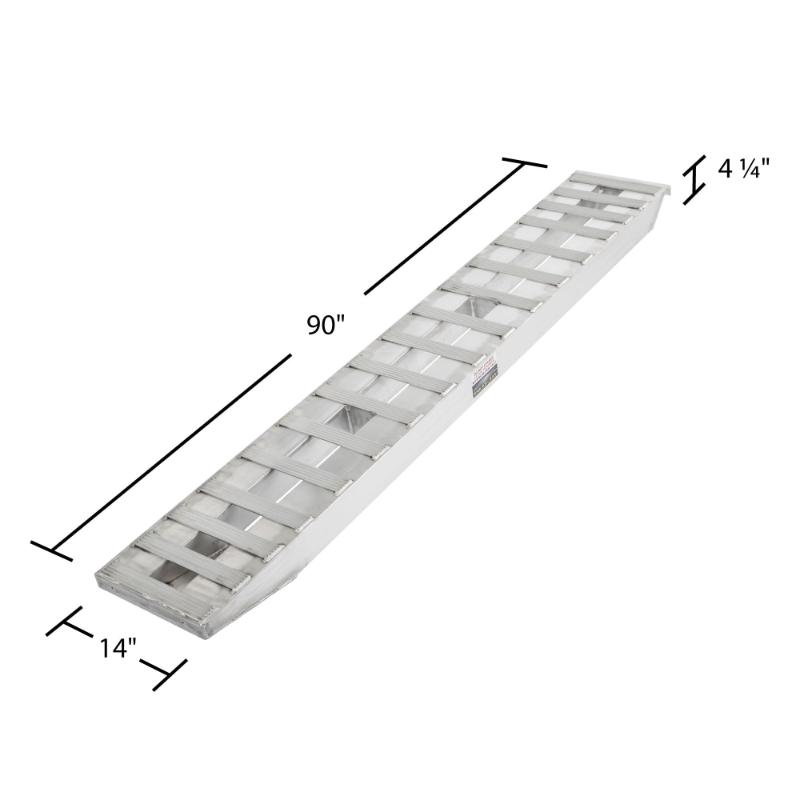

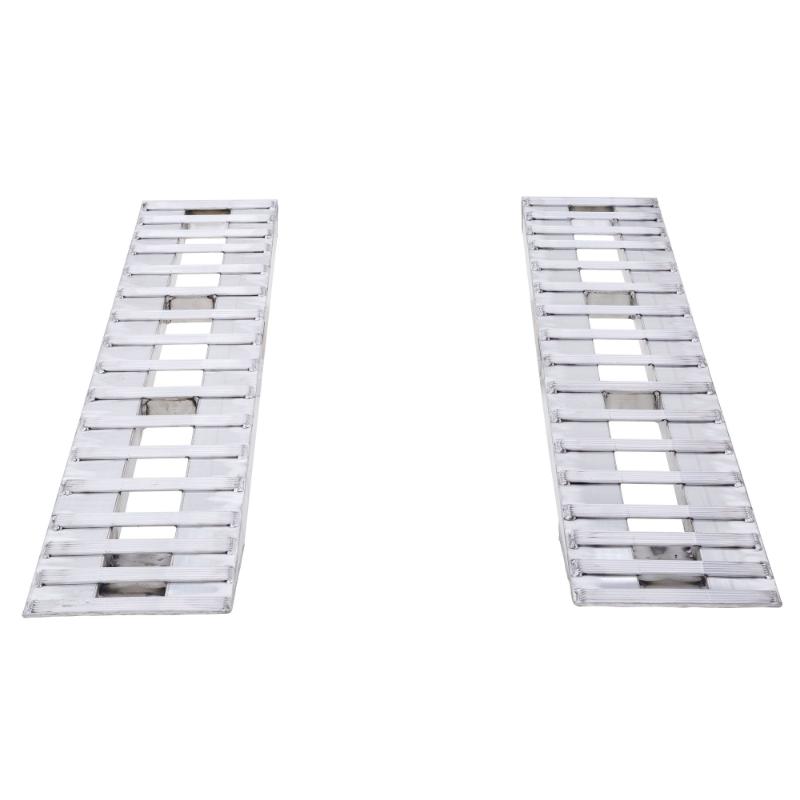

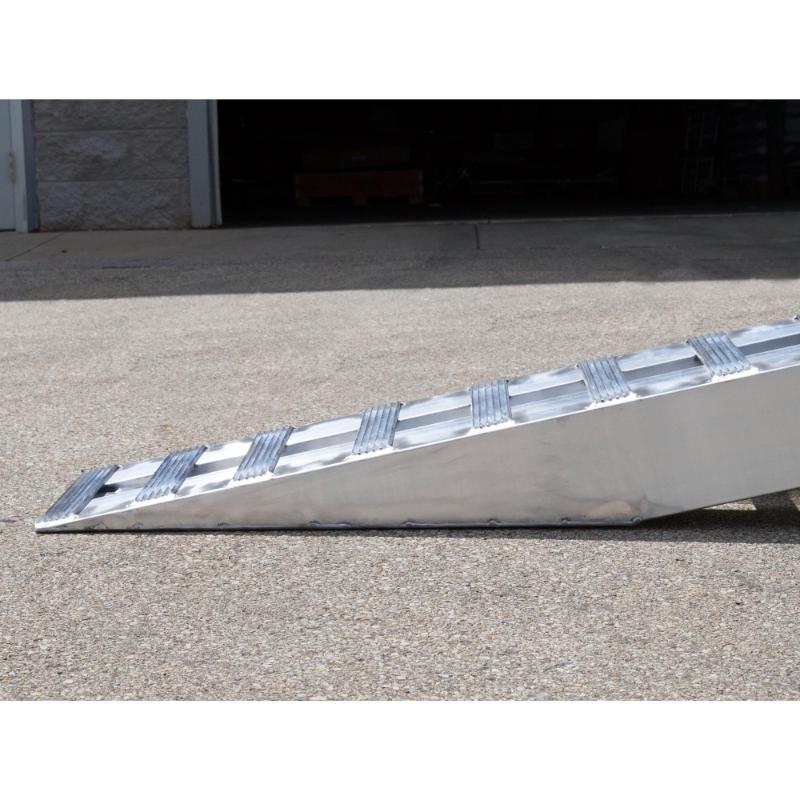

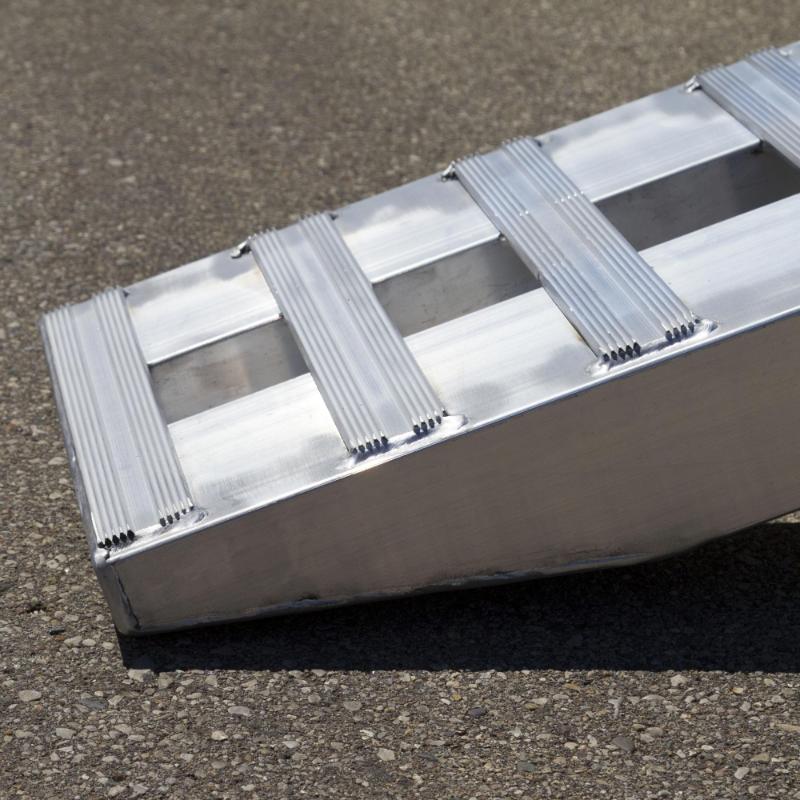

Configurations, per ramp: 7 ft 6 in x 15 in rated 7,000 lb per axle, 36 lb, 3-1/4 in high, covering 20 in to 24 in rises, knife foot. 7 ft 6 in x 14 in rated 10,000 lb per axle, 47 lb, 4-1/4 in high, covering 24 in to 36 in rises, stub foot. 14 ft x 16 in rated 8,000 lb per axle, 96 lb, 4-1/4 in high, covering 36 in to 42 in rises, knife foot. 14 ft x 16 in rated 12,000 lb per axle, 115 lb, 6-1/4 in high, covering 36 in to 42 in rises, knife foot. Capacity is per axle; all other figures are per ramp.

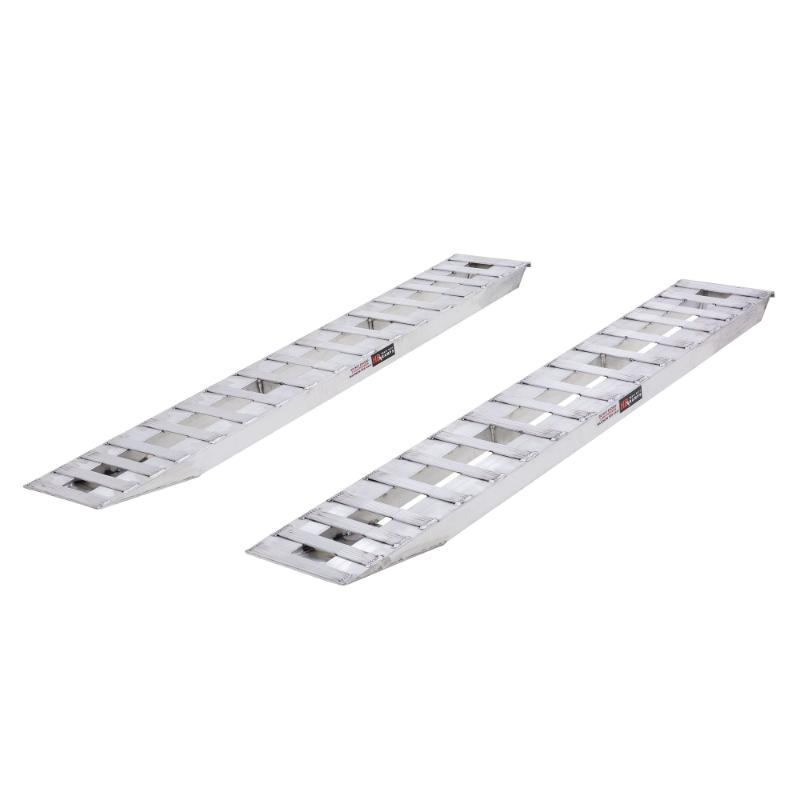

Sold in pairs — two ramps per purchase. Made in the USA from high-strength aluminum.

Product Features

• Capacities from 7,000 lb to 12,000 lb per axle

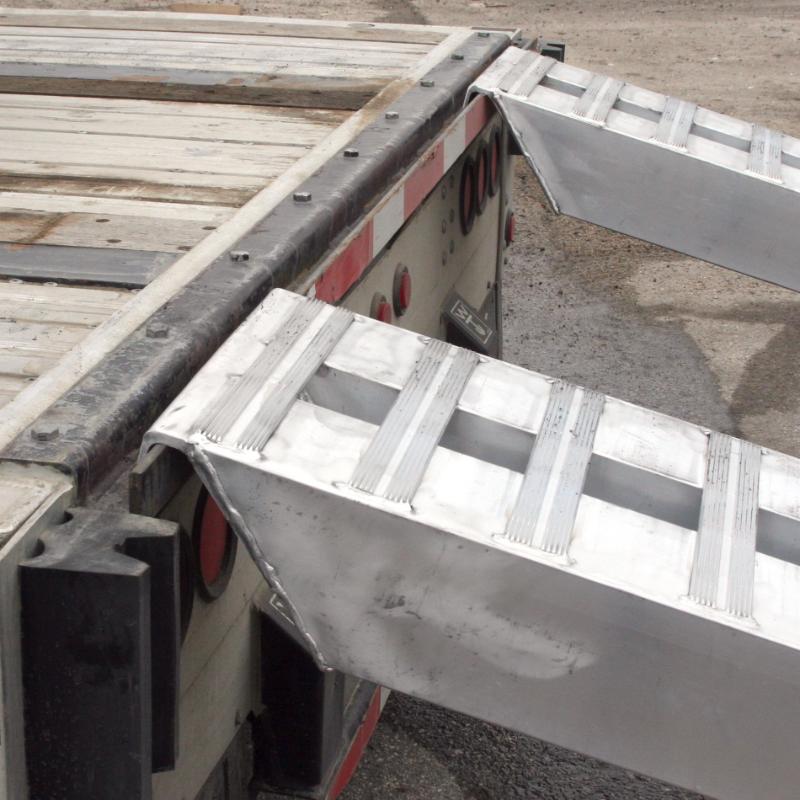

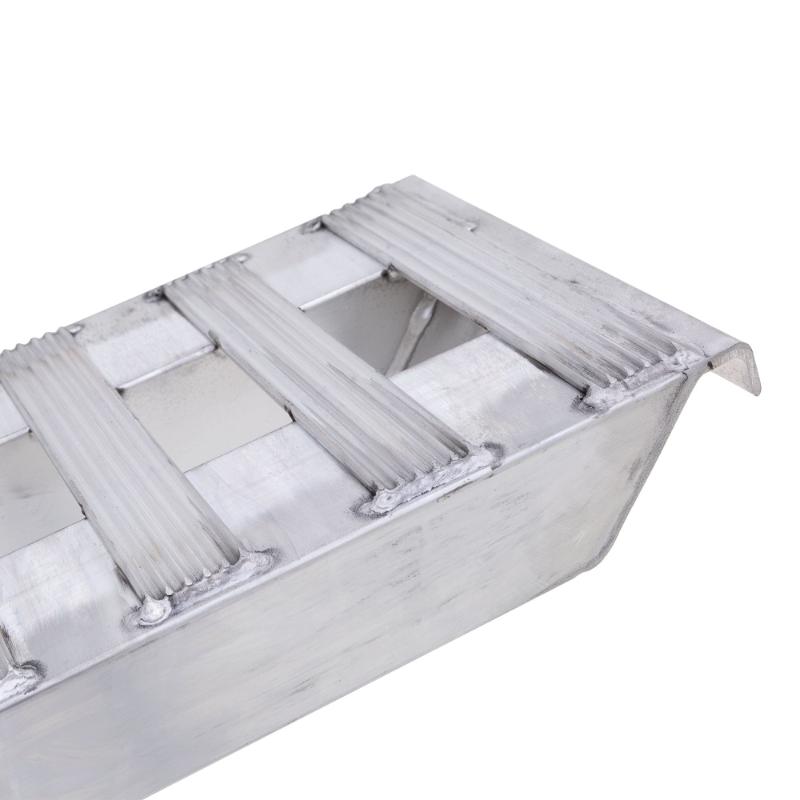

• Hook end attaches with no brackets or hardware
• Lengths of 7 ft 6 in and 14 ft
• Rise coverage from 20 in to 42 in depending on configuration

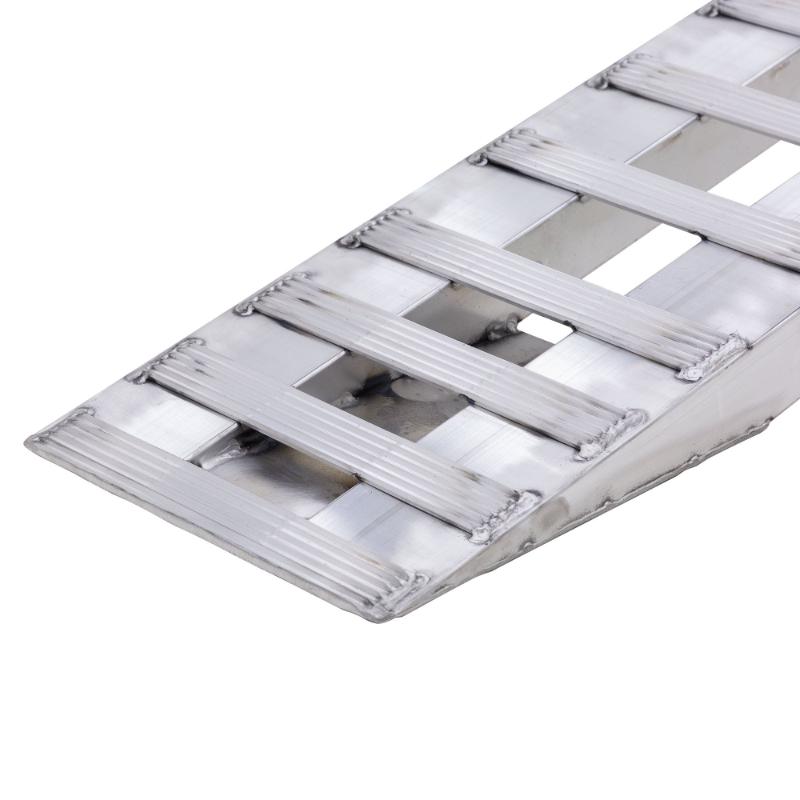

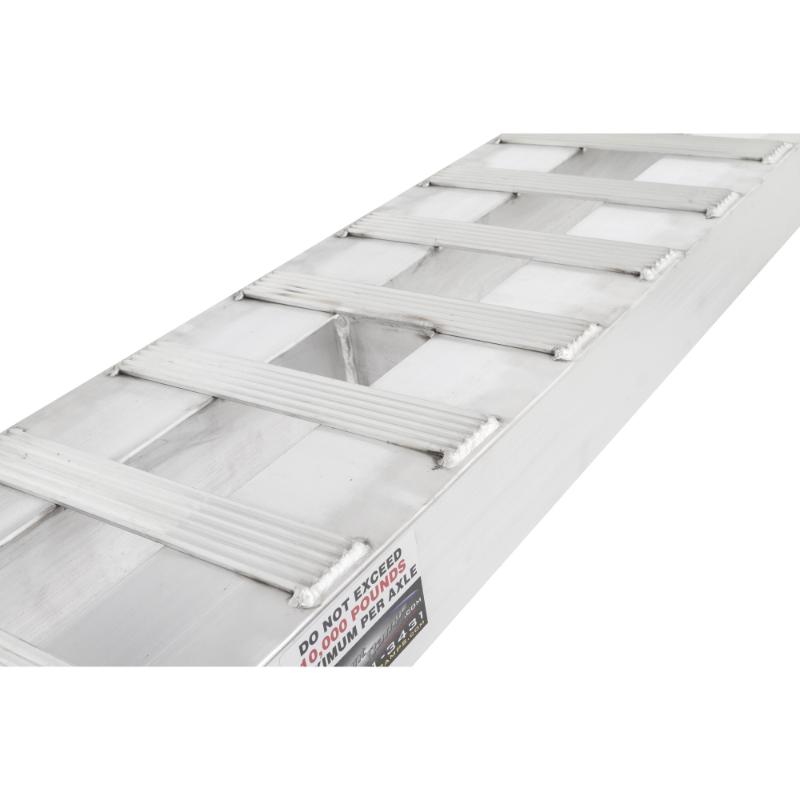

• Serrated rung surface on every version
• 36 lb to 115 lb per ramp
• Sold in pairs
• Made in the USA from high-strength aluminum

Warranty

Five-Year Warranty

This product is backed by HD Ramps' Five-Year Warranty and is guaranteed free of defects at the time of purchase. The warranty applies only to the original purchaser and is non-transferable. It is void if the product is misused, neglected, altered, tampered with, or damaged. HD Ramps may substitute, discontinue, or modify any product or part without notice; if a part is discontinued or modified before a claim is made, HD Ramps will provide a substitute. HD Ramps is not liable for damages arising from use of the product, including property damage or loss of use.
