SafePath EZEdge Rubber Threshold Ramp - ADA Compliant

by SafePath Products | Authorized Dealer
SKU
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Original price $69.69 - Original price $910.99
Original price
$69.69
$69.69 - $910.99
Current price $69.69

Ships in 1-3 Business Days

Choose a Threshold Height
Choose a Width

Not sure what length you need?

Enter your step or porch height and we'll recommend the right ramp length.

Open calculator Close
Diagram showing where to measure rise height for ramp selection

Measure from the ground to the top of the highest step or landing.

10"
Or enter exact rise: in.
Recommended length (ADA 1:12)
10 ft. ≈ 4.8° incline8.3% grade
Safest for independent wheelchair use
Occupied (1:6)with helper5 ft.
Unoccupied (1:4)no rider4 ft.

A 1:12 slope means 12 inches of ramp for every inch of rise. The bigger the second number, the gentler the climb. Gentler is always safer, so verify local building code before installing.

Why slope matters
SlopeInclineSafe use
1:12≈4.8°Independent wheelchair use. The ADA standard.
1:6≈9.5°Steepest acceptable for an occupied chair or scooter, and only with a qualified helper.
1:4≈14°Unoccupied transport only, with no one riding.

Read the ratio as rise to length: 1:4 means every inch of rise needs 4 inches of ramp, so it climbs three times faster than 1:12. Some manufacturers write these same two slopes as 2:12 and 3:12, which are identical inclines in unreduced form.

Use the longest ramp your space allows and follow your equipment’s owner manual. A rise over 30 inches needs a landing or platform.

Overview

Specifications

Made in the USA
MPN MRAEZ0010
Height 0.5 in
Length 3.25 in
Clear Width 41.5 in
Weight 3.0 lbs
Max Rise 0.5 in
Material 100% Recycled Rubber
Surface Slip-resistant surface with tapered front and side edges
Color Black
Assembly Required No; single molded piece
Included Items Single Ramp
Warranty 10-Year Manufacturer Warranty

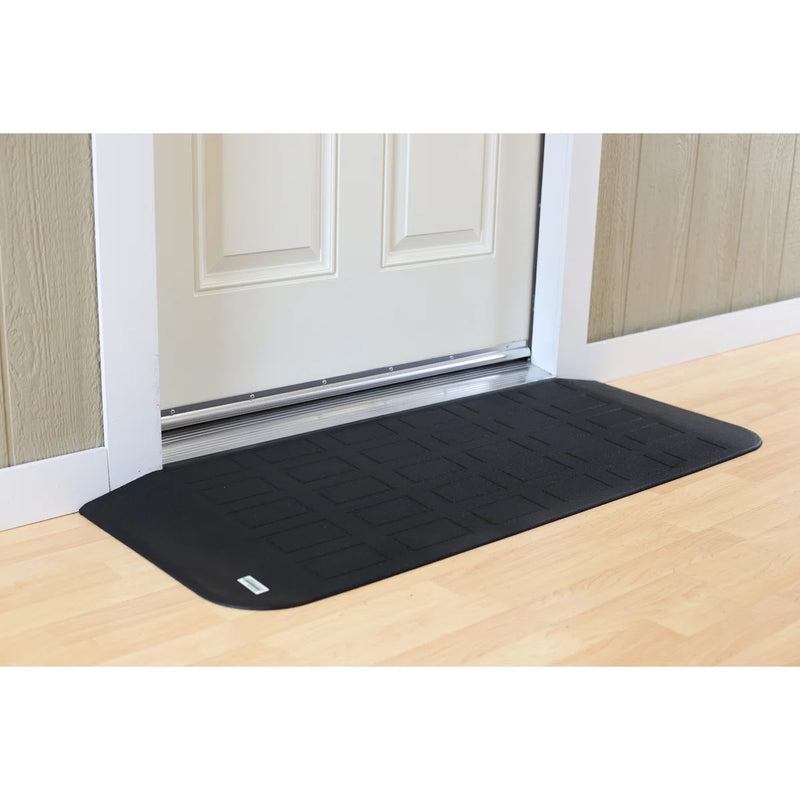

SafePath EZEdge Rubber Threshold Ramp

The EZ Edge Threshold Ramp is a solid rubber threshold ramp that removes the tripping hazard and wheelchair barrier created by raised door thresholds, sliding glass door tracks, and other small changes in floor level. Made in the USA from 100% post-consumer recycled tire rubber, each ramp is compression molded into a single solid piece with no weight limitations, so it handles wheelchairs, power chairs, scooters, walkers, carts, and daily foot traffic without flexing, denting, or wearing out. Solid rubber construction means there is nothing to bend or rattle, and the textured surface delivers strong slip resistance in both wet and dry conditions.

EZ Edge ramps are available in 12 rise heights from 1/2 inch up to 2-3/4 inches, in standard widths of roughly 41 to 46 inches for single doorways and 74 to 82 inches (two-piece assemblies) for double doors and sliding glass doors. Measure the vertical height of your threshold, then choose the model that matches that rise and the width of your opening. Beveled side and back edges on every ramp create a smooth three-sided approach, and most sizes are designed to meet ADA slope guidelines of 7.5% or less (the tallest models include shims to manage the transition).

Installation is quick and DIY-friendly. EZ Edge ramps sit flush against the threshold and bond to concrete, asphalt, wood, tile, VCT, and marble using a recommended one-part adhesive such as SikaFlex 1A, with no framing, fasteners, or construction required. For temporary placements, a silicone-based adhesive or commercial double-sided tape can be used instead. The rubber can be trimmed with a utility knife to fit inside door jambs and around molding. Ramps work indoors and out, in residential entries, sliding patio doors, garages, gymnasiums, schools, commercial storefronts, and multi-family buildings.

Because these ramps are made entirely from recycled rubber, every EZ Edge purchase keeps tire material out of landfills while solving an accessibility problem the day it arrives. If you are unsure which height or width fits your threshold, contact our team and we will help you select the right model.

Warranty

10-year warranty

The EZ Edge Threshold Ramp is covered by a 10-year warranty against defects in material and workmanship under normal use and service. The warranty does not cover damage resulting from misuse, negligence, alteration, accident, improper installation, or normal wear and exposure. No implied or express warranty applies unless installation is performed by a company authorized by Van Duerr Industries, Inc. dba SafePath Products.

SafePath Products Logo

Need a custom configuration or installation? Get a personalized quote — often better than the listed price.

Made in Tennessee Logo

Size & Specification Comparison

All models — Material: 100% Recycled Rubber · Surface: Slip-resistant surface with tapered front and side edges · Color: Black

Compare all sizes & specifications
SafePath EZEdge Rubber Threshold Ramp - ADA Compliant — specifications by model
Model Length Width Weight Max Rise Shipping

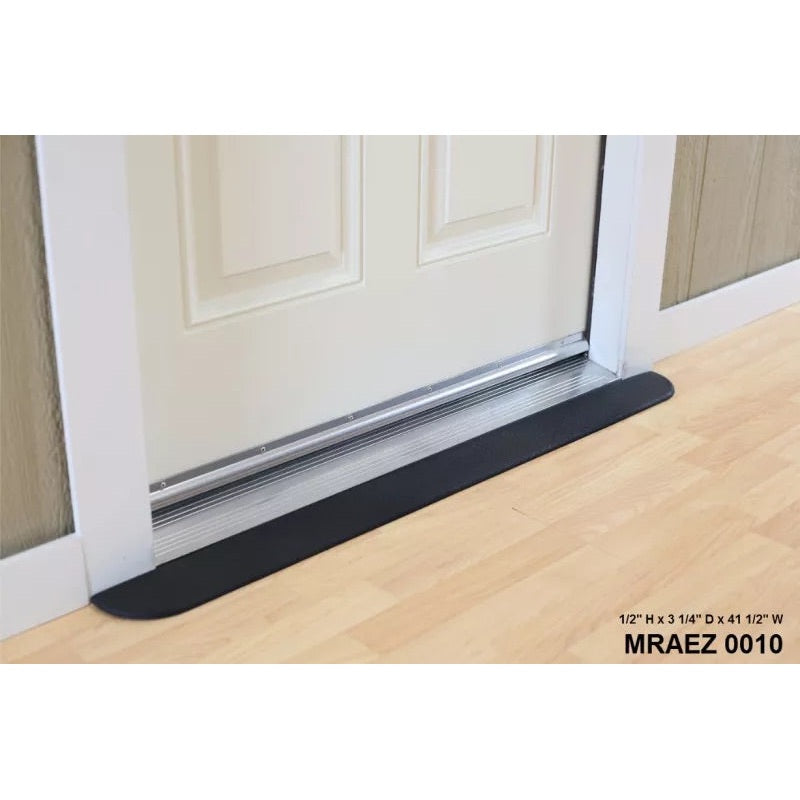

MRAEZ0010 3.25 in 41.5 in 3.0 lbs 0.5 in Free

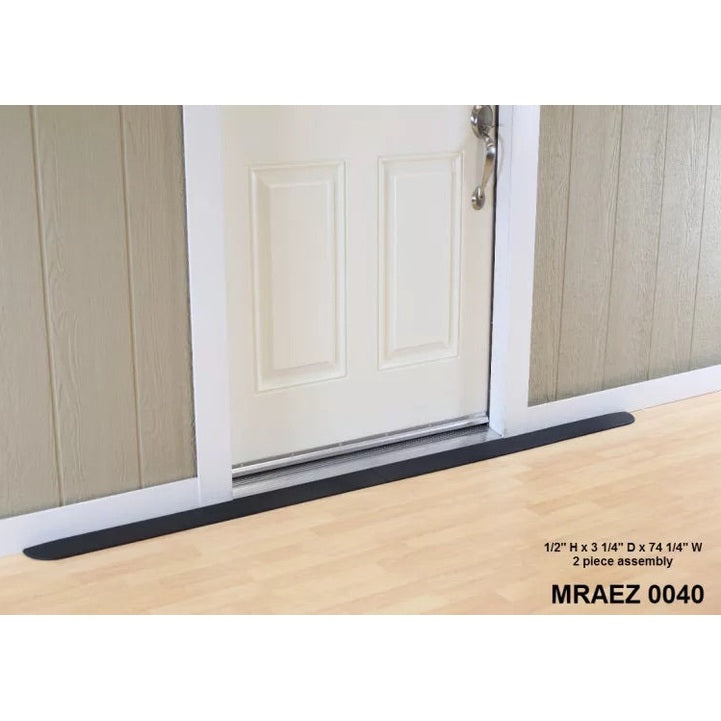

MRAEZ0040 3.25 in 74.25 in 5.0 lbs 0.5 in Free

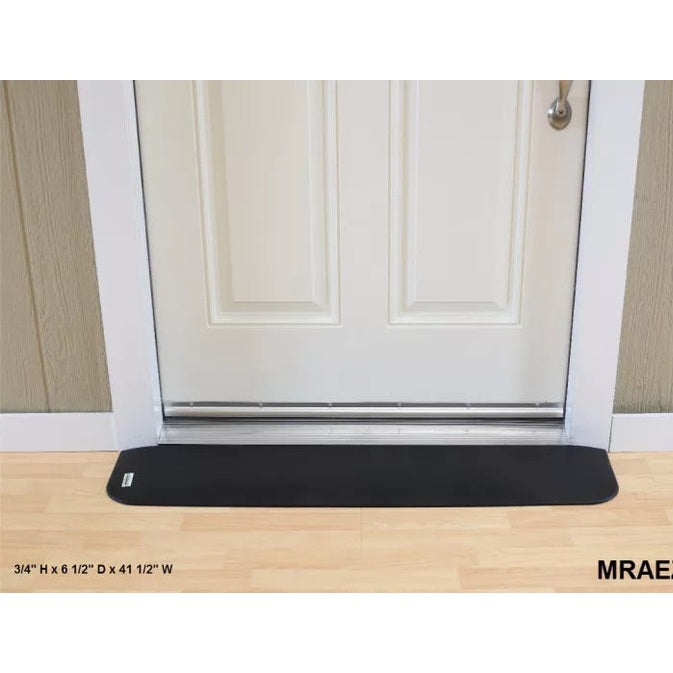

MRAEZ0050 7.0 in 46.0 in 8.0 lbs 0.75 in Free

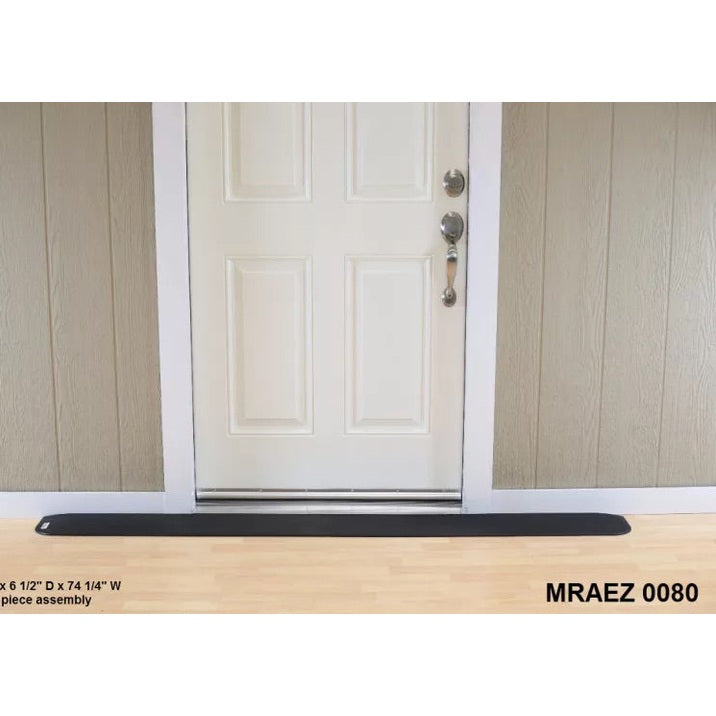

MRAEZ0080 7.0 in 82.0 in 15.0 lbs 0.75 in Free

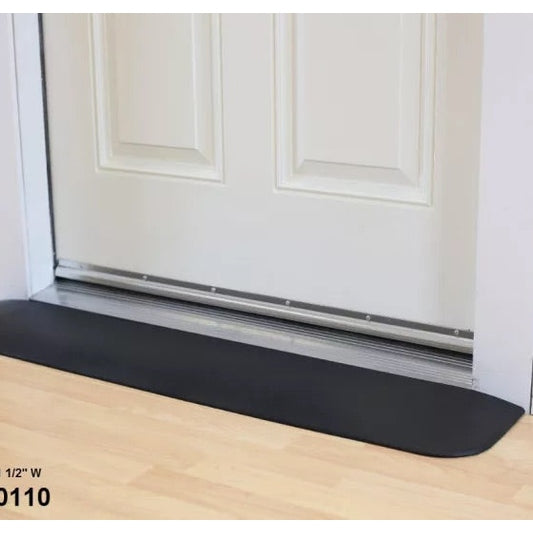

MRAEZ0110 8.0 in 46.0 in 9.0 lbs 0.875 in Free

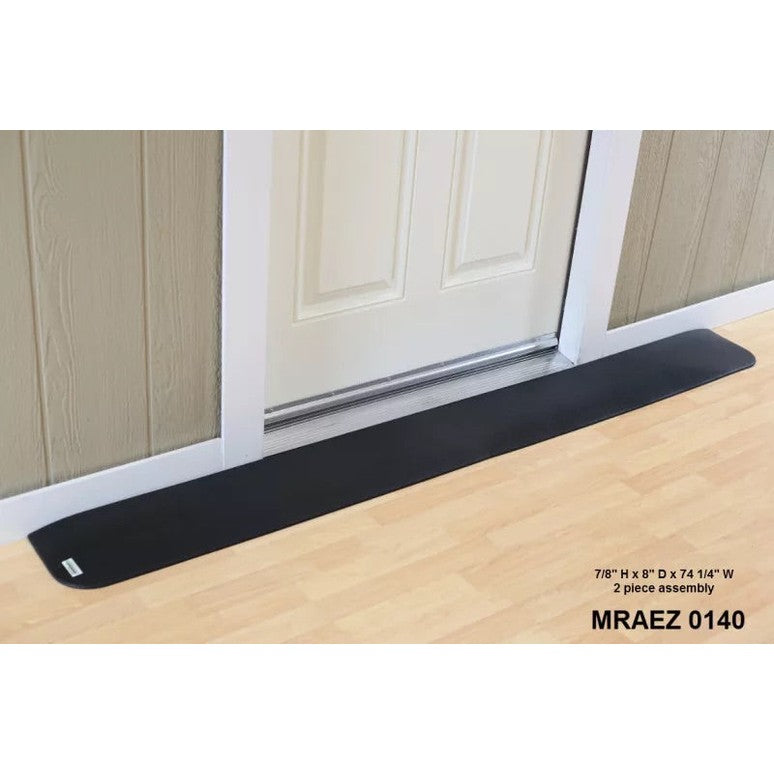

MRAEZ0140 8.0 in 82.0 in 17.0 lbs 0.875 in Free

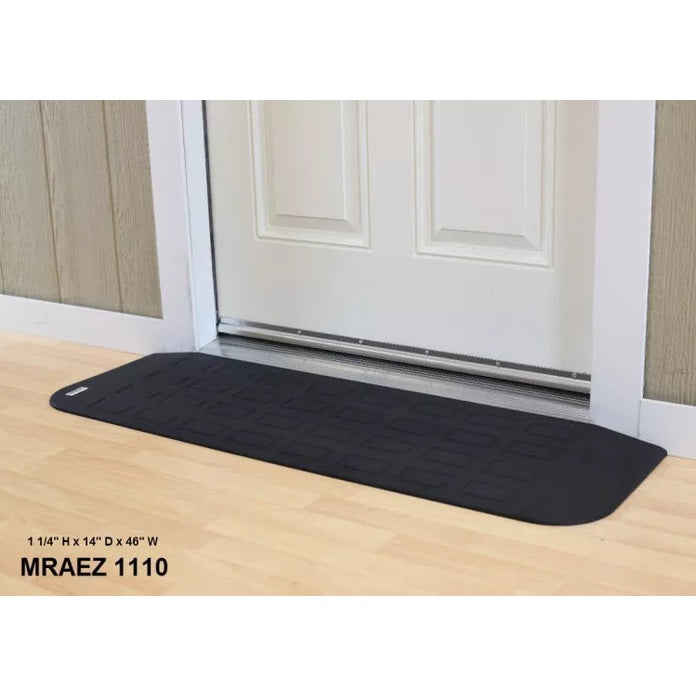

MRAEZ1110 13.5 in 46.0 in 21.0 lbs 1.25 in Free

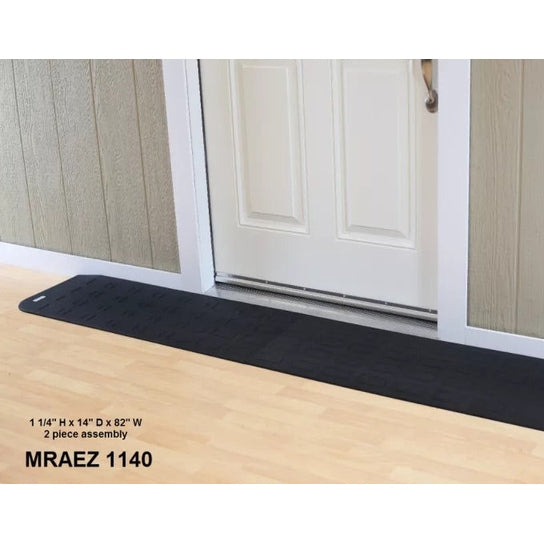

MRAEZ1140 13.5 in 82.0 in 38.0 lbs 1.25 in Free

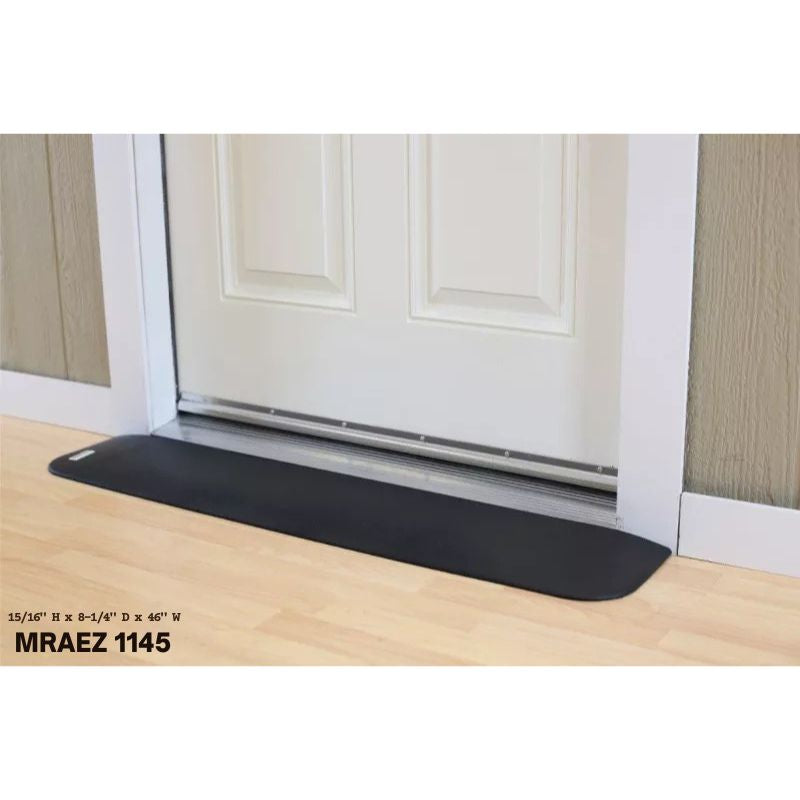

MRAEZ1145 8.25 in 46.0 in 11.0 lbs 0.9375 in Free

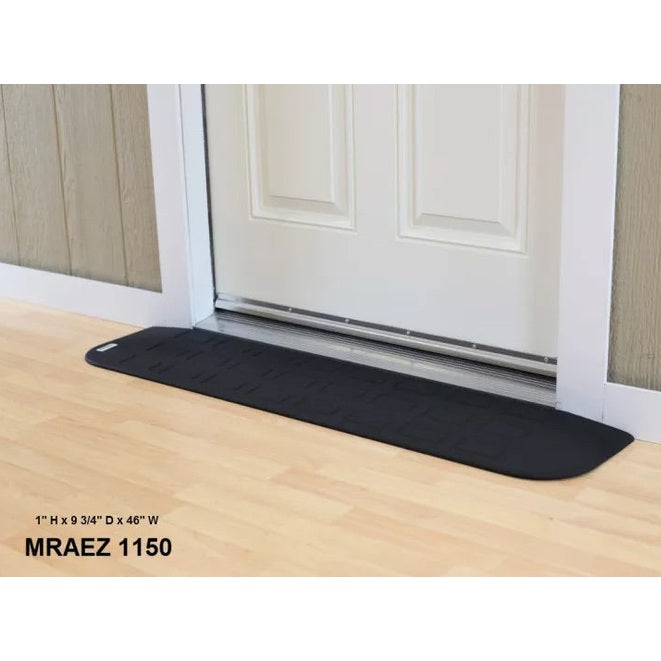

MRAEZ1150 10.0 in 46.0 in 13.0 lbs 1.0 in Free

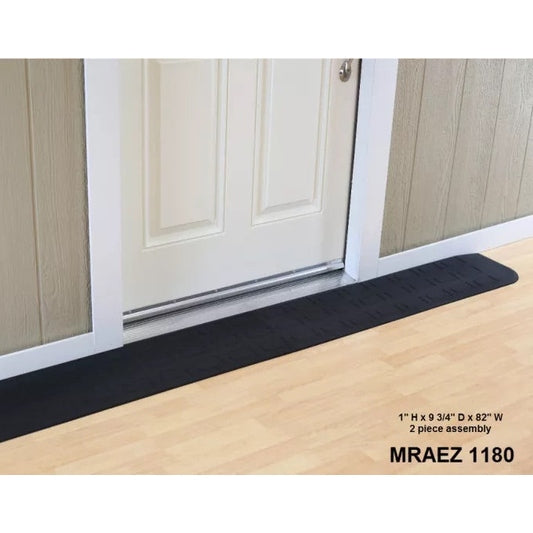

MRAEZ1180 10.0 in 82.0 in 24.0 lbs 1.0 in Free

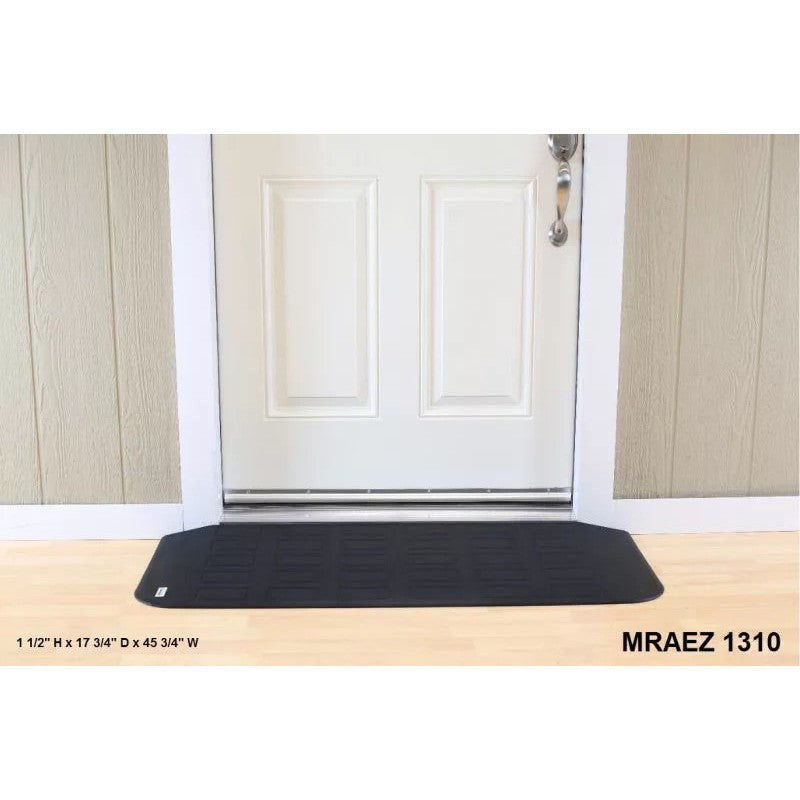

MRAEZ1310 18.0 in 46.0 in 32.0 lbs 1.5 in Free

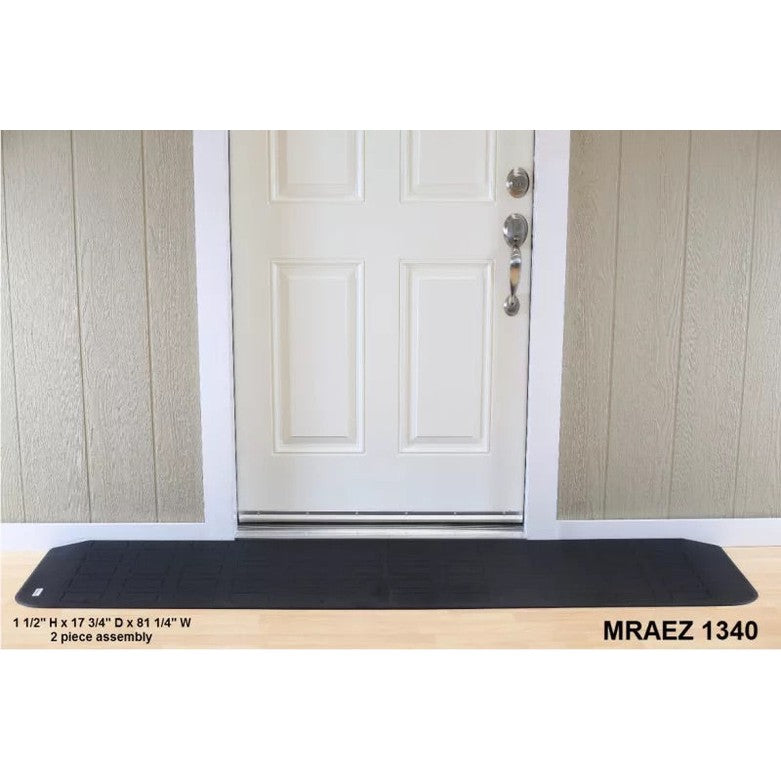

MRAEZ1340 18.0 in 82.0 in 56.0 lbs 1.5 in Free

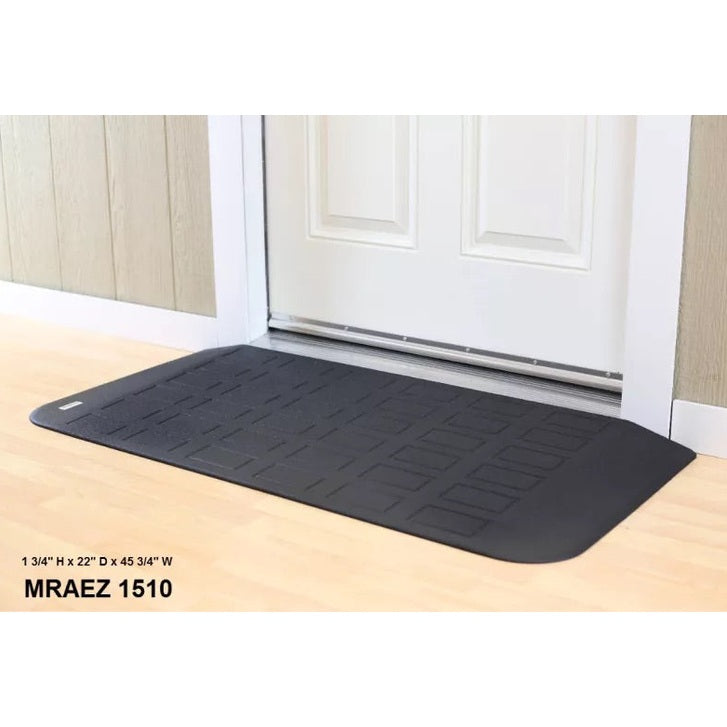

MRAEZ1510 21.5 in 46.0 in 39.0 lbs 1.75 in Free

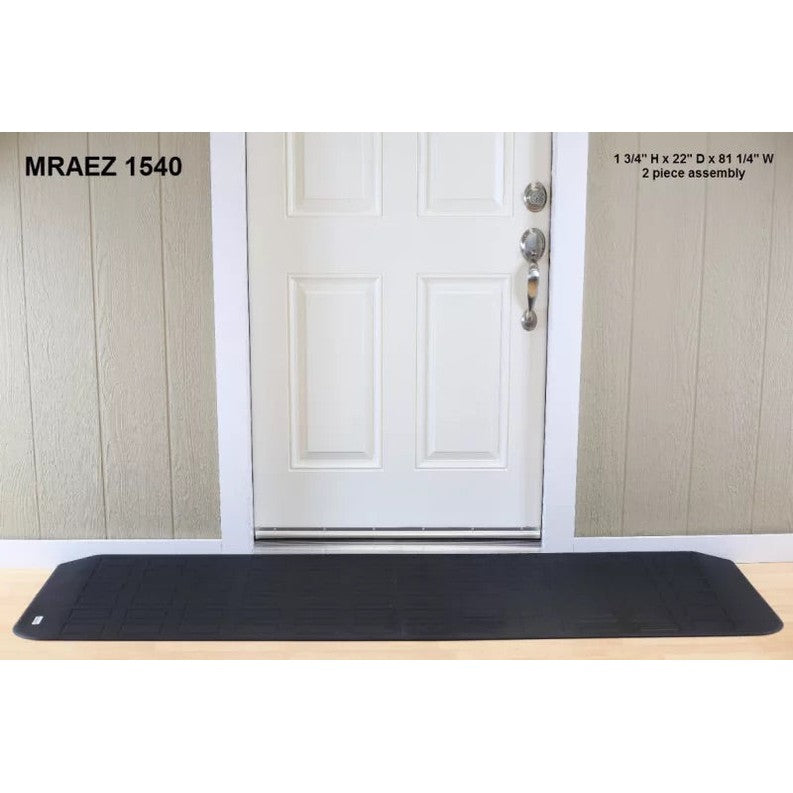

MRAEZ1540 21.5 in 82.0 in 78.0 lbs 1.75 in Free

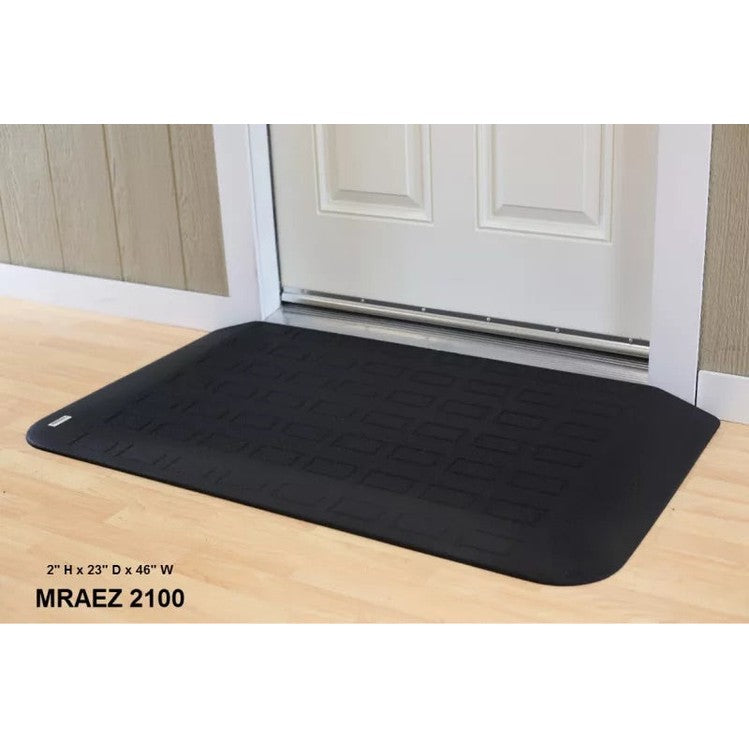

MRAEZ2100 24.75 in 46.0 in 48.0 lbs 2.0 in Free

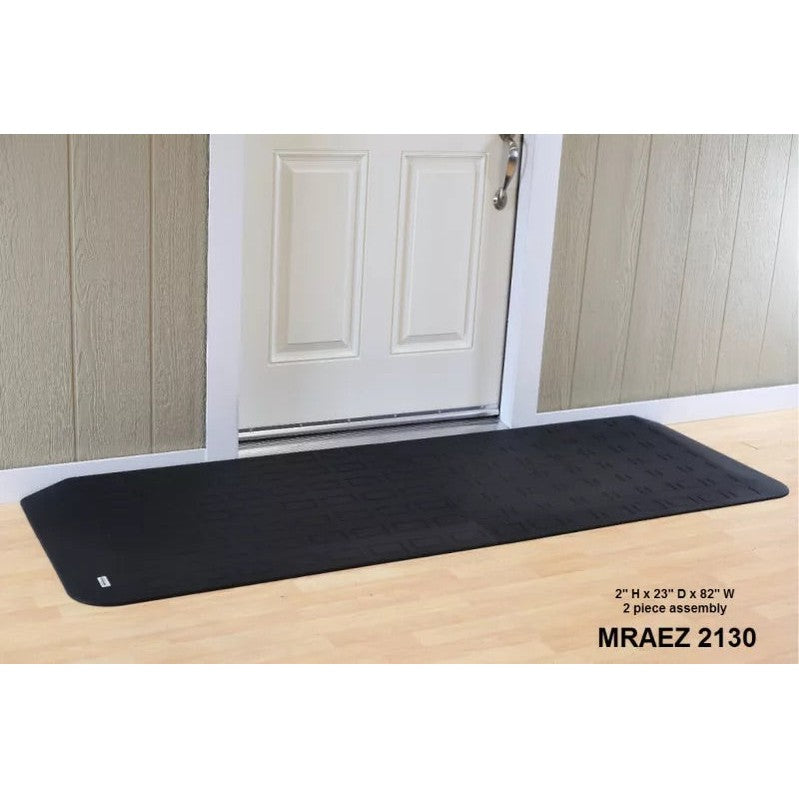

MRAEZ2130 24.75 in 82.0 in 81.0 lbs 2.0 in Free

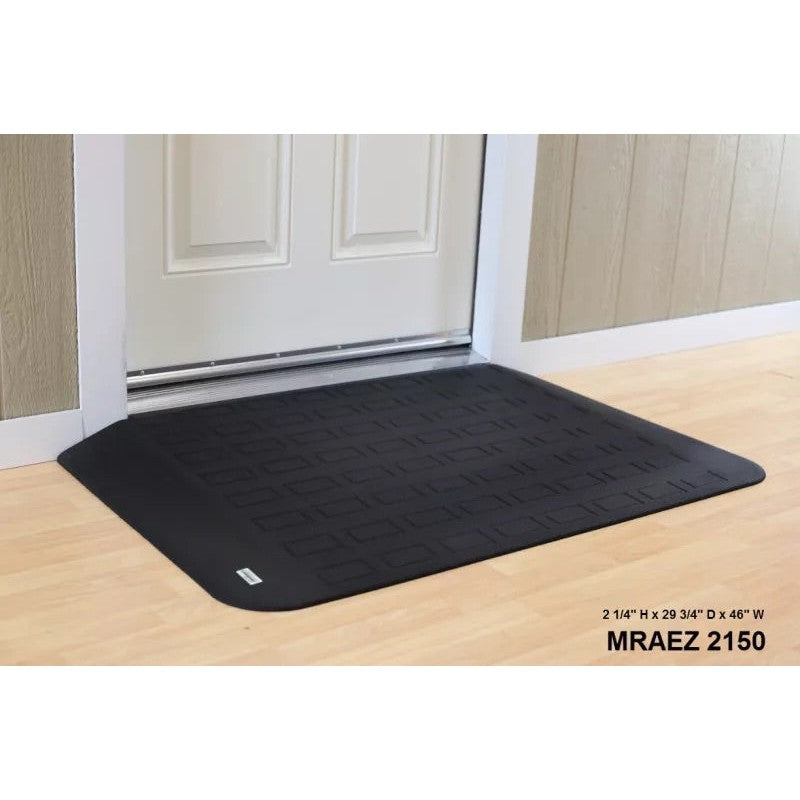

MRAEZ2150 29.5 in 46.0 in 63.0 lbs 2.25 in Free

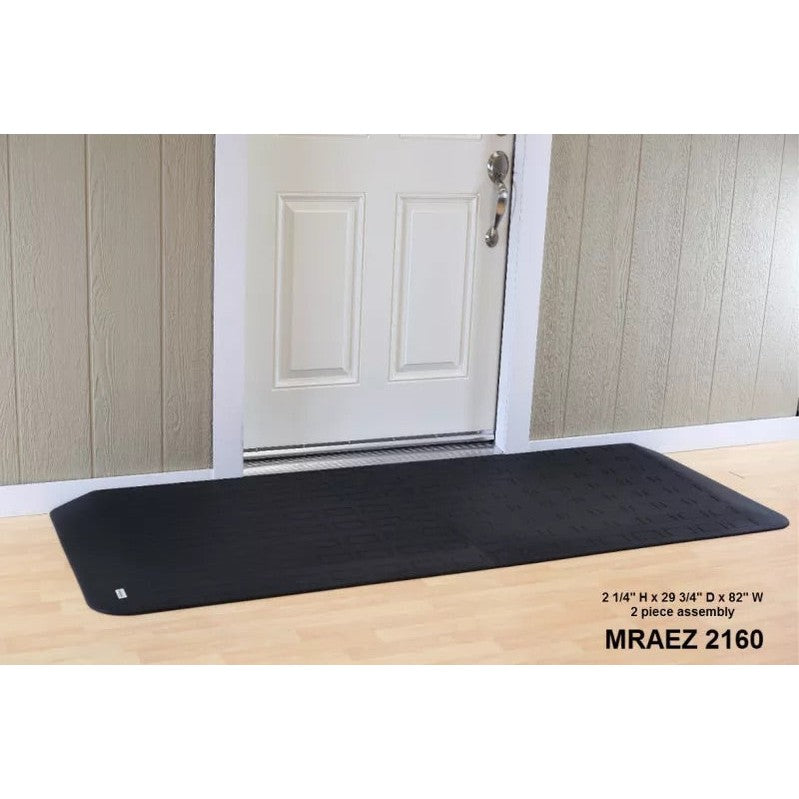

MRAEZ2160 29.5 in 82.0 in 118.0 lbs 2.25 in Free

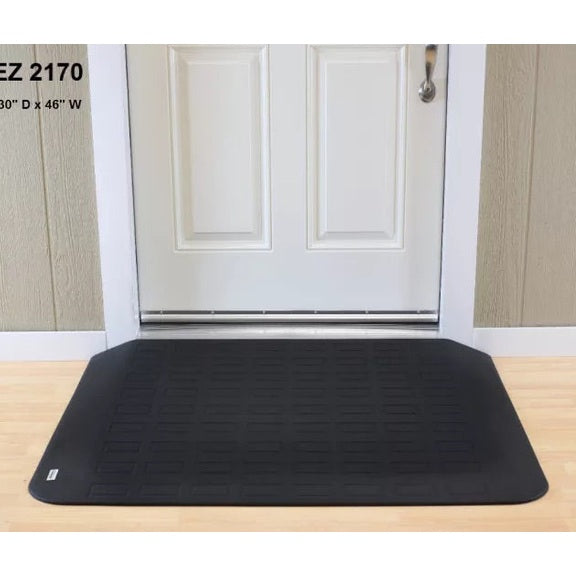

MRAEZ2170 30.5 in 46.0 in 78.0 lbs 2.5 in Free

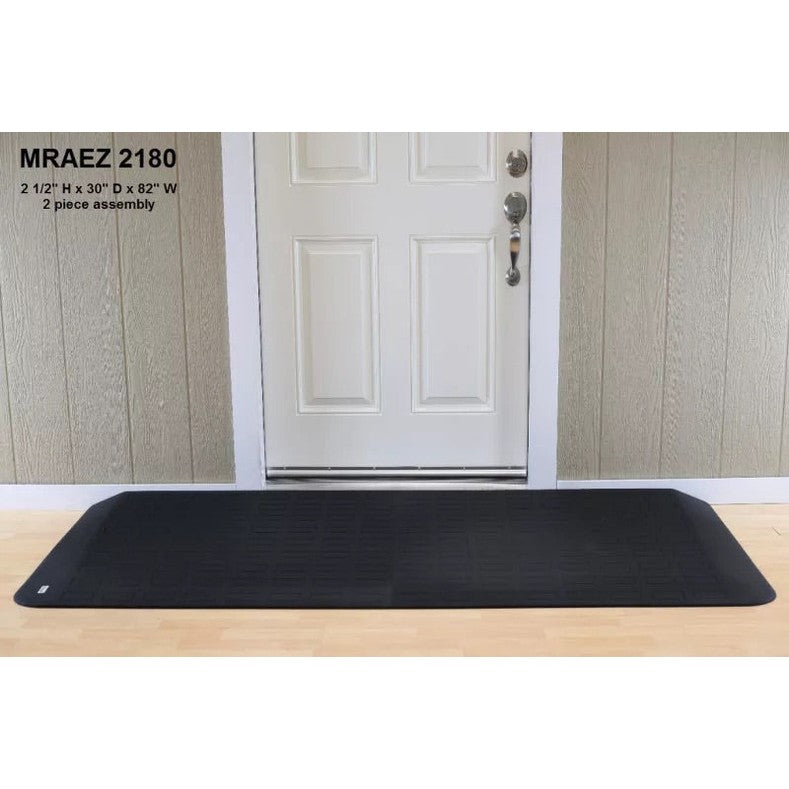

MRAEZ2180 30.5 in 82.0 in 144.0 lbs 2.5 in Free

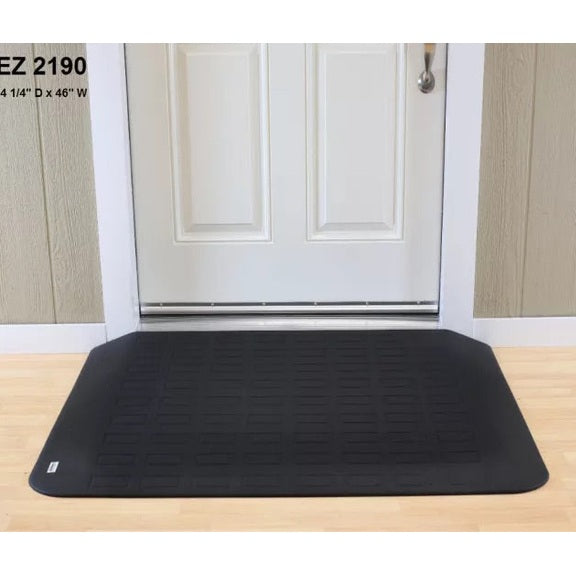

MRAEZ2190 33.75 in 46.0 in 90.0 lbs 2.75 in Free

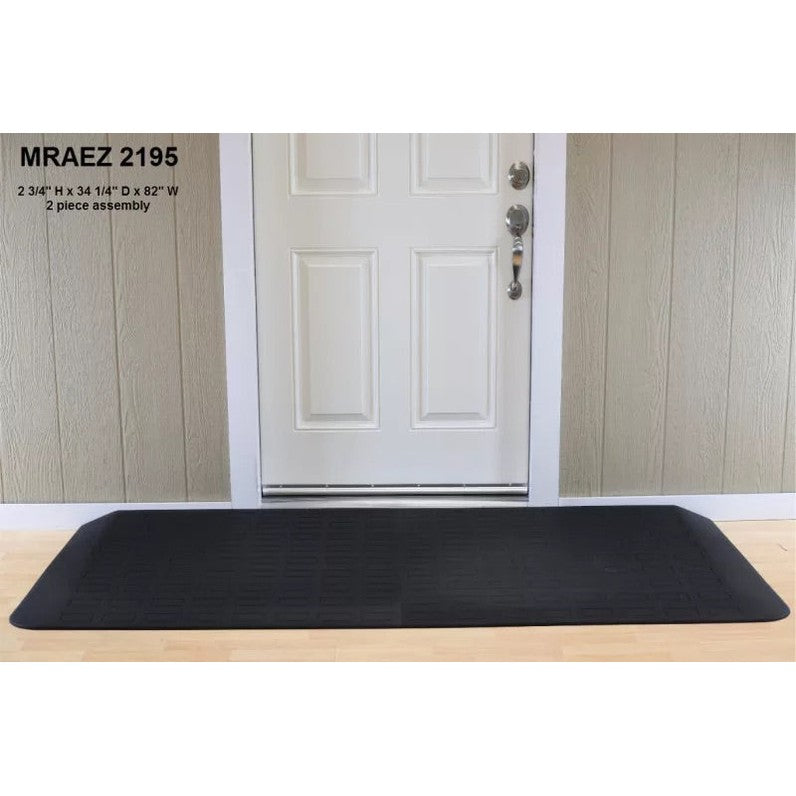

MRAEZ2195 33.75 in 82.0 in 168.0 lbs 2.75 in Freight
