AF-2436, AF-2448, AF-3048, AF-3060, AF-3672

Vestil A-Frame Sheet Material Carts

Name: Vestil A-Frame Sheet Material Carts
Brand: Vestil
Price: 679.0 USD
Availability: InStock

Brand: Vestil SKU: AF-2436 Only 2 left

Authorized dealer

$679.00 - $989.00

$679.00

$679.00 - $989.00

$679.00

Product Highlights

A-frame support for transporting sheet materials
2,000-lb load capacity
Parts tray between the uprights

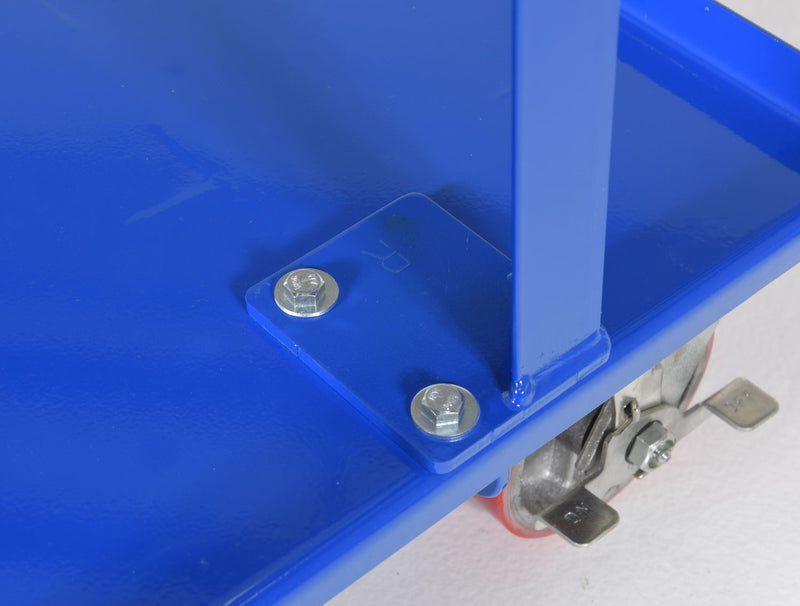

Foot-operated caster brake

Ships in 40 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN AF-2436

Capacity 2,000 lb

Overall width 24 in

Overall length 36 in

Overall height 56 in

Deck width 24 in

Deck length 36 in

Assembled weight 110 lbs

Material Steel

Color / finish Blue

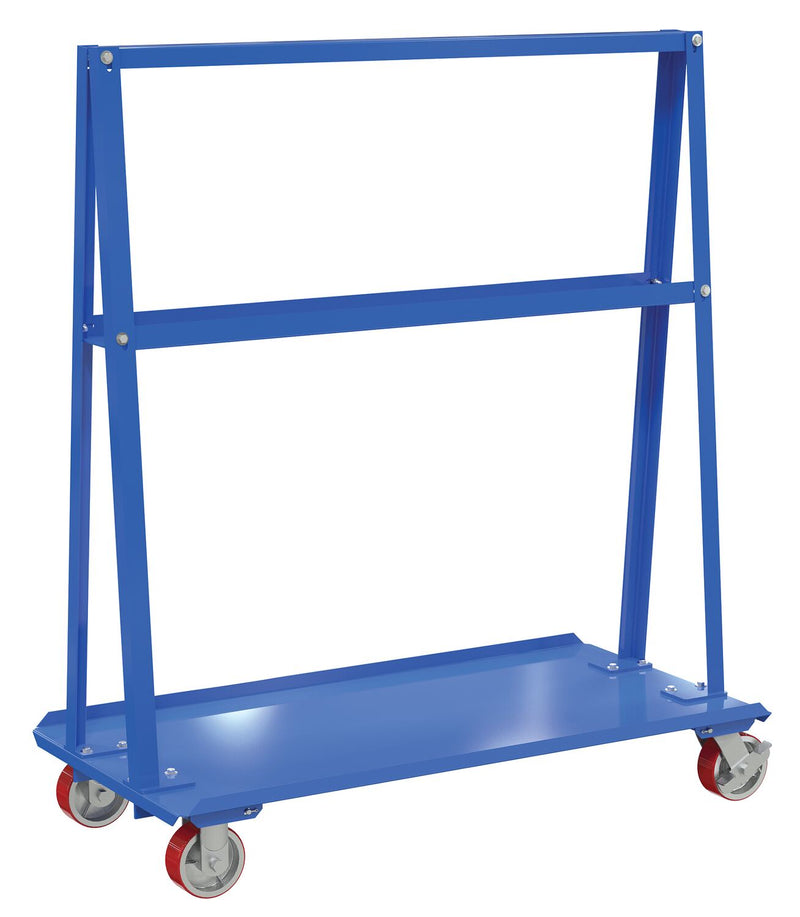

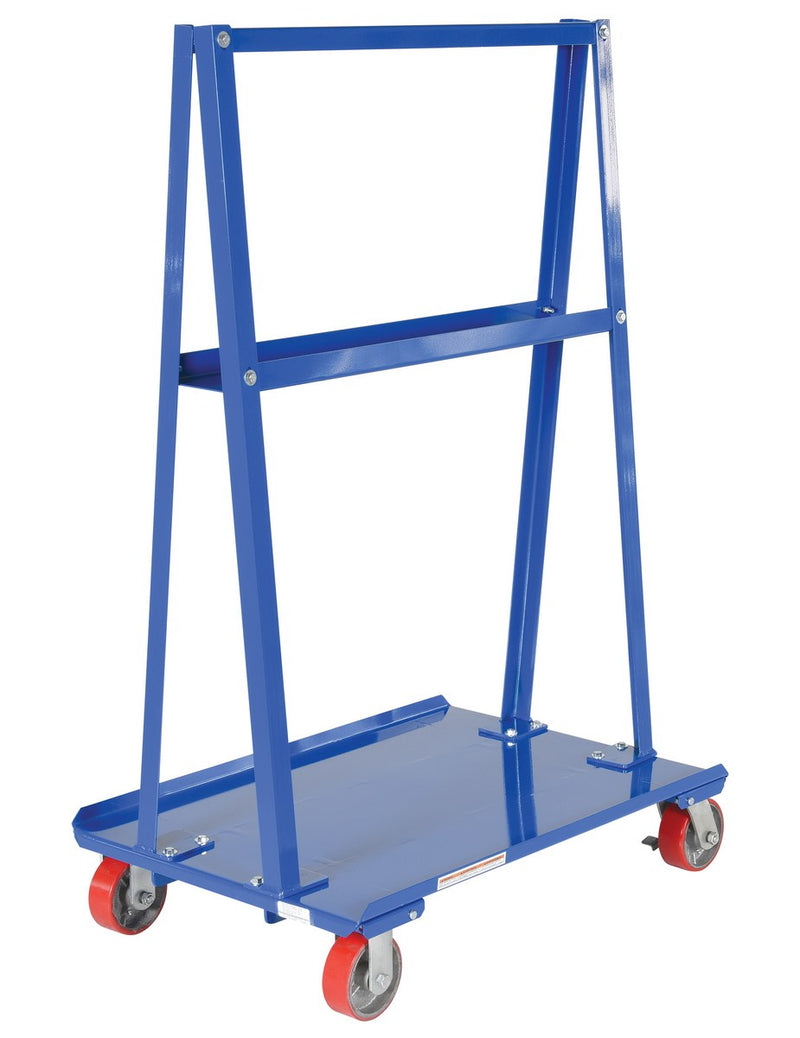

Vestil A-Frame Sheet Material Carts

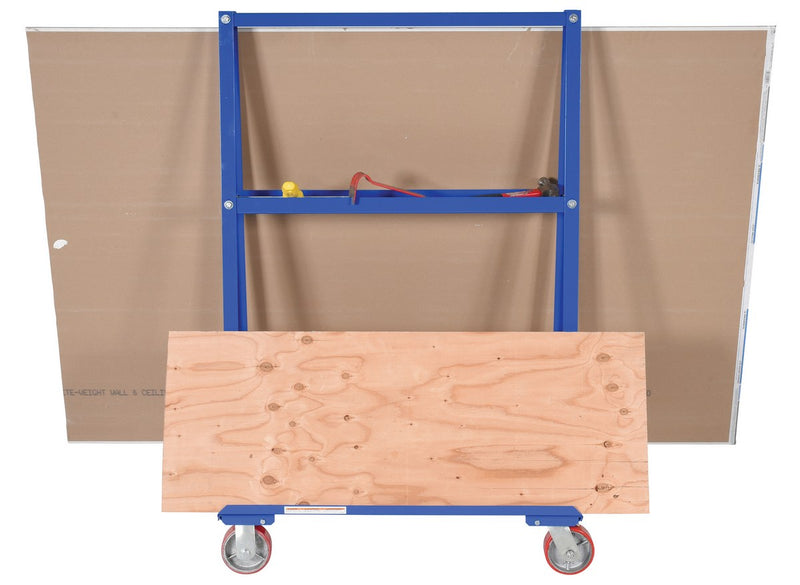

Transport sheet materials on a steel A-frame cart with a 2,000-lb capacity. A parts tray between the uprights provides storage for smaller items, while the caster arrangement allows the cart to move through the workspace.

A-Frame Sheet Material Carts Features

A-frame support for transporting sheet materials
2,000-lb load capacity

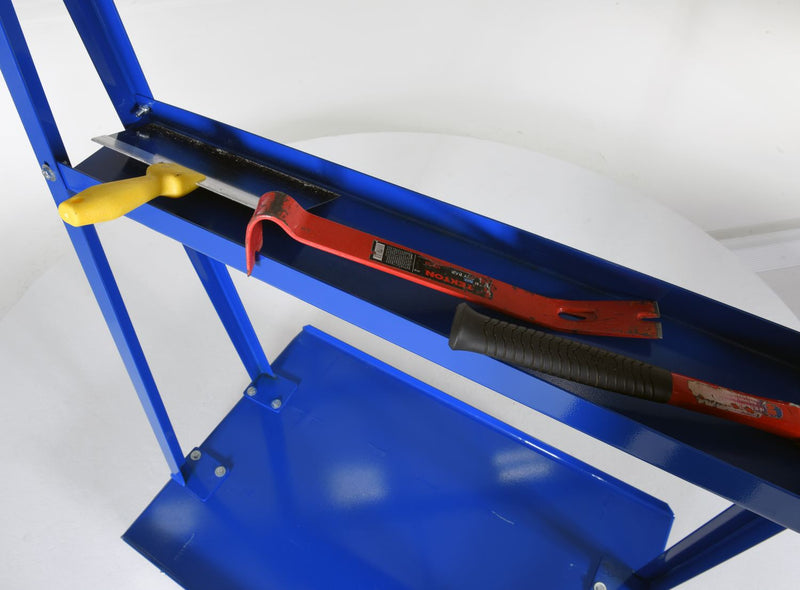

Parts tray between the uprights
Foot-operated caster brake

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Lip Height (in)		1
Caster Quantity/Diameter/Width (in)		(4) 5x2
Caster Quantity/Type		(2) Rigid (2) Swivel with Brake
Caster Material		Poly-on-Steel
Power Source		Manual
Frame Material		Steel
Number of Casters / Wheels		4
Rear Wheel Diameter (in)		5
Front Wheel Diameter (in)		5
Wheel Material		Poly on Steel
Platform Height (in)		8
Maximum Platform Height (in)		8
Platform Material		Steel
Assembly Required		Full

Shipping

Ship weight		152 lbs
Freight Type		LTL Palletized
Assembly / shipment state		Assembly required
Package 1 depth (in)		48
Package 1 width (in)		40
Package 1 height (in)		16
Freight Class		100
Country of Origin Name		US

Warranty

Warranty term		90 Days
Warranty type		Limited - Parts

Size & Specification Comparison

All models: Capacity: 2,000 lb · Overall height: 56 in · Material: Steel · Color / finish: Blue

Compare all sizes & specifications

Vestil A-Frame Sheet Material Carts: specifications by model
Model	Overall width	Overall length	Deck width	Deck length	Assembled weight
AF-2436	24 in	36 in	24 in	36 in	110 lbs
AF-2448	24 in	48 in	24 in	48 in	127 lbs

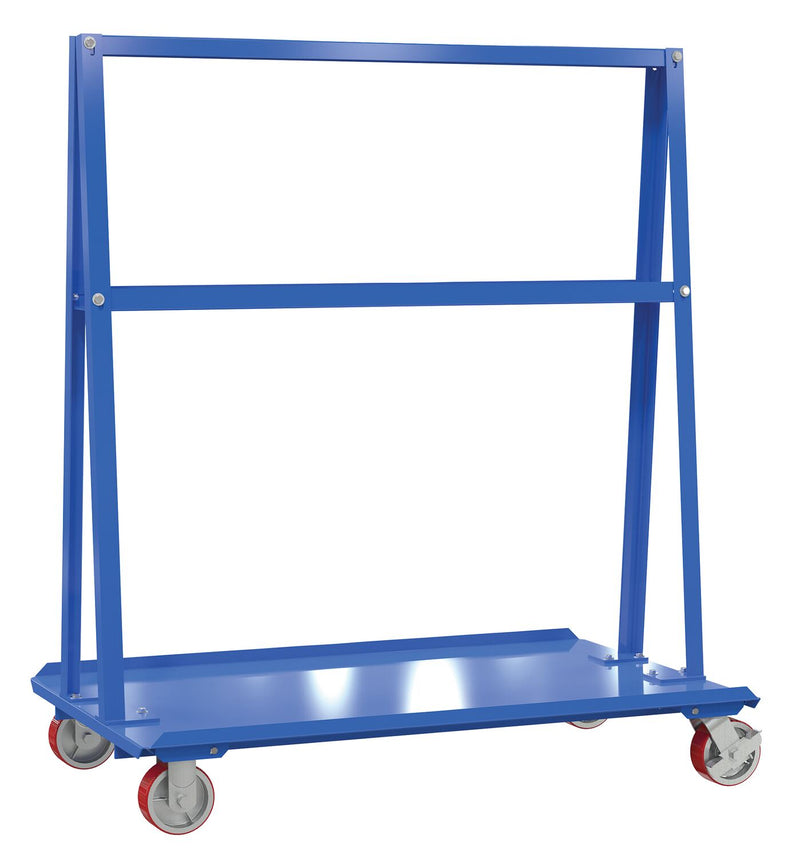

AF-3048	30 in	48 in	30 in	48 in	138 lbs

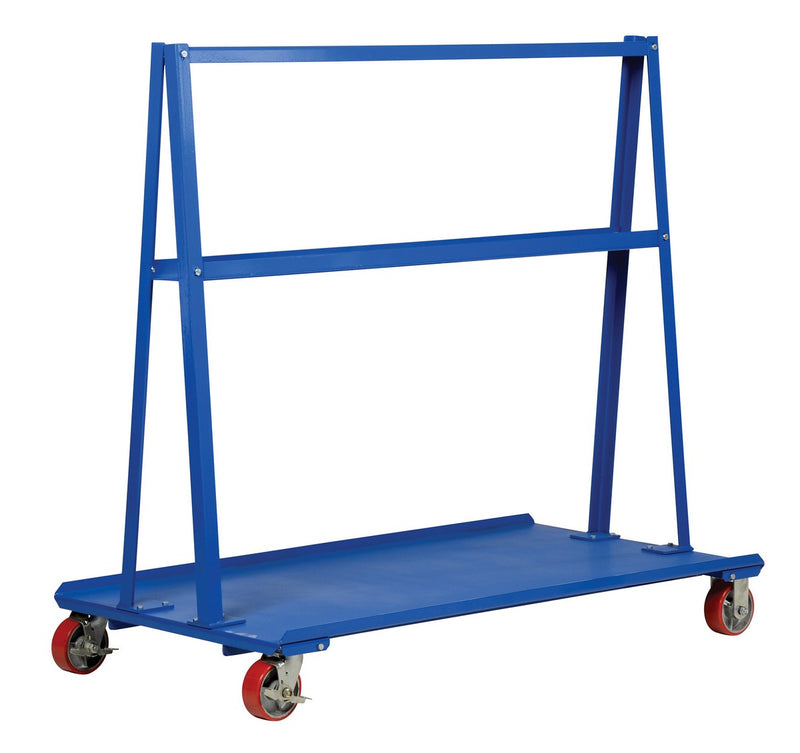

AF-3060	30 in	60 in	30 in	60 in	158 lbs

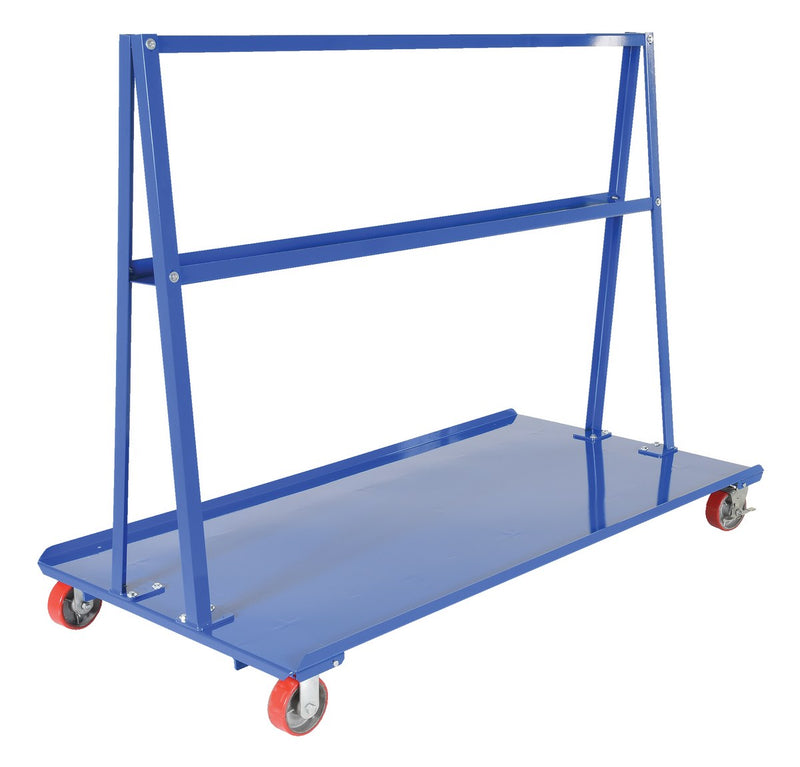

AF-3672	36-11/16 in	72 in	36-11/16 in	72 in	196 lbs
