Vestil Adjustable Spreader Beams

Brand: Vestil SKU: SBM-25 Only 2 left
Authorized dealer
$729.00 - $1,663.99
$729.00
$729.00 - $1,663.99
$729.00

Product Highlights

  • Adjustable lower lifting points
  • Upper and lower bails included
  • Steel beam construction
Ships in 2 business days
Capacity: 2,500 lb
Maximum Spread: 6 ft
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Instruction manual PDFWarranty PDF

Overview

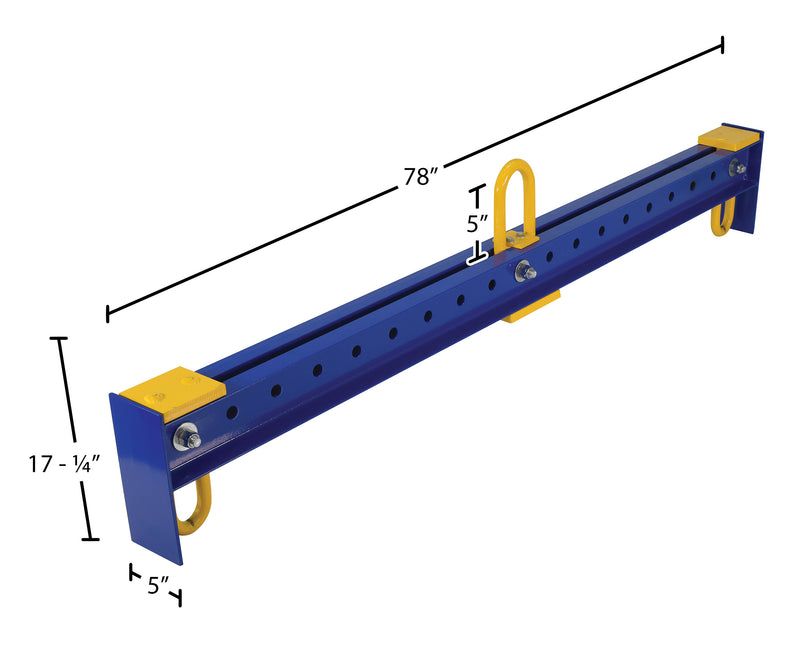

Main Specifications

MPN SBM-25
Material Steel
Overall Width (in.) 5
Overall Length (in.) 78
Overall Height (in.) 16-1/2
Assembled Weight 119 lbs
Color / Finish Blue
Uniform Capacity (lb.) 2,500

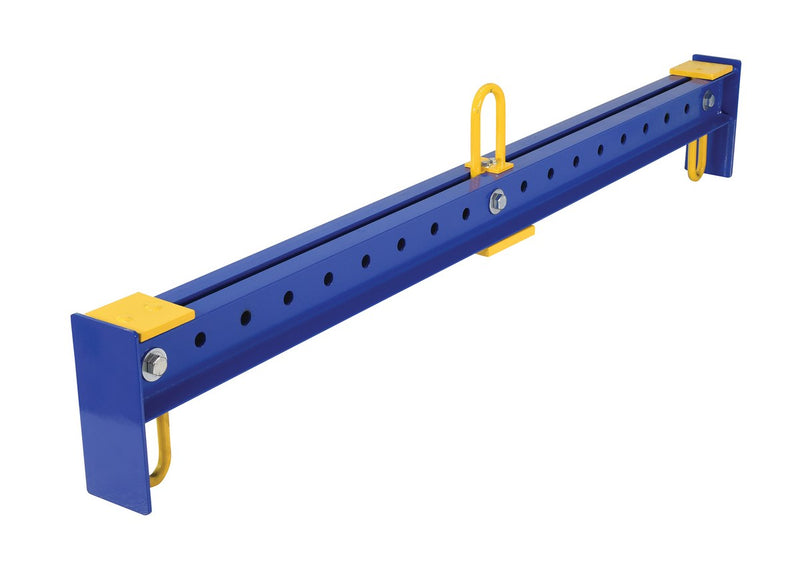

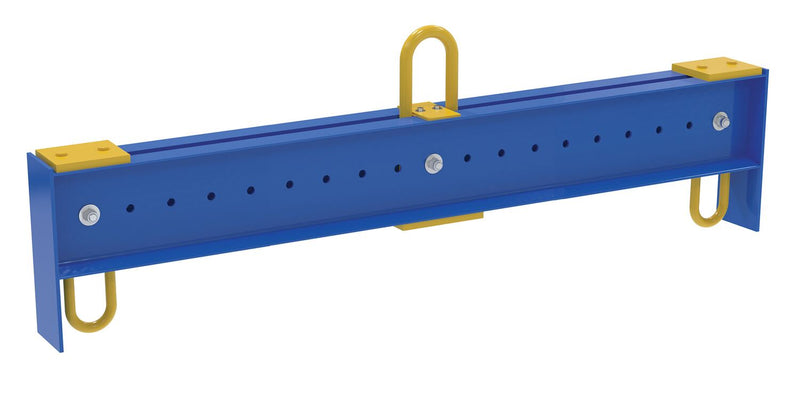

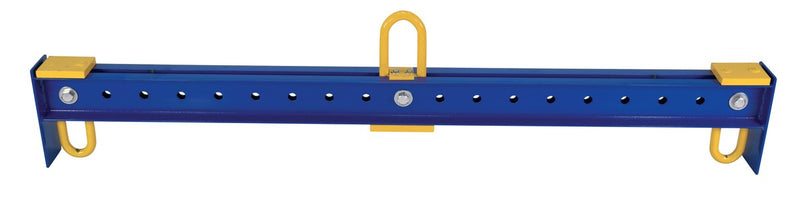

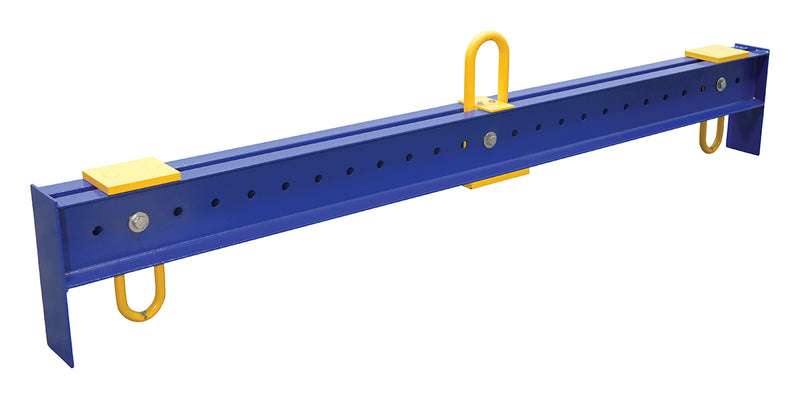

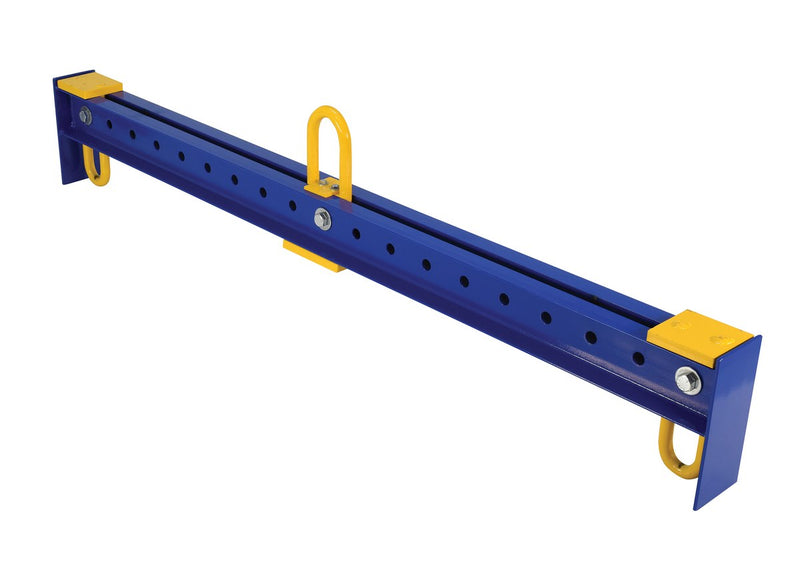

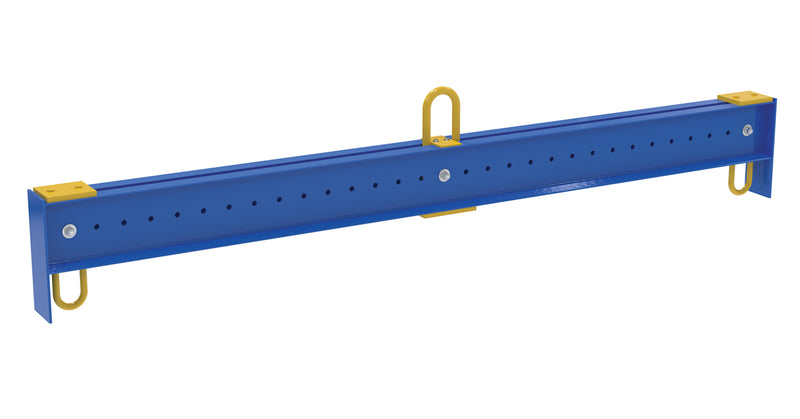

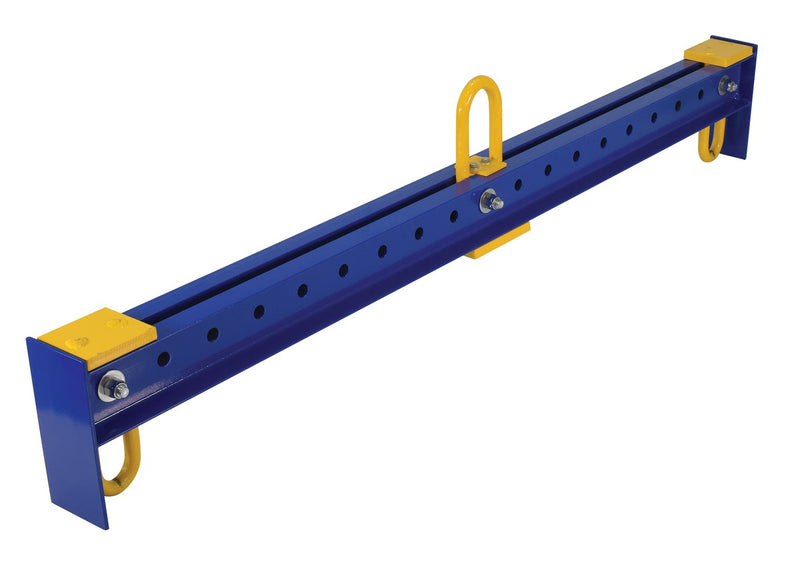

Vestil Adjustable Spreader Beams

Position uneven or awkward loads with an adjustable steel spreader beam. Movable lower bails let the lifting points be set for the load being handled.

An upper bail connects the beam to the lifting equipment. Each beam includes lower lifting connections, with bail and sling-holder designs varying by model.

Adjustable Spreader Beams Features

  • Adjustable lower lifting points
  • Upper and lower bails included
  • Steel beam construction
  • Bail and sling-holder designs vary by model
Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components and wearing parts: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Headroom (in.) 14-3/4
Minimum Spread (in.) 8
Maximum Spread (ft,) 6
Usable Upper Bail Width (in) 2-1/2
Usable Upper Bail Height (in) 4-1/2
Usable Lower Bail Width (in.) 1-1/2
Usable Lower Bail Height (in.) 4-1/2
Upper/Lower Bail Thickness (in.) 3/4
ASME B30.20-1993
C-Channel Height (in.) 5
Attachment Method Chain Hoist

Shipping

Freight Type LTL Palletized
Freight Class 50
Country of Origin Name US

Warranty

Manufacturer Warranty 90 Days
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / Finish: Blue

Compare all sizes & specifications
Vestil Adjustable Spreader Beams: specifications by model
ModelOverall Width (in.)Overall Length (in.)Overall Height (in.)Assembled WeightUniform Capacity (lb.)
SBM-2557816-1/2119 lbs2,500
SBM-4057817-1/4133 lbs4,000
SBM-806104-1/224-1/2265 lbs8,000
SBM-BFB-100-65-1/280-1/225-1/2303 lbs10,000
SBM-BFB-100-106-3/4128-1/225-1/2431 lbs10,000
