Name: Vestil Aluminum Truck Dockboards with Welded Curbs - 5,000 lb Capacity
Brand: Vestil
Price: 1249.0 USD
Availability: InStock

Overview

Main Specifications

MPN BTA-05005454

Capacity 5000 lb

Overall width 54 in

Overall length 54 in

Overall height 13 in

Usable width 49-3/4 in

Dock height differential (11 degrees / 19 percent) 8-1/2 in

Deck thickness 5/16 in

Assembled weight 117 lbs

Material Aluminum

Color / finish Silver

Vestil Aluminum Truck Dockboards with Welded Curbs - 5,000 lb Capacity

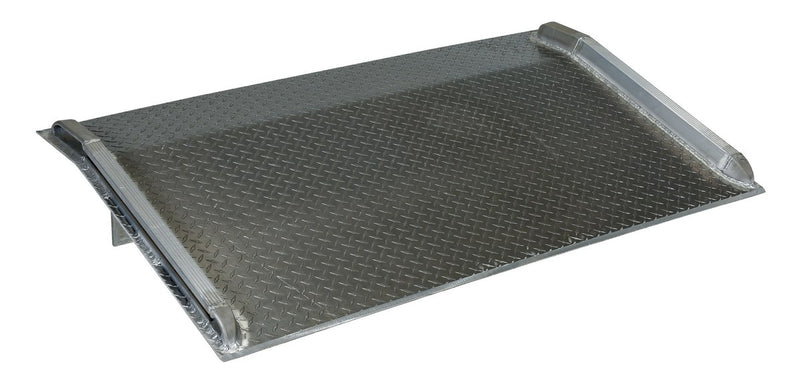

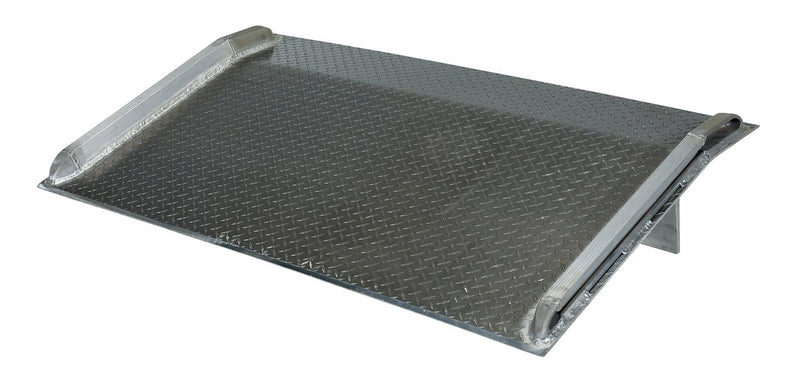

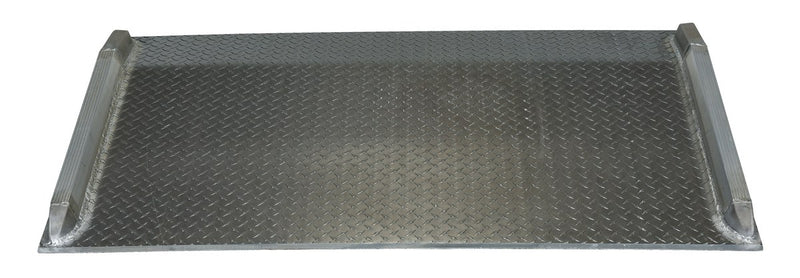

The 5,000 lb welded-curb dockboards connect a loading dock and trailer for fork truck traffic. An aluminum deck with raised-diamond tread provides the travel surface, and welded aluminum curbs define the driving lane.

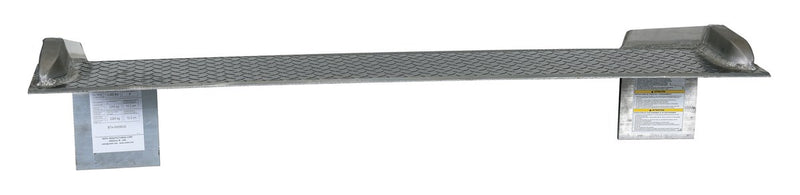

Locking legs help keep the board from moving during loading and unloading. Their uneven lengths let the board rest at a cant when stored for fork truck pickup. For three-wheeled fork trucks, Vestil specifies a board rated for at least four times the truck's lifting capacity.

Welded-Curb Dockboard Features

5,000 lb uniform load rating
Raised-diamond aluminum tread plate
Welded curbs along the driving lane
Beveled edges at entry and exit

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Height Difference (in.): 8 degree/17 percent		6
Bend Degree		11
Bend Distance from Edge (in.)		9
Leg Distance from Edge (in.)		12
Usable Length (in.)		54
Edge Type		Beveled
Equipped With		Welded Aluminum Locking Legs
Surface Type		Raised-Diamond Treadplate
Curb Height (in.)		2
Curb Width (in.)		2-1/8
OSHA		1910.30 (a)
ANSI		MH 30.2
Curb Material		Aluminum

Shipping

Ship weight		117 lbs
Freight Type		LTL Loose
Assembly / shipment state		Assembled
Package 1 width (in)		54
Package 1 depth (in)		54
Package 1 height (in)		11
Freight Class		100
Country of Origin Name		US

Warranty

Warranty term		90 Days
Warranty type		Limited - Parts

Size & Specification Comparison

All models: Capacity: 5000 lb · Material: Aluminum · Color / finish: Silver

Compare all sizes & specifications

Vestil Aluminum Truck Dockboards with Welded Curbs - 5,000 lb Capacity: specifications by model
Model	Overall width	Overall length	Overall height	Usable width	Dock height differential (11 degrees / 19 percent)	Deck thickness	Assembled weight
BTA-05005454	54 in	54 in	13 in	49-3/4 in	8-1/2 in	5/16 in	117 lbs
BTA-05005466	54 in	66 in	15 in	49-3/4 in	11 in	5/16 in	134 lbs
BTA-05005478	54 in	78 in	16-3/4 in	49-1/2 in	13 in	5/16 in	168 lbs
BTA-05006030	60 in	30 in	11 in	55-3/4 in	4 in	1/4 in	65 lbs
BTA-05006036	60 in	36 in	11-3/16 in	55-1/4 in	5 in	1/4 in	69 lbs
BTA-05006048	60 in	48 in	11 in	55-3/4 in	7 in	5/16 in	105 lbs
BTA-05006060	60 in	60 in	15-7/16 in	55-1/4 in	10 in	5/16 in	133 lbs
BTA-05006072	60 in	72 in	18-1563/10000 in	55 in	12 in	5/16 in	163 lbs
BTA-05006660	66 in	60 in	16-3/16 in	61 in	10 in	5/16 in	126 lbs
BTA-05006666	66 in	66 in	15-3/4 in	61-1/2 in	11 in	5/16 in	135 lbs
BTA-05006672	66 in	72 in	16-3/4 in	61-1/2 in	12 in	5/16 in	171 lbs
BTA-05007230	72 in	30 in	11 in	67-3/4 in	4 in	5/16 in	85 lbs
BTA-05007236	72 in	36 in	11 in	67-3/4 in	5 in	5/16 in	92 lbs
BTA-05007242	72 in	42 in	11 in	67-3/4 in	6 in	5/16 in	111 lbs
BTA-05007248	72 in	48 in	11 in	67-3/4 in	7 in	5/16 in	137 lbs
BTA-05007254	72 in	54 in	13 in	67-3/4 in	8-1/2 in	3/8 in	171 lbs
BTA-05007260	72 in	60 in	16-1/4 in	67 in	10 in	3/8 in	195 lbs
BTA-05007266	72 in	66 in	15-3/4 in	67-1/2 in	11 in	3/8 in	212 lbs
BTA-05007272	72 in	72 in	16-3/4 in	67-1/2 in	12 in	3/8 in	281 lbs
BTA-05007830	78 in	30 in	11 in	73-3/4 in	4 in	5/16 in	156 lbs
BTA-05007836	78 in	36 in	11 in	73-3/4 in	5 in	5/16 in	151 lbs
BTA-05007842	78 in	42 in	11 in	73-3/4 in	6 in	5/16 in	173 lbs
BTA-05007854	78 in	54 in	13-3/4 in	73-1/2 in	8-1/2 in	5/16 in	212 lbs
BTA-05007866	78 in	66 in	15-3/4 in	73-1/2 in	11 in	3/8 in	255 lbs
BTA-05007872	78 in	72 in	16-3/4 in	73-1/2 in	12 in	3/8 in	267 lbs
BTA-05008430	84 in	30 in	11 in	79-3/4 in	4 in	5/16 in	94 lbs
BTA-05008442	84 in	42 in	11 in	79-3/4 in	6 in	5/16 in	116 lbs
BTA-05008454	84 in	54 in	13-3/4 in	79-1/2 in	8-1/2 in	5/16 in	182 lbs
BTA-05008466	84 in	66 in	15-3/4 in	79-1/2 in	11 in	3/8 in	275 lbs
