Name: Vestil Bolt-On Highway Guard Rails
Brand: Vestil
Price: 239.0 USD
Availability: OutOfStock

Overview

Main Specifications

MPN GR-H2R-BO-3-YL

Overall width 4-5/8 in

Overall length 36 in

Overall height 12 in

Assembled weight 20 lbs

Material Steel

Color / finish Yellow

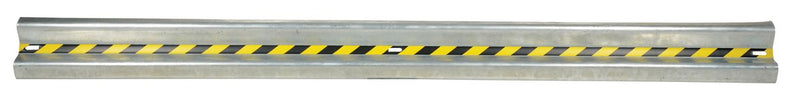

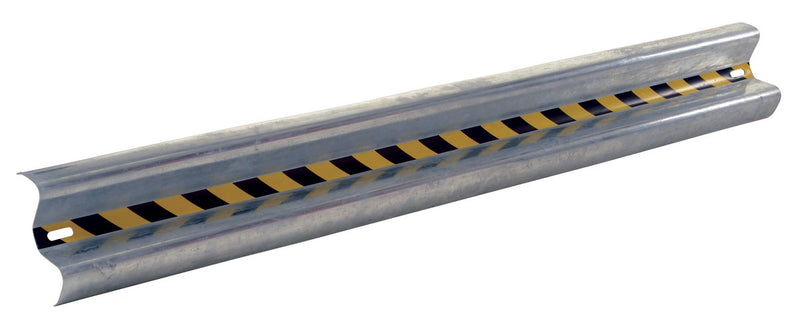

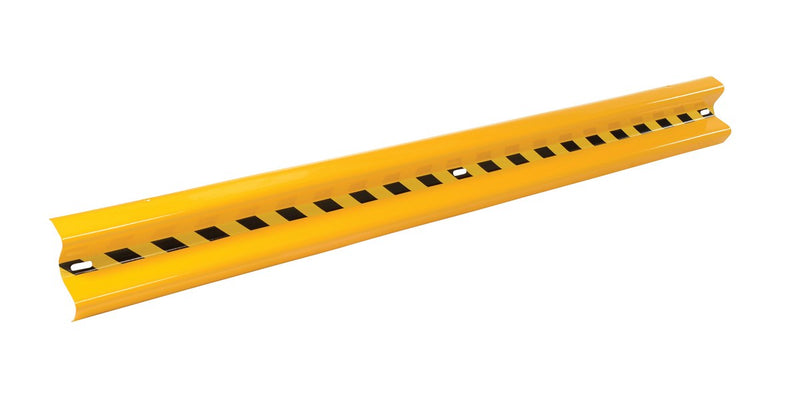

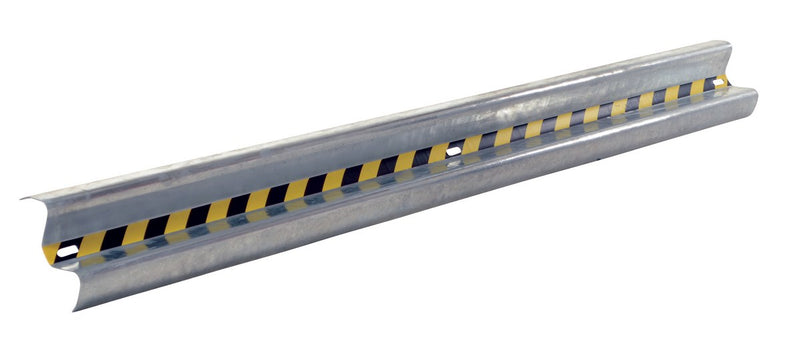

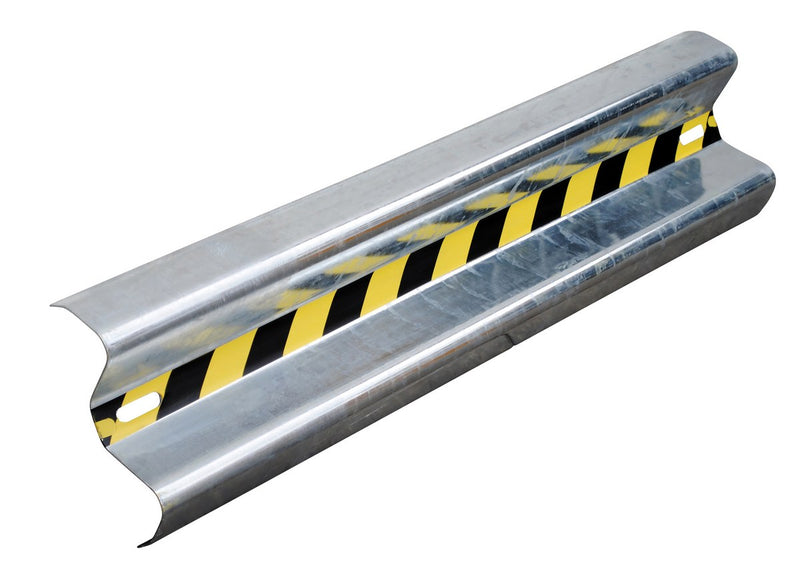

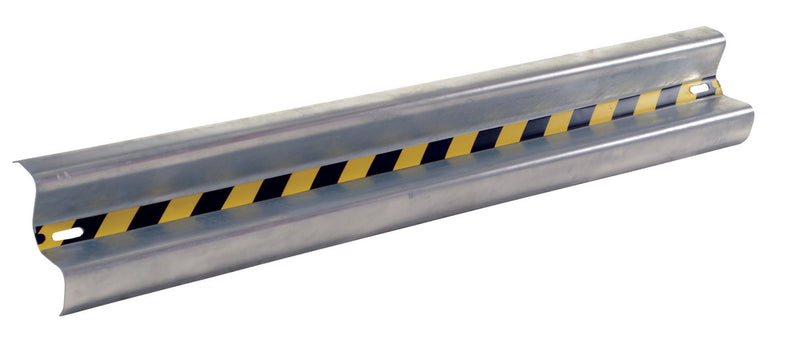

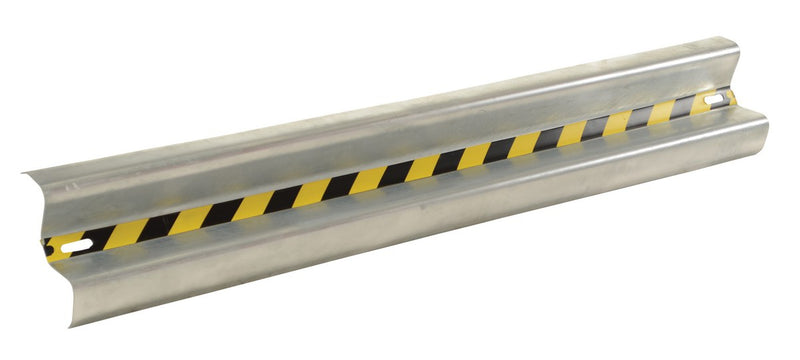

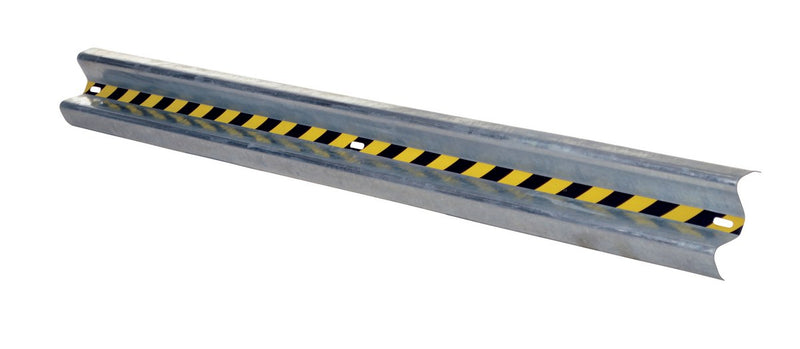

Vestil Bolt-On Highway Guard Rails

Install bolt-on steel highway guard rails to define barriers around building corners and machinery. The sections can be used indoors or outdoors.

The bolt-on highway rail family offers nominal lengths and finish choices. Rails fasten to supporting posts, which are sold separately.

Bolt-On Highway Guard Rails Features

Bolt-On rail connection
Steel construction
Indoor and outdoor use
Length and finish choices

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Mounting Posts Required (qty.)		2
Rail Style		Straight
Impact Resistance		4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.)		5
Rail Mounting Hole Slotted (in.)		3/4 x 2-1/2
Package Contents		1 Guard Rail
Traffic Control Type		Guard Rail

Shipping

Ship weight		20 lbs
Freight Type		Parcel
Package Width (in)		12
Package Depth (in)		36
Package Height (in)		4
Freight Class		77-1/2

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

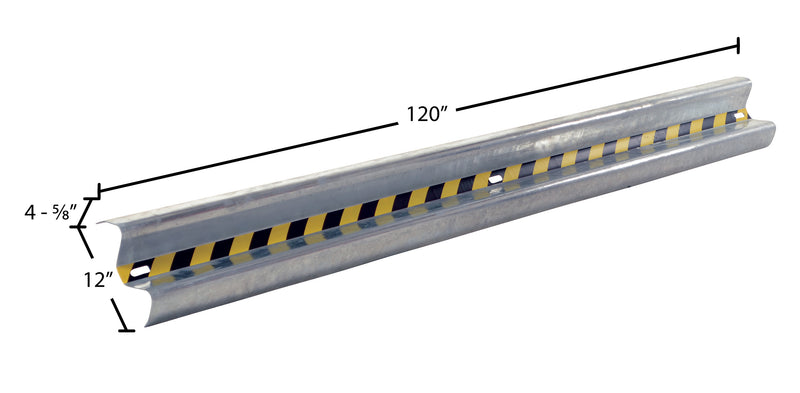

All models: Overall width: 4-5/8 in · Overall height: 12 in · Material: Steel

Compare all sizes & specifications

Vestil Bolt-On Highway Guard Rails: specifications by model
Model	Overall length	Assembled weight	Color / finish

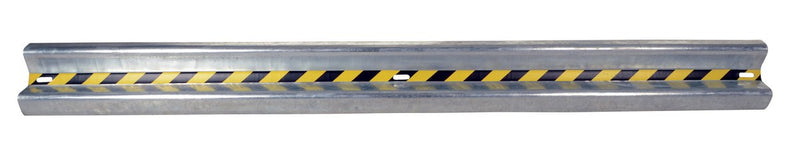

GR-H2R-BO-3-HDG	36 in	20 lbs	Gray

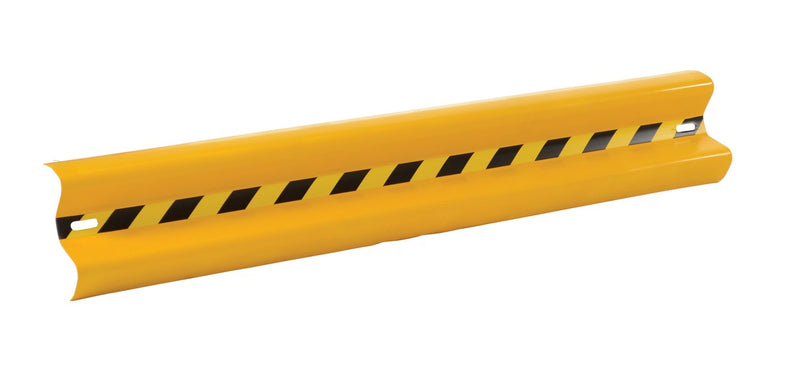

GR-H2R-BO-3-YL	36 in	20 lbs	Yellow
GR-H2R-BO-4-HDG	48 in	30 lbs	Gray
GR-H2R-BO-4-YL	48 in	30 lbs	Yellow
GR-H2R-BO-5-HDG	60 in	41 lbs	Gray
GR-H2R-BO-5-YL	60 in	41 lbs	Yellow
GR-H2R-BO-6-HDG	72 in	47 lbs	Gray

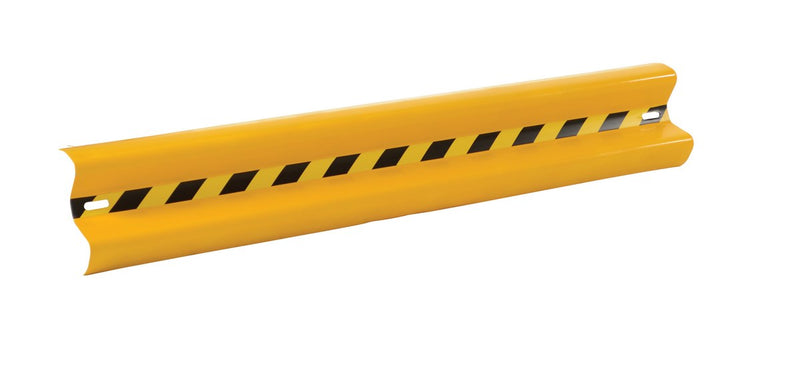

GR-H2R-BO-6-YL	72 in	47 lbs	Yellow
GR-H2R-BO-7-HDG	84 in	76 lbs	Gray

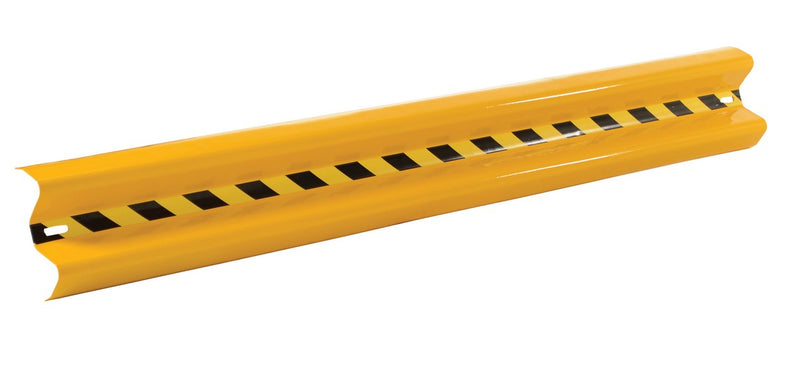

GR-H2R-BO-7-YL	84 in	76 lbs	Yellow
GR-H2R-BO-8-HDG	96 in	56 lbs	Gray
GR-H2R-BO-8-YL	96 in	56 lbs	Yellow
GR-H2R-BO-9-HDG	108 in	70 lbs	Gray

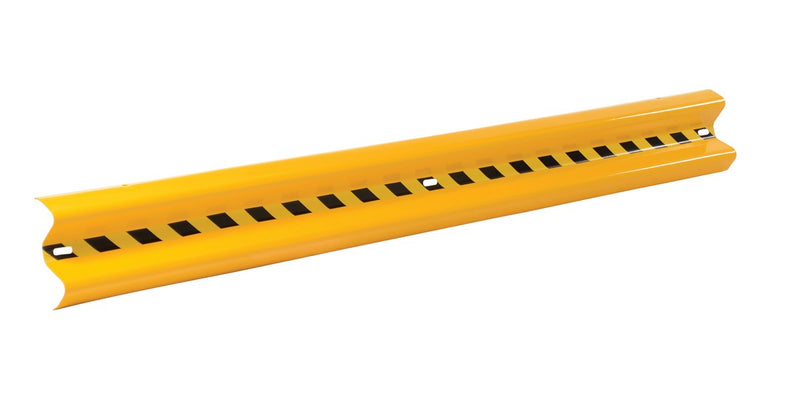

GR-H2R-BO-9-YL	108 in	70 lbs	Yellow
GR-H2R-BO-10-HDG	120 in	76 lbs	Gray
GR-H2R-BO-10-YL	120 in	76 lbs	Yellow
GR-H2R-BO-11-HDG	132 in	96 lbs	Gray
GR-H2R-BO-11-YL	132 in	96 lbs	Yellow
GR-H2R-BO-12-HDG	144 in	90 lbs	Gray
GR-H2R-BO-12-YL	144 in	90 lbs	Yellow
