Vestil Construction Barrier Systems

Name: Vestil Construction Barrier Systems
Brand: Vestil
Price: 379.0 USD
Availability: InStock

Brand: Vestil SKU: HRAIL-A-9072 40 in stock

Authorized dealer

$379.00 - $399.00

$379.00

$379.00 - $399.00

$379.00

Product Highlights

Starter and add-on units
Steel tube frames
Chain link infill

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN HRAIL-A-9072

Overall width 24 in

Overall length 103 in

Overall height 72 in

Assembled weight 44 lbs

Material Welded Steel

Color / finish Gray

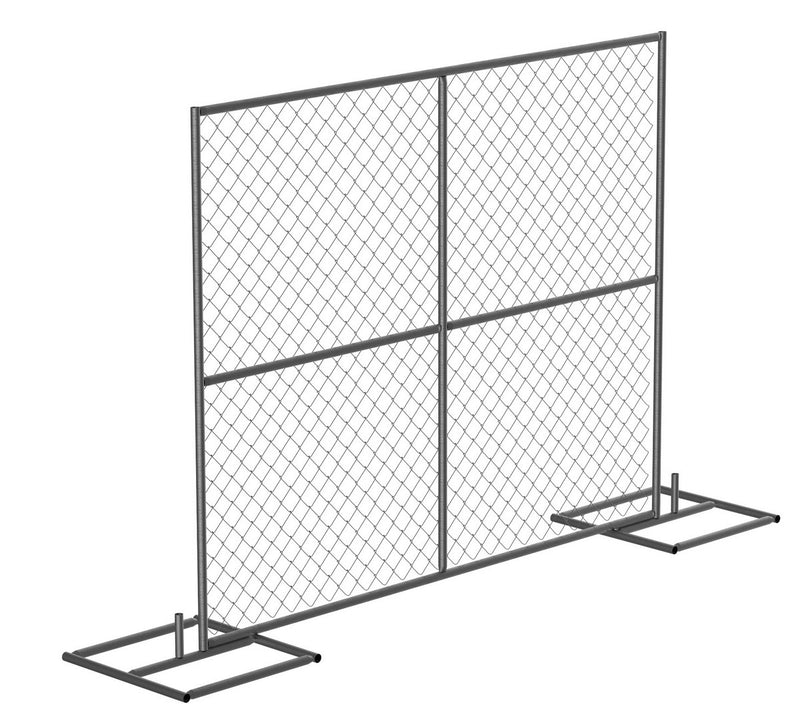

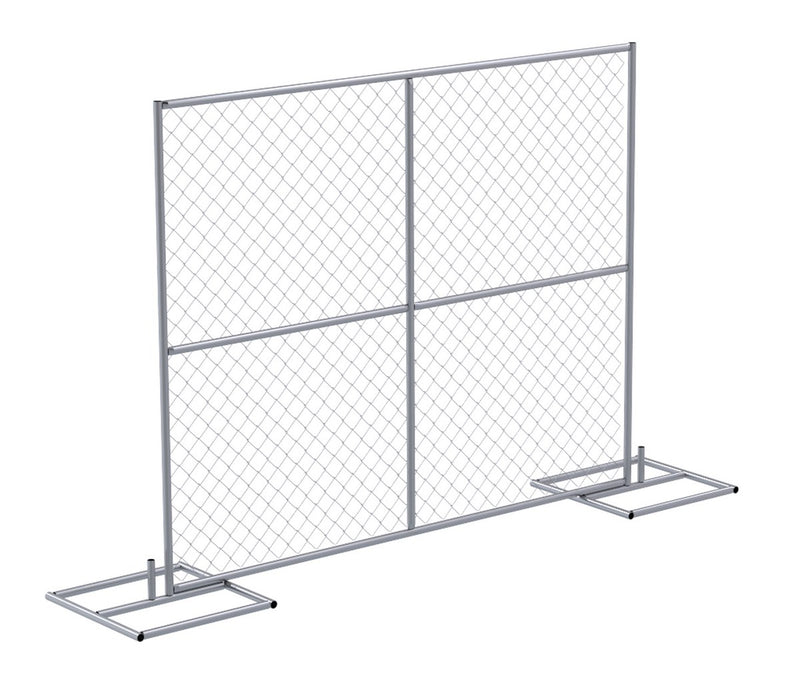

Vestil Construction Barrier Systems

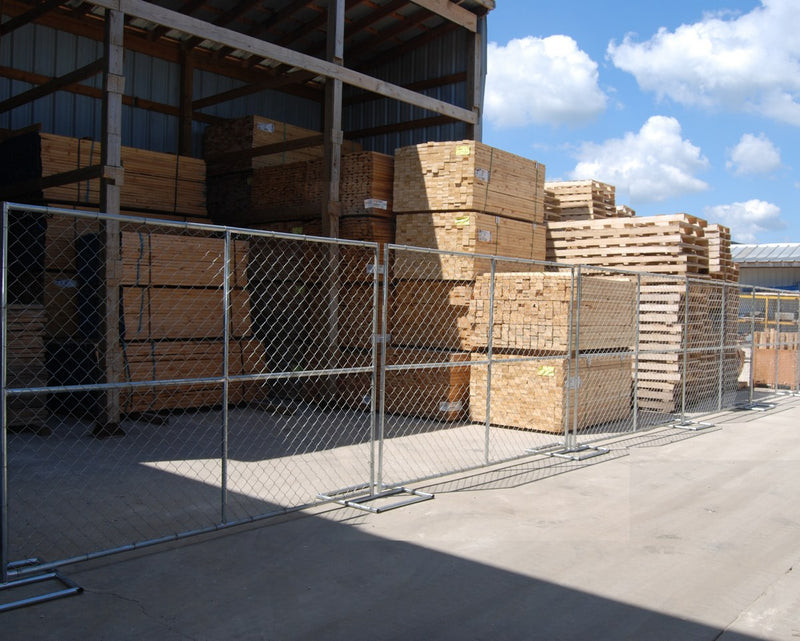

Form a temporary job site boundary with steel tube construction barriers. Starter and add-on units let the barrier run expand to the required layout.

Chain link panels provide a visible perimeter while bases support the sections. Select the system unit type to suit the installation.

Construction Barrier Systems Features

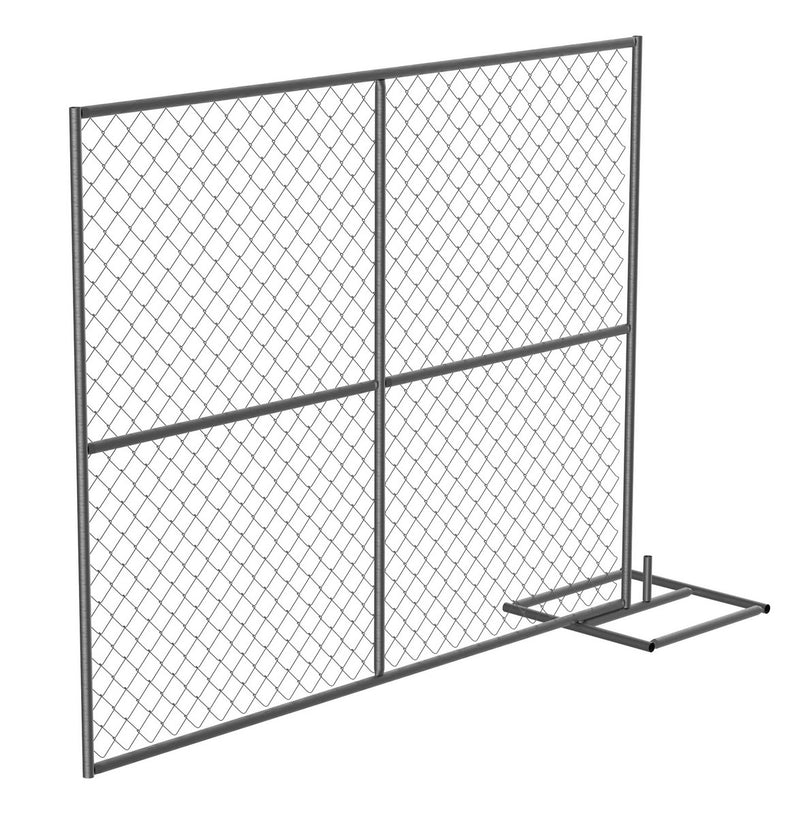

Starter and add-on units
Steel tube frames
Chain link infill
Temporary site boundary

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

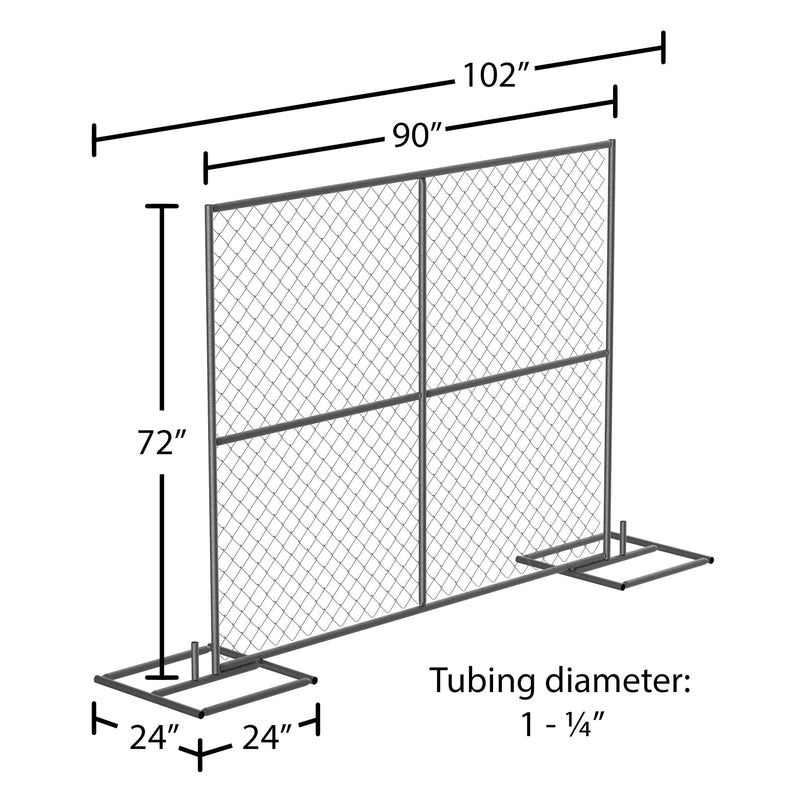

Panel and Base Tubing Diameter (in.)		1-1/4
Chain Link (Gauge)		10
Chain Link Opening (in.)		2-3/8 x 2-3/8
Panel (qty.)		1
Base (qty.)		1
Connector (qty.)		2
Base Length (in.)		24
Base Width (in.)		24
Base Height (in.)		7
Connector Length (in.)		1-1/4
Connector Width (in.)		5-1/4
Connector Height (in.)		1-1/8
Mesh Type		Diamond
Panel Width (in.)		1-1/2
Panel Length (in.)		90
Panel Height (in.)		72
Stake Composition		Metal
Fencing Material		Galvanized
Aperture		3/8
Aperture UOM		in
Height UOM		ft
Length UOM		ft
Thickness		140
Thickness UOM		mil
Number of Attached Stakes		1
Stake Length (in)		24
Stake Thickness (in)		1-1/4
Stake Width (in)		24

Shipping

Ship weight		115 lbs
Freight Type		LTL Palletized
Package Width (in)		72
Package Depth (in)		96
Package Height (in)		15
Freight Class		300

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Overall width: 24 in · Overall height: 72 in · Material: Welded Steel · Color / finish: Gray

Compare all sizes & specifications

Vestil Construction Barrier Systems: specifications by model
Model	Overall length	Assembled weight
HRAIL-A-9072	103 in	44 lbs
HRAIL-9072	116 in	55 lbs
