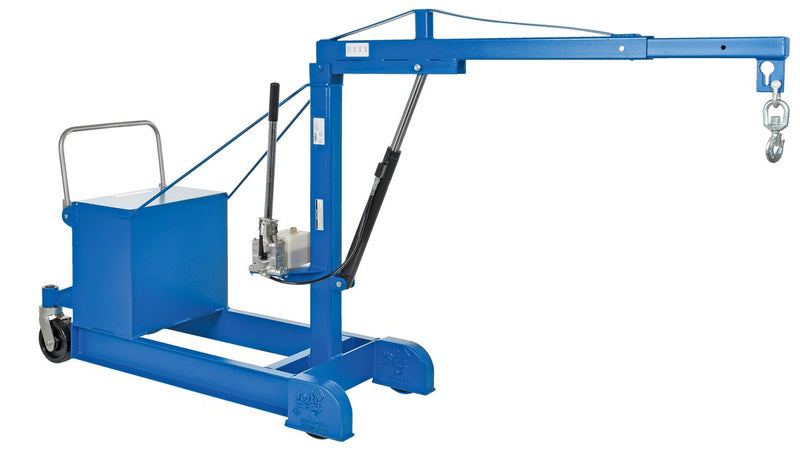

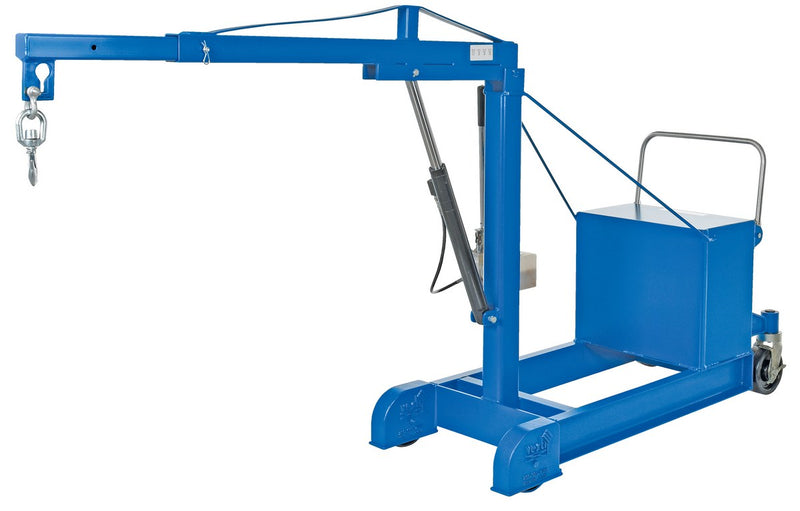

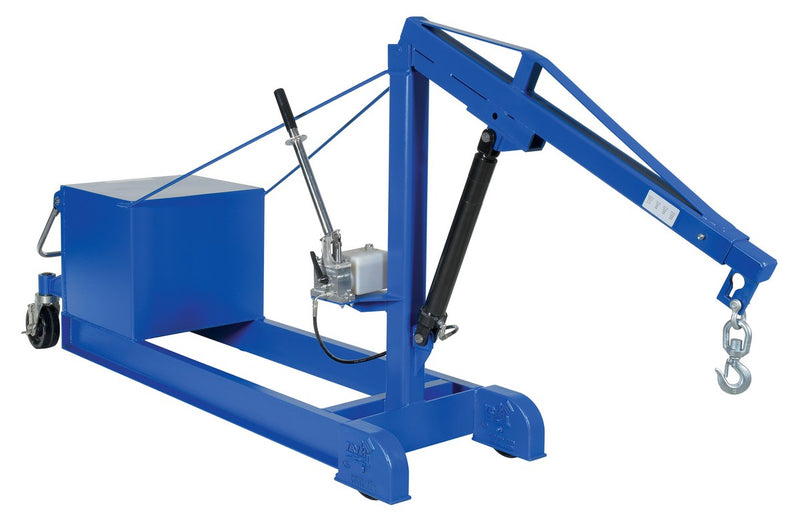

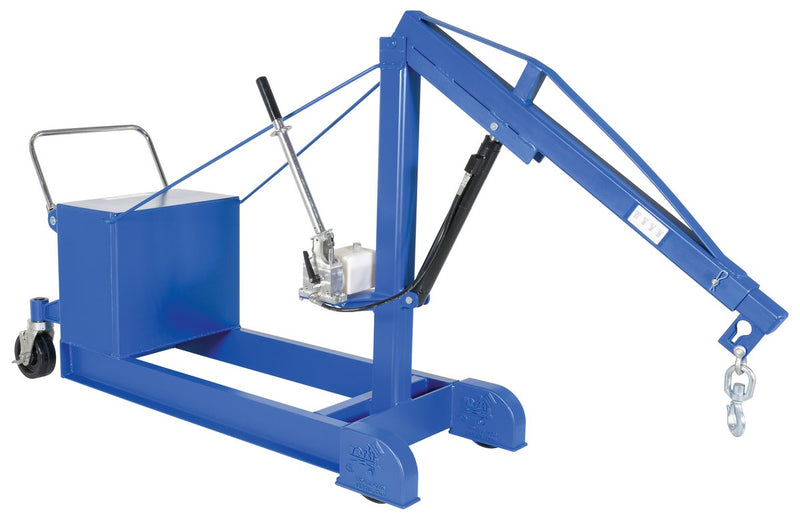

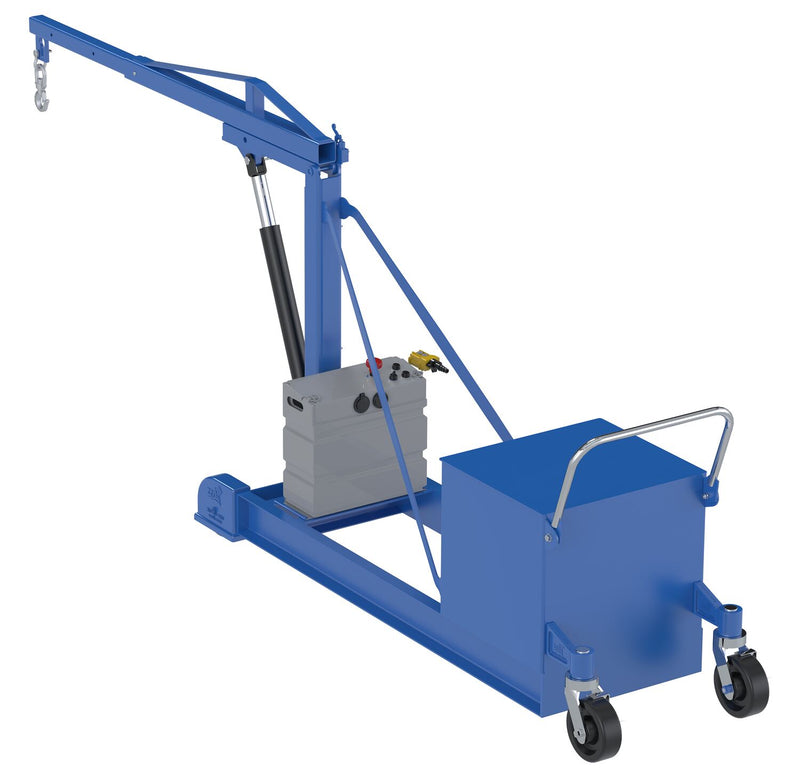

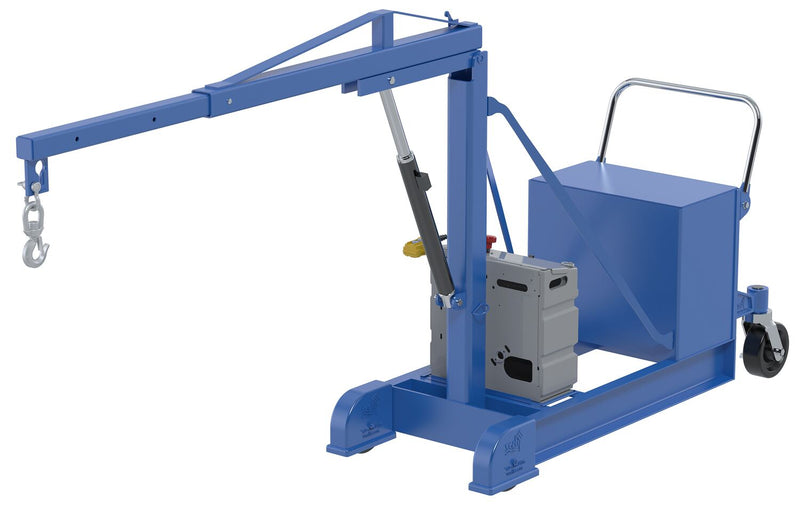

Vestil Counter Balanced Floor Cranes

Brand: Vestil SKU: CBFC-500-DC Only 2 left
Authorized dealer
$4,349.00 - $8,507.99
$6,084.99
$4,349.00 - $8,507.99
$6,084.99

Product Highlights

  • Leg-free counterbalanced layout
  • Included counterweight
  • Telescoping steel boom
Ships in 45 business days
Capacity: 500 lb
Lift: DC Electric
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Warranty PDF

Overview

Main Specifications

MPN CBFC-500-DC
Material Steel
Overall Width (in.) 29
Overall Length (in.) 135-1/8
Overall Height (in.) 102
Assembled Weight 1190 lbs
Uniform Capacity (lb.) 500
Color / Finish Blue

Vestil Counter Balanced Floor Cranes

Reach equipment without front support legs using a counterbalanced floor crane. The included counterweight supports a telescoping boom that extends toward the load.

Manual hydraulic and DC-powered lift models are available in this family. The welded steel frame and leg-free front layout support access to tight work areas.

Counter Balanced Floor Cranes Features

  • Counterweight eliminates front support legs
  • Included counterbalance on the floor cranes
  • Telescoping boom for additional reach
  • Manual hydraulic or DC-powered lift, depending on model
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Power Source 12V DC
Base Length (in.) 70
Base Width (in.) 29
Boom Length Minimum (in.) 53-1/2
Boom Length Maximum (in.) 77-1/2
Hook Height Minimum (in.) 5
Hook Height Maximum (in.) 90
Adjustable Length (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.) 300
Maximum Load at 51-1/4" (lb.) 400
Maximum Load at 39-1/4" (lb.) 500
Design Counter Balance
Rigid Caster Quantity and Size (in.) (2) 8 x 2
Rigid Caster Material Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.) (2) 8 x 3
Swivel Caster Material Phenolic
Hook Material Steel
Hook Opening (in.) 1-1/32
Control Handheld Push Button w/ 8 ft. Extended Coil Cord
Finish Liquid Paint
Maximum Boom Height at Full Extension (In) 90
Maximum Boom Length (in) 77.5
Maximum Load Capacity (lbs) 500
Maximum Load Capacity at Full Extension (lbs) 300
Frame Material Steel
Platform Length (in) 70
Platform Width (in) 29
Portable Yes
Number of Casters / Wheels 4
Rear Wheel Diameter (in) 8
Rear Wheel Width (in) 3
Rear Wheel Material Phenolic
Front Wheel Diameter (in) 8
Front Wheel Width (in) 2
Front Wheel Material Glass Filled Nylon
ASME B30.5 Compliant Exempt from Standard

Shipping

Freight Type LTL Palletized
Freight Class 200
Country of Origin Name US

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Overall Width (in.): 29 · Color / Finish: Blue

Compare all sizes & specifications
Vestil Counter Balanced Floor Cranes: specifications by model
ModelOverall Length (in.)Overall Height (in.)Assembled WeightUniform Capacity (lb.)
CBFC-500-DC135-1/81021190 lbs500
CBFC-500135-1/81021190 lbs500
CBFC-1000145-1/41021776 lbs1,000
CBFC-2000-DC159-1/8107-1/22287 lbs2,000
CBFC-2000159-1/8107-1/22287 lbs2,000
