Name: Vestil DC Powered Hydraulic Elevating Carts
Brand: Vestil
Price: 3674.99 USD
Availability: InStock

Overview

Main Specifications

MPN CART-1000-2040-DC

Capacity 1,000 lb

Overall width 24-3/4 in

Overall length 53-9/16 in

Overall height 39 in

Platform width 20-3/8 in

Platform length 40-3/8 in

Assembled weight 342 lbs

Material Steel

Color / finish Blue

Vestil DC Powered Hydraulic Elevating Carts

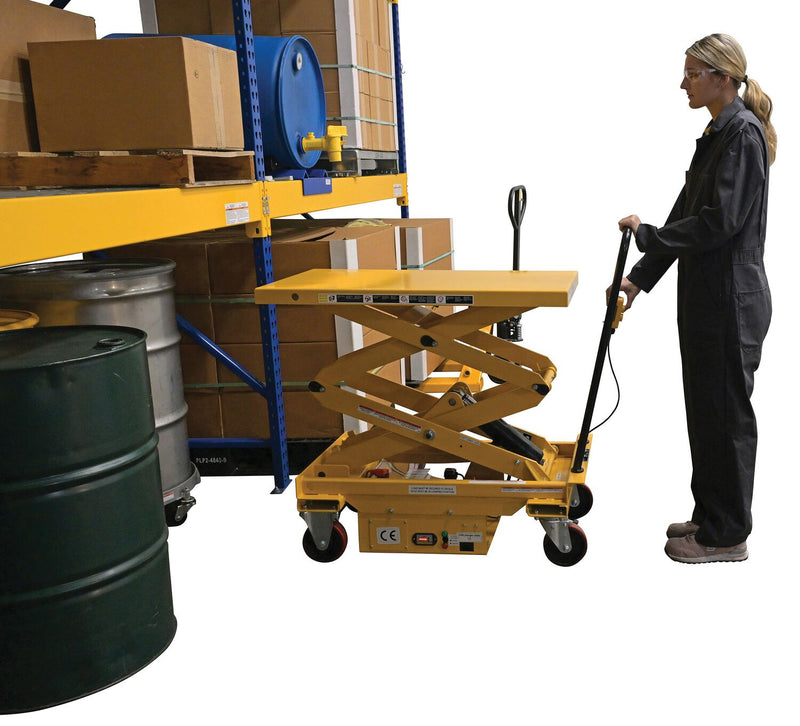

Raise and lower material with the push-button controls of a DC powered hydraulic cart. Manual push movement lets the operator position the cart between workstations.

This group includes single and double scissor designs with several platform sizes and capacities. Refer to the selected configuration for its lift range and caster details.

DC Powered Hydraulic Elevating Carts Features

DC powered hydraulic lifting

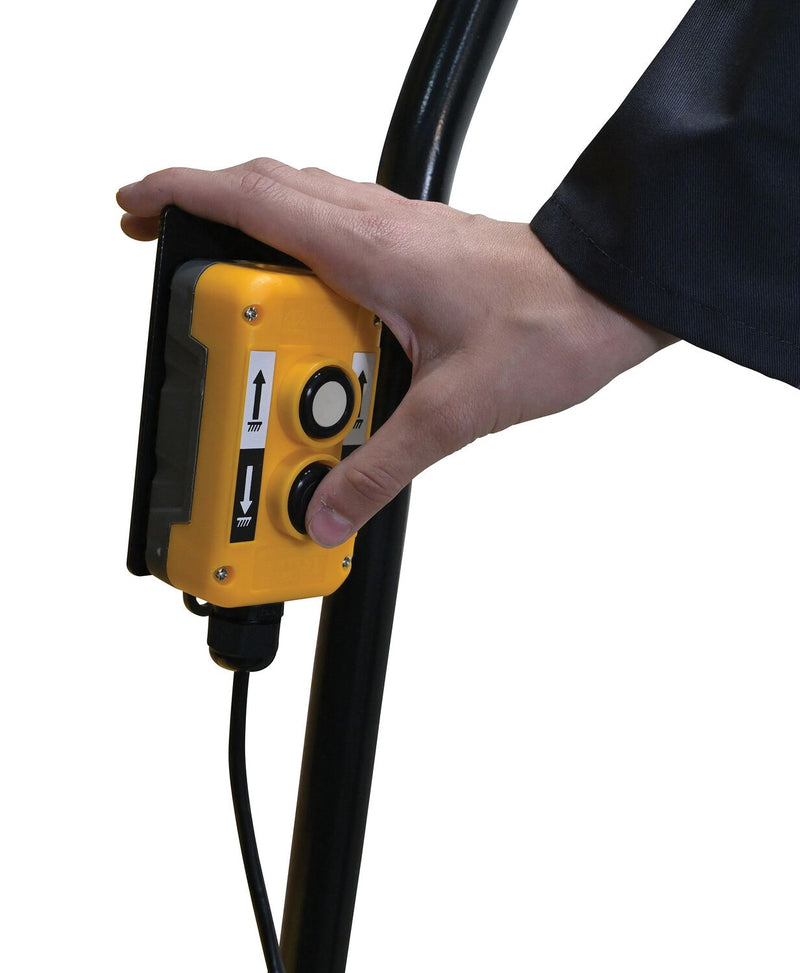

Push-button height control

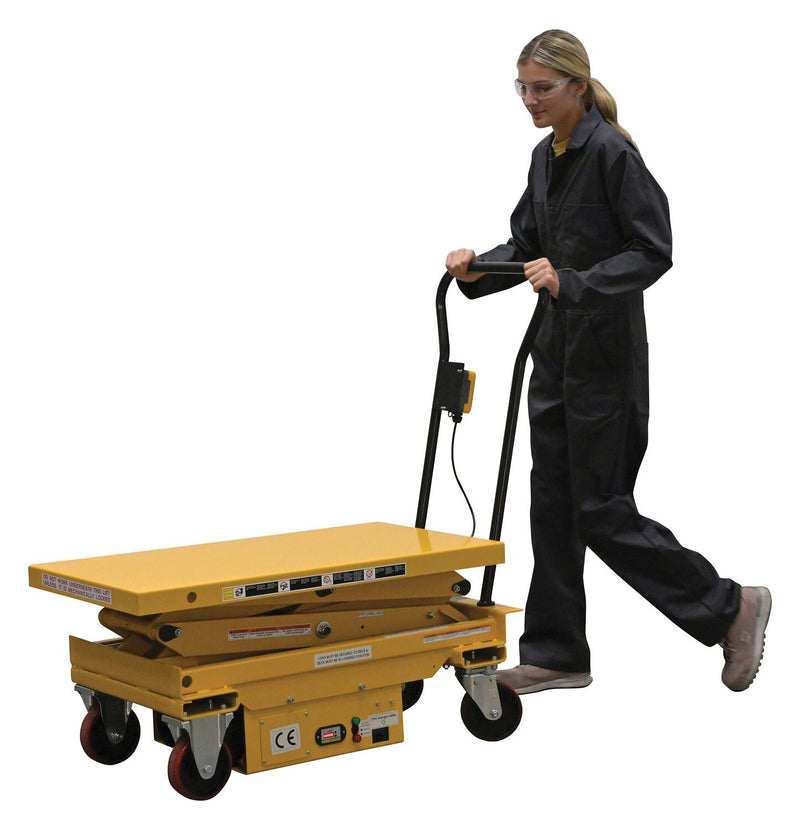

Manual push movement

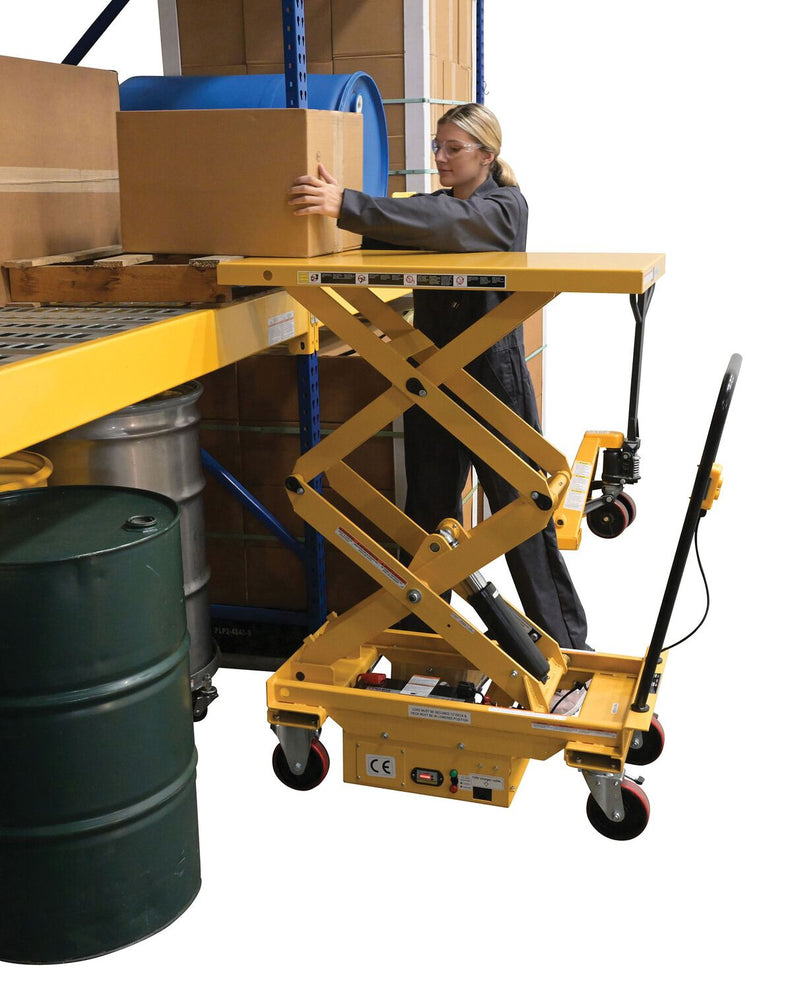

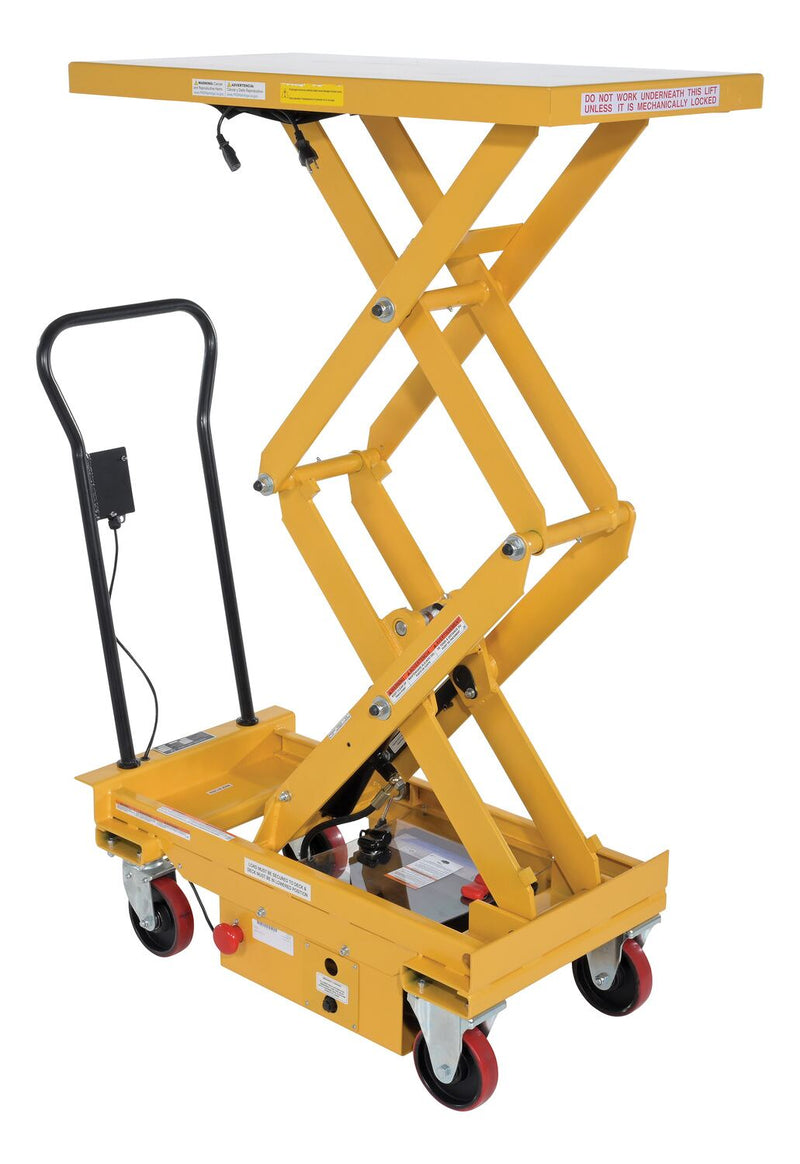

Single and double scissor models

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Lowered Height (in.)		15
Raised Height (in.)		39
Scissor Design		Single
Battery Quantity/Voltage		(1) 12V
Caster Quantity/Diameter/Width (in.)		(4) 5 x 2
Caster Material		Poly-on-Steel

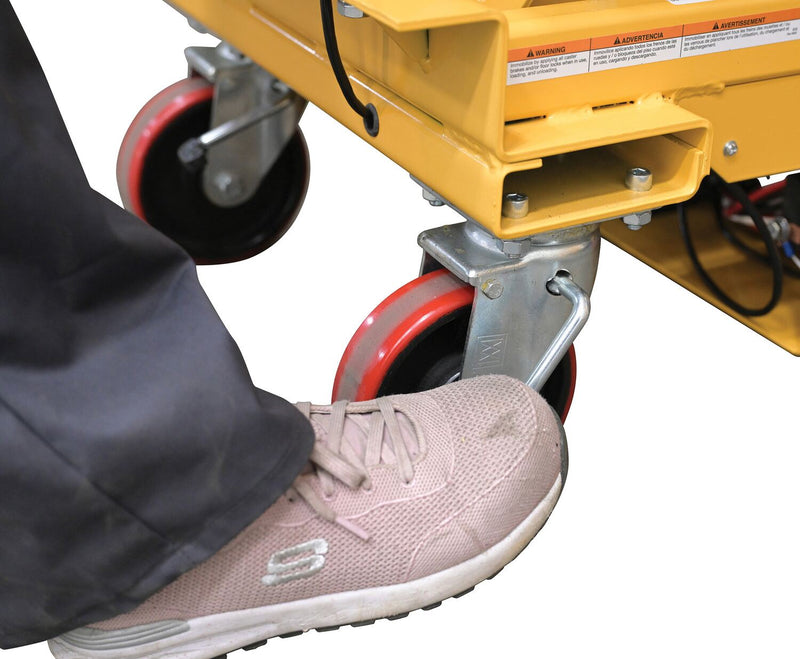

Caster Quantity/Type		(2) Rigid (2) Swivel with Brakes
Power Source		Electric - Cordless
Scale Included		No
Overload Protection		Yes
Operation Method		Push Button
Battery Charger Included		Yes
Phase		Not Applicable
Battery Type		FLA (Flooded Lead Acid)
Voltage (V)		12

Shipping

Ship weight		413 lbs
Freight Type		LTL Palletized
Package Width (in)		40
Package Depth (in)		64
Package Height (in)		32
Freight Class		110
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts
Manufacturer Warranty #2		90 Days
Warranty Type #2		Wearable Parts warranty

Size & Specification Comparison

All models: Material: Steel

Compare all sizes & specifications

Vestil DC Powered Hydraulic Elevating Carts: specifications by model
Model	Capacity	Overall width	Overall length	Overall height	Platform width	Platform length	Assembled weight	Color / finish

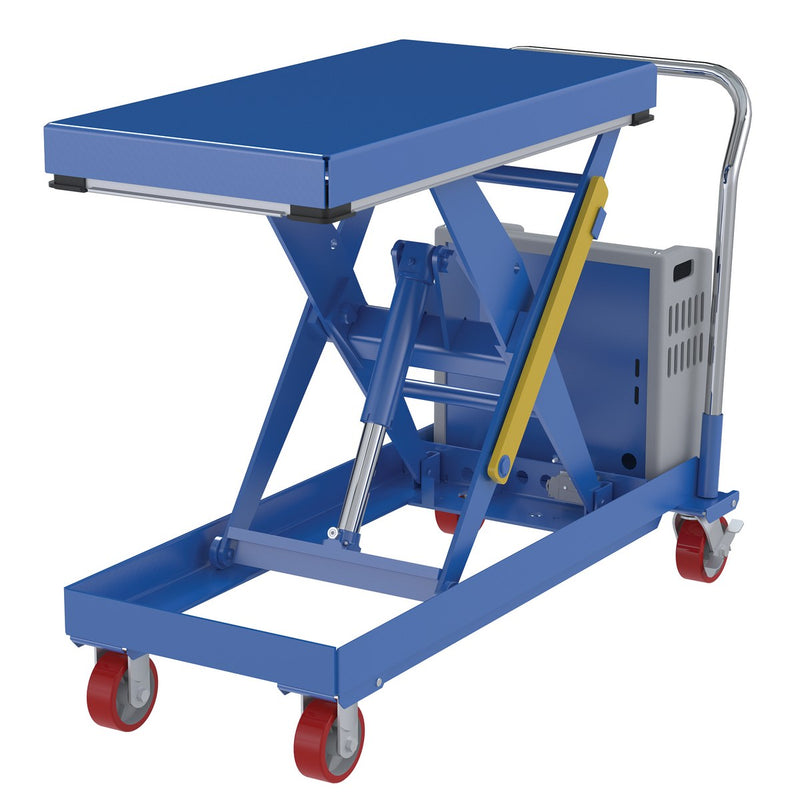

CART-1000-2040-DC	1,000 lb	24-3/4 in	53-9/16 in	39 in	20-3/8 in	40-3/8 in	342 lbs	Blue

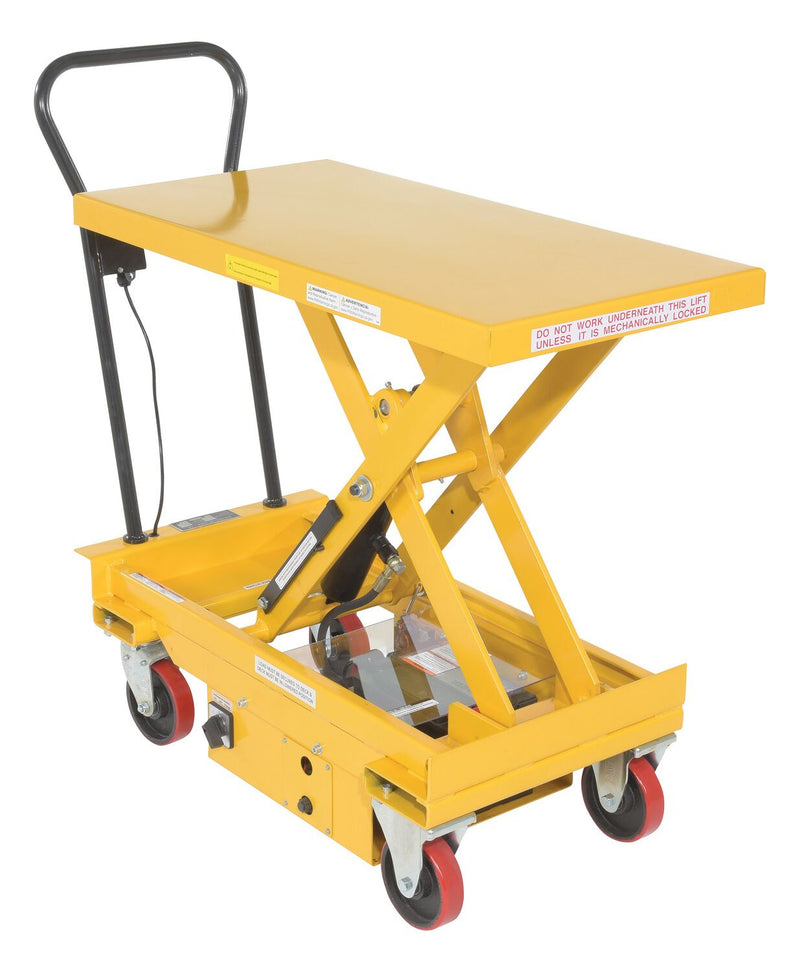

CART-1000-DC	1,000 lb	22-1/2 in	42 in	46 in	20-1/2 in	39-3/4 in	419 lbs	Yellow

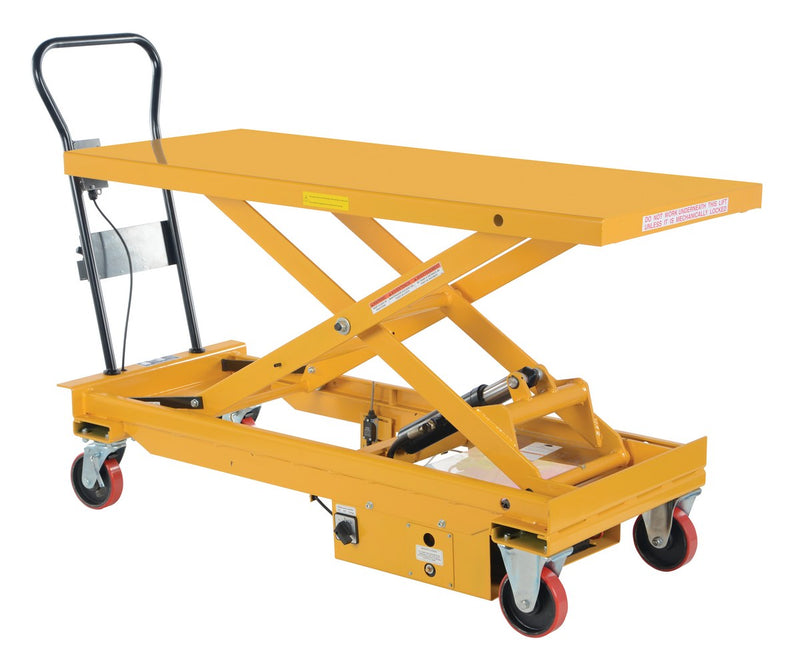

CART-1000-LD-DC	1,000 lb	24-1/2 in	70-1/2 in	46-3/4 in	24-1/2 in	60 in	460 lbs	Yellow

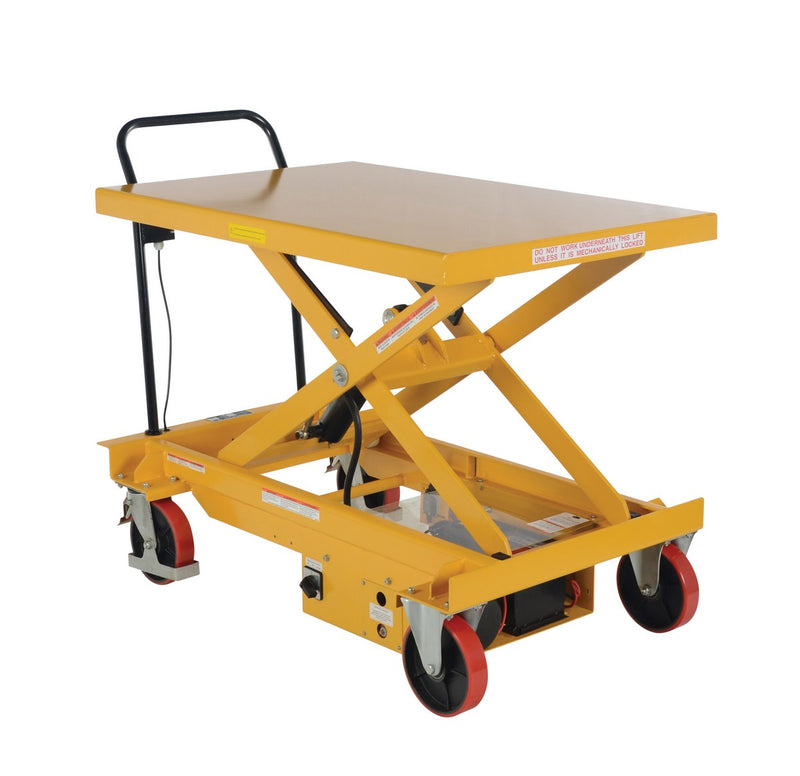

CART-1000-WD-DC	1,000 lb	30 in	51-1/2 in	44 in	31-1/2 in	47-1/4 in	485 lbs	Yellow

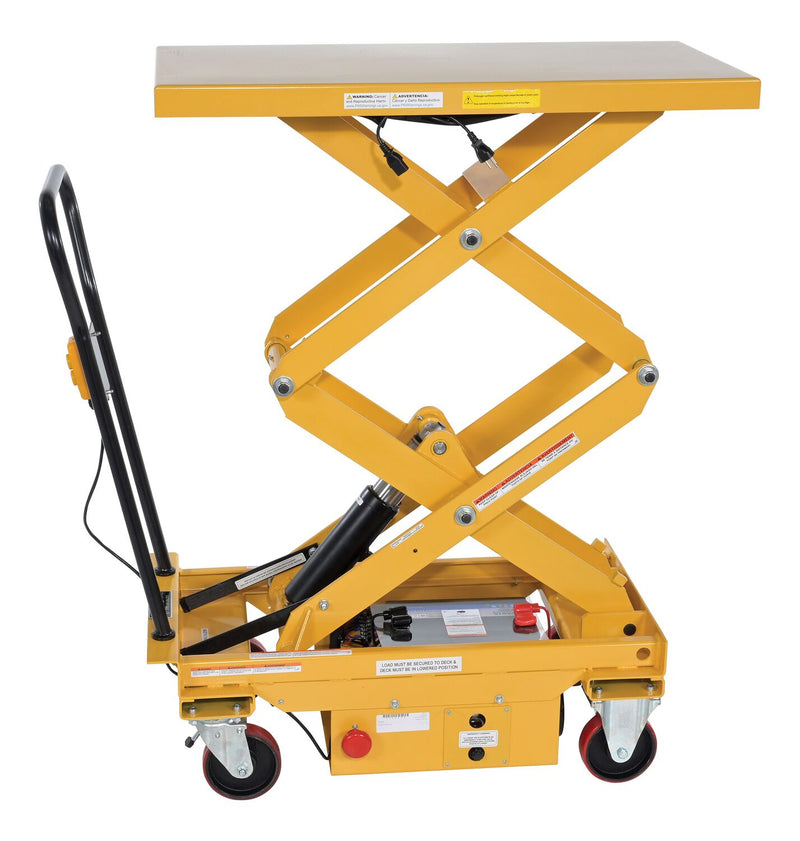

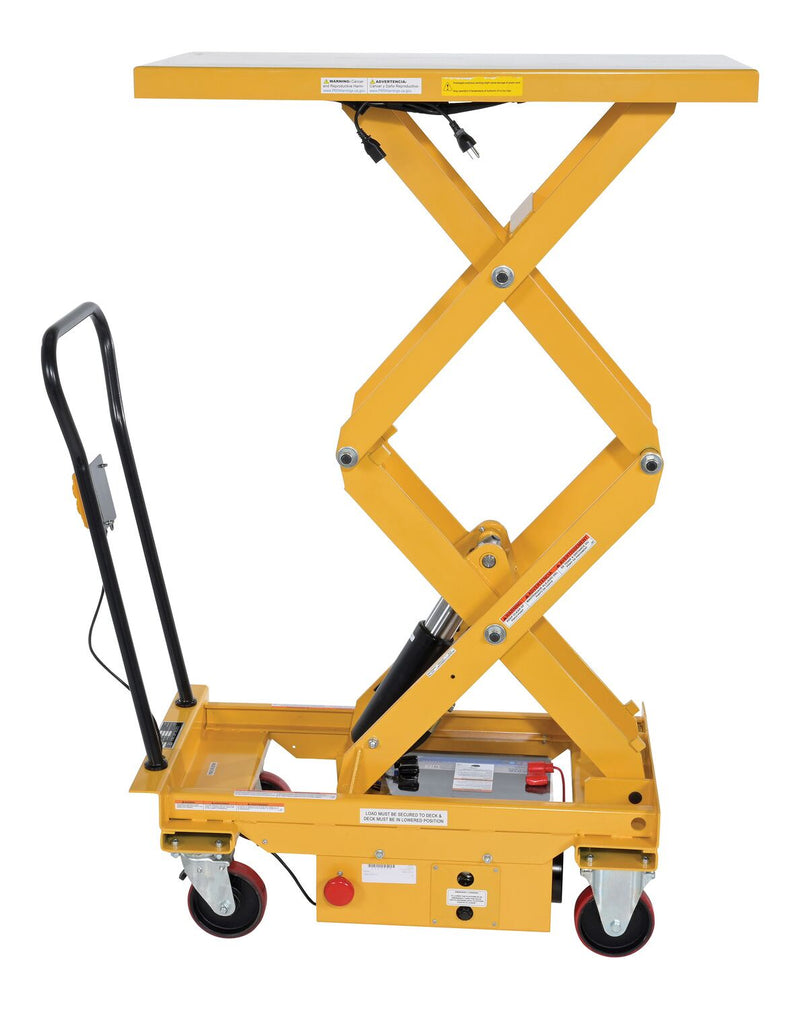

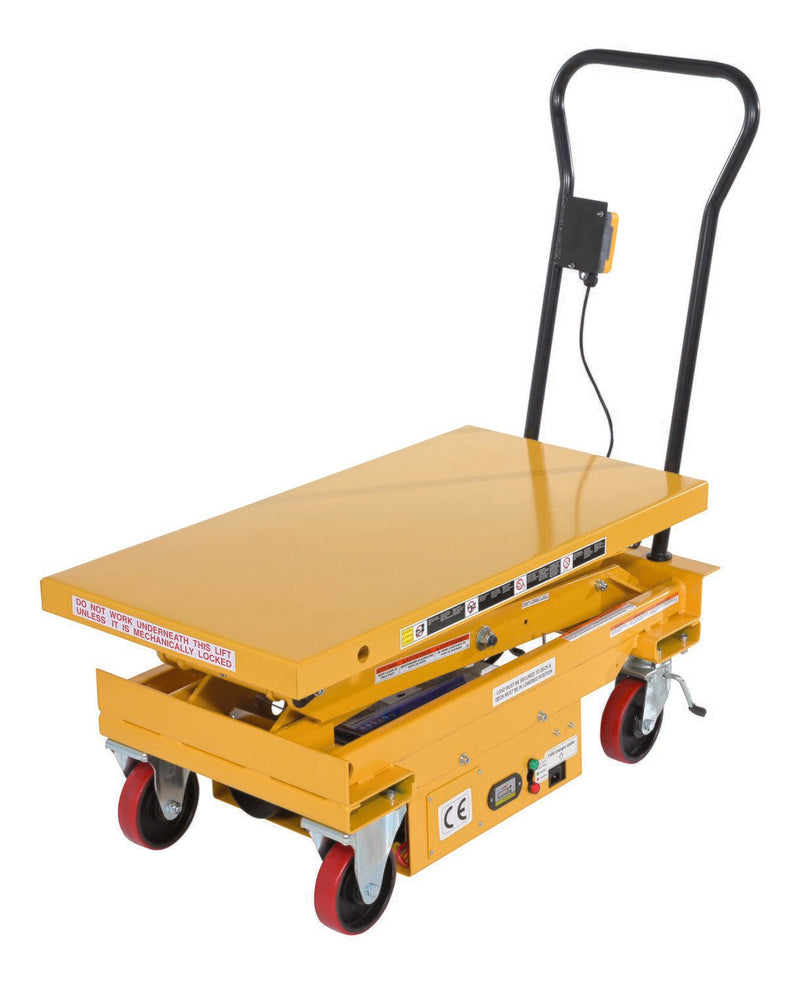

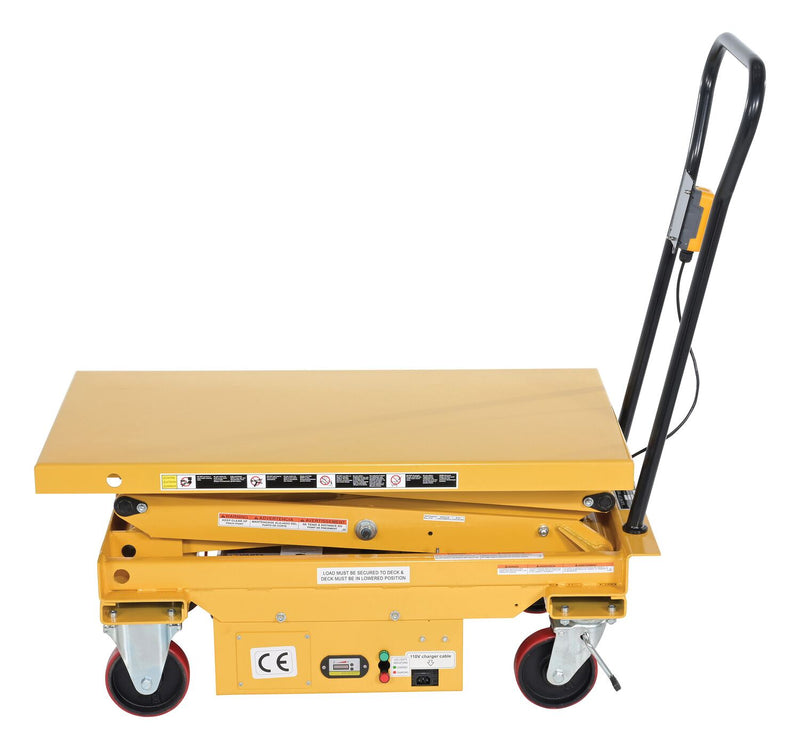

CART-1000D-DC	1,000 lb	22-1/2 in	42 in	46 in	20-1/2 in	39-3/4 in	475 lbs	Yellow

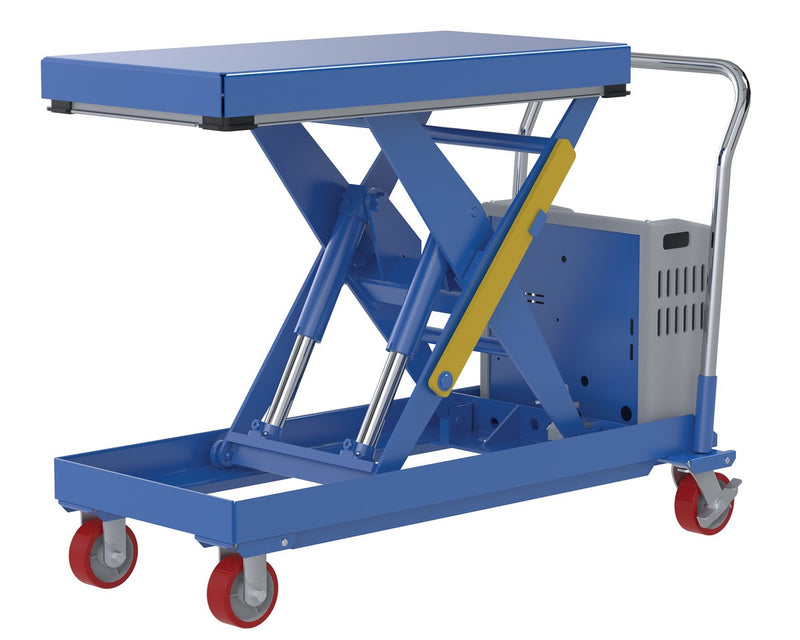

CART-2000-2040-DC	2,000 lb	24-3/4 in	53-9/16 in	39 in	20-3/8 in	40-3/8 in	355 lbs	Blue

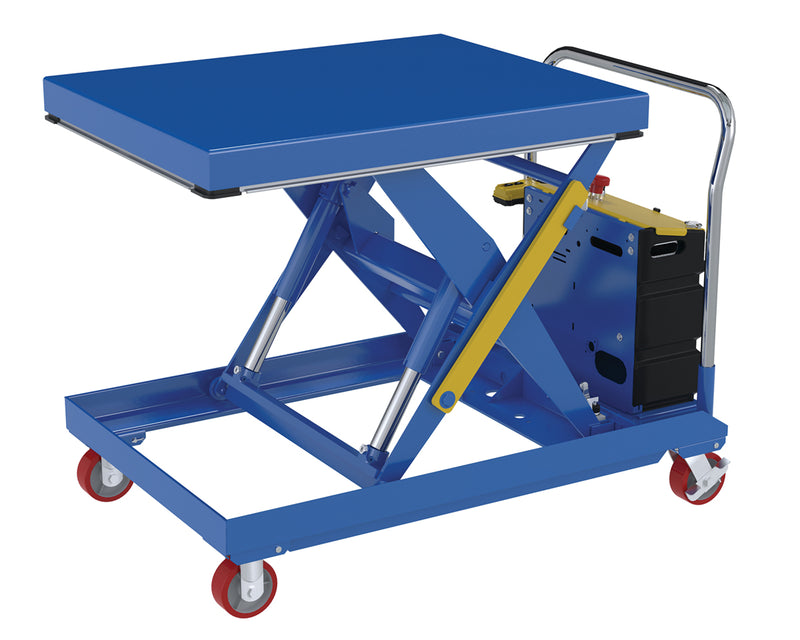

CART-2000-3240-DC	2,000 lb	32-1/2 in	52-1/2 in	39 in	32-3/8 in	40-3/8 in	422 lbs	Blue

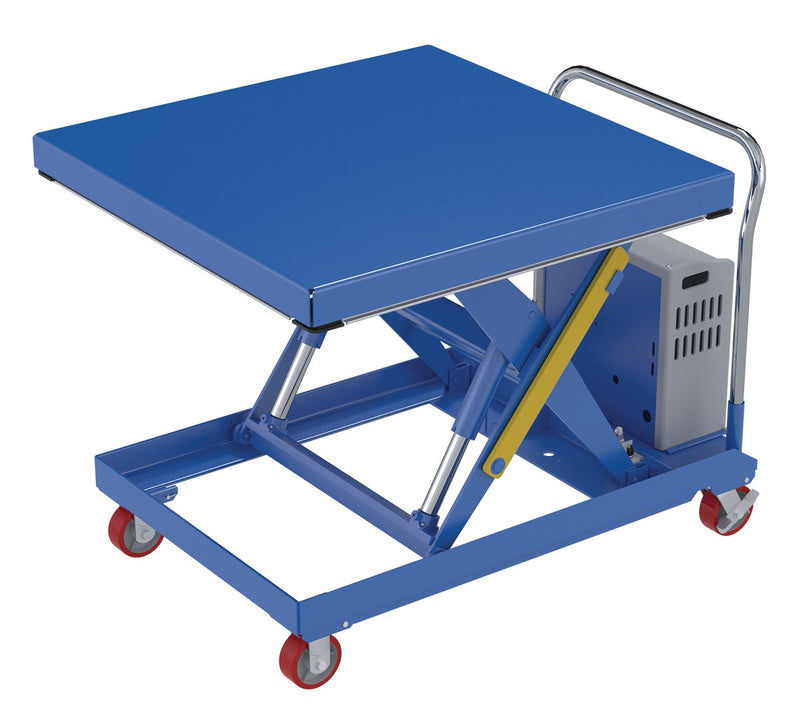

CART-2000-4242-DC	2,000 lb	42-3/8 in	52-1/2 in	39 in	42-3/8 in	42-3/8 in	445 lbs	Blue

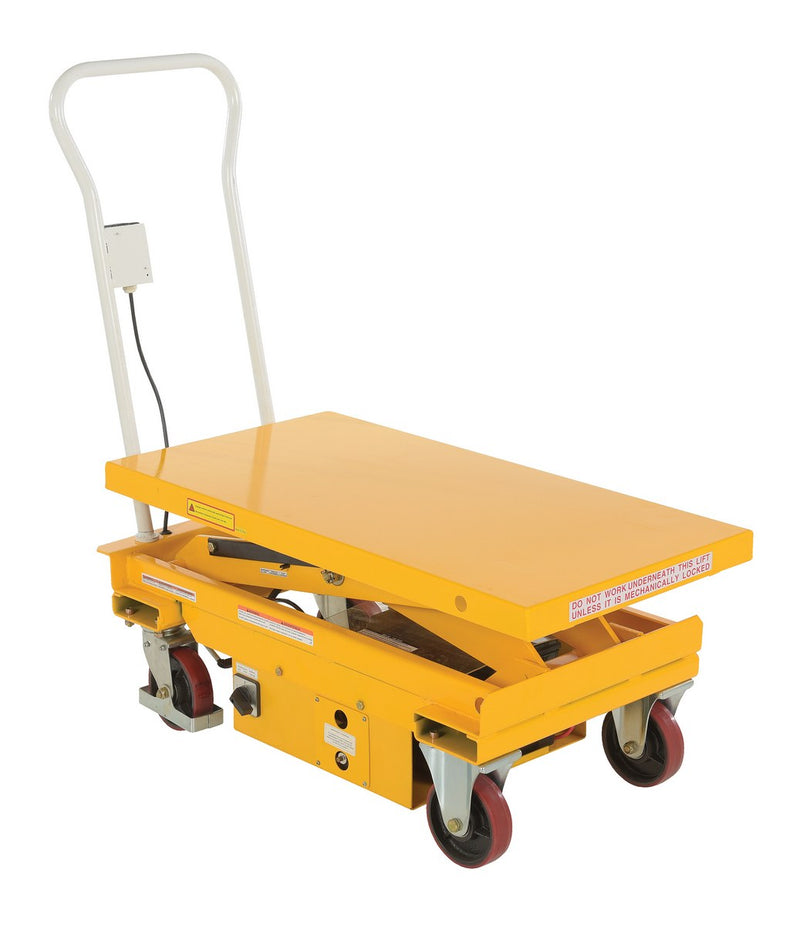

CART-2000-DC-C	2,000 lb	22-1/2 in	44 in	44 in	20 in	40 in	368 lbs	Yellow

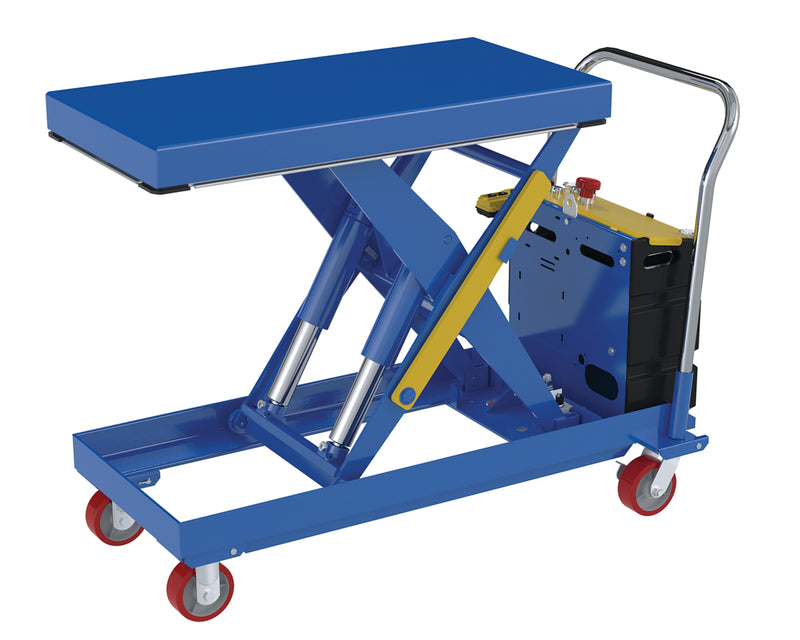

CART-2500-2040-DC	2,500 lb	24-3/4 in	54-3/16 in	39 in	20-3/8 in	40-3/8 in	374 lbs	Blue

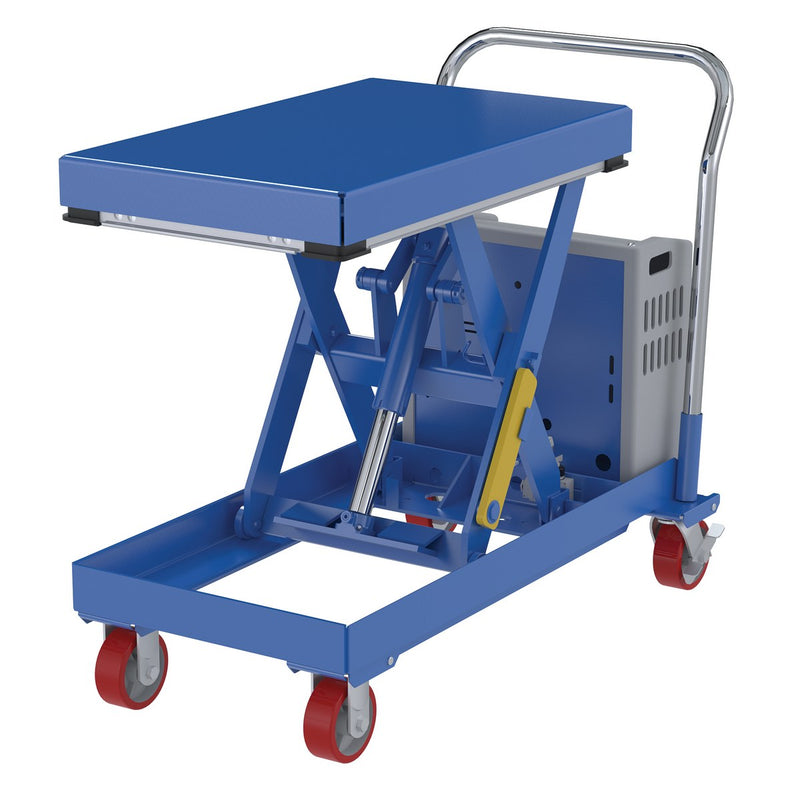

CART-500-2033-DC	500 lb	25 in	46-9/16 in	37-1/8 in	20-3/8 in	33-3/8 in	291 lbs	Blue

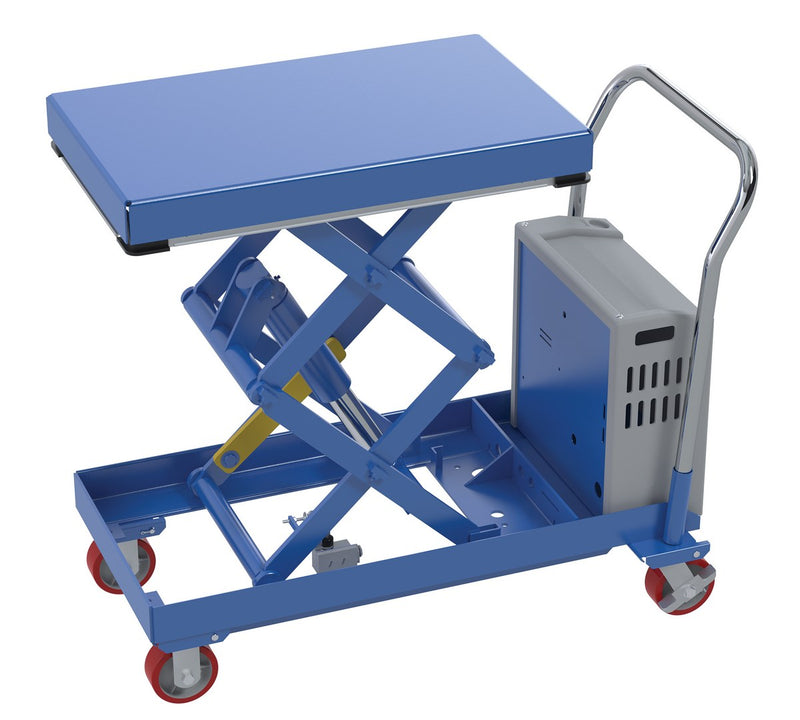

CARTD-1000-2033-DC	1,000 lb	24-3/4 in	46-9/16 in	42 in	20-3/8 in	33-3/8 in	327 lbs	Blue

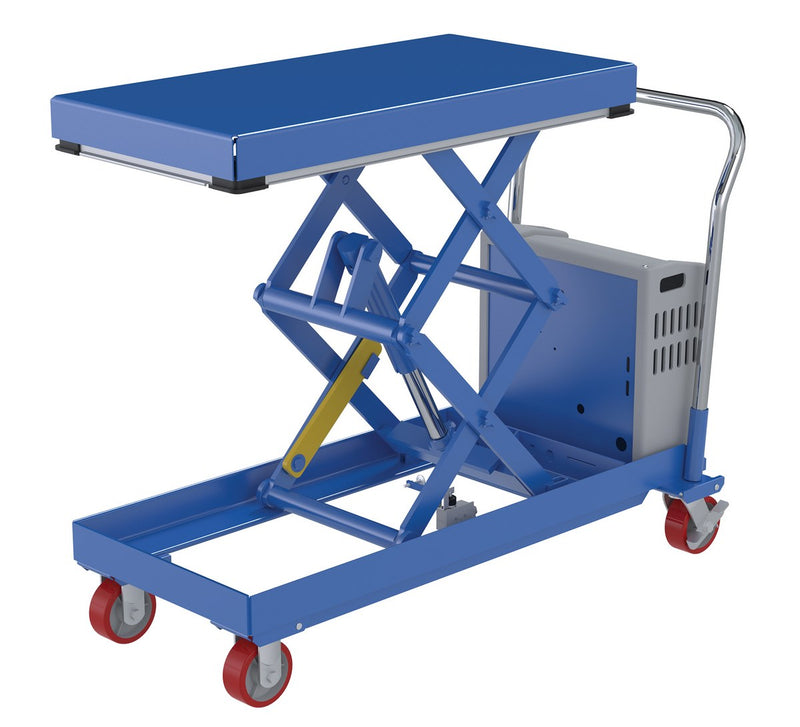

CARTD-750-2040-DC	750 lb	24-3/4 in	53-9/16 in	42 in	20-3/8 in	40-3/8 in	338 lbs	Blue
