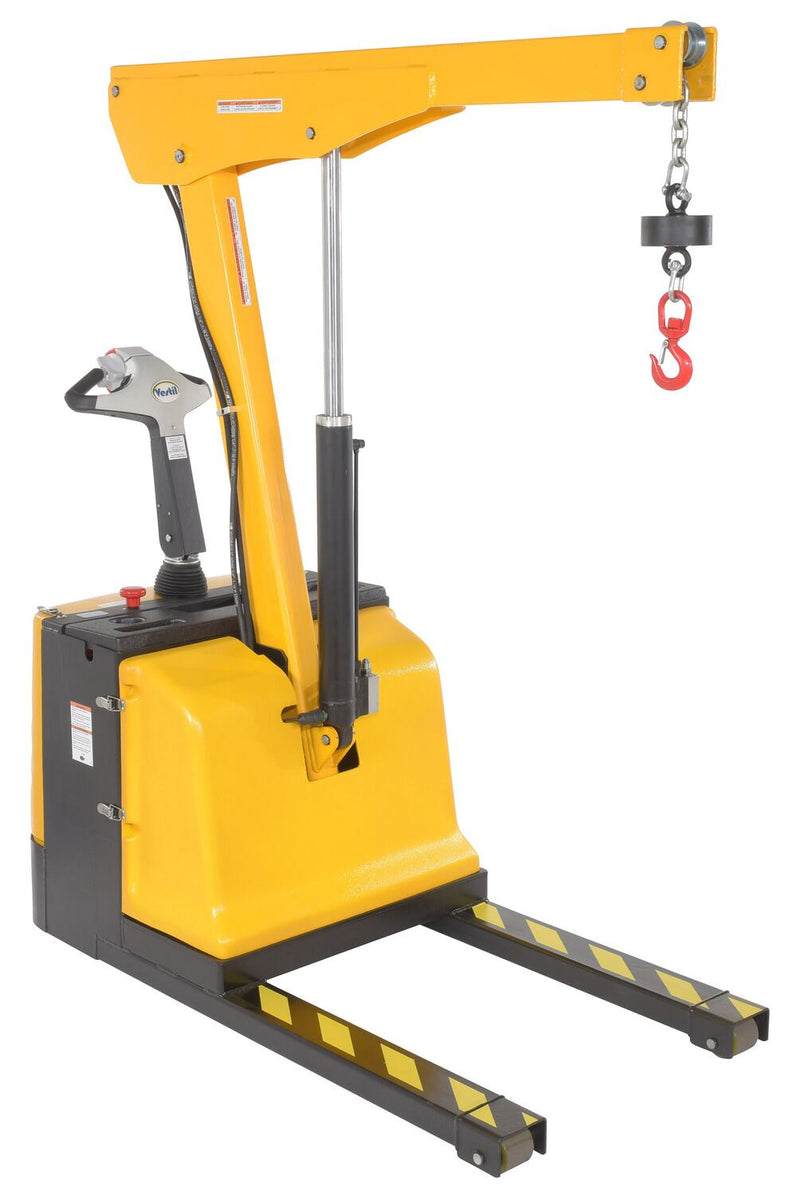

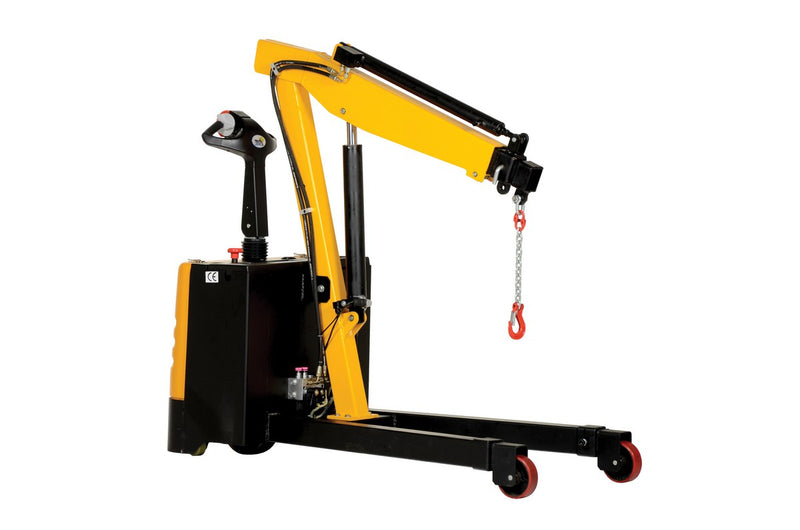

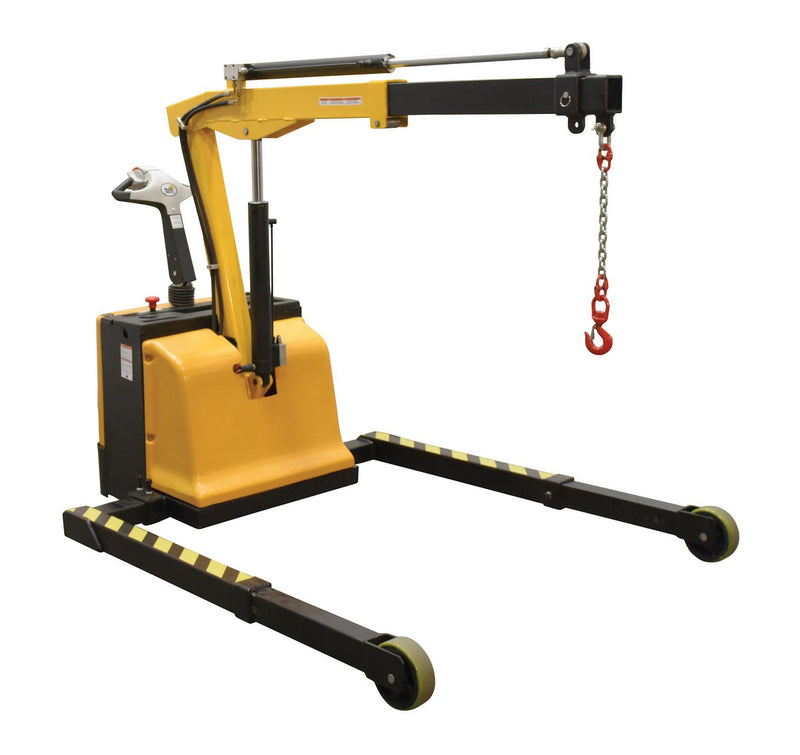

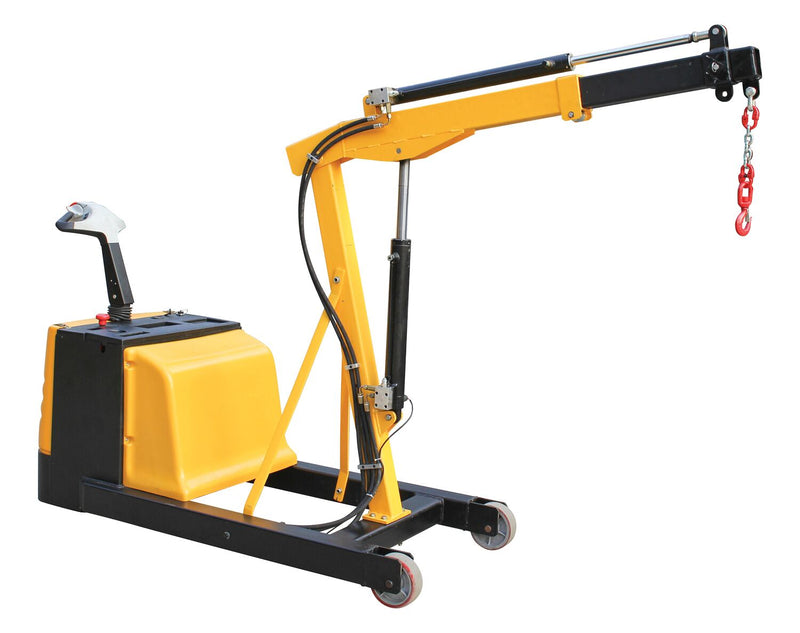

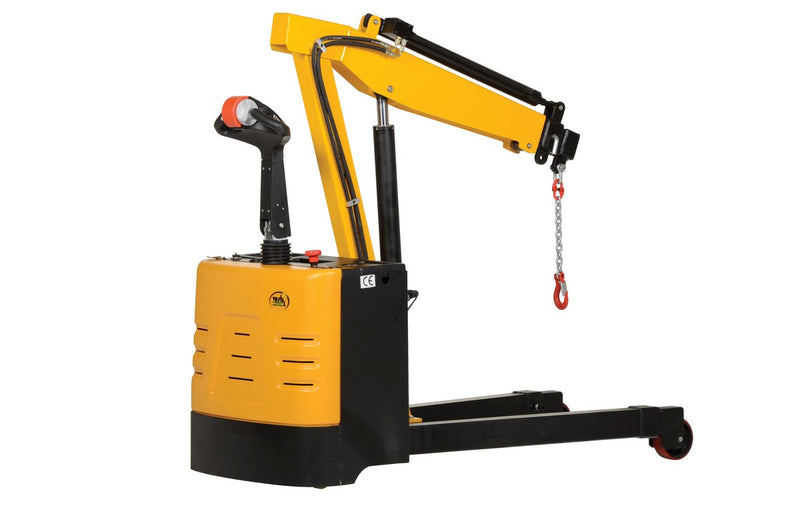

Vestil Electric Powered Floor Cranes

Brand: Vestil SKU: EPFC-25-AA Only 1 left
Authorized dealer
$12,959.00 - $14,809.00
$14,149.00
$12,959.00 - $14,809.00
$14,149.00

Product Highlights

  • Powered travel and lifting
  • Handle-mounted operating controls
  • Battery charger and gauge
Ships in 3 business days
Type: Adjustable
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Warranty PDF

Overview

Main Specifications

MPN EPFC-25-AA
Material Steel
Overall Width (in.) 43-3/4
Overall Length (in.) 79-1/8
Overall Height (in.) 67
Assembled Weight 1098 lbs
Color / Finish Yellow

Vestil Electric Powered Floor Cranes

Position equipment with powered travel and push-button lifting on an electric floor crane. The operating handle controls movement and load height.

Choose among low-profile, standard, adjustable and counterbalanced configurations. Reach and lifting capacity depend on the selected model and boom position; use its individual load ratings when planning a lift.

Electric Powered Floor Cranes Features

  • Electric lift and powered travel
  • Operating handle for movement and lifting controls
  • Battery charger and level gauge included
  • Floor-crane configuration choices for different work areas
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Uniform Capacity Retracted (lb.) 2,500
Uniform Capacity Boom Half-Way Extended (lb.) 1300
Uniform Capacity Boom Fully Extended (lb.) 600
Legs adjustable width (in.) 43-3/4 to 58-11/16
Manual Extension Holes (qty.) 3
Space Between Holes (in.) 8
Maximum Height - Crane Extended (in.) 110
Maximum Length - Legs Extended (in.) 103-1/8
Lift Range - Retracted (in.) 44-1/4
Lift Range - Extended (in.) 97
Drive Motor DC24V / 0.7KW
Lift Motor DC24V / 2KW
Battery (quantity) 2
Battery Type 12V
Battery Charger 24V / 12 amp
Battery Charger Power Cord 115V AC
Minimum Service Per Charge (hrs.) 8
Lift Speed w/o Load (sec) 0.7
Lift Speed w/ Load (sec) 0.5
Lower down speed w/o load (sec) 0.25
Maximum Boom Height at Full Extension (In) 110
Maximum Boom Length (in) 103.125
Maximum Load Capacity (lbs) 2500
Maximum Load Capacity at Full Extension (lbs) 600
Frame Material Steel
Portable Yes
Number of Casters / Wheels 5
Rear Wheel Diameter (in) 3
Rear Wheel Width (in) 1.375
Rear Wheel Material Poly on Steel
Front Wheel Diameter (in) 6
Front Wheel Width (in) 2
Front Wheel Material Poly on Steel
Power Source Battery-operated
ASME B30.5 Compliant Exempt from Standard

Shipping

Freight Type LTL Palletized
Freight Class 200

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / Finish: Yellow

Compare all sizes & specifications
Vestil Electric Powered Floor Cranes: specifications by model
ModelOverall Width (in.)Overall Length (in.)Overall Height (in.)Assembled Weight
EPFC-25-AA43-3/479-1/8671098 lbs
EPFC-CB-1533-7/8107-1/268-3/81598 lbs
EPFC-16-LP30-1/865-3/875950 lbs
EPFC-253079-1/266-3/8865 lbs
