HCR-24, HCR-36, HCR-48, LHCR-36, LHCR-48, LHCR-60, LHCR-72, WR-24, WR-36, WR-48, XHCR-36, XHCR-48, XHCR-60, XHCR-72

Vestil Extruded Aluminum Hose & Cable Crossovers

Name: Vestil Extruded Aluminum Hose & Cable Crossovers
Brand: Vestil
Price: 63.99 USD
Availability: OutOfStock

Brand: Vestil SKU: LHCR-36 25 in stock

Authorized dealer

$63.99 - $839.00

$249.00

$63.99 - $839.00

$249.00

Free shipping on this item

Product Highlights

Serrated aluminum extrusion
Portable hose and cord protection
Multiple opening sizes

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Overview

Main Specifications

MPN LHCR-36

Single wheel capacity 10,000 lb

Overall width 9-1/8 in

Overall length 36 in

Overall height 1-1/2 in

Opening width 2-1/2 in

Opening height 1-1/4 in

Assembled weight 12 lb

Material Aluminum

Color / finish Silver

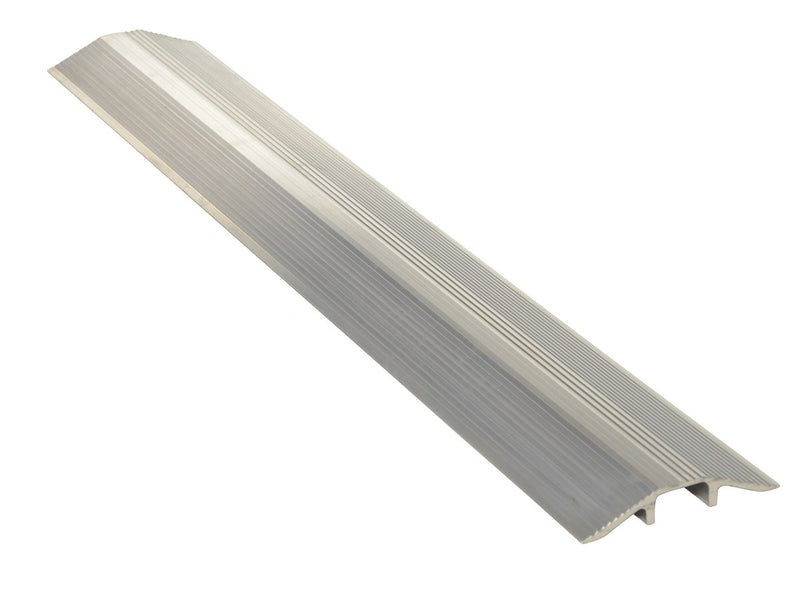

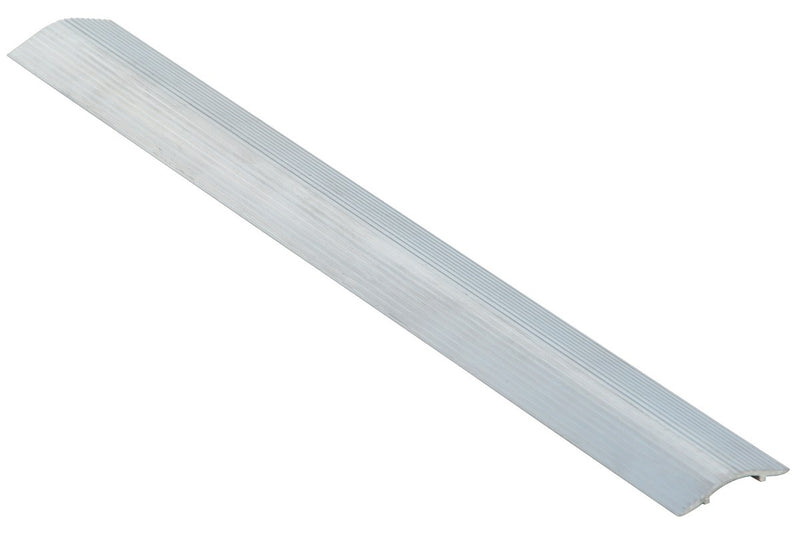

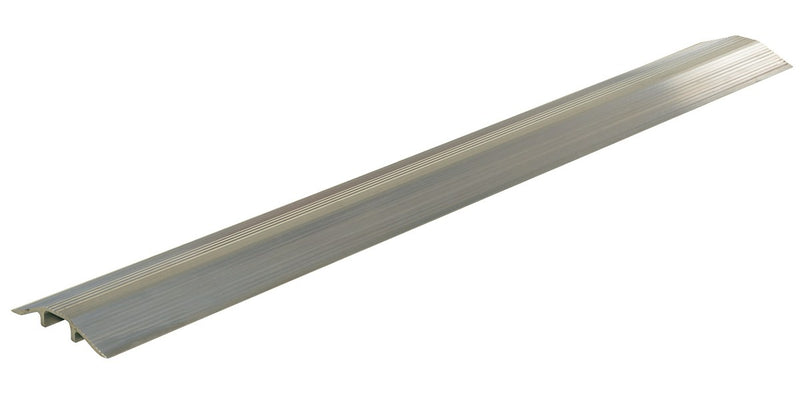

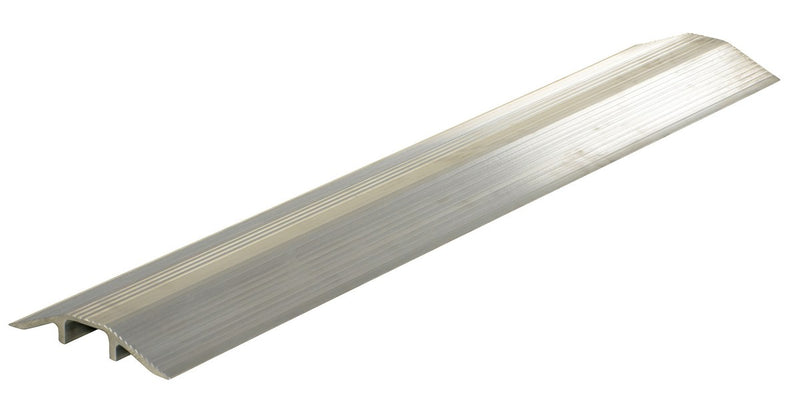

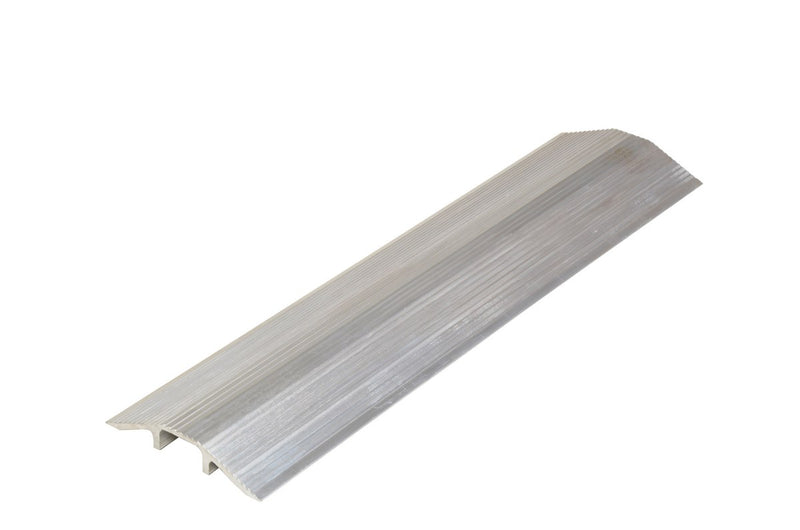

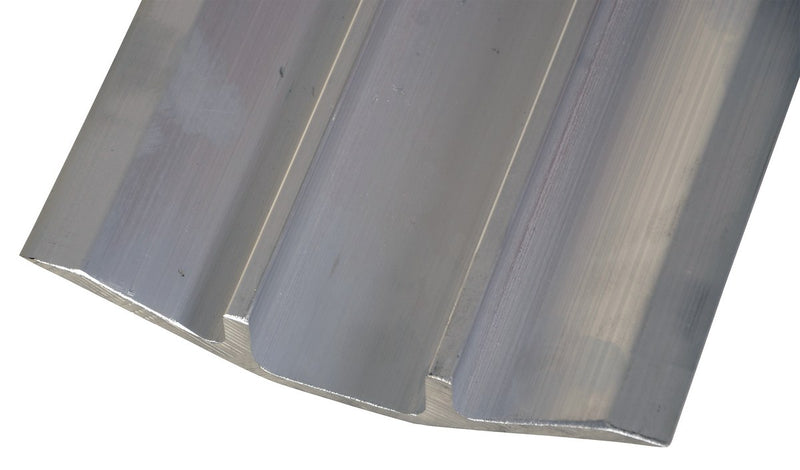

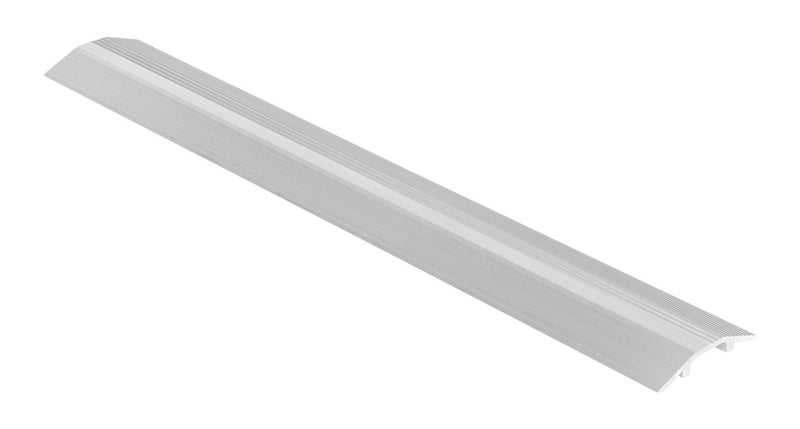

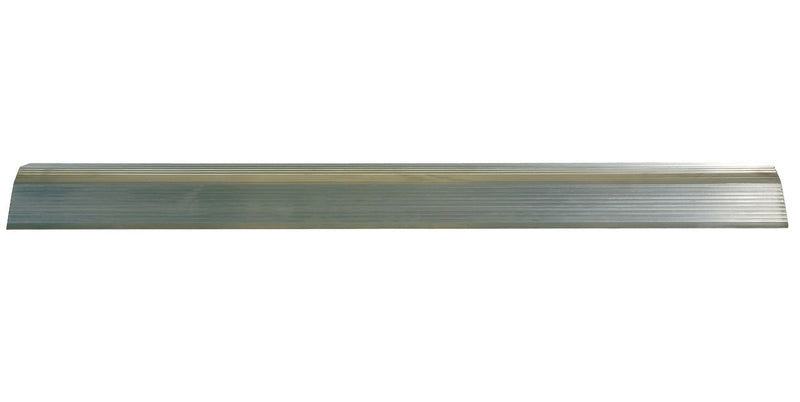

Vestil Extruded Aluminum Hose & Cable Crossovers

Route air lines, electrical cords and computer cables beneath an extruded aluminum crossover. These portable bridges shield lines from damage as carts, personnel and other traffic pass over them.

Serrated edges provide traction at the crossing. Single-channel and multi-channel designs are offered, with opening sizes and single-wheel ratings specific to the selected model.

Extruded Aluminum Hose and Cable Crossovers Features

Extruded aluminum construction
Serrated edges for traction
Lightweight design for portability
Single-channel and multi-channel choices

Warranty

Vestil Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Models HCR-24, HCR-36, HCR-48, LHCR-36, LHCR-48, LHCR-60, LHCR-72, XHCR-36, XHCR-48, XHCR-60, XHCR-72: 90 days
Models WR-24, WR-36, WR-48: 30 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

Full Specifications

Specifications

Interlocking

Shipping

Total Ship Weight		13 lbs
Package 1 Size		10"W x 37"D x 3"H
Freight Type		Parcel
Freight Class		100
Country of Origin Name		US

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: Aluminum · Color / finish: Silver

Compare all sizes & specifications

Vestil Extruded Aluminum Hose & Cable Crossovers: specifications by model
Model	Single wheel capacity	Overall width	Overall length	Overall height	Opening width	Opening height	Assembled weight

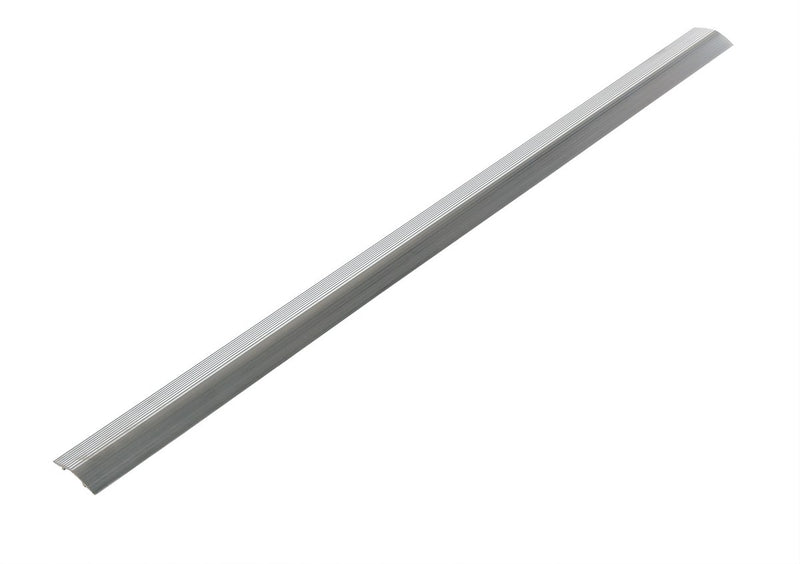

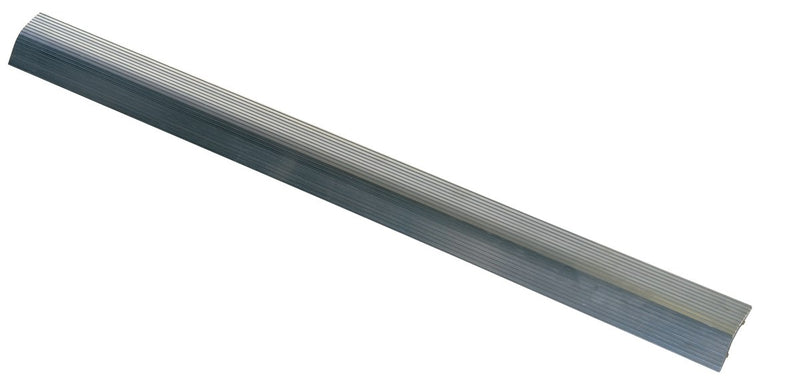

WR-24	2,500 lb	2-7/8 in	24 in	7/16 in	1-1/4 in	5/16 in	1 lb
WR-36	2,500 lb	2-7/8 in	36 in	7/16 in	1-1/4 in	5/16 in	2 lb
WR-48	2,500 lb	2-7/8 in	48 in	7/16 in	1-1/4 in	5/16 in	2 lb

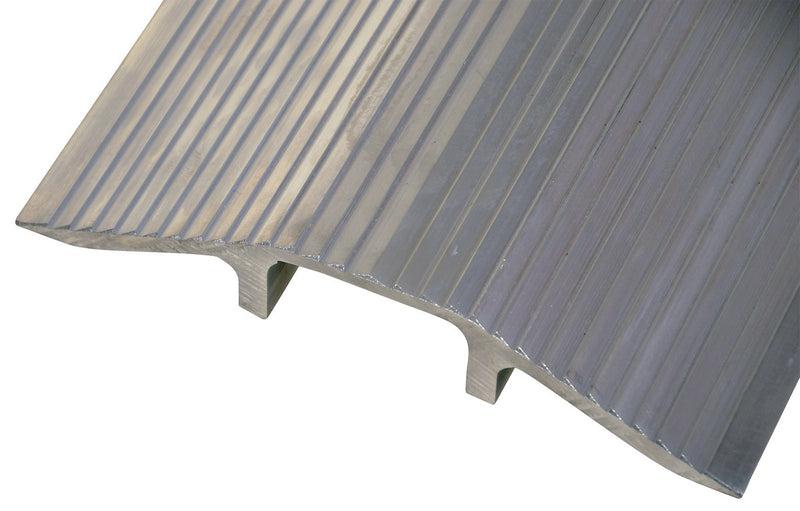

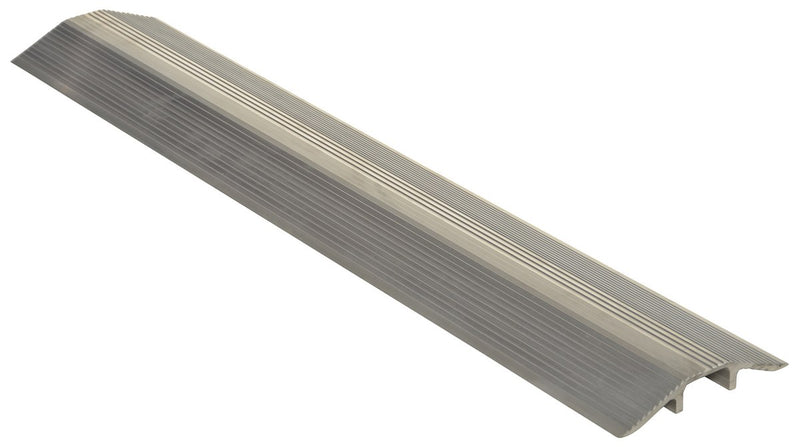

LHCR-36	10,000 lb	9-1/8 in	36 in	1-1/2 in	2-1/2 in	1-1/4 in	12 lb
LHCR-48	10,000 lb	9-1/8 in	48 in	1-1/2 in	2-1/2 in	1-1/4 in	16 lb
LHCR-60	10,000 lb	9-1/8 in	60 in	1-1/2 in	2-1/2 in	1-1/4 in	20 lb
LHCR-72	10,000 lb	9-1/8 in	72 in	1-1/2 in	2-1/2 in	1-1/4 in	24 lb

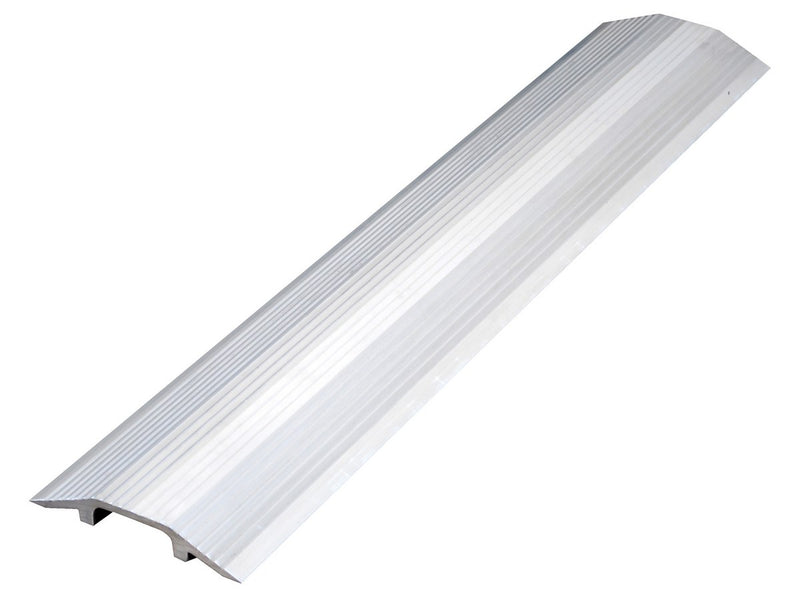

HCR-24	10,000 lb	7-1/8 in	24 in	1-1/16 in	2-5/8 in	3/4 in	6 lb
HCR-36	10,000 lb	7-1/8 in	36 in	1-1/16 in	2-5/8 in	3/4 in	8 lb
HCR-48	10,000 lb	7-1/8 in	48 in	1-1/16 in	2-5/8 in	3/4 in	12 lb

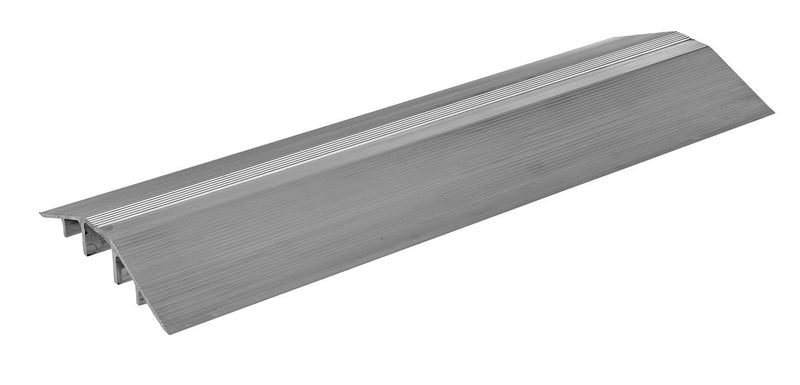

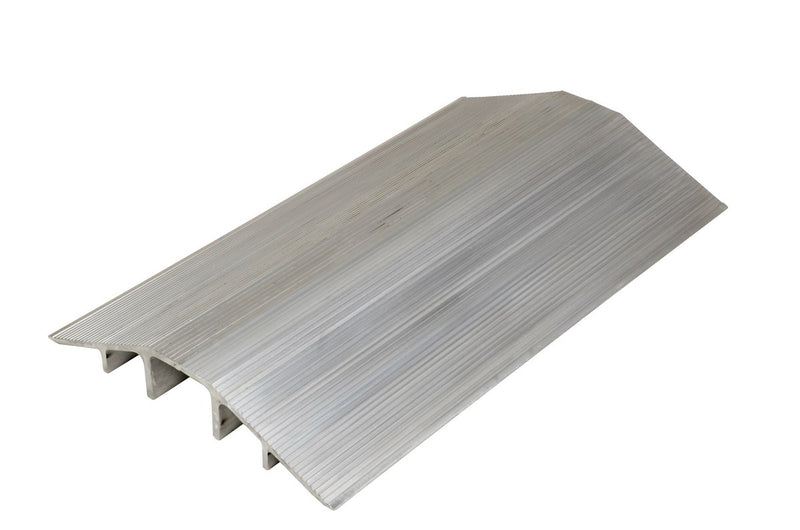

XHCR-36	10,000 lb	21-1/16 in	36 in	3-9/16 in	4-1/2 in	3-1/8 in	44 lb
XHCR-48	10,000 lb	21-1/16 in	48 in	3-9/16 in	4-1/2 in	3-1/8 in	58 lb
XHCR-60	10,000 lb	21-1/16 in	60 in	3-9/16 in	4-1/2 in	3-1/8 in	73 lb
XHCR-72	10,000 lb	21-1/16 in	72 in	3-9/16 in	4-1/2 in	3-1/8 in	87 lb
