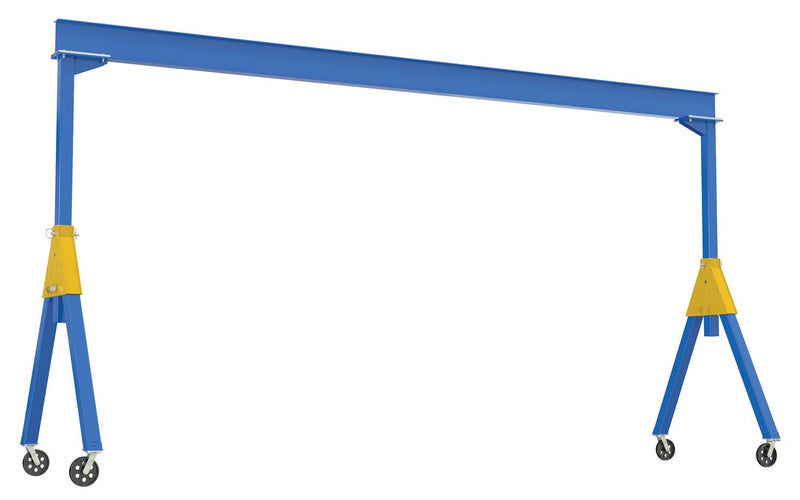

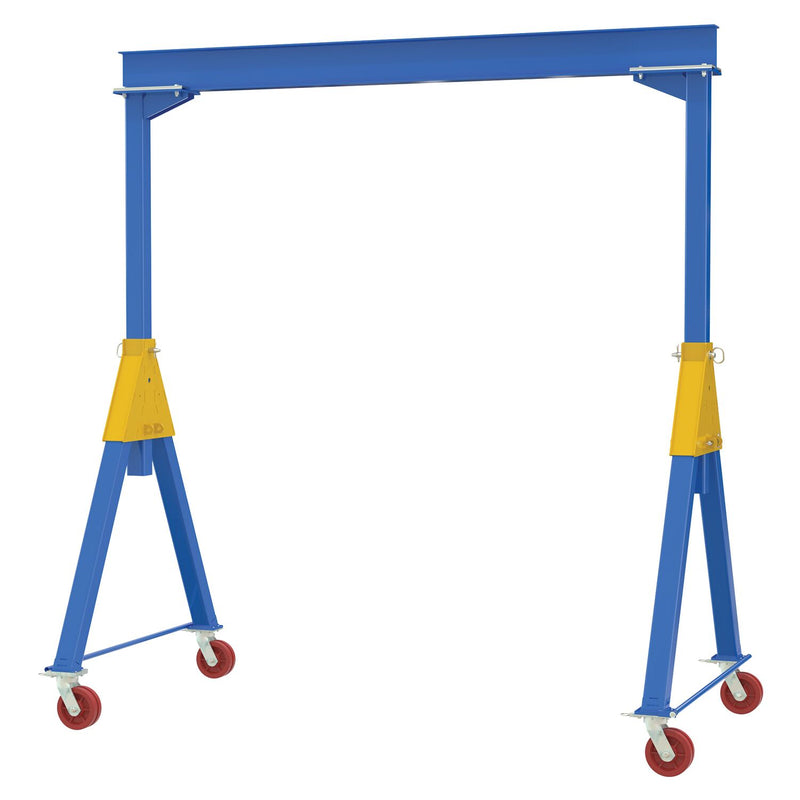

Vestil Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown

Brand: Vestil SKU: FHSN-2-10-VG Only 2 left
Authorized dealer
$2,689.00 - $6,027.99
$2,689.00
$2,689.00 - $6,027.99
$2,689.00

Product Highlights

  • Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown
  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction
Ships in 40 business days
Capacity: 2,000 lb
Beam Length: 10 ft
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Instruction manual PDFWarranty PDF

Overview

Main Specifications

MPN FHSN-2-10-VG
Material Steel
Overall Width (in.) 64-1/2
Overall Length (in.) 120
Overall Height (in.) 126-3/8
Assembled Weight 771 lbs
Uniform Capacity (lb.) 2,000
Color / Finish Blue

Vestil Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown

Position materials along the beam with fixed height steel gantry cranes with v-groove casters - knockdown.

This fixed-height steel gantry configuration uses V-groove casters and requires assembly.

Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown Features

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Overall Beam Length (in.) 120
Usable Beam Length (in.) 89-3/4
Fixed Clearance (in.) 120-3/8
Beam Height (in.) 6
Flange Width (in.) 4

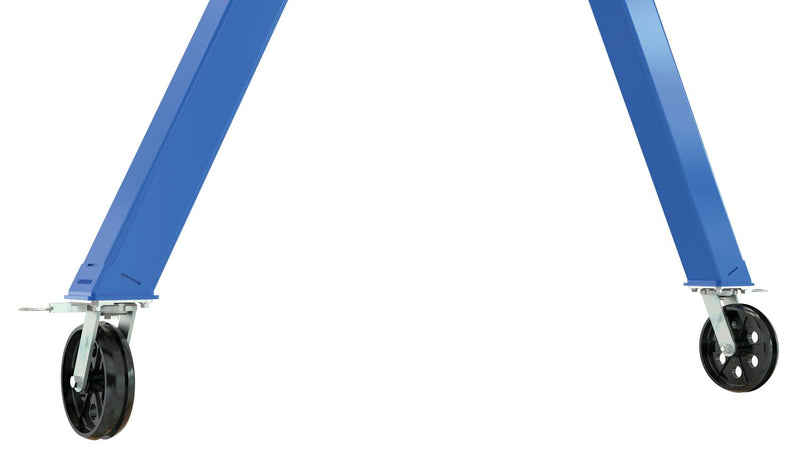

Caster Qty/Diameter/Width (in.) (4) 8 x 2
Caster Material Cast Iron
Caster/Wheel Locking? Yes
Beam Length (in) 120
Base Width (in) 64-1/2
Base Length (in) 109-1/4
Maximum Overall Height (in) 126-3/8
Adjustable Height No
Maximum Clearance (in) 120-3/8
Number of Casters / Wheels 4
Wheel Material Cast Iron
Wheel Diameter (in) 8
Wheel Width (in) 2

Shipping

Total Ship Weight 814 lbs
Package 1 Size 66"W x 77"D x 19"H
Freight Type LTL Palletized
Freight Class 100
Country of Origin Name US

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Overall Width (in.): 64-1/2 · Color / Finish: Blue

Compare all sizes & specifications
Vestil Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown: specifications by model
ModelOverall Length (in.)Overall Height (in.)Assembled WeightUniform Capacity (lb.)
FHSN-2-10-VG120126-3/8771 lbs2,000
FHSN-2-15-VG180126-3/8831 lbs2,000
FHSN-2-20-VG240130-1/2989 lbs2,000
FHSN-4-10-VG120128-1/2801 lbs4,000
FHSN-4-15-VG180128-1/2876 lbs4,000
FHSN-4-20-VG240132-1/21029 lbs4,000
FHSN-6-10-VG120129-11/16830 lbs6,000
FHSN-6-15-VG180131-11/16934 lbs6,000
FHSN-6-20-VG240133-15/161279 lbs6,000
FHSN-8-10-VG120129-11/16830 lbs8,000
FHSN-8-15-VG180131-11/16934 lbs8,000
FHSN-8-20-VG240133-15/161279 lbs8,000
