JIB-FM-10, JIB-FM-20, JIB-FM-3, JIB-FM-40, JIB-FM-6

Vestil Floor Mounted Jibs

Name: Vestil Floor Mounted Jibs
Brand: Vestil
Price: 1709.0 USD
Availability: InStock

Brand: Vestil SKU: JIB-FM-10 Only 2 left

Authorized dealer

$1,599.00 - $4,774.99

$1,709.00

$1,599.00 - $4,774.99

$1,709.00

Product Highlights

Floor Mounted Jibs
Eight (8) pre-drilled mounting holes
Full 360 degree rotation

Ships in 40 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN JIB-FM-10

Material Steel

Overall Width (in.) 17

Overall Length (in.) 82-1/2

Overall Height (in.) 105-1/2

Assembled Weight 563 lbs

Uniform Capacity (lb.) 1,000

Color / Finish Blue

Vestil Floor Mounted Jibs

Maneuver loads with floor mounted jibs and a compatible lifting device.

Check the beam, mounting and operating-clearance requirements of the selected floor mounted jibs before installation.

Floor Mounted Jibs Features

Eight (8) pre-drilled mounting holes
Full 360 degree rotation
Requires reinforced concrete pad for installation
Fixed height design provides workplace consistency

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Under I-Beam to Ground Length (in.)		99-1/2
I-Beam (Flange x Height) (in.)		4 x 6
Overall I-Beam Length (in.)		80
Usable I-Beam Length (in.)		67-3/4
Rotation Degree		360
Base Plate Length/Width (in.)		17 x 17
Beam Length (in)		80
Usable Beam Length (in)		67-3/4
Beam Height (in)		6
Flange Width (in)		4
Ground Clearance (in)		99-1/2
Base Length (in)		17
Base Width (in)		17
Maximum Rotation ()		360
Installation Hardware Included		No

Shipping

Total Ship Weight		610 lbs
Package 1 Size		44"W x 99"D x 24"H
Freight Type		LTL Palletized
Freight Class		100
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / Finish: Blue

Compare all sizes & specifications

Vestil Floor Mounted Jibs: specifications by model
Model	Overall Width (in.)	Overall Length (in.)	Overall Height (in.)	Assembled Weight	Uniform Capacity (lb.)

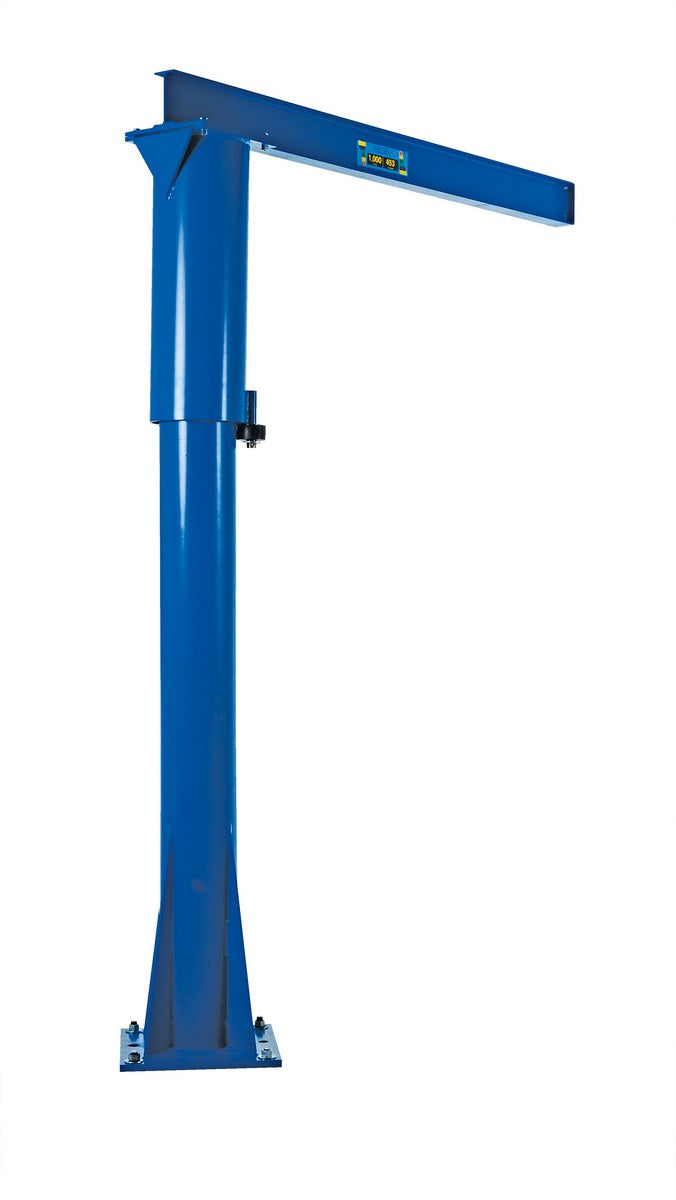

JIB-FM-10	17	82-1/2	105-1/2	563 lbs	1,000

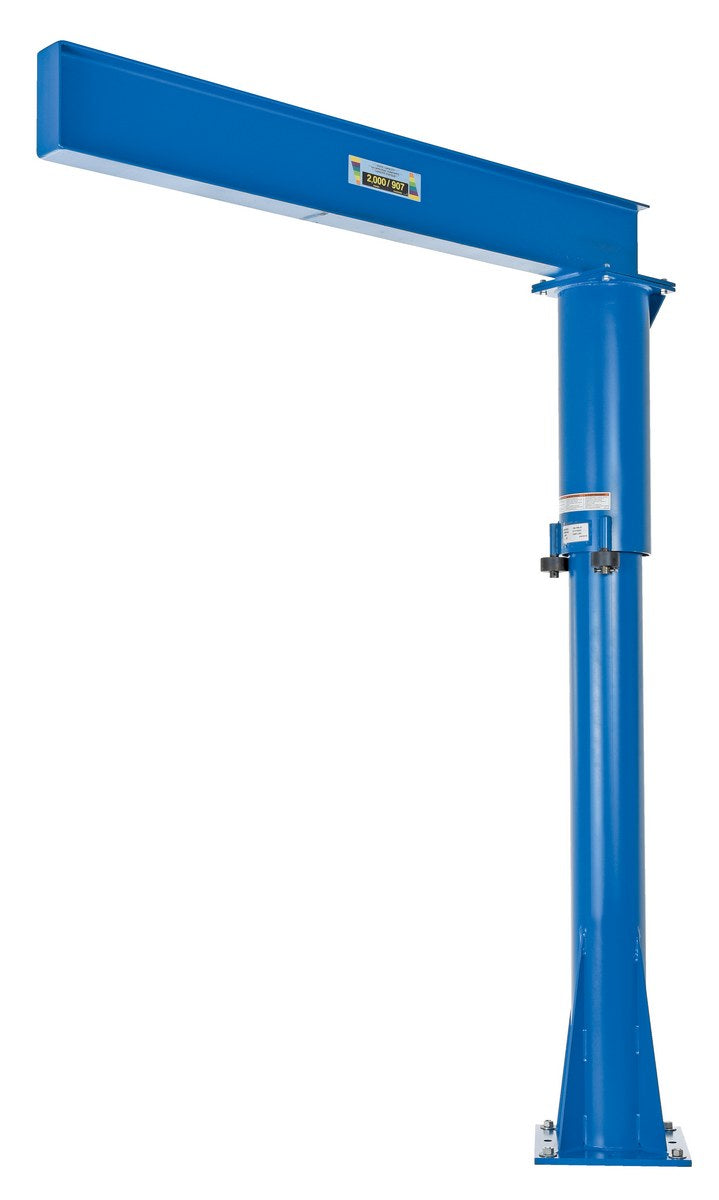

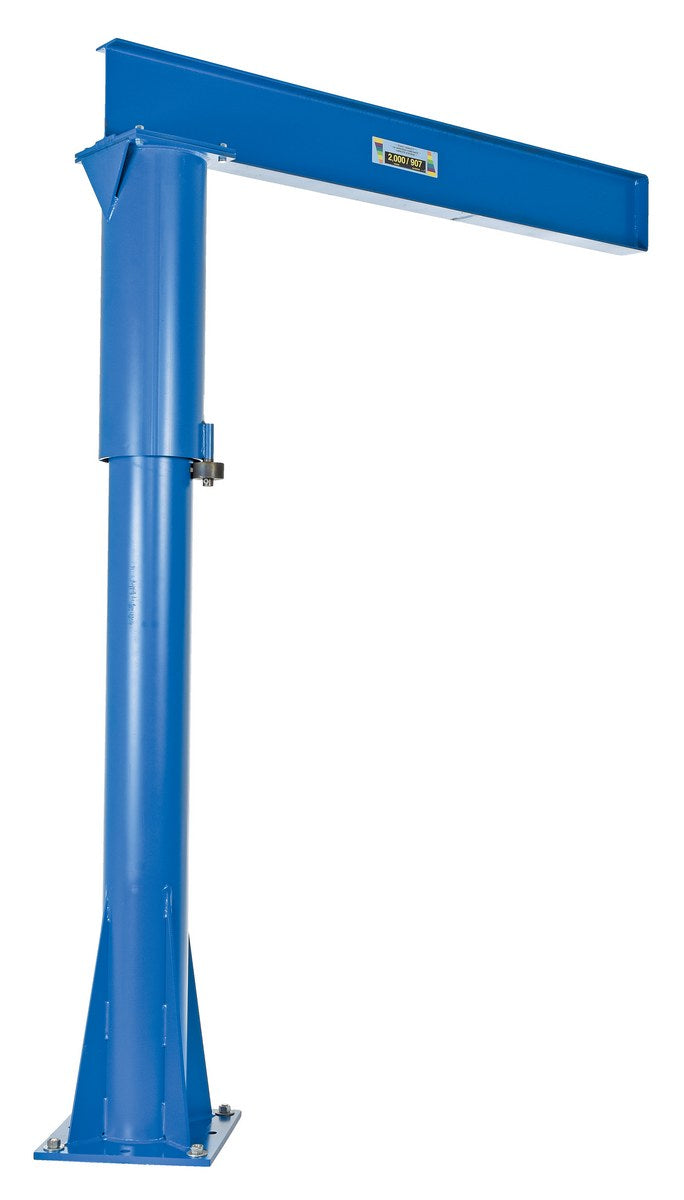

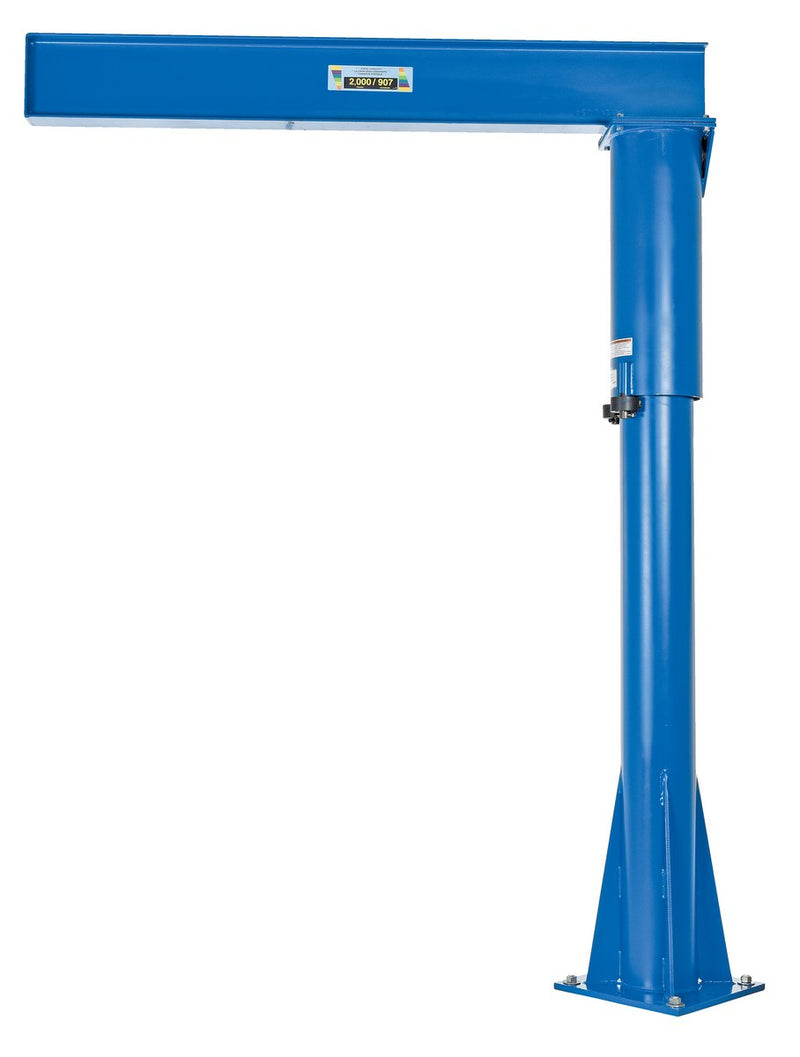

JIB-FM-20	17	82-1/2	109-5/8	596 lbs	2,000

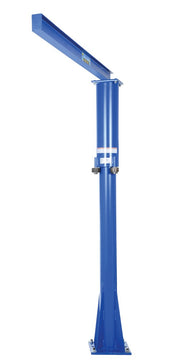

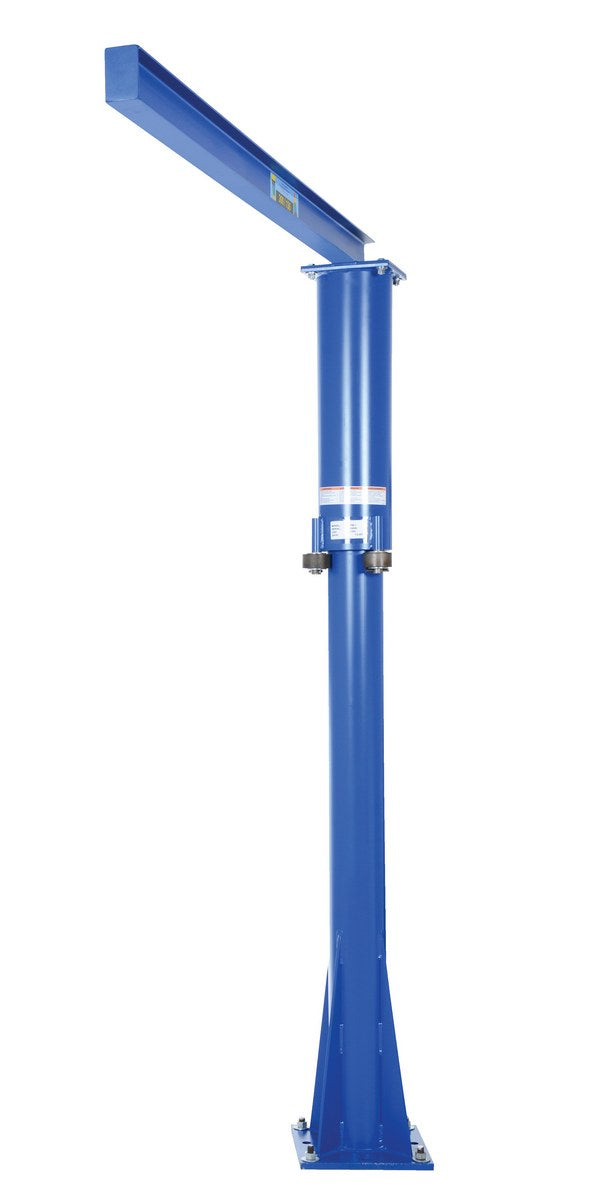

JIB-FM-3	14-1/2	82-1/4	103-1/4	382 lbs	300

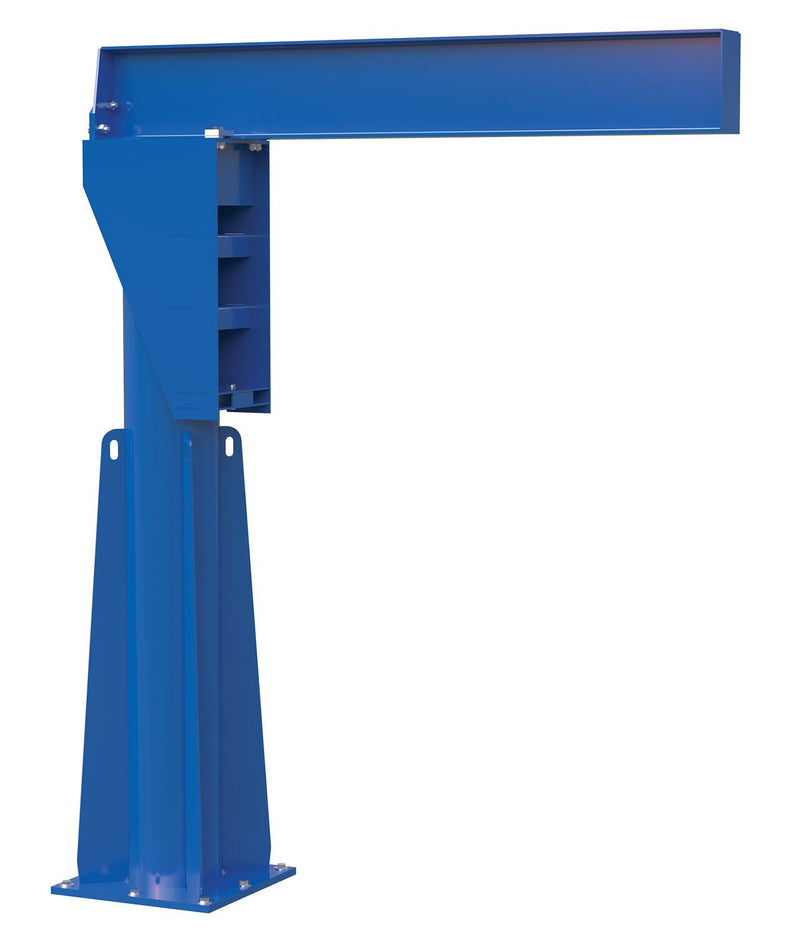

JIB-FM-40	24	89-3/8	111-1/2	765 lbs	4,000

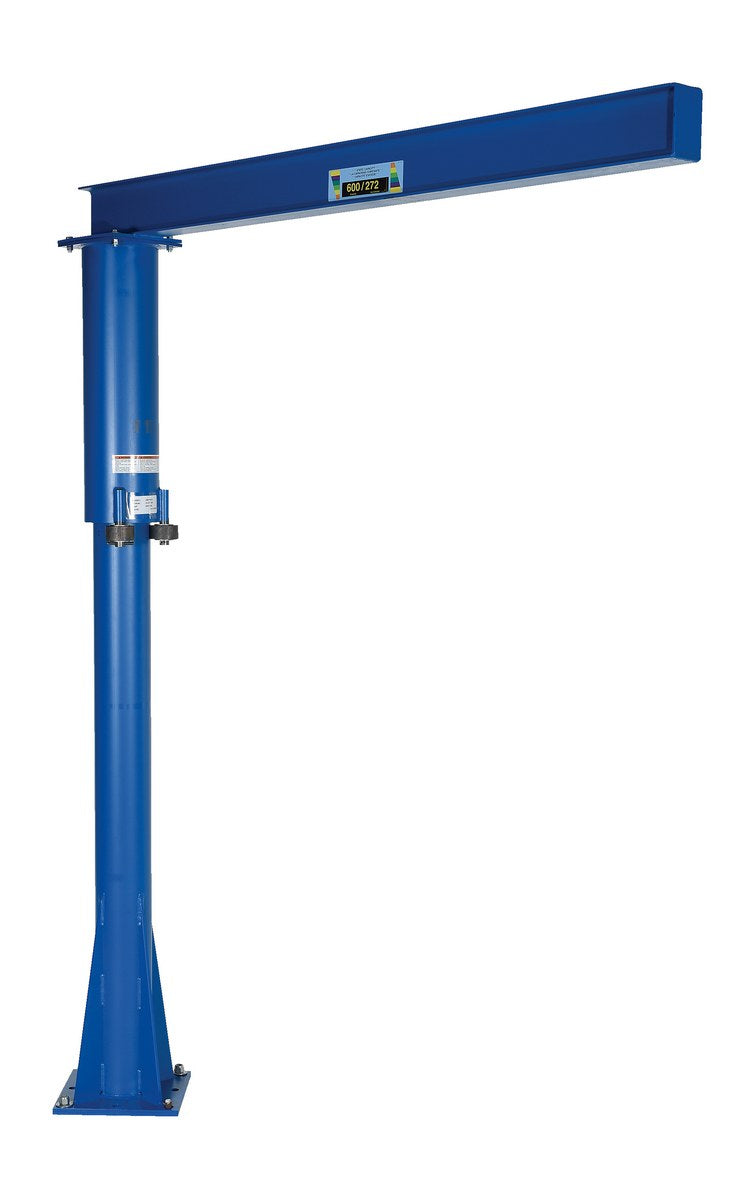

JIB-FM-6	14-1/2	82-1/4	105-1/4	412 lbs	600
