Name: Vestil Hydraulic Elevating Carts
Brand: Vestil
Price: 2439.0 USD
Availability: OutOfStock

Overview

Main Specifications

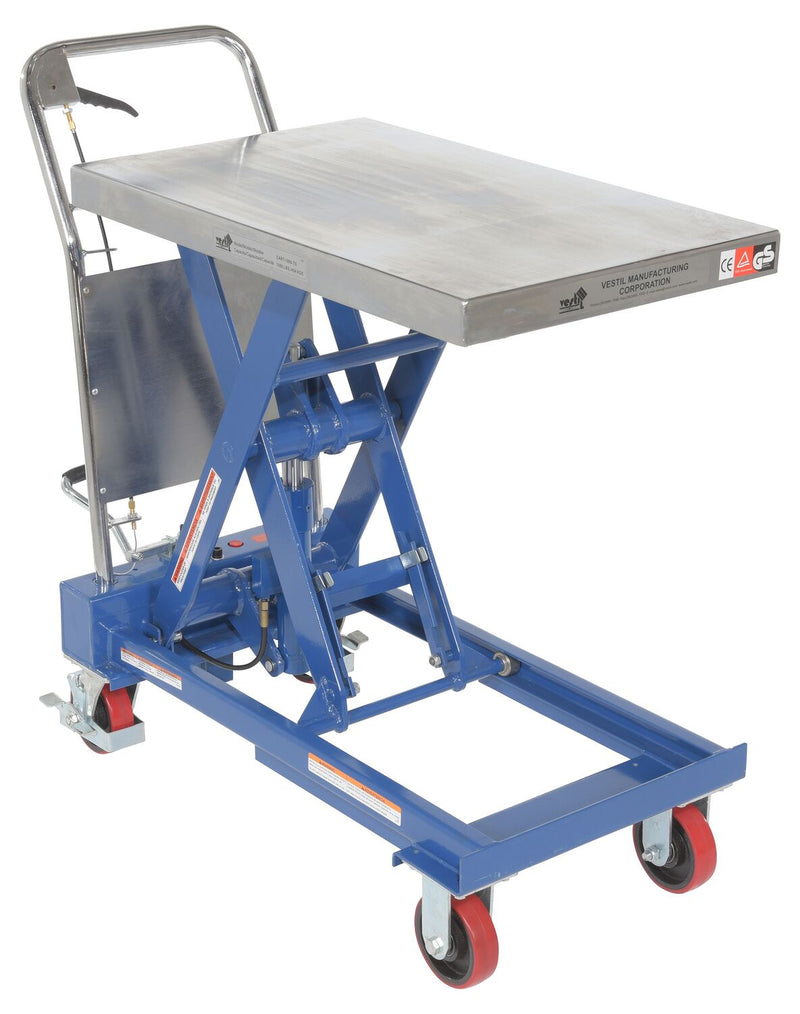

MPN CART-1000-TS

Capacity 1,000 lb

Overall width 19-3/4 in

Overall length 47-3/16 in

Overall height 39-1/2 in

Platform width 19-3/4 in

Platform length 32 in

Assembled weight 198 lbs

Material Steel

Color / finish Blue

Vestil Hydraulic Elevating Carts

Move a load at a suitable working height using a hydraulic elevating cart. Foot-operated lifting positions the platform for transfer between workstations.

Choose from steel and aluminum constructions and single or double scissor configurations. Platform sizes and load ratings are specific to the selected model.

Hydraulic Elevating Carts Features

Hydraulic foot-operated lift
Caster-equipped transport
Steel and aluminum models
Single and double scissor options

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Lowered Height (in.)		15-1/2
Raised Height (in.)		35-1/2
Caster Quantity/Diameter/Width (in.)		(4) 5 x 2

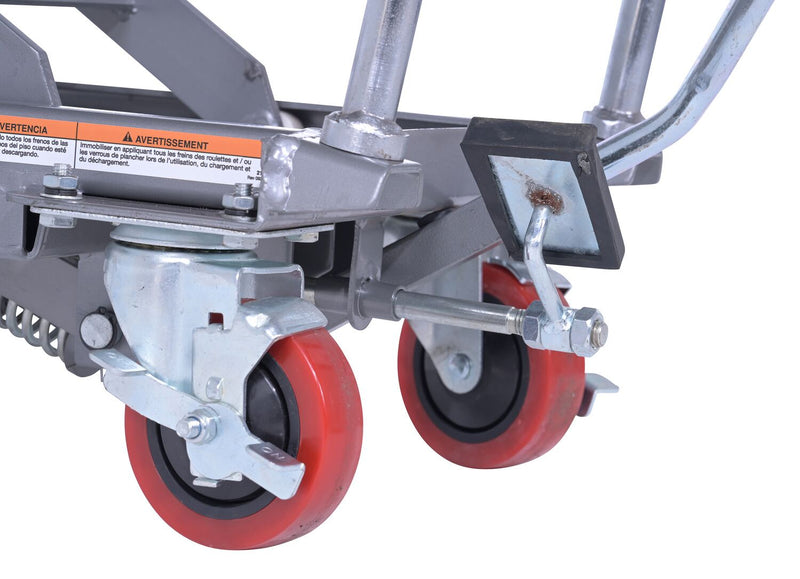

Caster Quantity/Type		(2) Rigid (2) Swivel with Brakes
Foot Pump Speed		Two
Caster Material		Poly-on-Poly
Scissor Type		Single
Elevation per Stroke (in.)		3/4
Platform Thickness (in.)		2
Platform Finish		Chrome Plated
Power Source		Manual
Platform Material		Chrome-Plated Steel
Scale Included		No
Operation Method		Foot Operated

Shipping

Ship weight		238 lbs
Freight Type		LTL Palletized
Package Width (in)		40
Package Depth (in)		48
Package Height (in)		23
Freight Class		92-1/2

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts
Manufacturer Warranty #2		90 Days
Warranty Type #2		Wearable Parts warranty

Size & Specification Comparison

Compare all sizes & specifications

Vestil Hydraulic Elevating Carts: specifications by model
Model	Capacity	Overall width	Overall length	Overall height	Platform width	Platform length	Assembled weight	Material	Color / finish

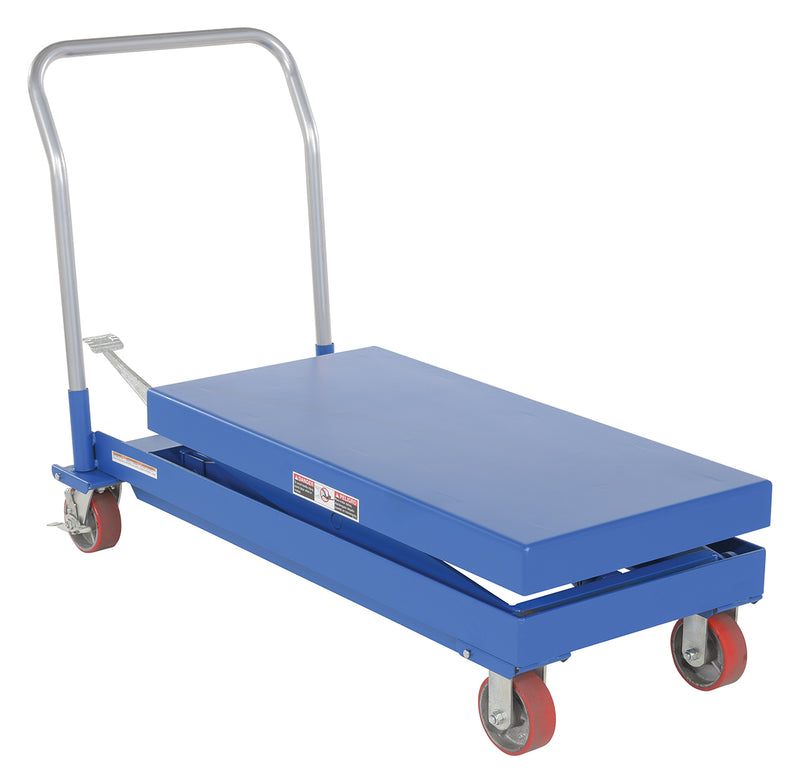

CART-1000-2040-FP	1,000 lb	24-3/4 in	63-11/16 in	39 in	20-3/8 in	40-3/8 in	319 lbs	Steel	Blue

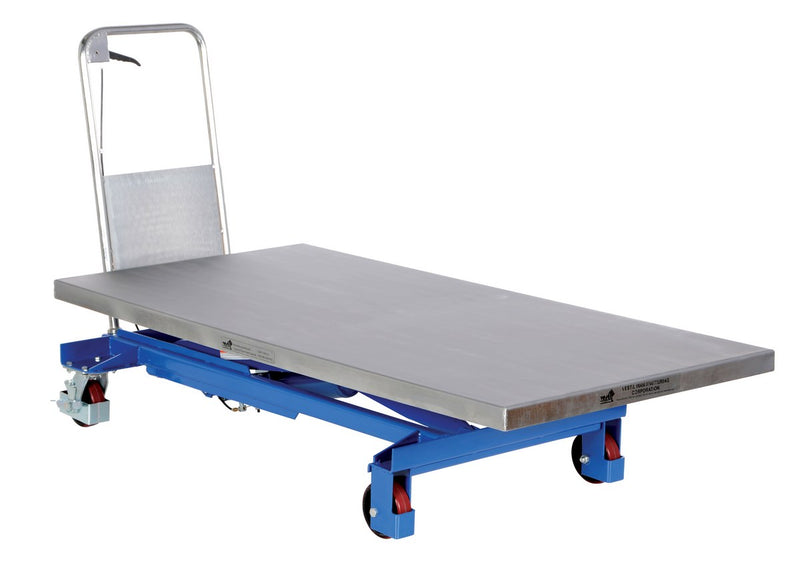

CART-1000-LD	1,000 lb	31-1/2 in	65 in	37-1/4 in	31-1/2 in	63 in	309 lbs	Steel	Blue
CART-1000-TS	1,000 lb	19-3/4 in	47-3/16 in	39-1/2 in	19-3/4 in	32 in	198 lbs	Steel	Blue
CART-1500-D-TS	1,500 lb	24 in	64-1/2 in	39-1/2 in	24 in	47-1/2 in	543 lbs	Steel	Blue

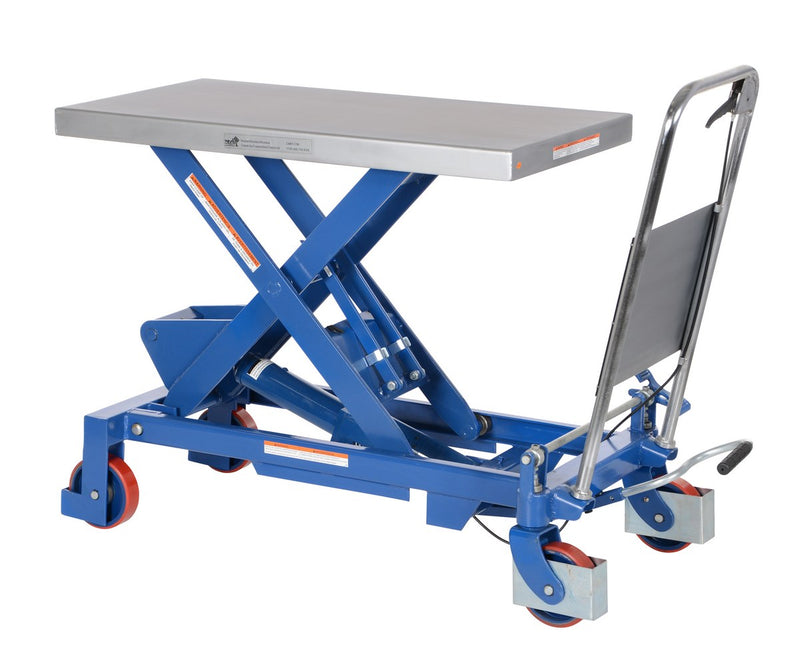

CART-1750	1,750 lb	21-1/4 in	51 in	39 in	20 in	39-1/2 in	272 lbs	Steel	Blue

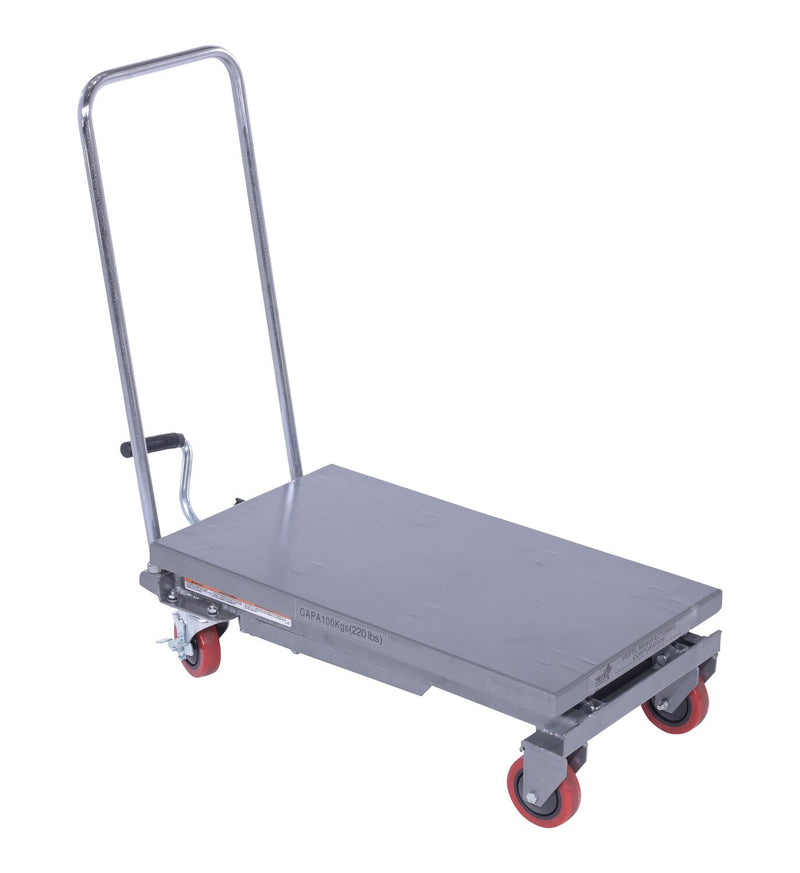

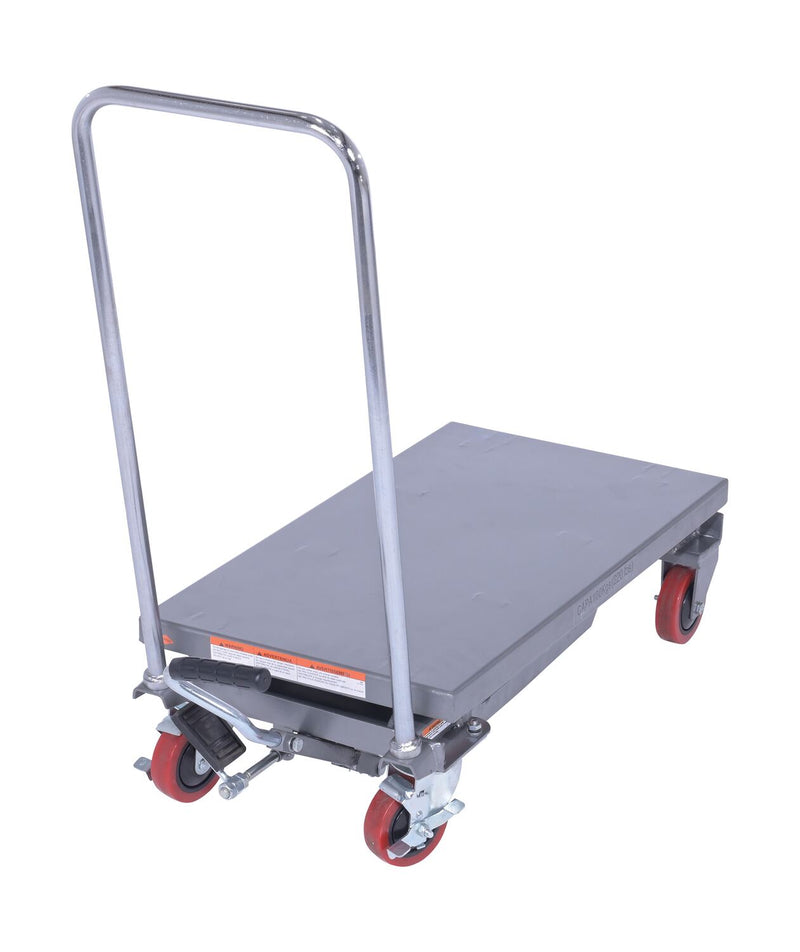

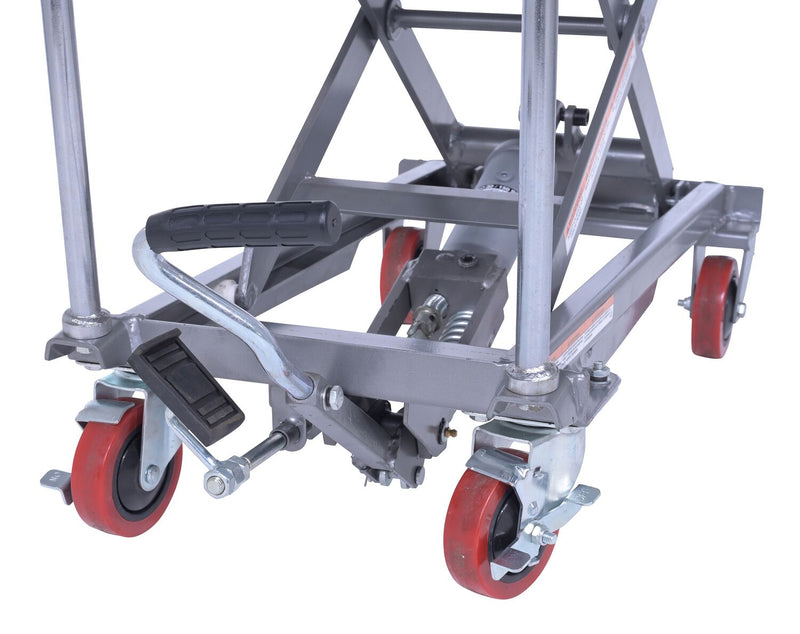

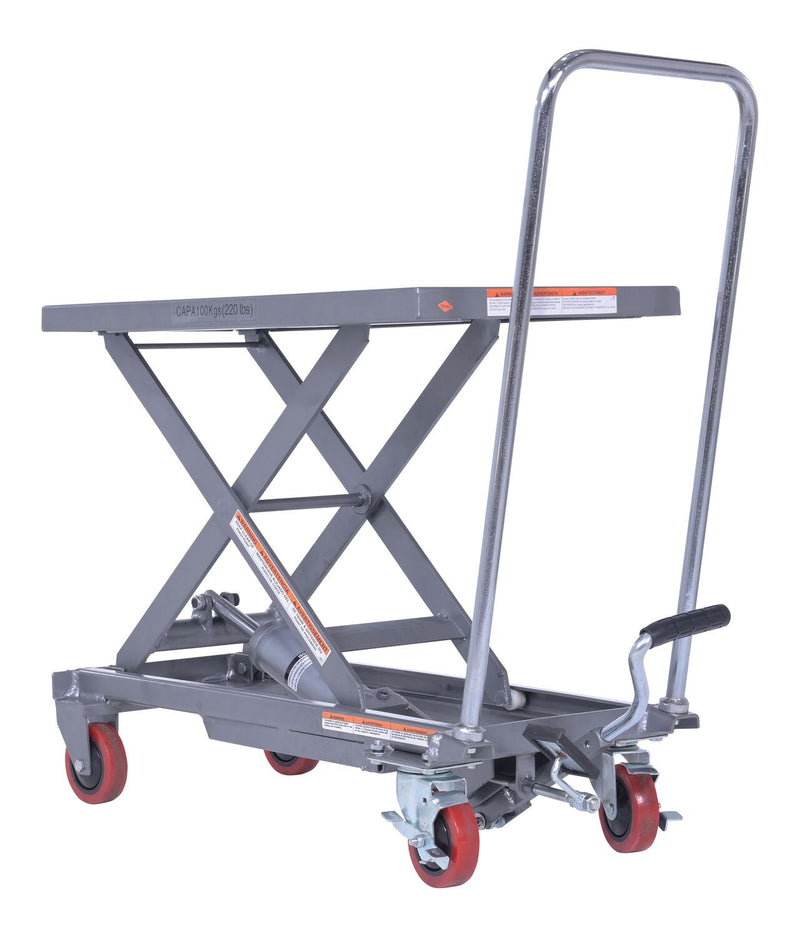

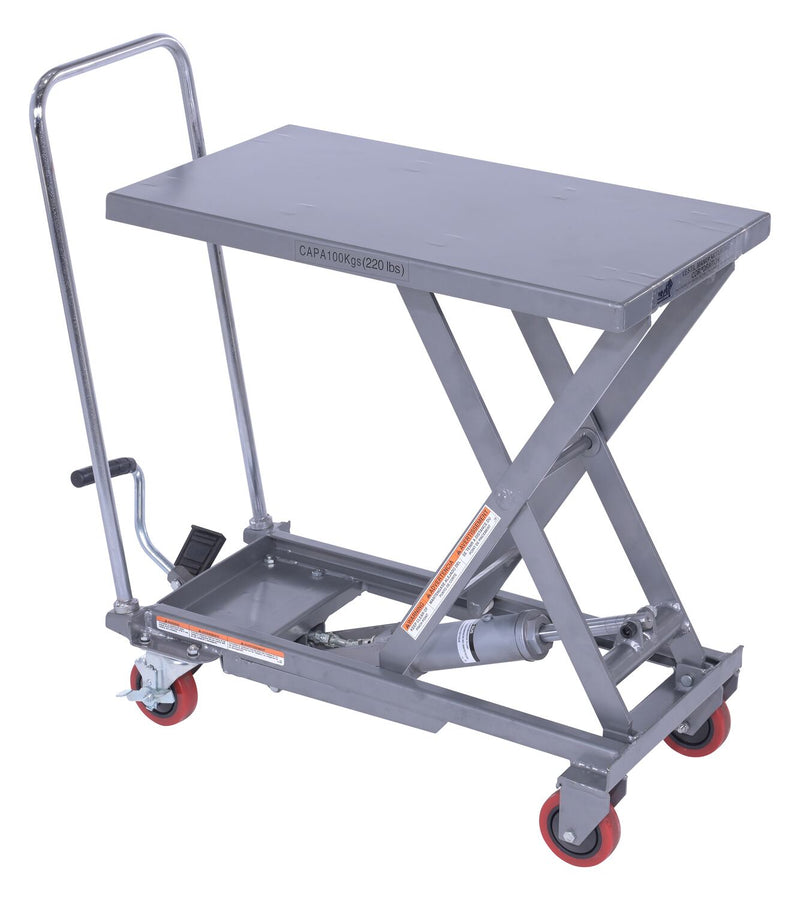

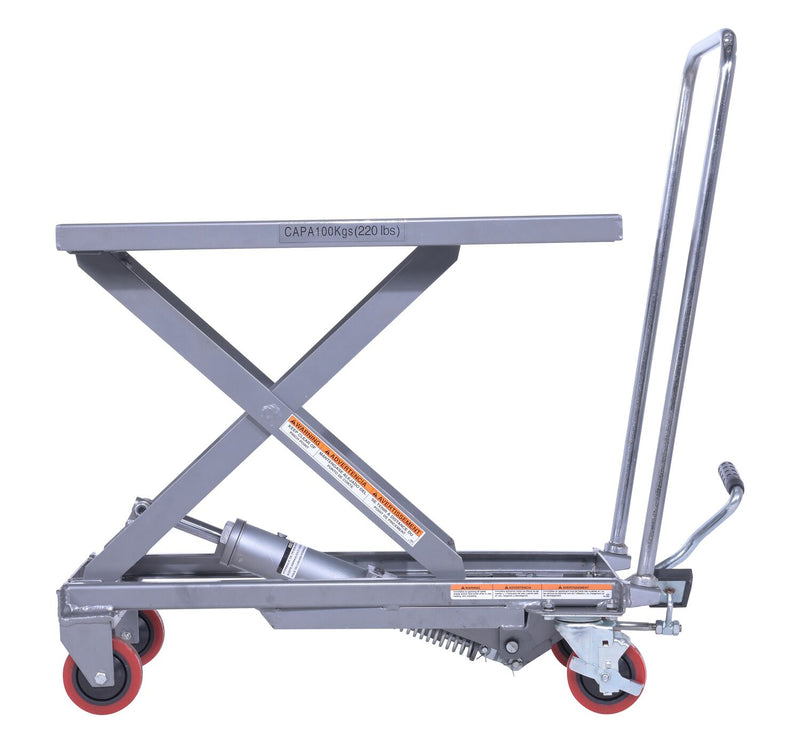

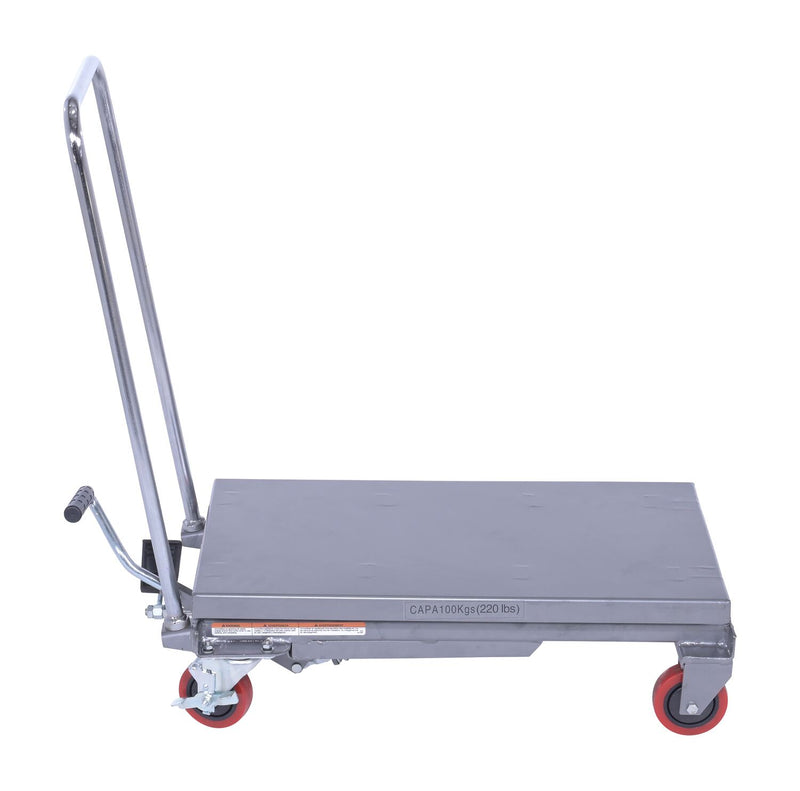

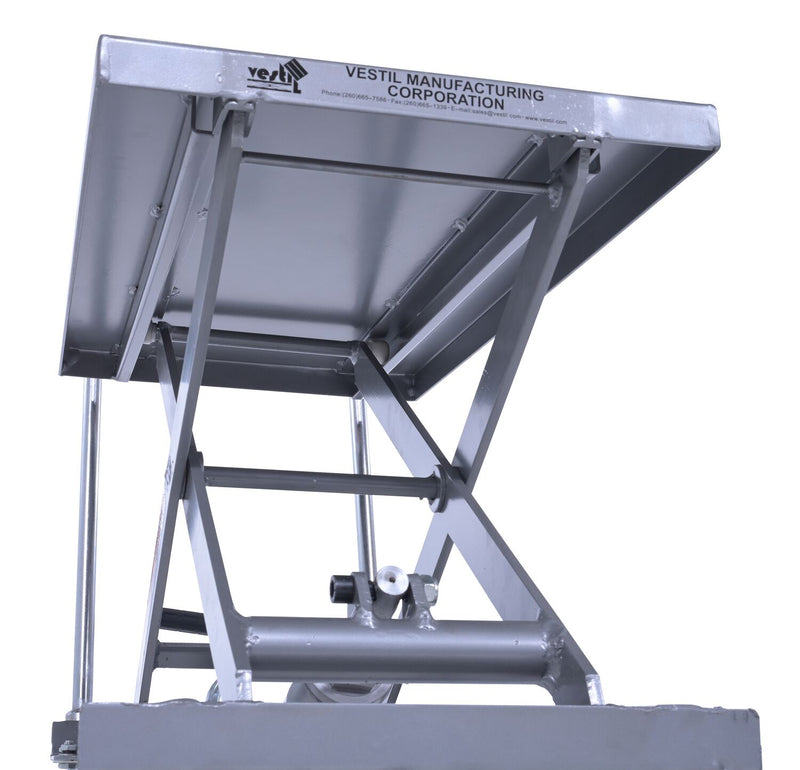

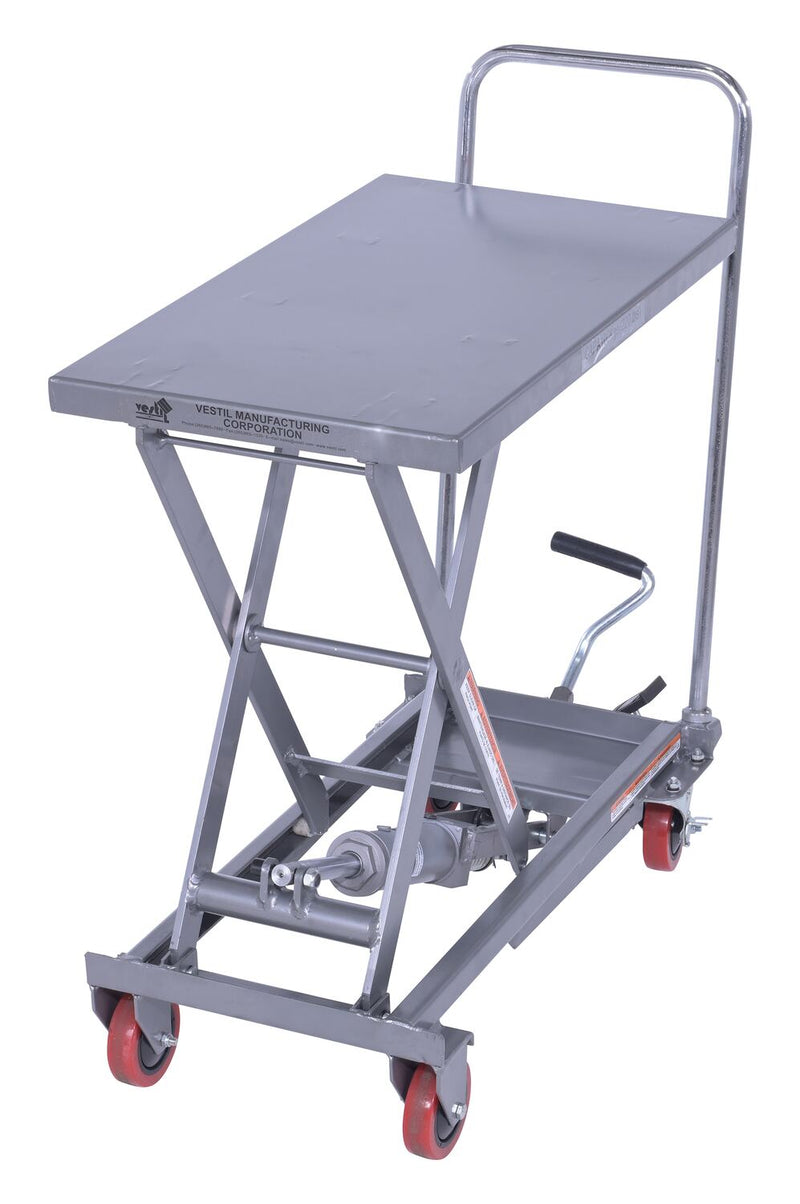

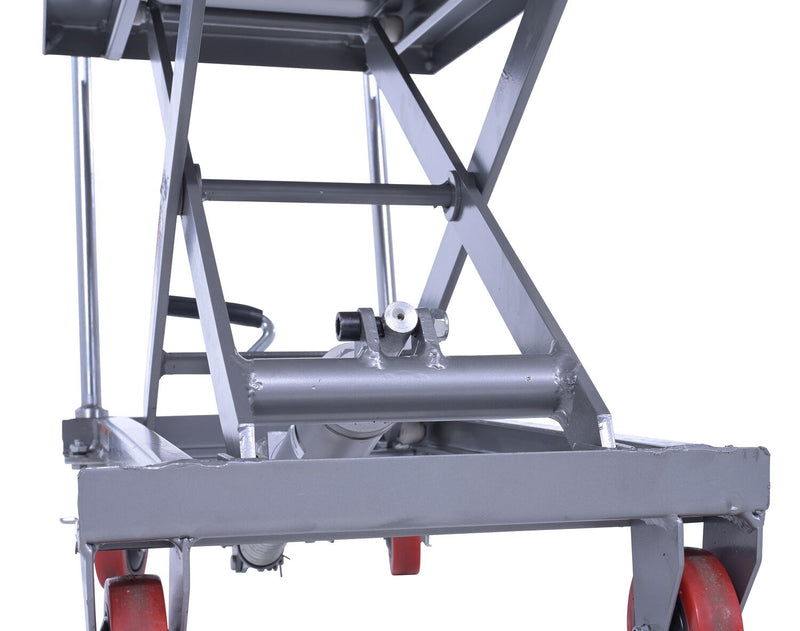

CART-200-ALUM	220 lb	15-3/4 in	35 in	34-1/2 in	15-3/4 in	27-1/2 in	50 lbs	Aluminum	Silver

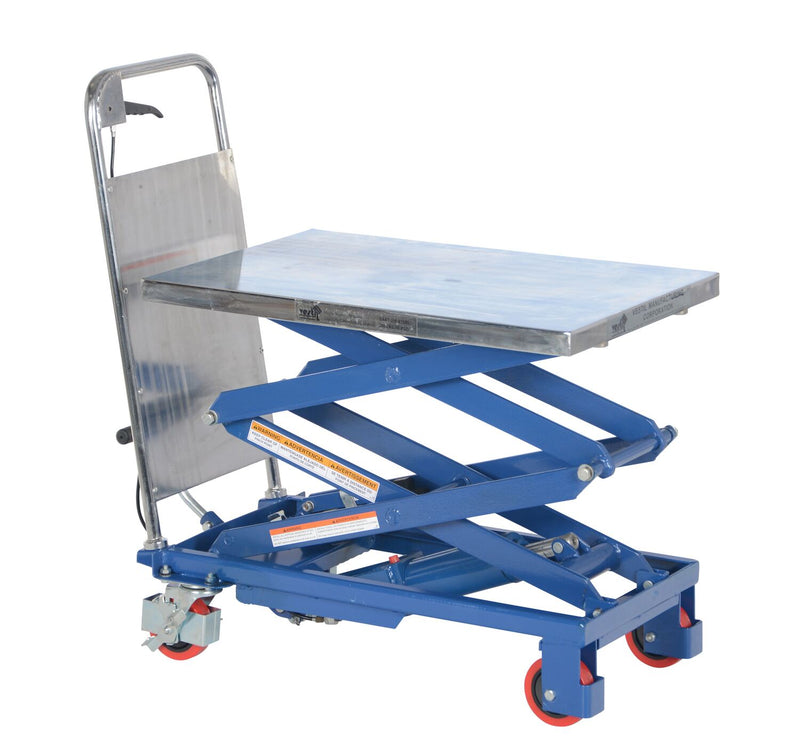

CART-200-D	220 lb	17-3/4 in	34-1/2 in	34 in	17-1/2 in	27-1/2 in	117 lbs	Steel	Blue

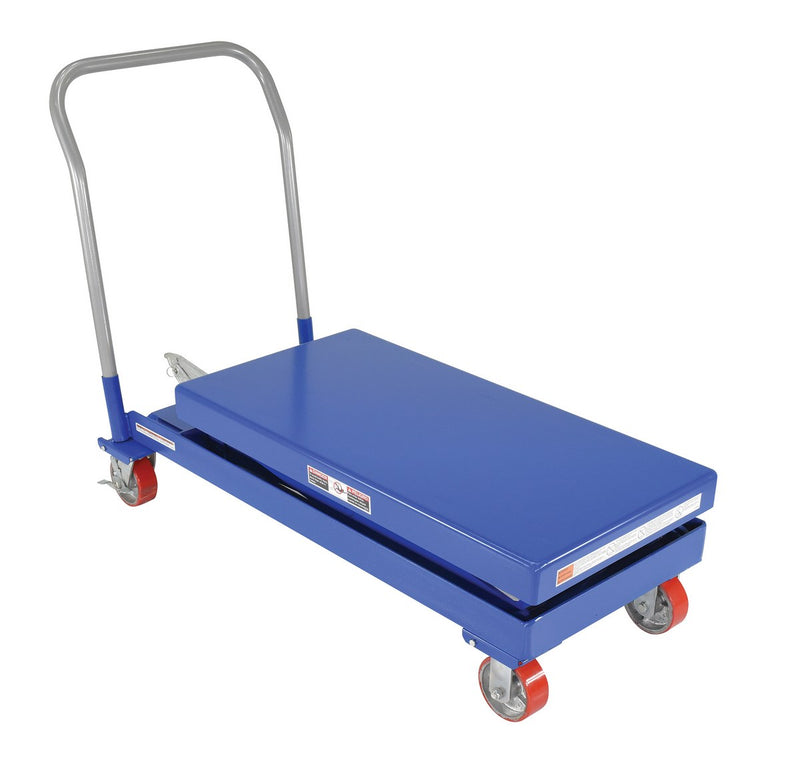

CART-2000-2040-FP	2,000 lb	24-3/4 in	63-1/16 in	39 in	20-3/8 in	40-3/8 in	332 lbs	Steel	Blue

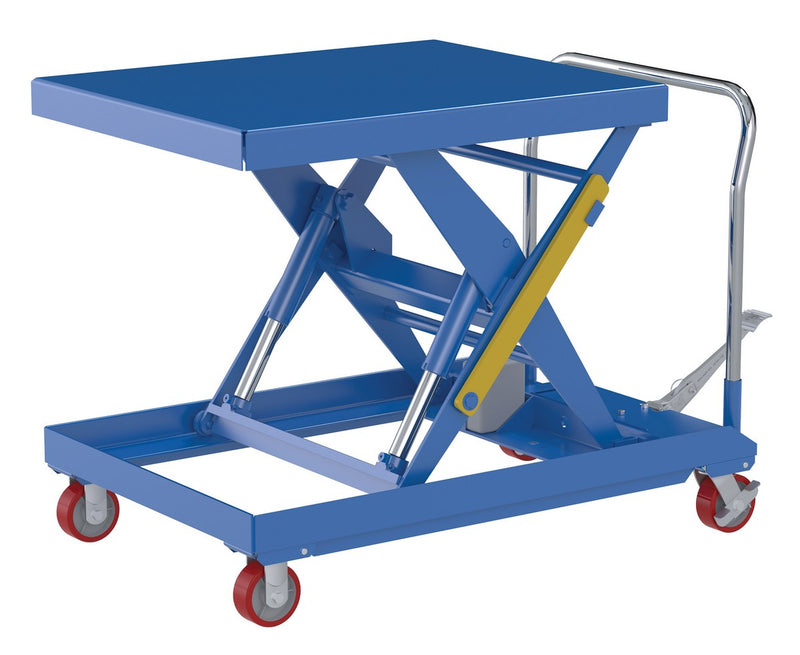

CART-2000-3240-FP	2,000 lb	32-1/2 in	64-9/16 in	39 in	32-3/8 in	40-3/8 in	398 lbs	Steel	Blue

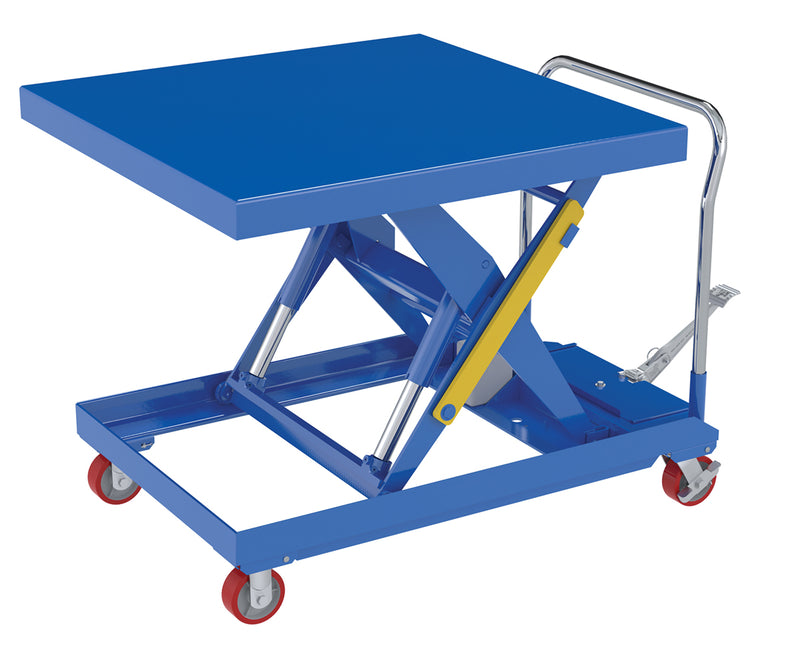

CART-2000-4242-FP	2,000 lb	42-3/8 in	66-3/16 in	39 in	42-3/8 in	42-3/8 in	420 lbs	Steel	Blue

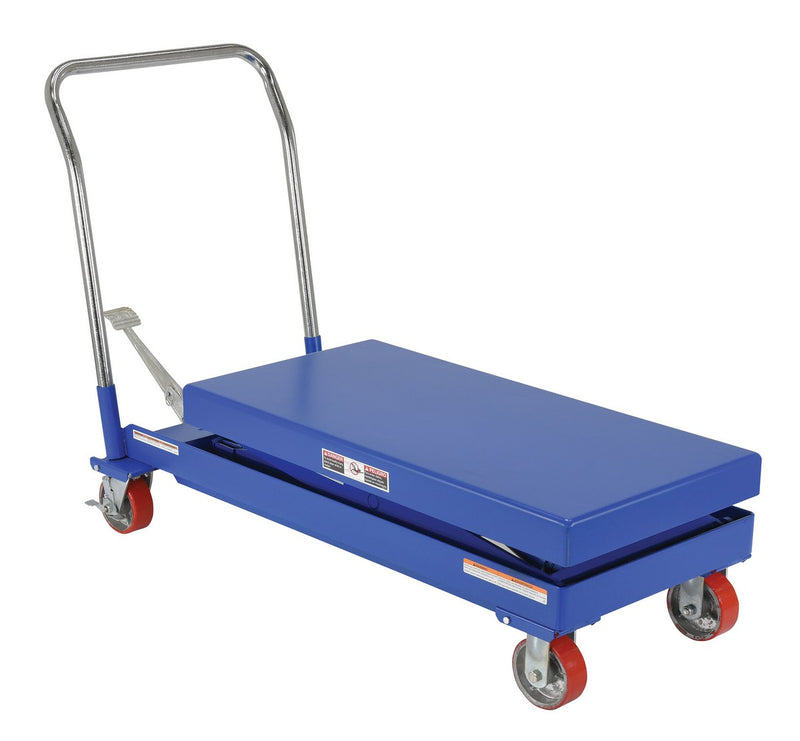

CART-2500-2040-FP	2,500 lb	24-3/4 in	63-11/16 in	39 in	20-3/8 in	40-3/8 in	351 lbs	Steel	Blue

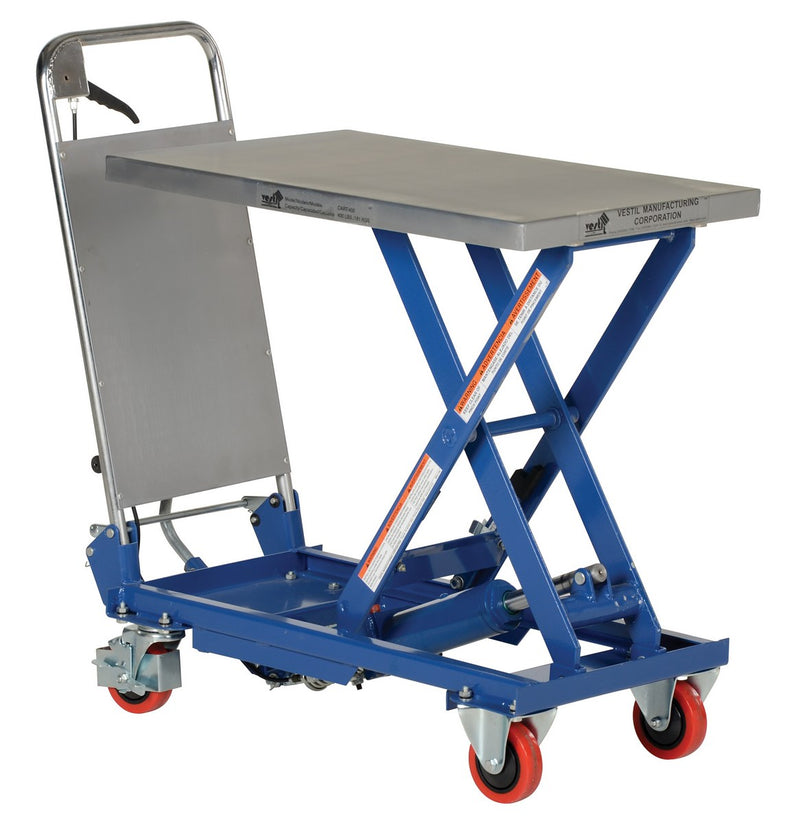

CART-400	400 lb	17-3/4 in	34-9/16 in	34-1/4 in	17-1/2 in	27-1/2 in	108 lbs	Steel	Blue (Frame), Silver (Deck)

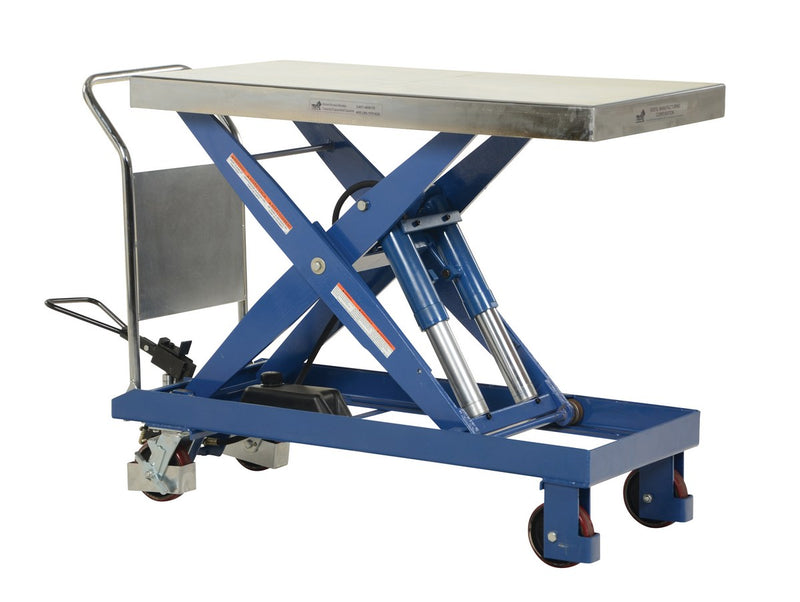

CART-4000	4,000 lb	24 in	56 in	39 in	24 in	47 in	437 lbs	Steel	Blue

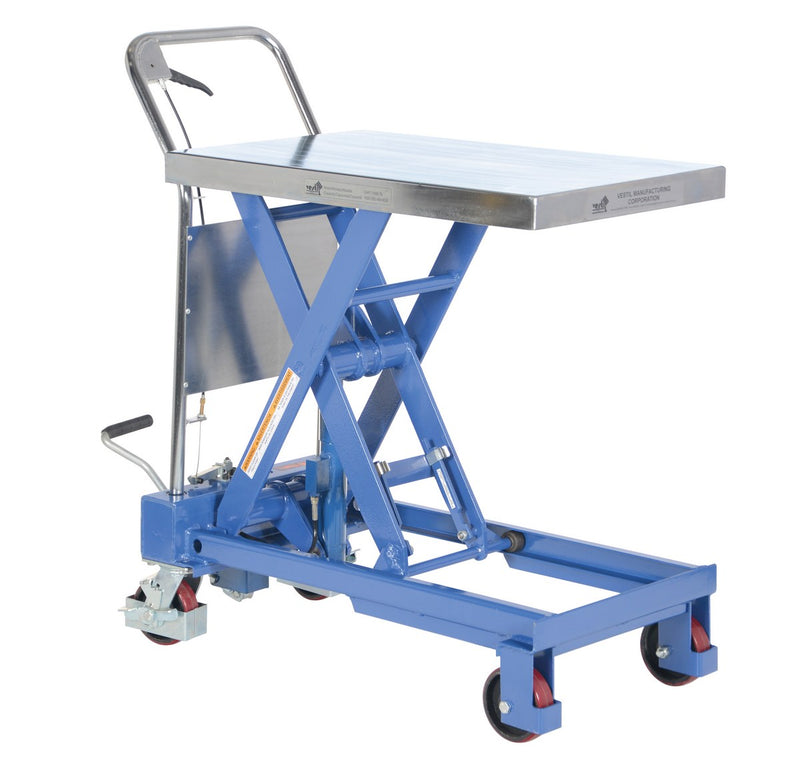

CART-750-TS	750 lb	19-3/4 in	47-3/16 in	39-1/2 in	19-3/4 in	32 in	230 lbs	Steel	Blue

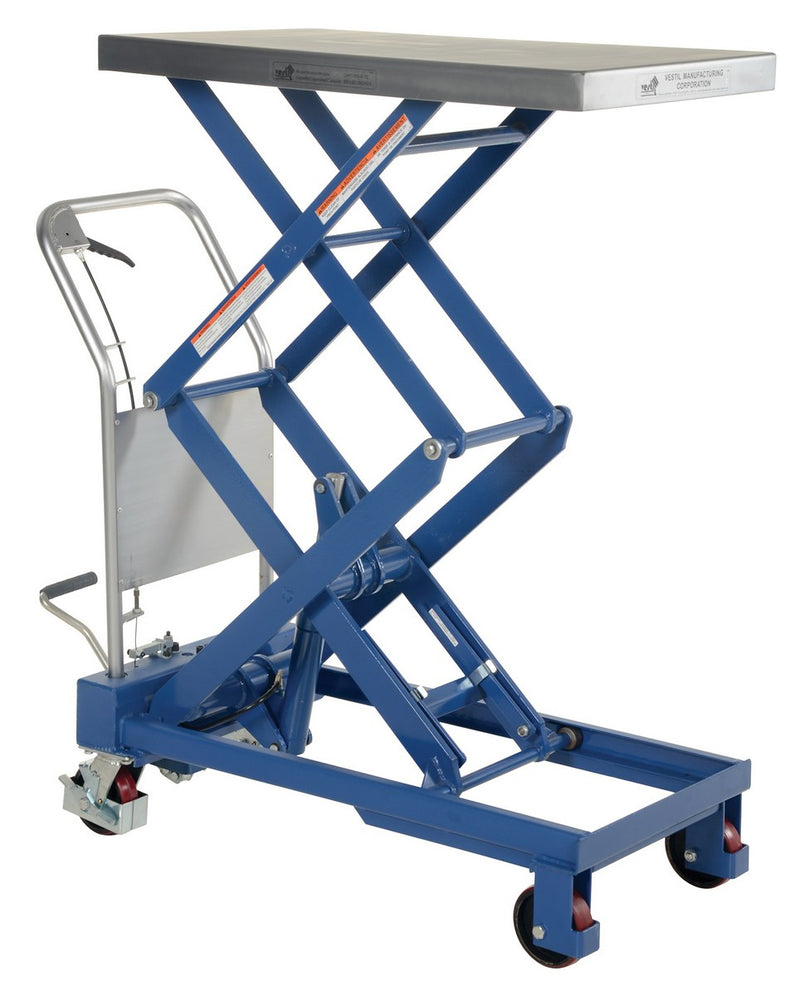

CART-800-D-TS	800 lb	19-3/4 in	52-5/8 in	52 in	20 in	35-1/2 in	245 lbs	Steel	Blue
