Vestil Lift and Tilt Carts with Sequence Select

Name: Vestil Lift and Tilt Carts with Sequence Select
Brand: Vestil
Price: 1877.99 USD
Availability: InStock

Brand: Vestil SKU: CART-1000-LT Only 2 left

Authorized dealer

$1,264.99 - $1,877.99

$1,877.99

$1,264.99 - $1,877.99

$1,877.99

Product Highlights

Selectable lift and tilt order
Container access positioning
Hydraulic cylinder protection

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN CART-1000-LT

Capacity 1,000 lb

Overall width 22 in

Overall length 39-1/2 in

Overall height 34-1/4 in

Platform width 22 in

Platform length 33-1/2 in

Assembled weight 293 lbs

Material Steel

Color / finish Blue

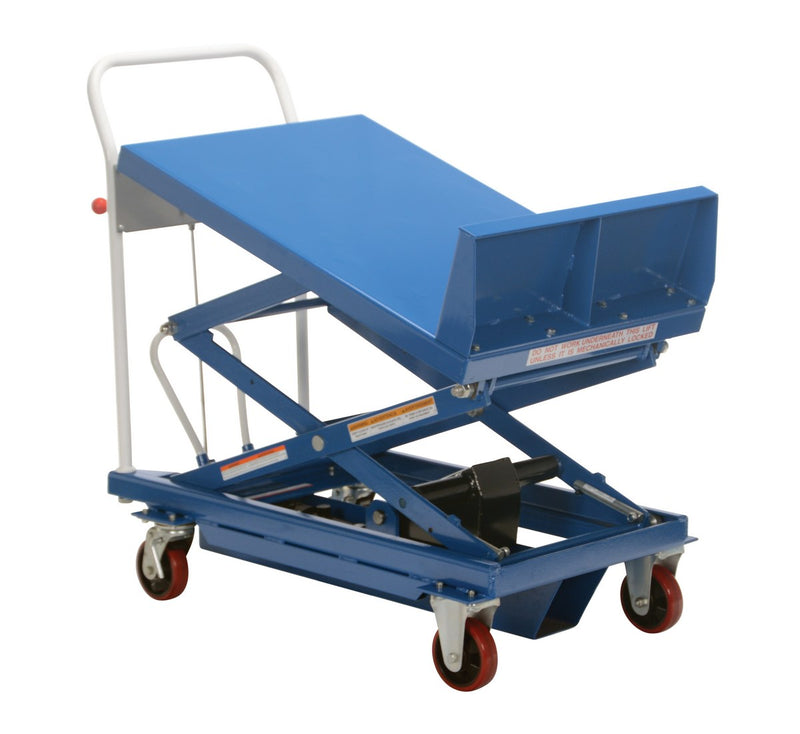

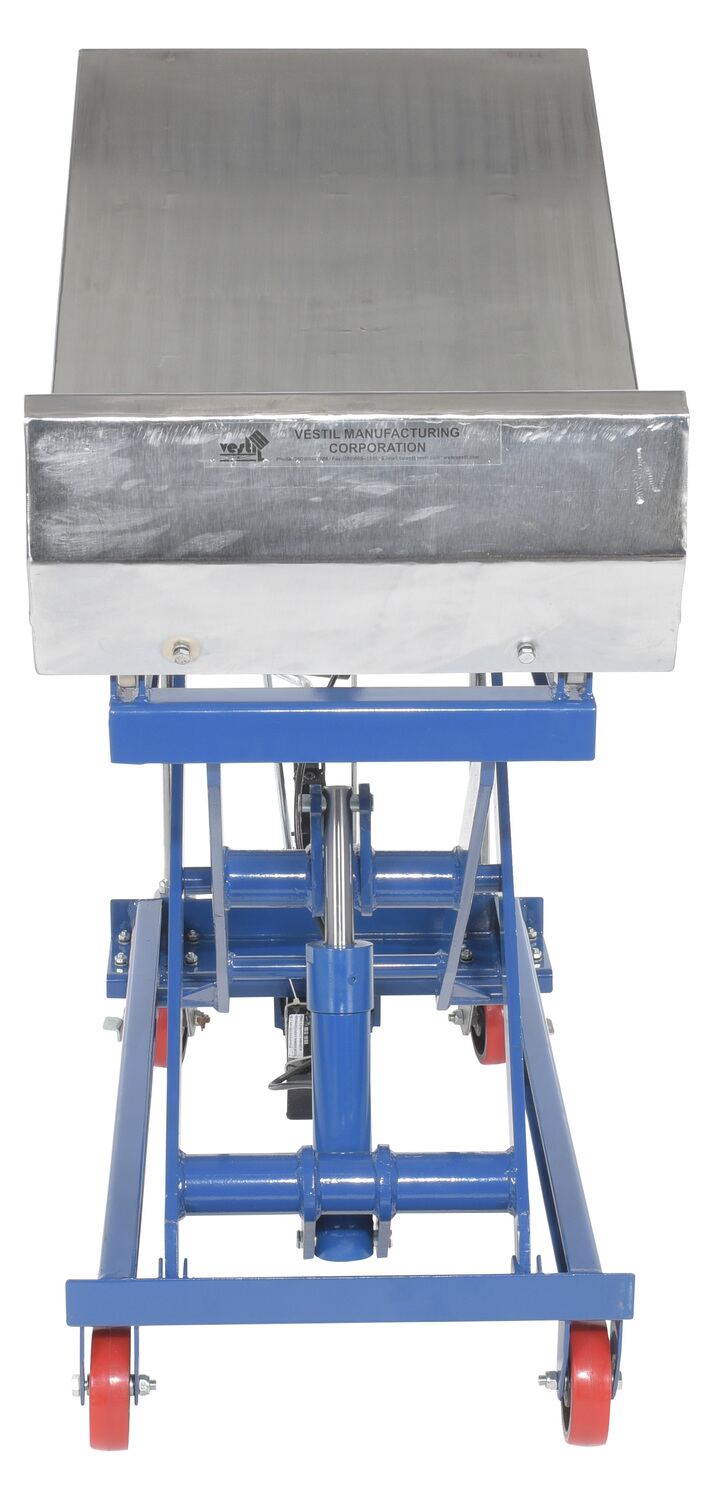

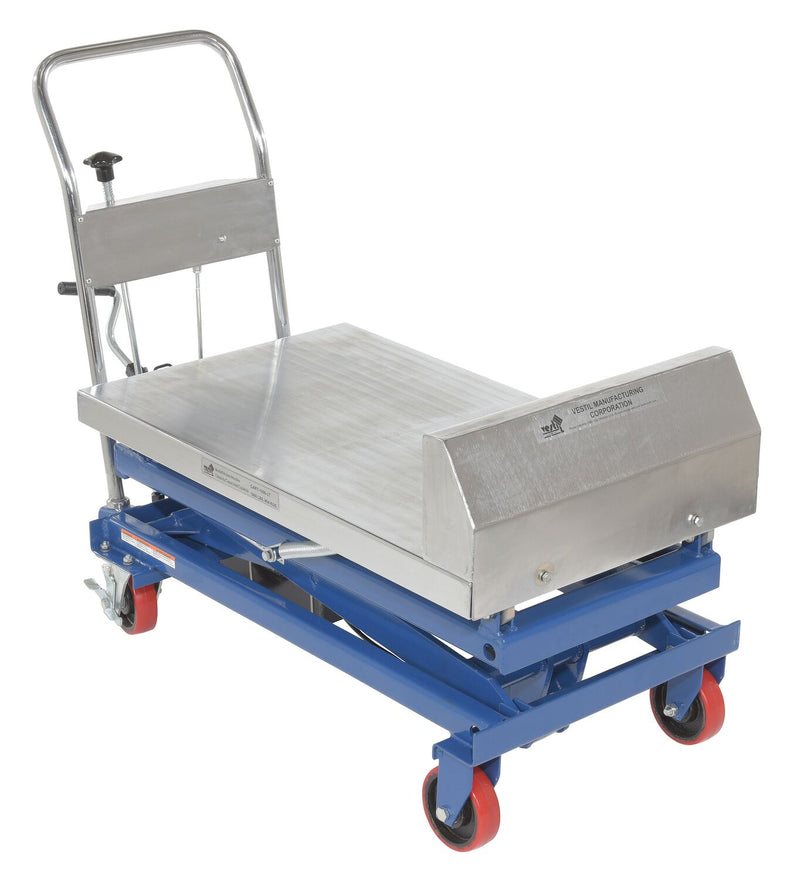

Vestil Lift and Tilt Carts with Sequence Select

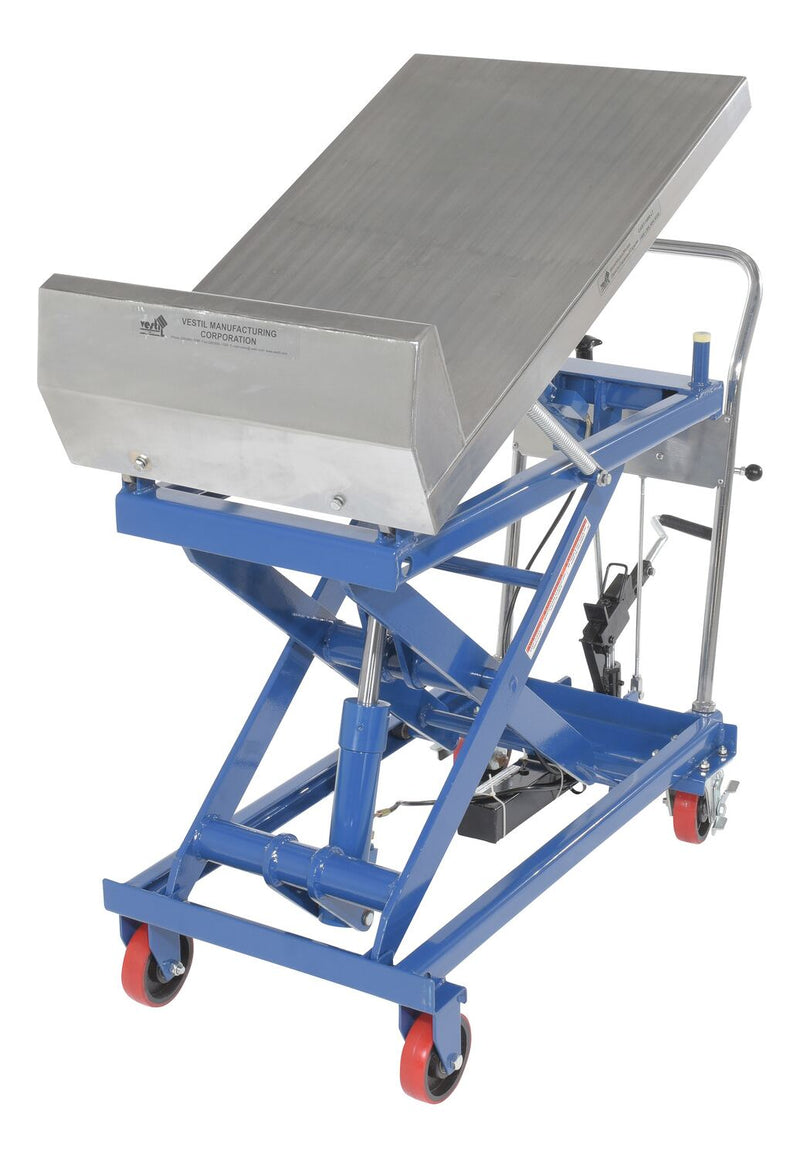

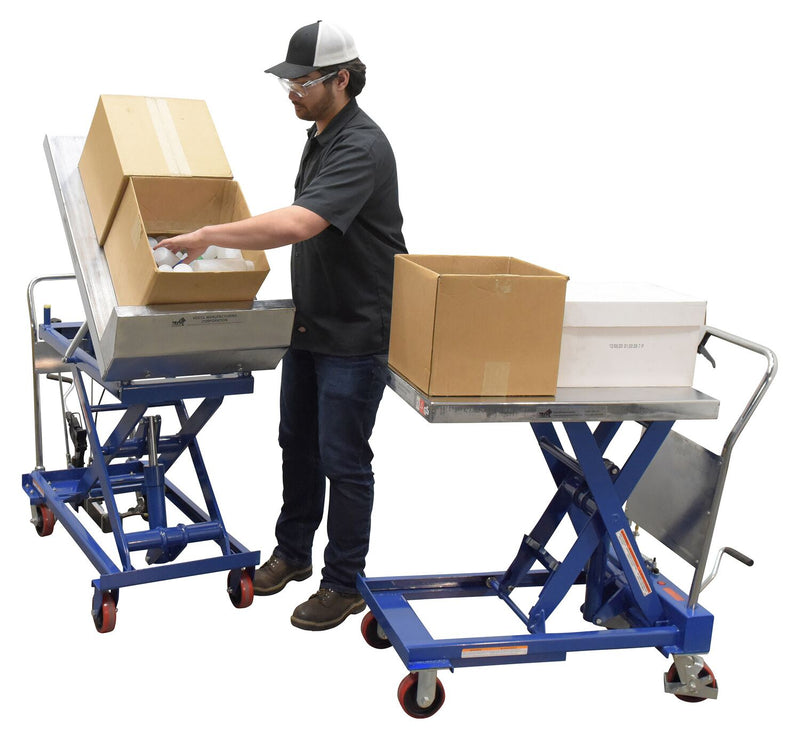

Choose the order of lift and tilt movement with a sequence-select cart. This design positions containers for access to their contents while supporting manual transport.

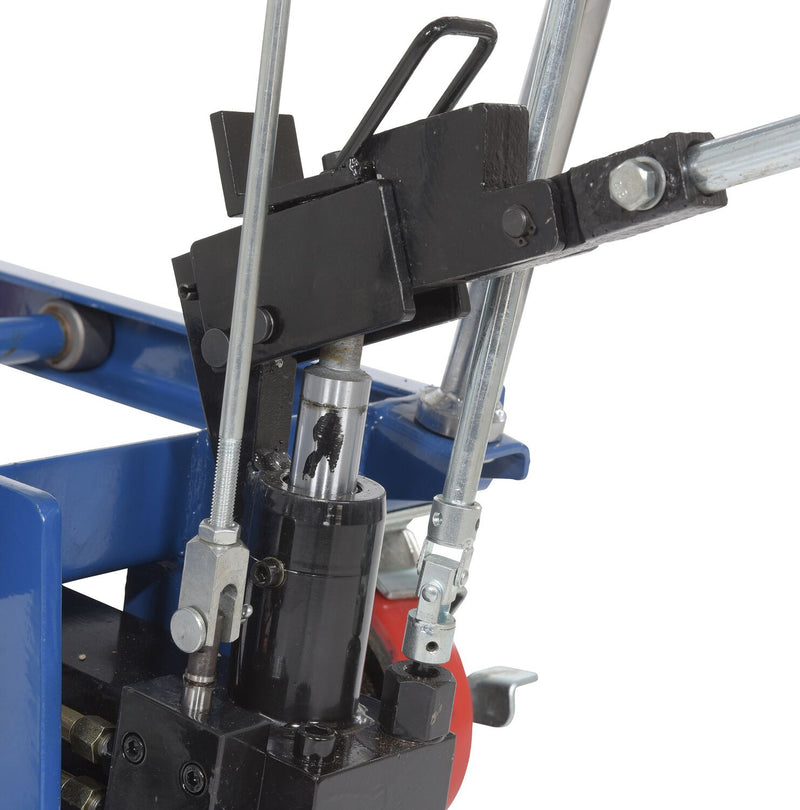

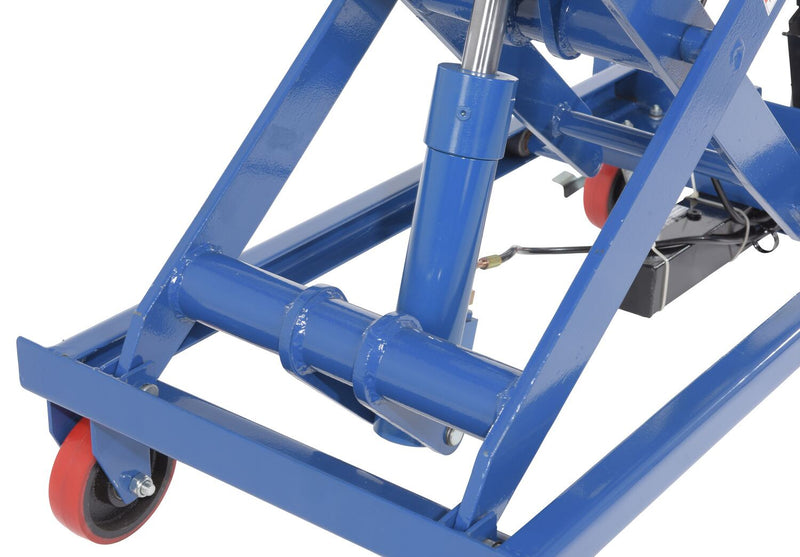

The hydraulic system uses an internal safety velocity fuse in each cylinder. Capacity, platform size and tilt specifications are listed for each configuration.

Lift and Tilt Carts with Sequence Select Features

Selectable lift and tilt sequence
Hydraulic platform positioning
Manual transport frame
Cylinder safety velocity fuse

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Lowered Height (in.)		17-5/8
Raised Height (in.)		34-1/4
Maximum Tilt Degree		35
Retaining Lip (in.)		7
Caster Quantity/Diameter/Width (in.)		(4) 5 x 2
Caster Material		Poly-on-Steel
Power Source		Manual
Maximum Tilt Angle (°)		35

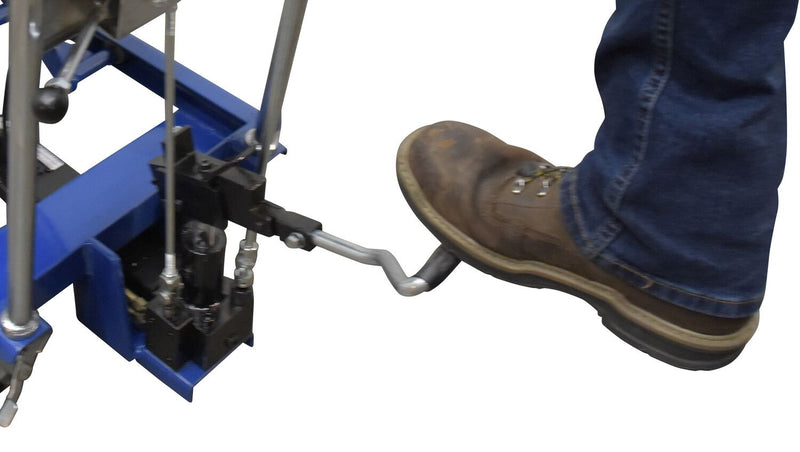

Operation Method		Foot Operated
Handle Height (in)		40

Shipping

Ship weight		340 lbs
Freight Type		LTL Palletized
Package Width (in)		40
Package Depth (in)		64
Package Height (in)		42
Freight Class		175

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts
Manufacturer Warranty #2		90 Days
Warranty Type #2		Wearable Parts warranty

Size & Specification Comparison

All models: Material: Steel · Color / finish: Blue

Compare all sizes & specifications

Vestil Lift and Tilt Carts with Sequence Select: specifications by model
Model	Capacity	Overall width	Overall length	Overall height	Platform width	Platform length	Assembled weight
CART-1000-LT	1,000 lb	22 in	39-1/2 in	34-1/4 in	22 in	33-1/2 in	293 lbs

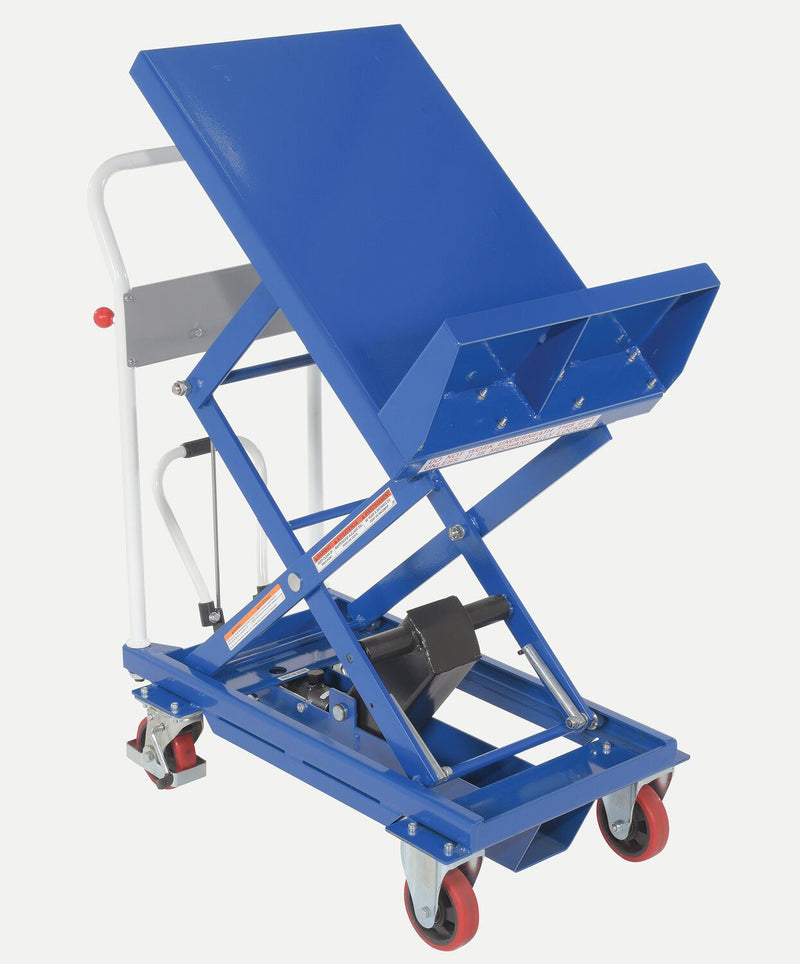

CART-400-LT	400 lb	20 in	39-3/8 in	39-3/8 in	19-1/2 in	30 in	200 lbs
CART-600-LT	600 lb	23-5/8 in	39-3/8 in	39-3/8 in	24 in	36 in	302 lbs
