Vestil Lifter Jibs

Name: Vestil Lifter Jibs
Brand: Vestil
Price: 1934.99 USD
Availability: InStock

Brand: Vestil SKU: VAN-J-AC Only 2 left

Authorized dealer

$947.99 - $1,934.99

$1,934.99

$947.99 - $1,934.99

$1,934.99

Product Highlights

Double-arm van-loading design
Rotating loading arm
Manual, AC or DC winch

Ships in 40 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN VAN-J-AC

Material Steel

Overall Width (in.) 9-15/16

Overall Length (in.) 45-3/4

Overall Height (in.) 46-1/16

Assembled Weight 138 lbs

Uniform Capacity (lb.) 400

Color / Finish Blue

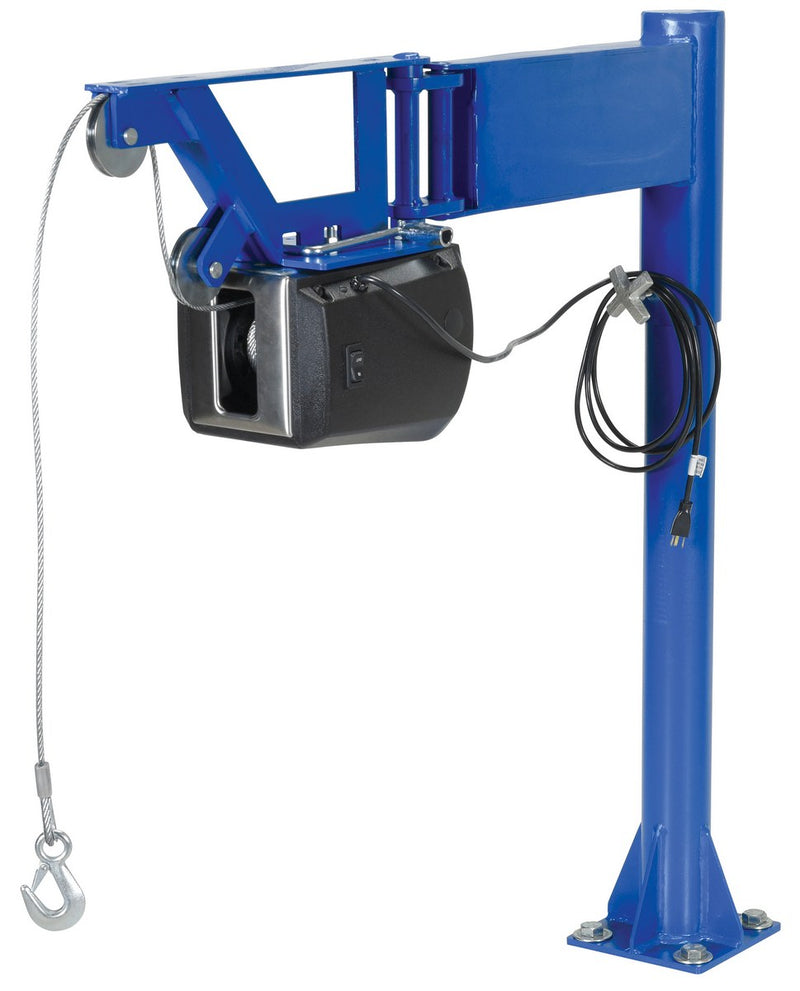

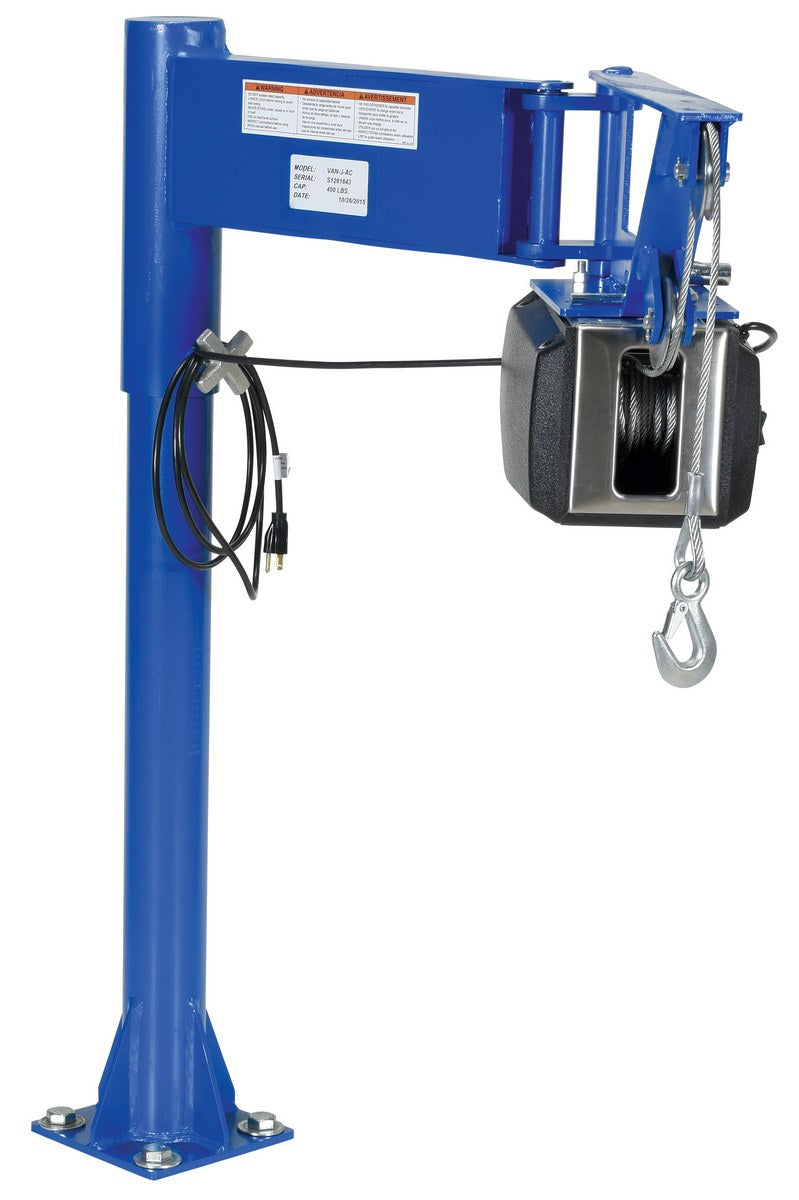

Vestil Lifter Jibs

Transfer items from ground level to van-floor height with a rotating lifter jib. The double-arm layout supports use in confined loading areas.

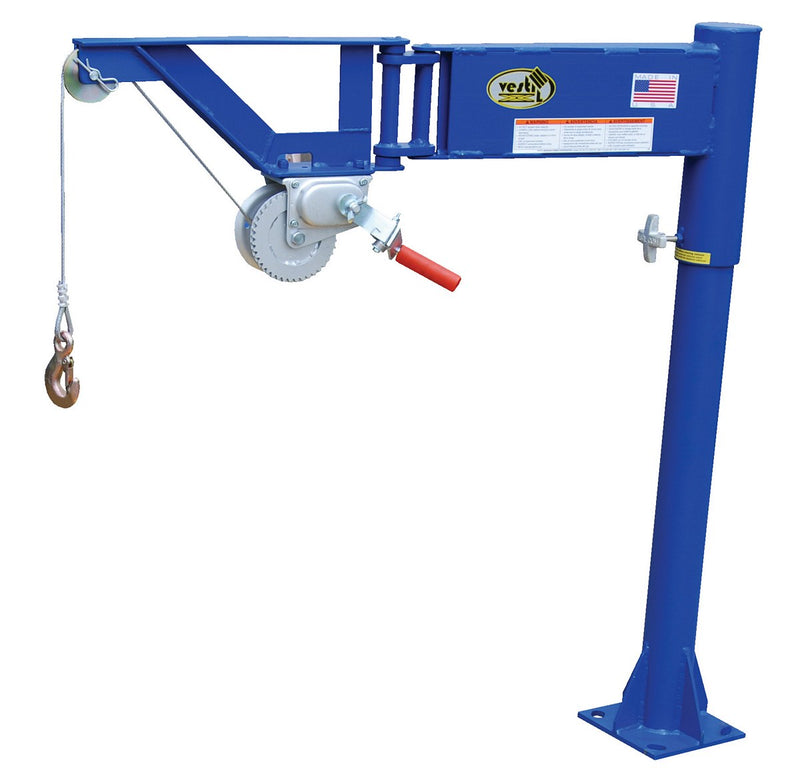

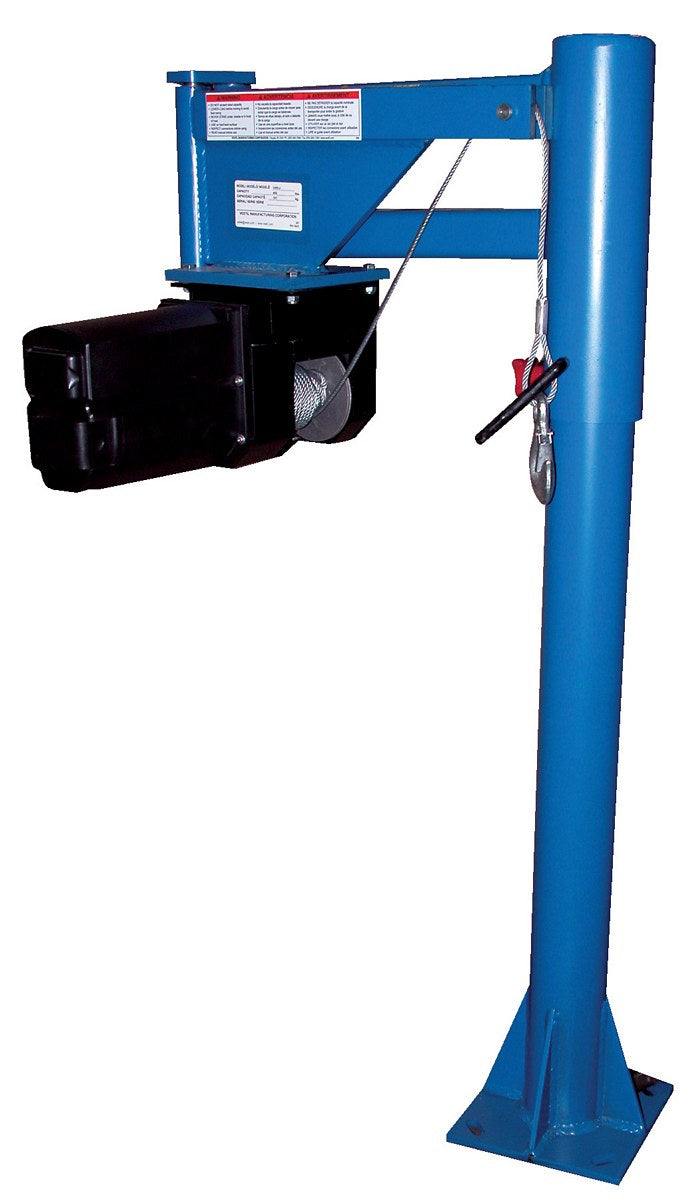

Manual, AC-powered and DC-powered winch versions are offered. These jibs are designed for vertical lifting only and must not be used for personnel or overhead lifting.

Lifter Jibs Features

Double-arm van-loading jib design
Manual rotation into the cargo area
Winch choices include manual, AC and DC power
Pre-drilled mounting holes on the steel assembly

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Swing Reach (in.)		0 to 39-3/4
Overall Cable Length (ft.)		25
Mounting Plate Length/Width (in.)		8 x 8
Power		AC/115V/Phase 1
Rotation Degree		360
Ground Clearance (in.)		30-1/8
Hook Height (in.)		36-1/8
Winch Speed Full Load (feet per minute)		10
Mast Diameter (in.)		4
Frame Material		Steel
Maximum Rotation ()		360
Extended Capacity (lbs)		400
Extended Length (in)		39.75
Extended Maximum Hook Height (in)		36.125
Extended Minimum Hook Height (in)		0
Retracted Capacity (lbs)		400
Retracted Length (in)		19.875
Retracted Maximum Hook Height (in)		36.125
Retracted Minimum Hook Height (in)		0
Base Length (in)		8
Base Width (in)		8
Base Height (in)		6.375
Installation Hardware Included		No
Power Cable Length (ft)		8
Power Type		AC Powered Winch
Voltage (V)		115
Motor Horsepower (hp)		2

Shipping

Freight Type		LTL Palletized
Freight Class		175
Country of Origin Name		US

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Overall Length (in.): 45-3/4 · Overall Height (in.): 46-1/16 · Uniform Capacity (lb.): 400 · Color / Finish: Blue

Compare all sizes & specifications

Vestil Lifter Jibs: specifications by model
Model	Overall Width (in.)	Assembled Weight
VAN-J-AC	9-15/16	138 lbs
VAN-J-DC	12-5/16	127 lbs
VAN-J	13-9/16	95 lbs
