NPG4-12, NPG4-18, NPG4-24, NPG4-36, NPG6-12, NPG6-18, NPG6-24, NPG6-36

Vestil Low Profile Rack Guards

Name: Vestil Low Profile Rack Guards
Brand: Vestil
Price: 73.99 USD
Availability: InStock

Brand: Vestil SKU: NPG4-12 20 in stock

Authorized dealer

$73.99 - $169.00

$73.99

$73.99 - $169.00

$73.99

Free shipping on this item

Product Highlights

Laser cut steel
Two-hole floor attachment
Channel size choices

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Warranty PDF

Overview

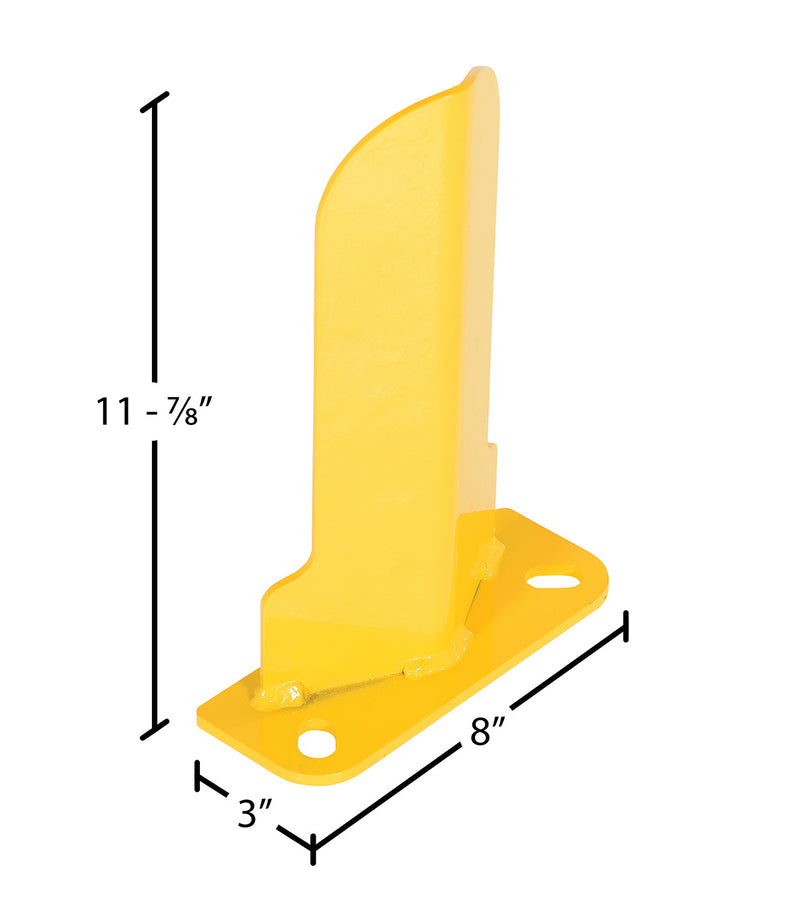

Main Specifications

MPN NPG4-12

Overall width 8 in

Overall length 3 in

Overall height 11-7/8 in

Assembled weight 5 lbs

Material Steel

Color / finish Yellow

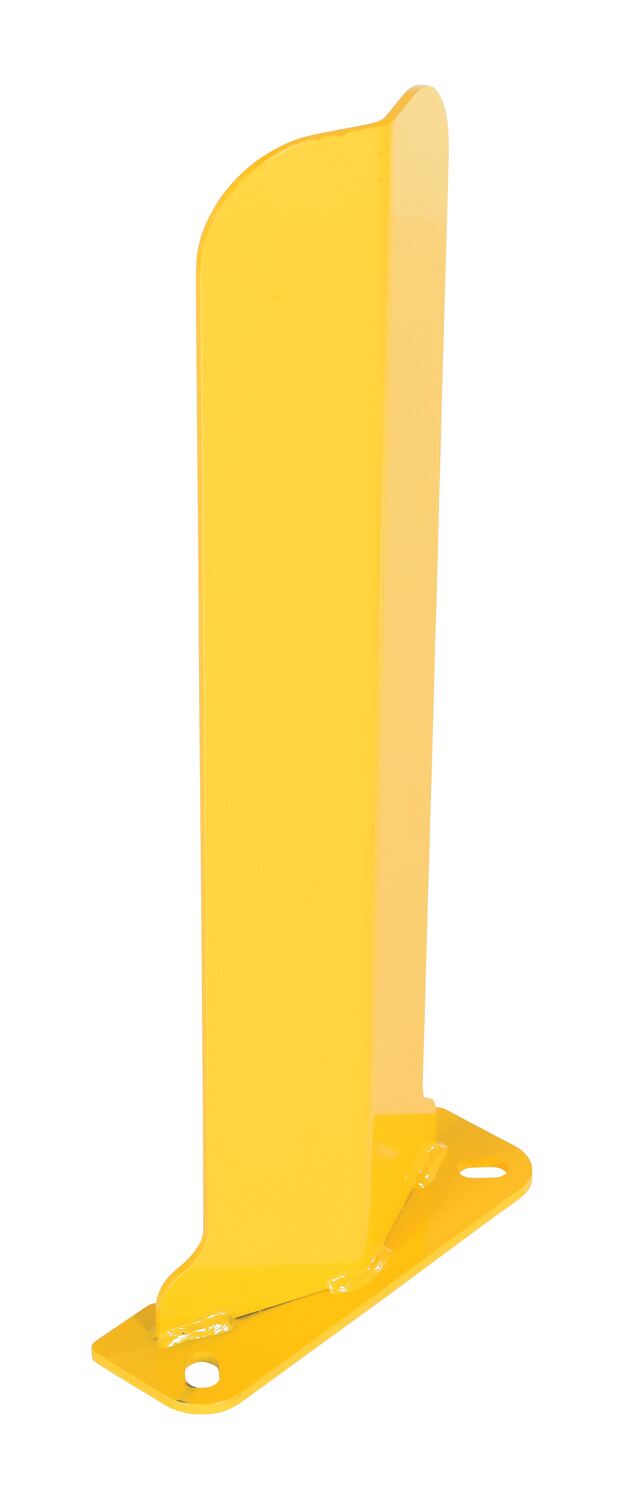

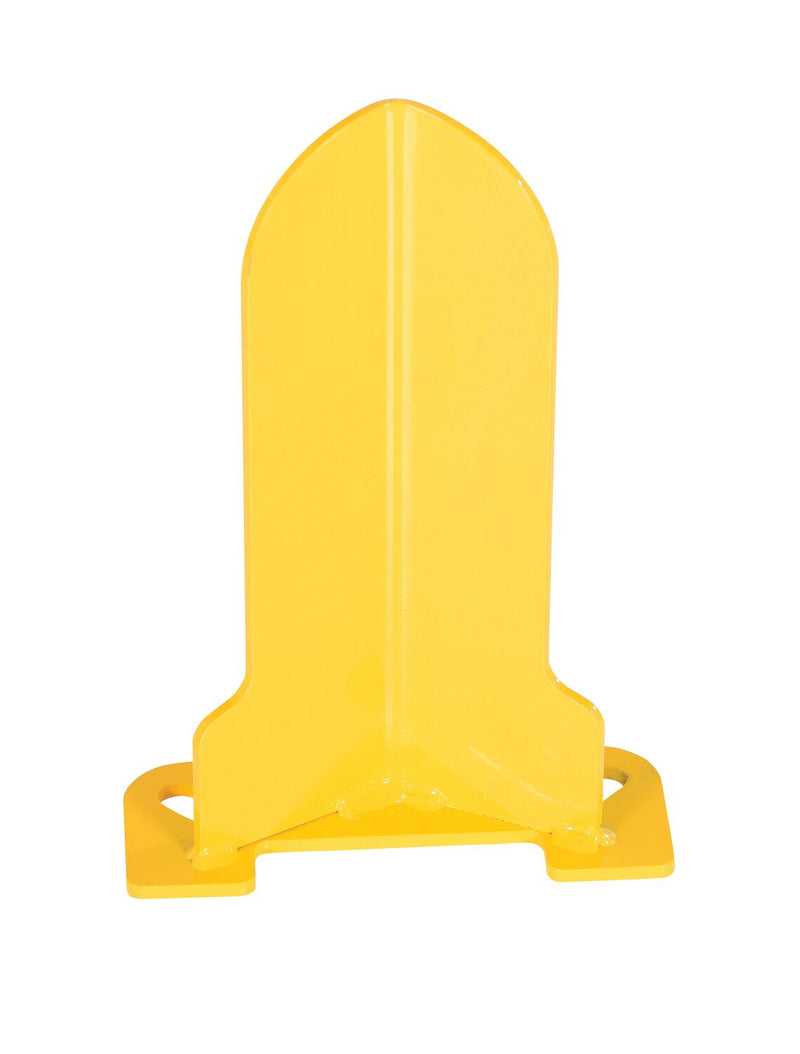

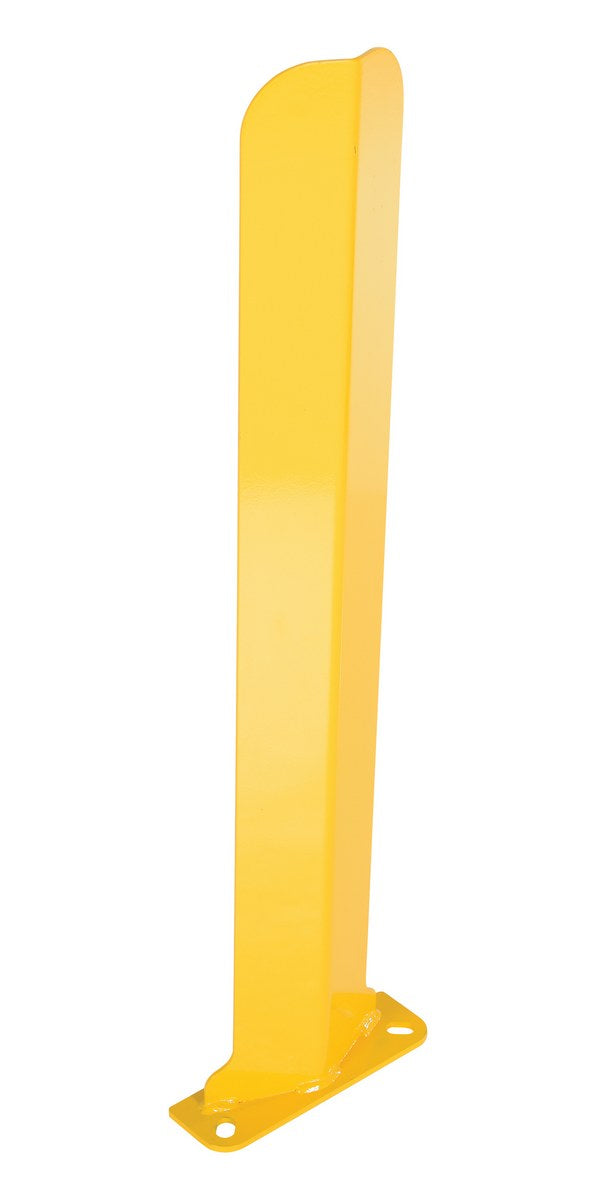

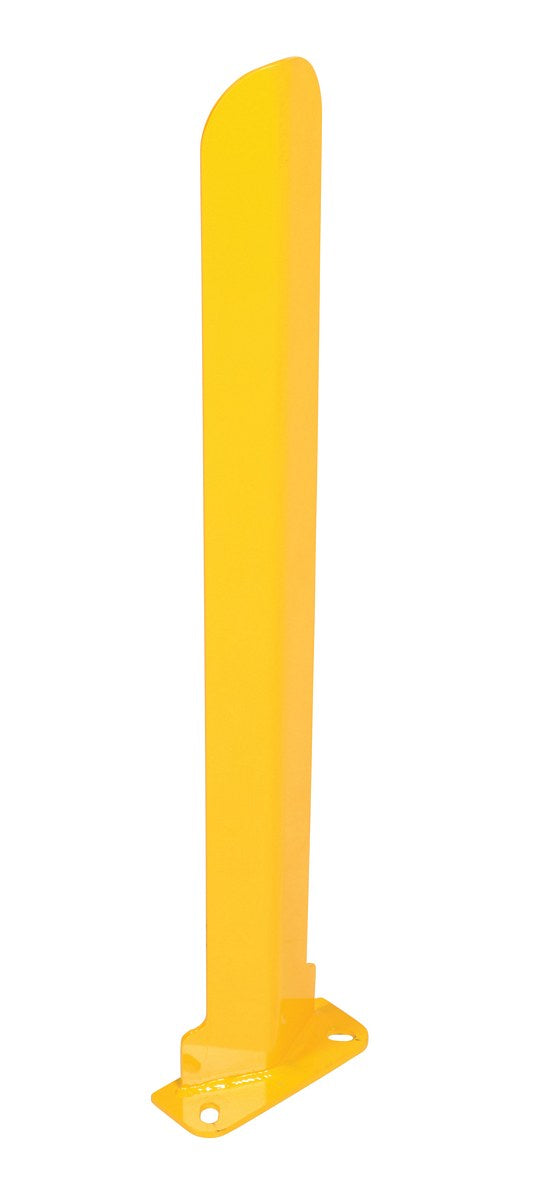

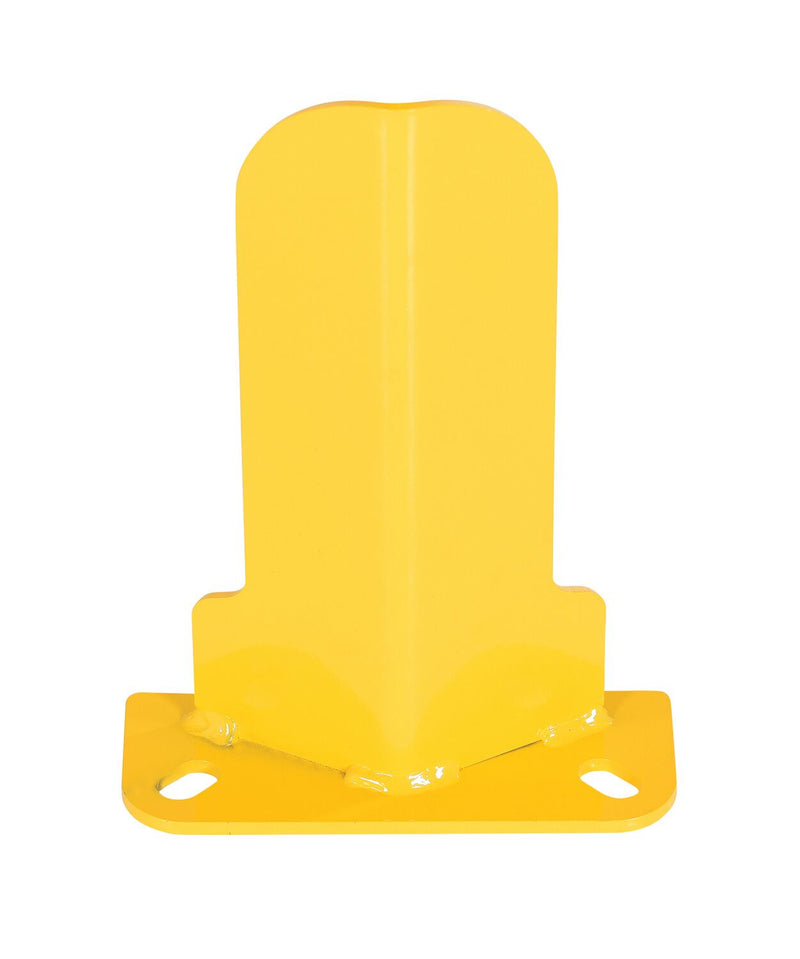

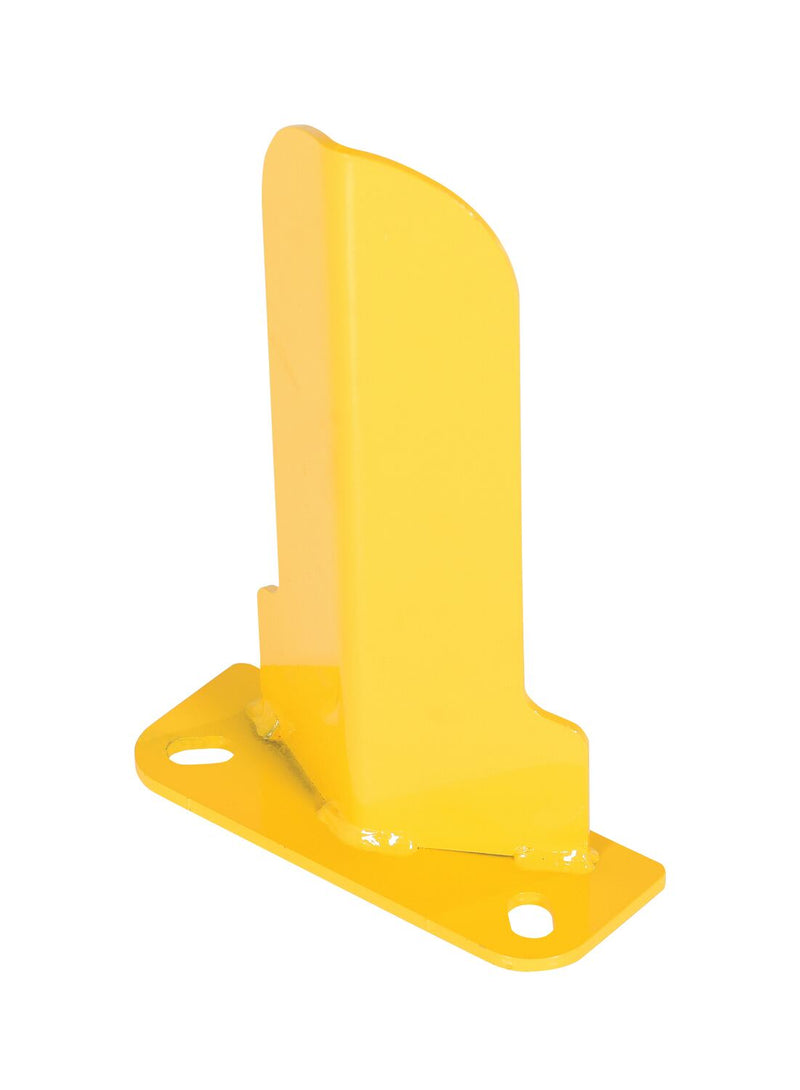

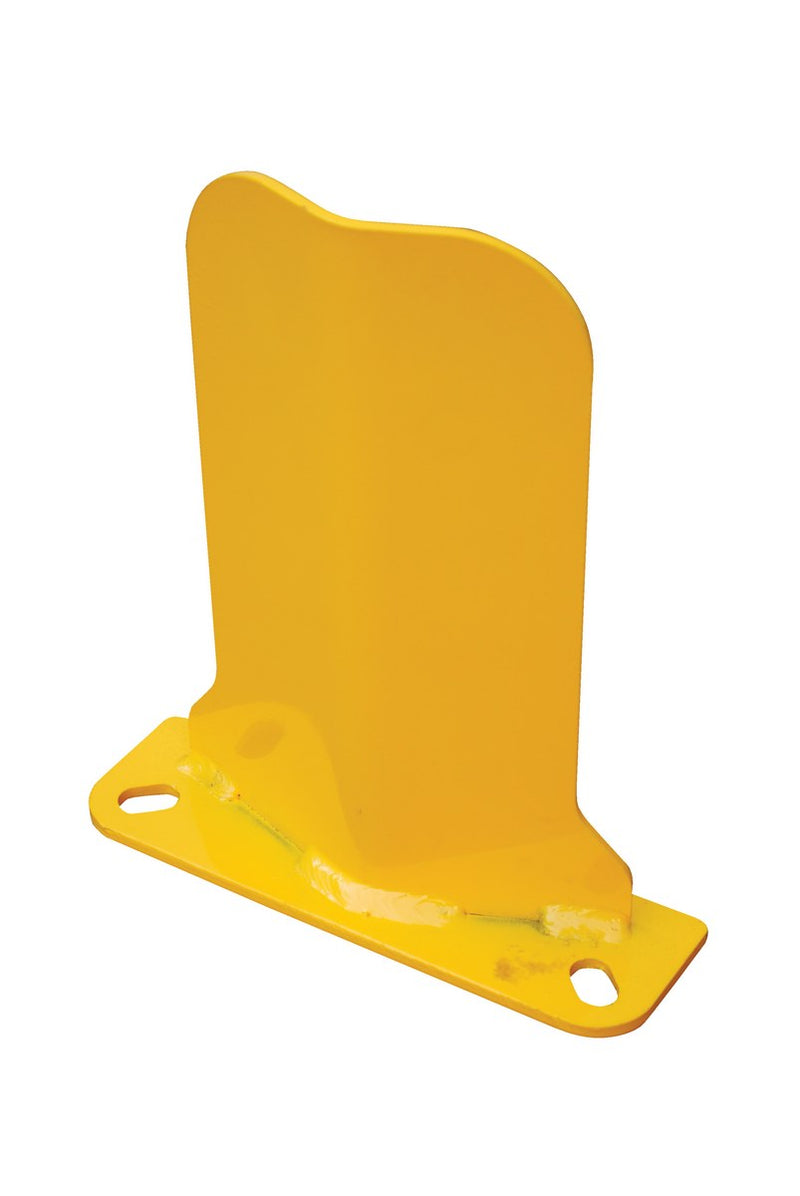

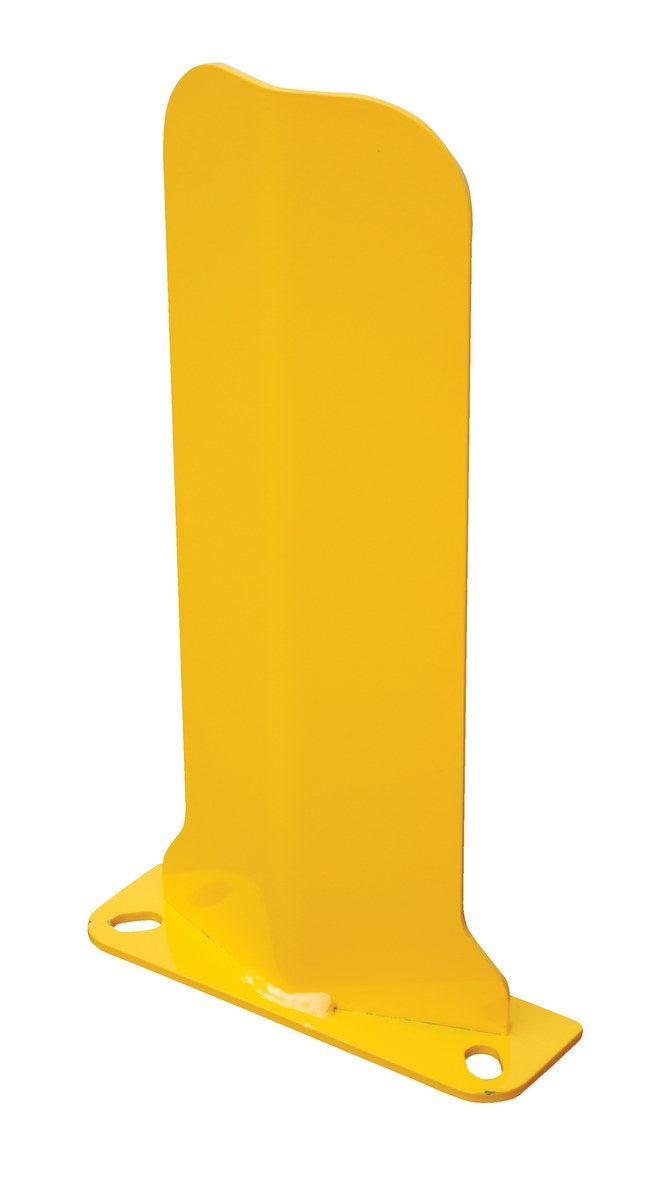

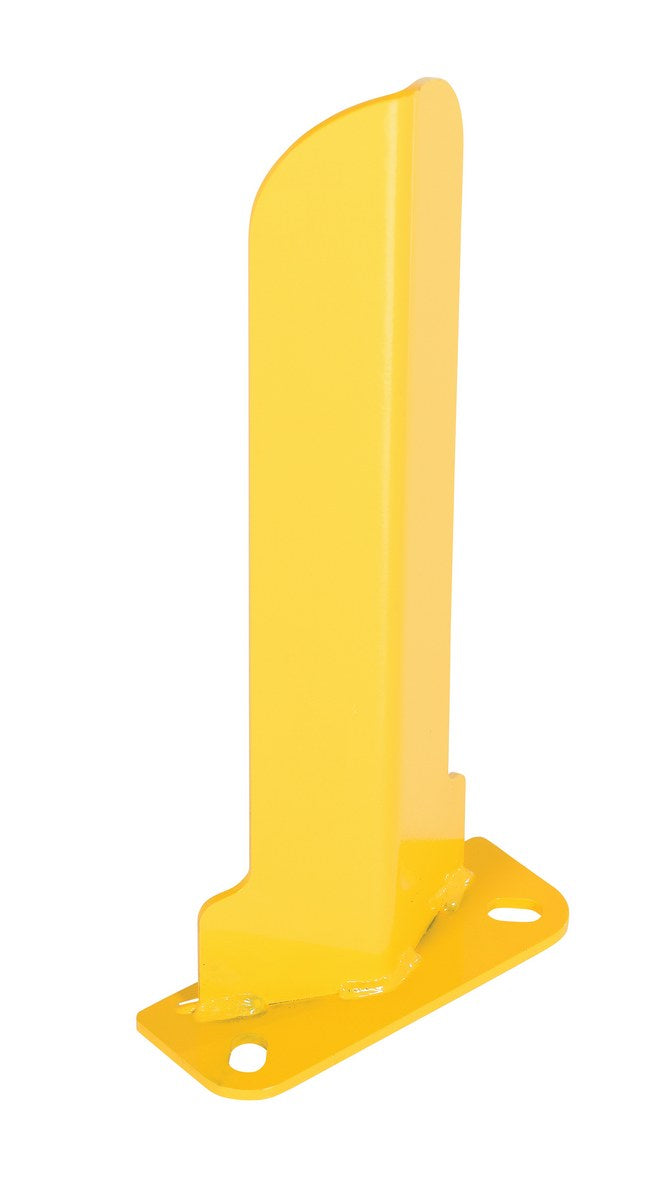

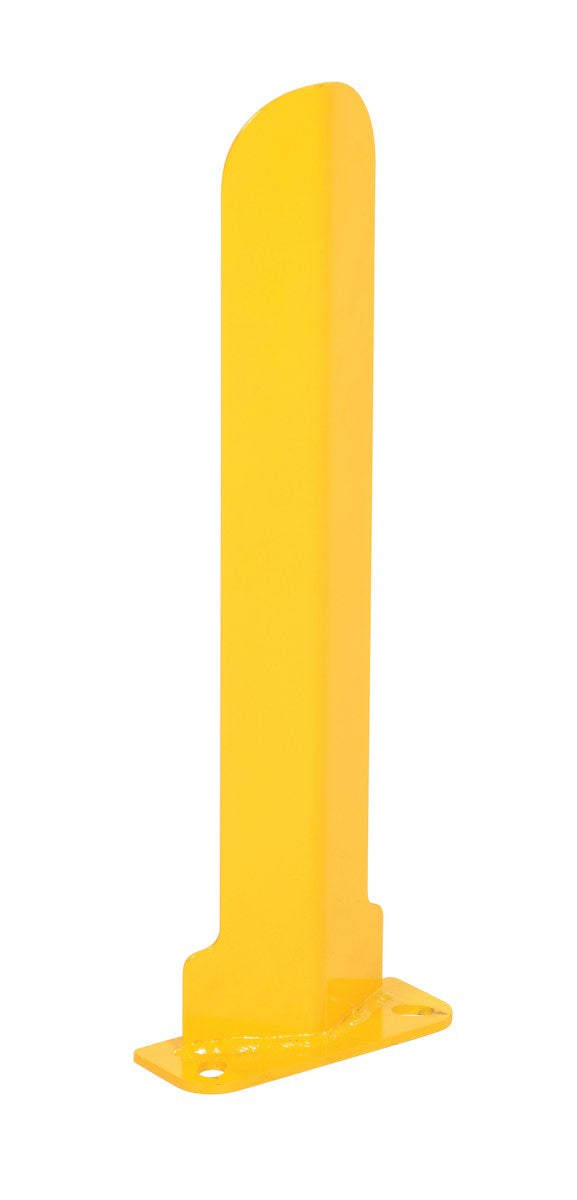

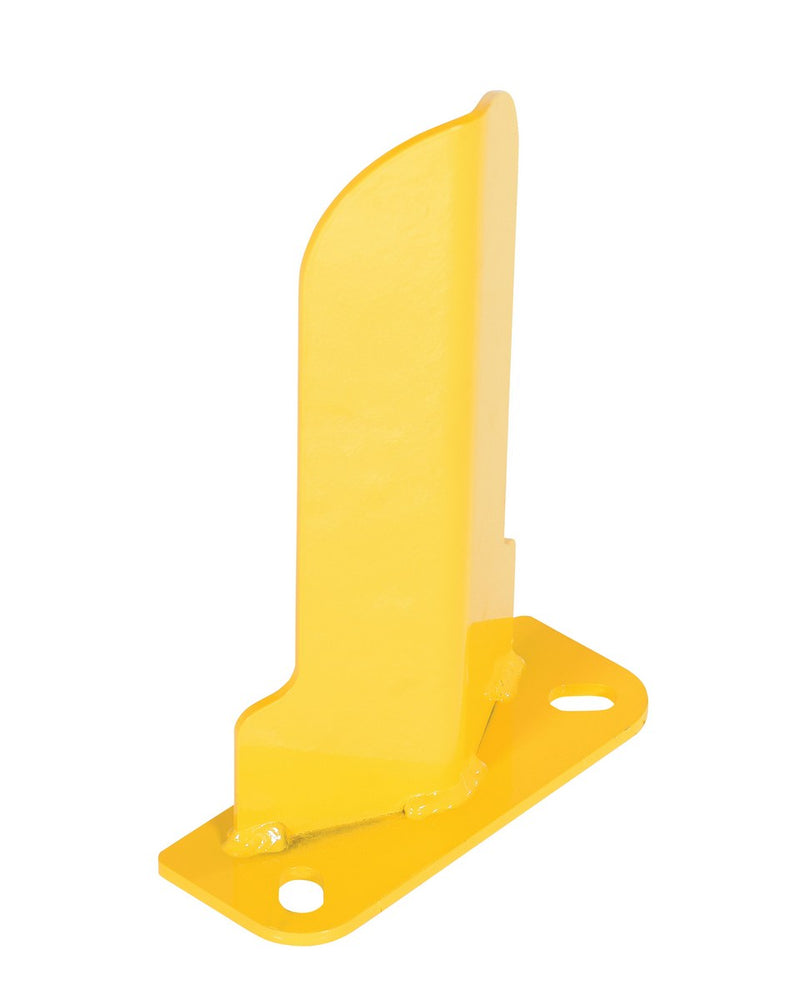

Vestil Low Profile Rack Guards

Protect the foot of pallet racking or a wall corner with a laser cut steel guard. The low profile design addresses contact from trucks and carts.

Two slotted mounting holes simplify attachment to the floor. Nominal channel widths and heights provide a choice of guard sizes; mounting kits are sold separately.

Low Profile Rack Guards Features

Laser cut steel
Two-hole floor attachment
Channel size choices
Mounting kit sold separately

Warranty

Vestil 30-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 30 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Construction Steel C Channel (in.)		4
C Channel Thickness (in.)		3/16
Usable Width (in.)		4-1/4
Usable Length (in.)		1
Mounting Hole Slotted Quantity/Size (in.)		(2) 5/8 x 1
Attachment Method		Bolt On
Bolt Hole Diameter (in)		5/8
Installation Hardware Included		No
Package Quantity		1

Shipping

Ship weight		5 lbs
Freight Type		Parcel
Package Width (in)		11
Package Depth (in)		15
Package Height (in)		5
Freight Class		100
Country of Origin Name		US

Warranty

Manufacturer Warranty		30 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Overall length: 3 in · Material: Steel · Color / finish: Yellow

Compare all sizes & specifications

Vestil Low Profile Rack Guards: specifications by model
Model	Overall width	Overall height	Assembled weight
NPG4-12	8 in	11-7/8 in	5 lbs
NPG4-18	8 in	17-7/8 in	7 lbs
NPG4-24	8 in	23-7/8 in	8 lbs
NPG4-36	8 in	35-7/8 in	11 lbs
NPG6-12	10 in	11-7/8 in	6 lbs
NPG6-18	10 in	17-7/8 in	8 lbs
NPG6-24	10 in	23-7/8 in	10 lbs
NPG6-36	10 in	35-7/8 in	15 lbs
