FM-0648, FM-2066, FM-2072, FM-2078, FM-2566, FM-2572, FM-3066, FM-3072

Vestil Mechanical Edge-O-Dock Levelers

Name: Vestil Mechanical Edge-O-Dock Levelers
Brand: Vestil
Price: 1229.0 USD
Availability: InStock

Brand: Vestil SKU: FM-0648 Only 2 left

Authorized dealer

$1,229.00 - $2,089.00

$1,229.00

$1,229.00 - $2,089.00

$1,229.00

Product Highlights

Mechanical handle actuation
Dock-face steel leveler
Automatic lip retraction

Ships in 40 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN FM-0648

Uniform Capacity (lb.) 6,000 lb

Overall width 75 in

Overall length 15 in

Overall height 18 in

Ramp Width (in.) 48

Ramping Length (in.) 28-11/16

Service Range Above Dock (in.) 5

Assembled weight 321 lb

Material Steel

Color / finish Brown

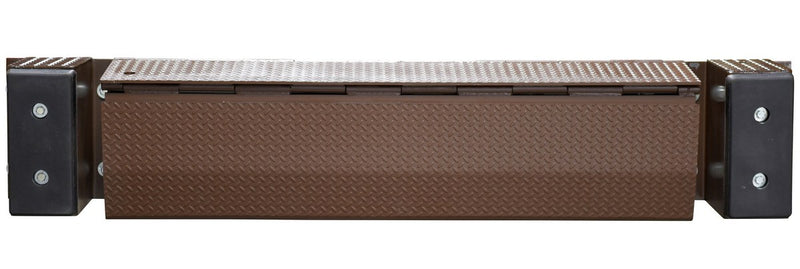

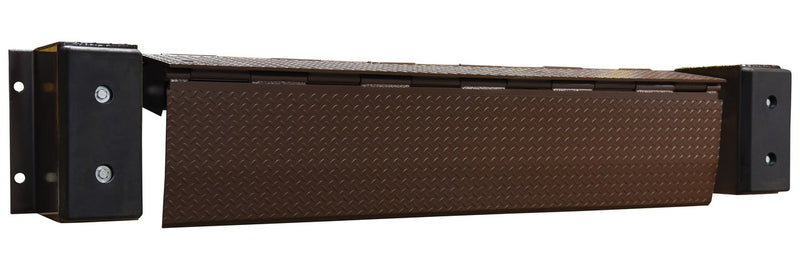

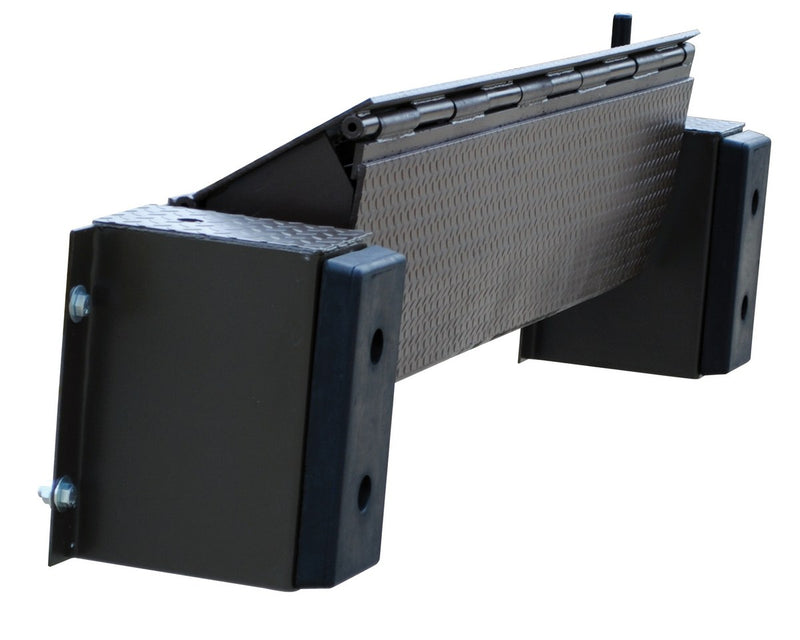

Vestil Mechanical Edge-O-Dock Levelers

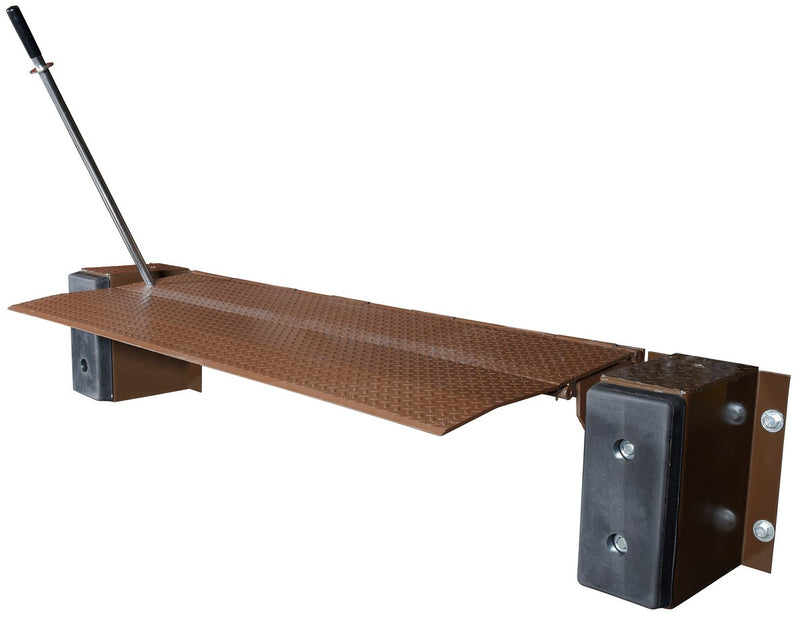

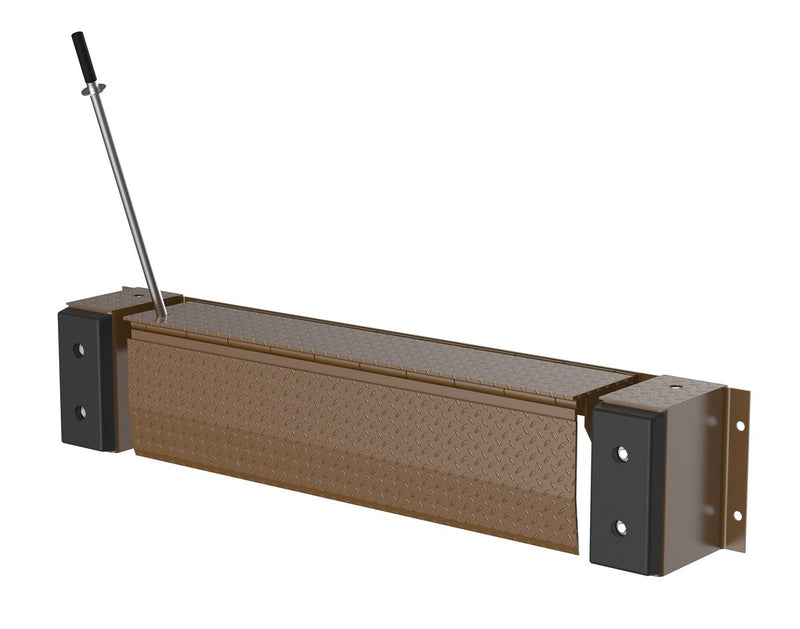

Attach a mechanical Edge-O-Dock leveler to the face of the dock for a permanent loading transition. The steel tread plate provides a gripping surface, and the unit includes bumpers and installation instructions.

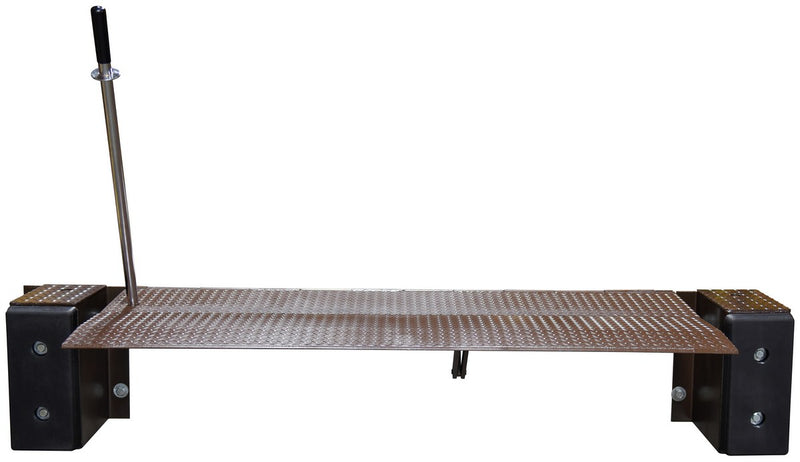

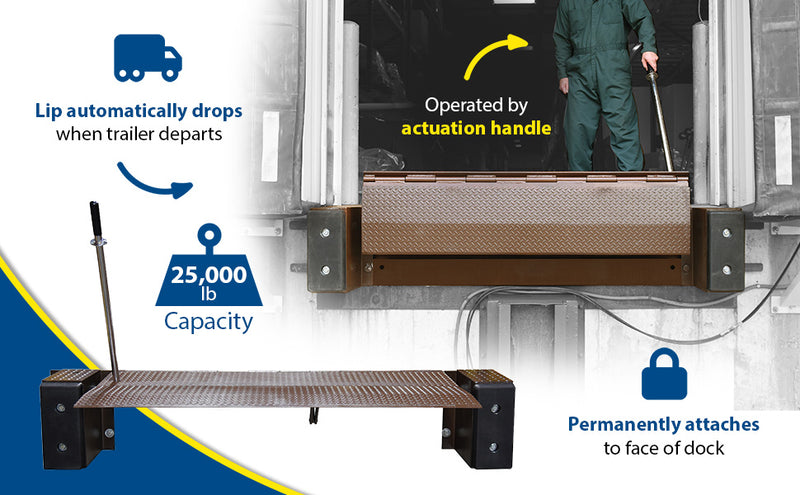

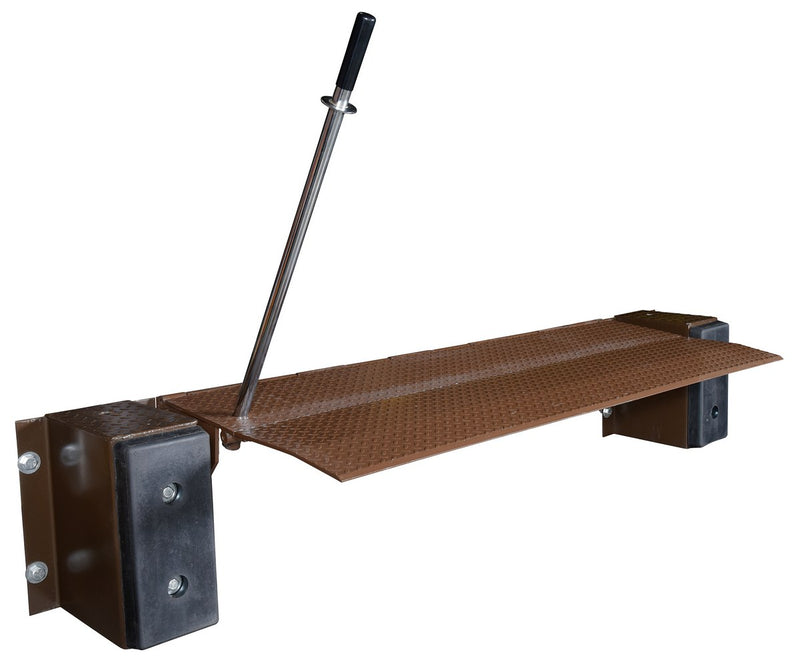

Place the actuation handle into the inner-lip pocket and pull it down, then push it forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face. A steel dock edge or approach ramp is required for installation.

Mechanical Edge-O-Dock Levelers Features

Mechanical actuation with a handle
Permanent dock-face mounting

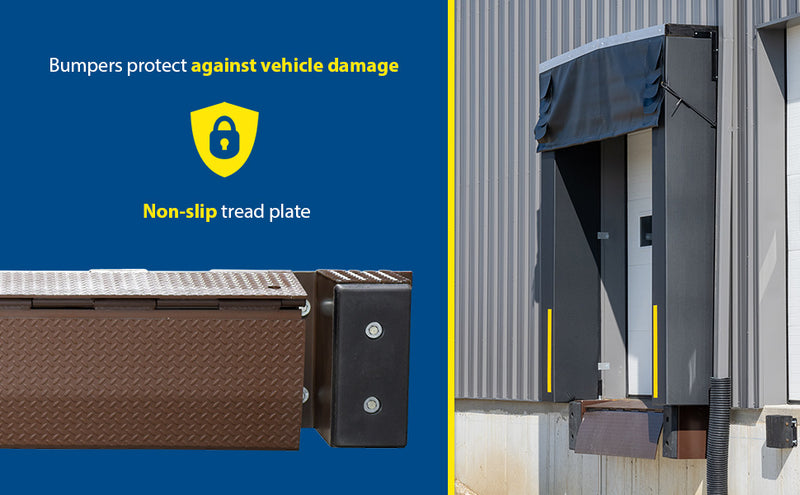

Steel tread plate surface
Bumpers and installation instructions included

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Service Range Below Dock (in.)		5
Bumper Width (in.)		8
Bumper Length (in.)		2
Bumper Height (in.)		18
Bumper projection including rubber bumper (in.)		15
Dock Leveler Operating Method		Actuation Handle/Mechanical
Dock Leveler Lip Projection (in)		13.69
Platform Thickness (in)		0.375
Installation Methodx		Permanent Installation to Face of Dock
Installation Hardware Included		Yes

Shipping

Total Ship Weight		348 lbs
Package 1 Size		48"W x 14"D x 18"H
Freight Type		LTL Loose
Freight Class		60
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts
Manufacturer Warranty #2		90 Days
Warranty Type #2		Wearable Parts warranty

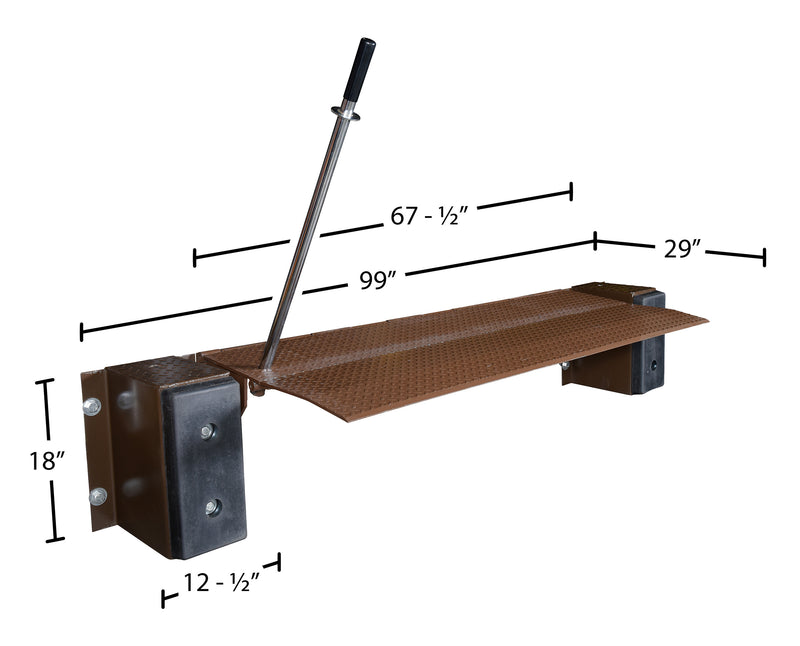

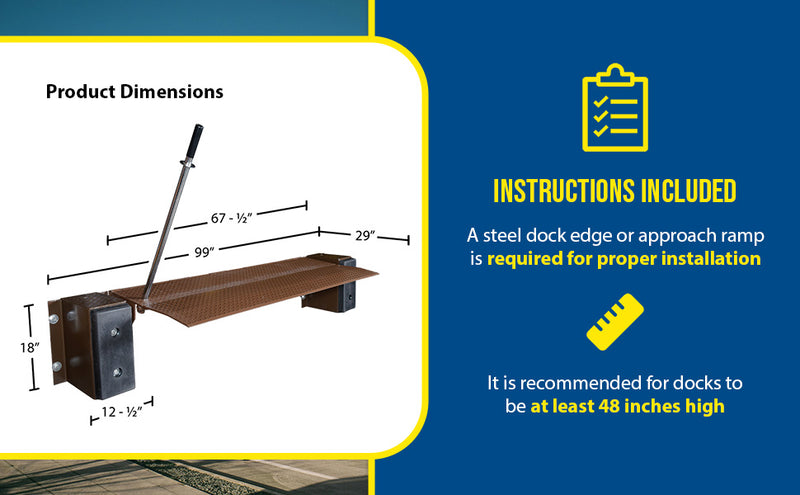

Size & Specification Comparison

All models: Overall length: 15 in · Overall height: 18 in · Service Range Above Dock (in.): 5 · Material: Steel · Color / finish: Brown

Compare all sizes & specifications

Vestil Mechanical Edge-O-Dock Levelers: specifications by model
Model	Uniform Capacity (lb.)	Overall width	Ramp Width (in.)	Ramping Length (in.)	Assembled weight
FM-0648	6,000 lb	75 in	48	28-11/16	321 lb
FM-2066	20,000 lb	93 in	66	29	484 lb
FM-2072	20,000 lb	99 in	72	29	510 lb
FM-2078	20,000 lb	105 in	78	29	537 lb
FM-2566	25,000 lb	93 in	66	29	546 lb
FM-2572	25,000 lb	99 in	72	29	578 lb
FM-3066	30,000 lb	93 in	66	29-13/16	632 lb
FM-3072	30,000 lb	99 in	72	29-13/16	672 lb
