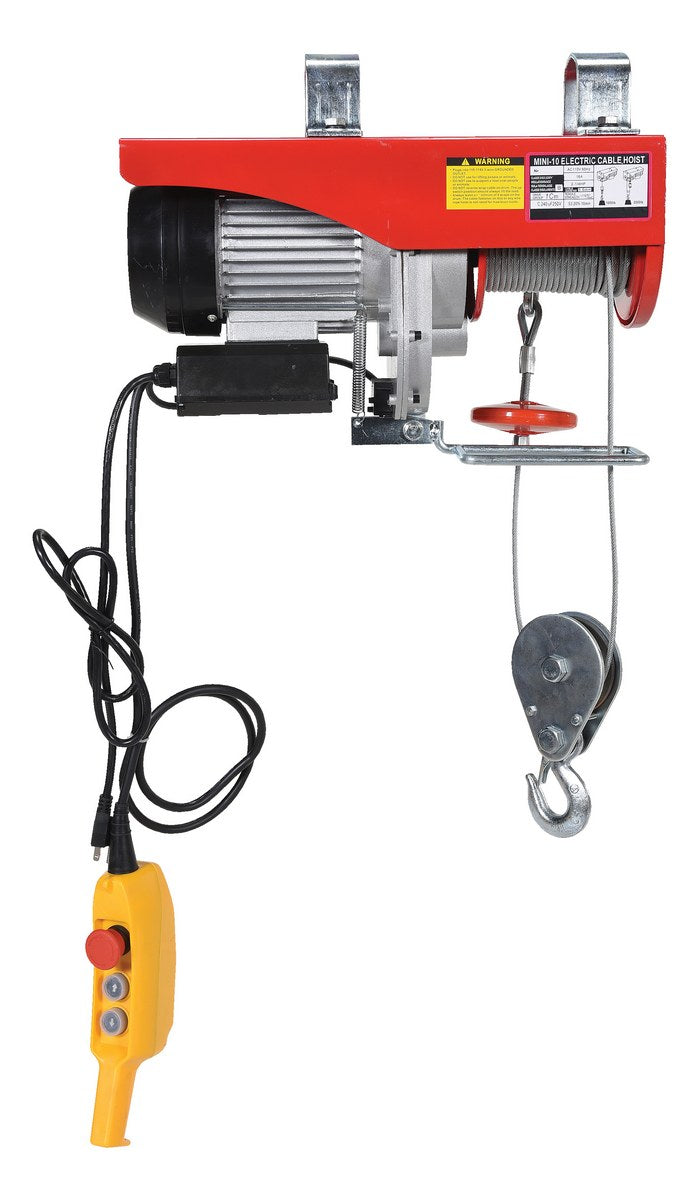

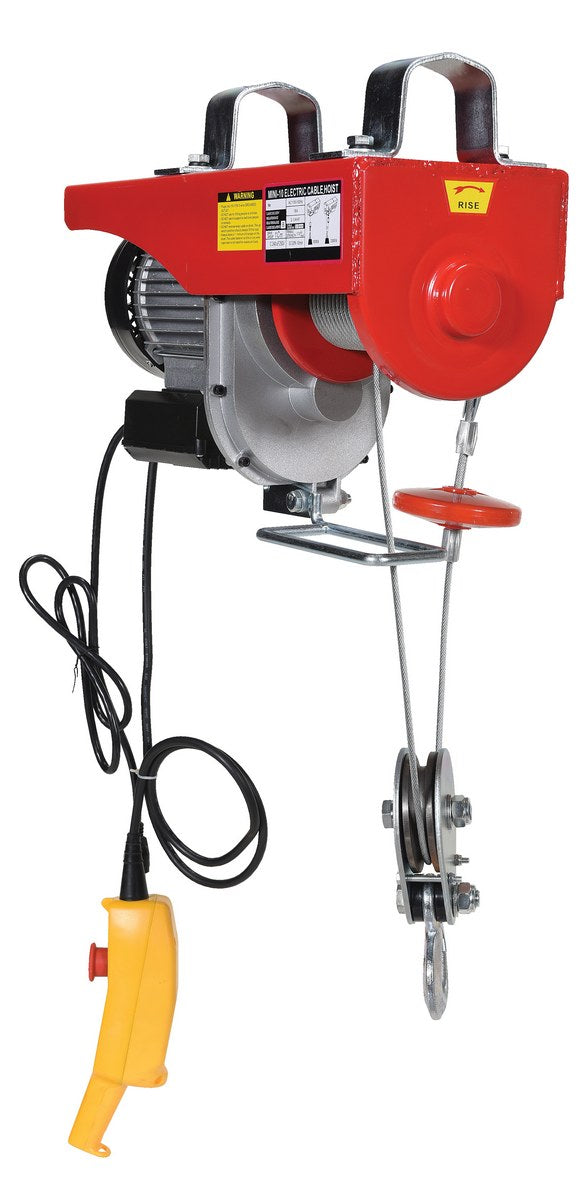

Vestil Mini Cable Hoists

Brand: Vestil SKU: MINI-10 In stock
Authorized dealer
$384.99 - $889.00
$889.00
$384.99 - $889.00
$889.00

Free shipping on this item

Product Highlights

  • Single- and double-line lifting
  • Handheld push-button control
  • Optional trolley hook plate
Ships in 2 business days
Single-Line Rating: 1,000 lb
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Warranty PDF

Overview

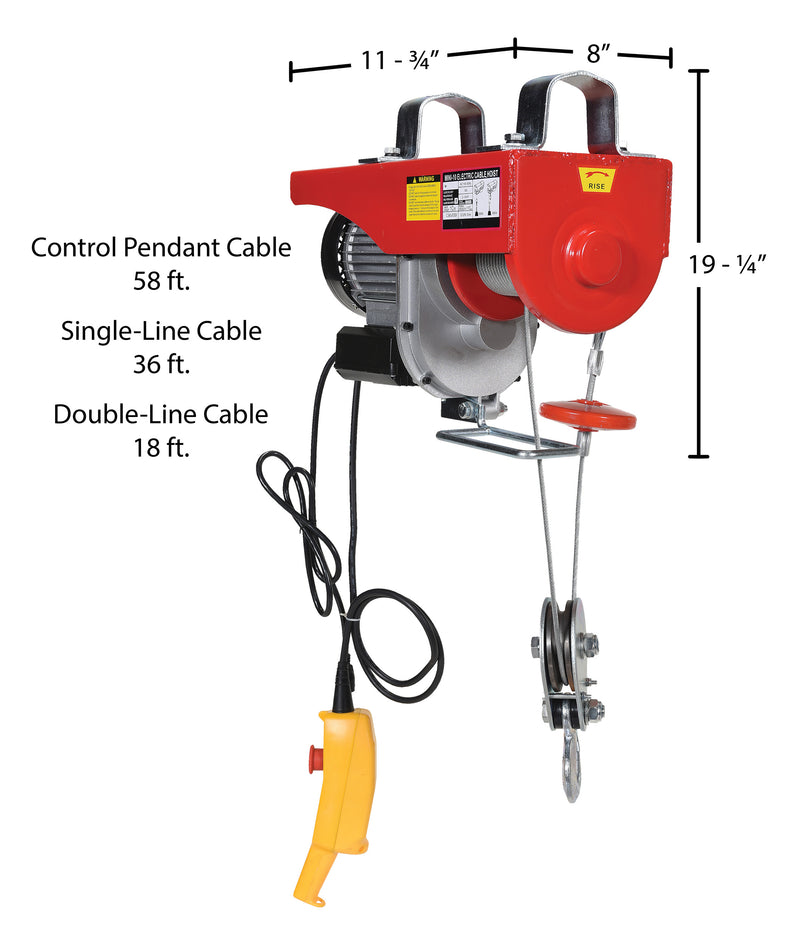

Main Specifications

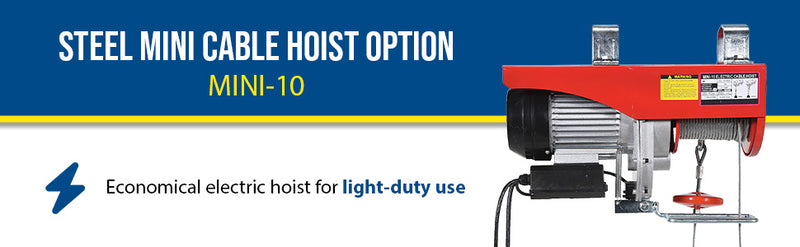

MPN MINI-10
Material Steel
Overall Width (in.) 8
Overall Length (in.) 19-1/4
Overall Height (in.) 11-3/4
Assembled Weight 75 lbs
Single-Line Uniform Capacity (lb.) 1,000
Color / Finish Red

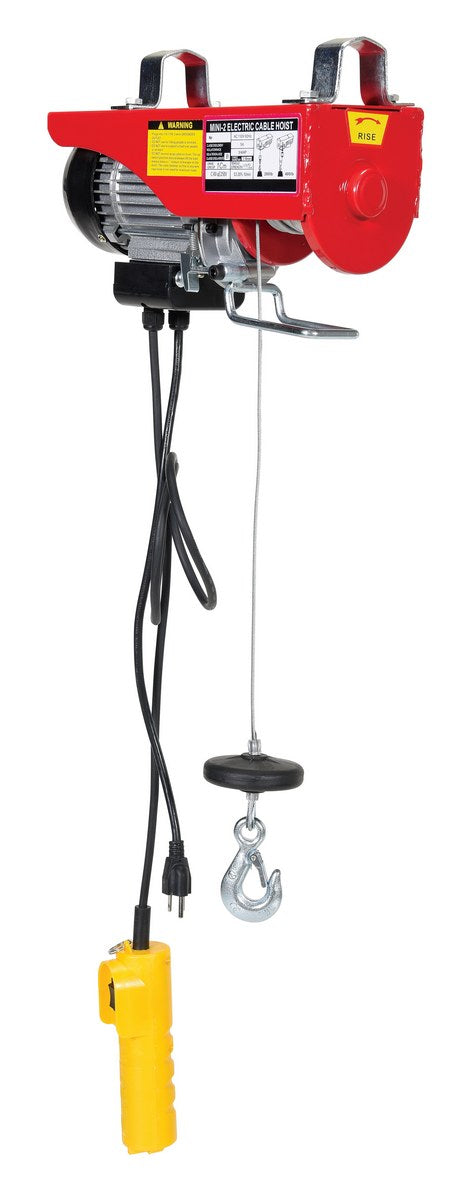

Vestil Mini Cable Hoists

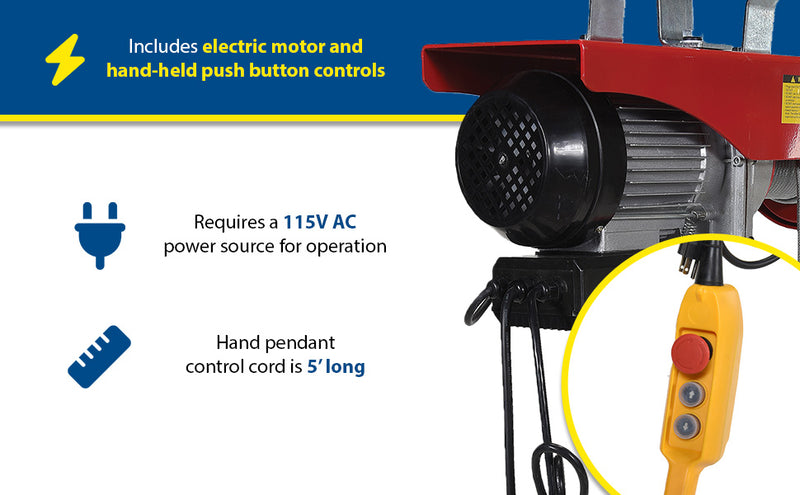

Configure this electric mini cable hoist for single-line or double-line lifting. A handheld push-button control operates the motor.

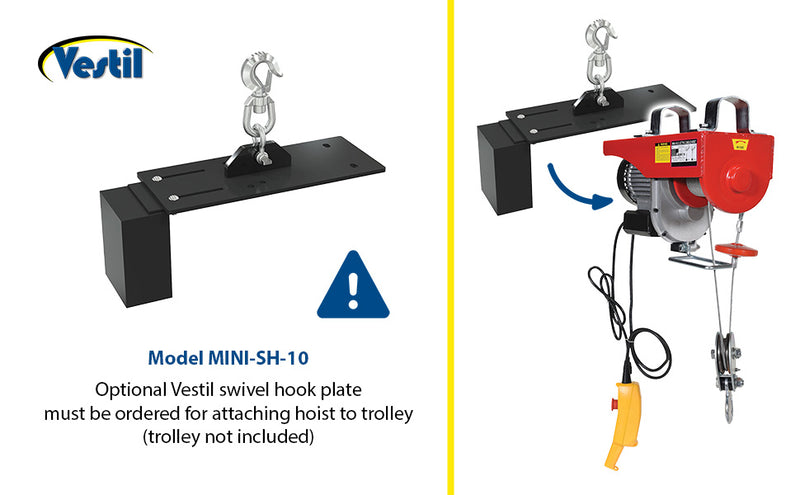

Attaching the mini hoist to a trolley requires the optional swivel hook plate. The trolley and hook plate are supplied separately, and load ratings depend on the line arrangement.

Mini Cable Hoists Features

  • Single- and double-line lifting
  • Handheld push-button control
  • Optional trolley hook plate
Warranty

Vestil 30-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components and wearing parts: 30 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

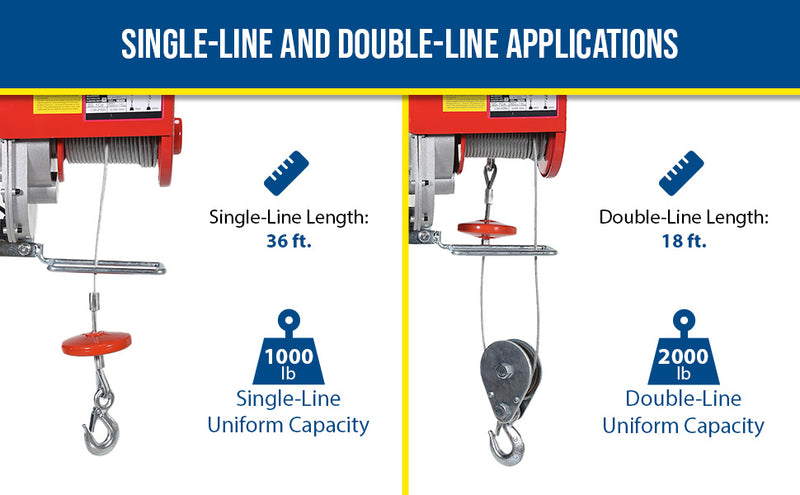

Double-Line Uniform Capacity (lb.) 2,000
Lifting Speed (ft. per minute) 30
Single-Line Cable Length (ft,) 36
Double-Line Cable Length (ft.) 18
Voltage 115
Phase 1
Control Pendant Cable Length (in.) 58
Load Capacity (tons) 1/2
Motor Horsepower (hp) 1-1/2
Maximum Compatible Flange Width (in) 1-1/2

Shipping

Freight Type Parcel
Total Ship Weight 83 lbs
Package 1 Size 11"W x 23"D x 14"H

Warranty

Manufacturer Warranty 30 Days
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / Finish: Red

Compare all sizes & specifications
Vestil Mini Cable Hoists: specifications by model
ModelOverall Width (in.)Overall Length (in.)Overall Height (in.)Assembled WeightSingle-Line Uniform Capacity (lb.)

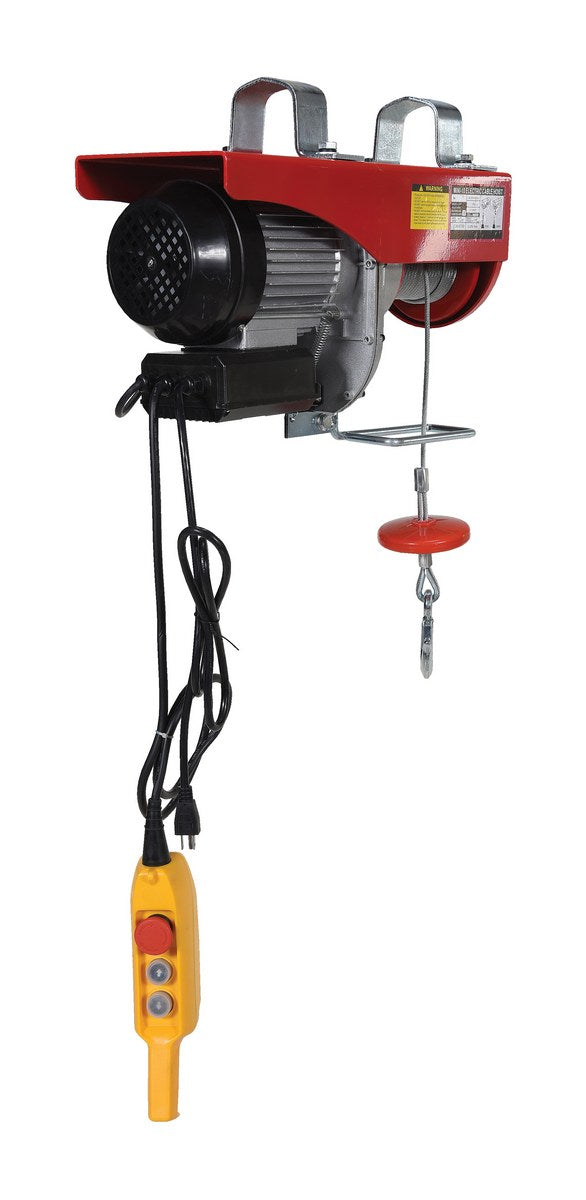

MINI-10819-1/411-3/475 lbs1,000
MINI-25-7/815-3/168-13/1625 lbs200

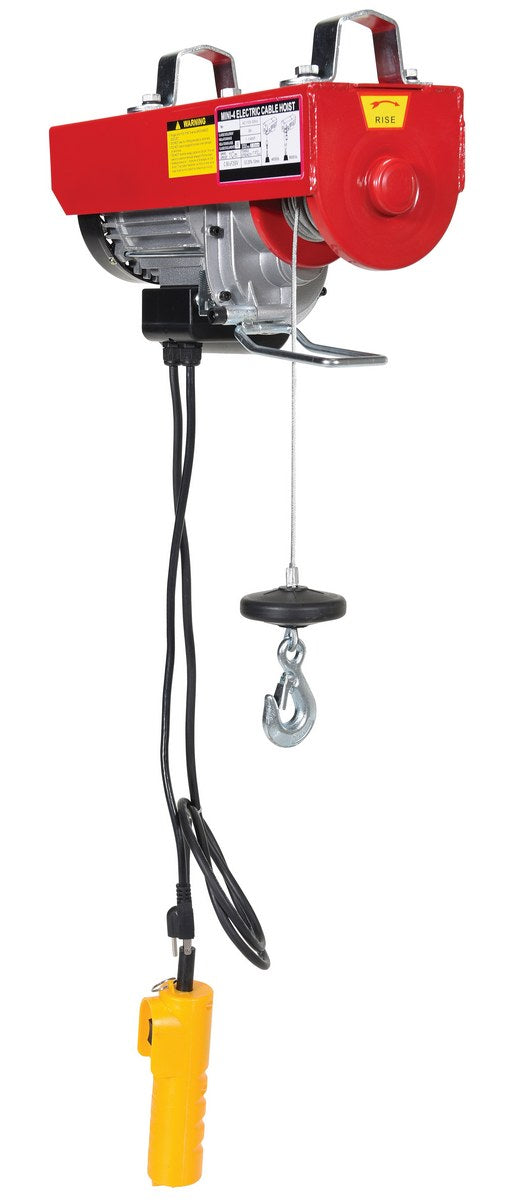

MINI-45-3/415-1/88-7/837 lbs400

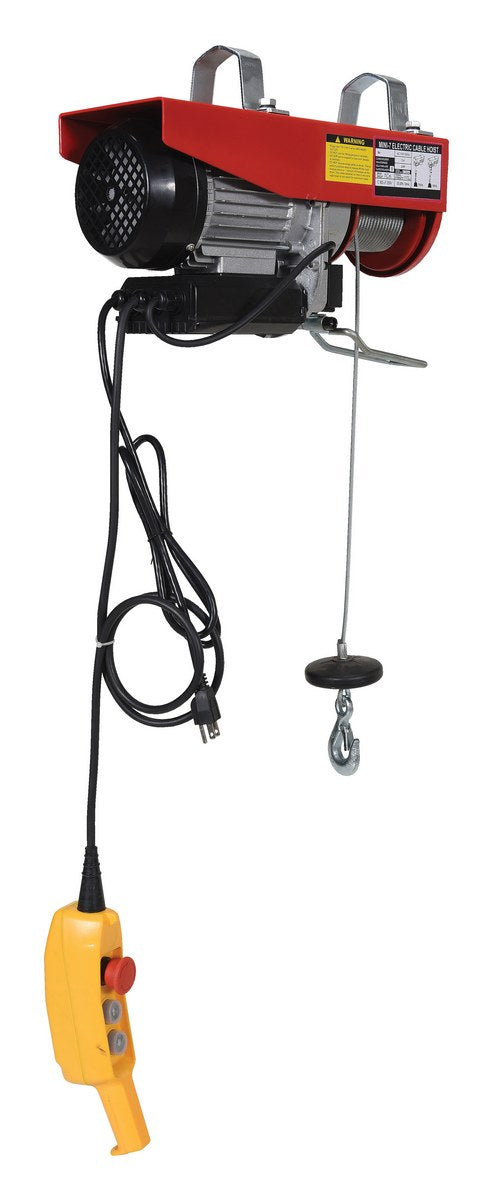

MINI-76-1/4161045 lbs750
