Vestil Molded Rubber Hose and Cable Crossovers

Name: Vestil Molded Rubber Hose and Cable Crossovers
Brand: Vestil
Price: 349.0 USD
Availability: InStock

Brand: Vestil SKU: RHCB-12A Only 5 left

Authorized dealer

$249.00 - $349.00

$349.00

$249.00 - $349.00

$349.00

Free shipping on this item

Product Highlights

Optional connectors widen crossings
Molded rubber line protection
Ramp and bridge styles

Ships in 15 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Warranty PDF

Overview

Main Specifications

MPN RHCB-12A

Uniform Capacity (lb.) 2,400 lb

Overall width 12 in

Overall length 32-5/8 in

Overall height 3-13/16 in

Usable Span Width (in.) 3 in

Usable Span Height (in.) 2-7/8 in

Assembled weight 38 lb

Material Rubber

Color / finish Black

Vestil Molded Rubber Hose and Cable Crossovers

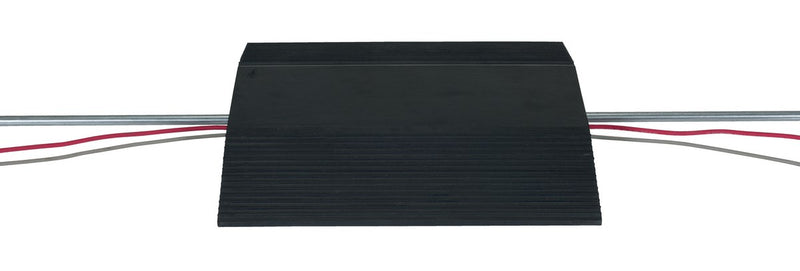

Place hoses and cables beneath a molded rubber crossover to protect them from pedestrian and rolling traffic. Optional connectors join individual units into a wider crossing.

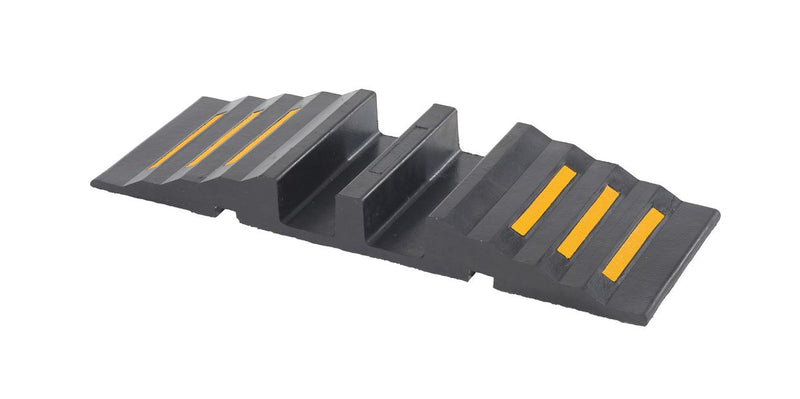

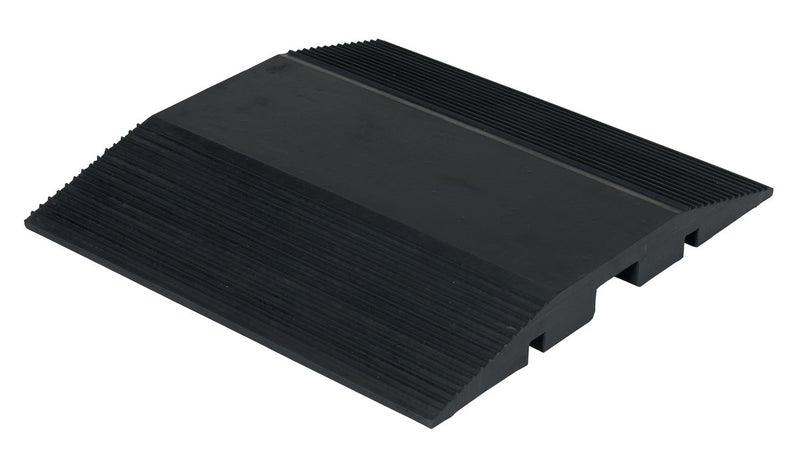

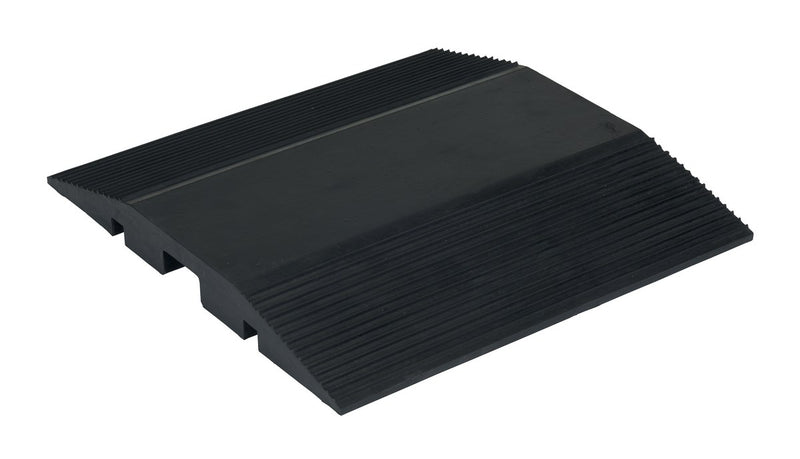

The bridge models have serrated top surfaces, while the molded ramp has carrying handles. The aluminum-insert bridge is intended for light traffic and slow applications.

Molded Rubber Hose and Cable Crossovers Features

Rubber construction for hose and cable protection

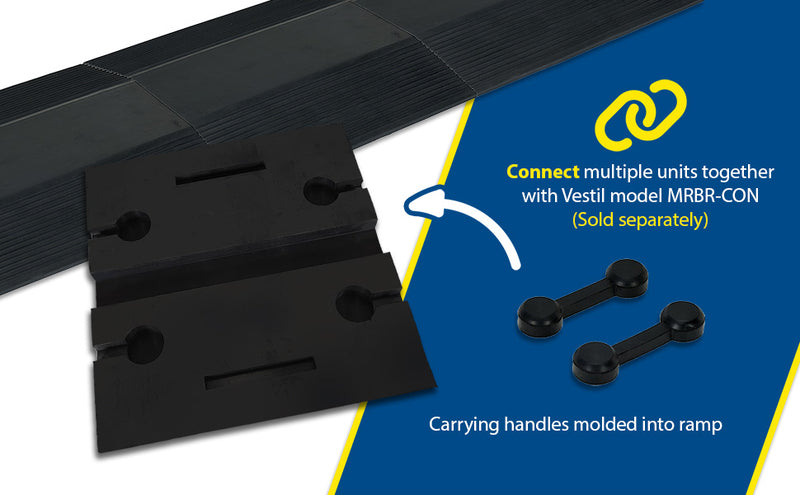

Optional connectors for wider crossings
Choice of molded ramp or bridge designs

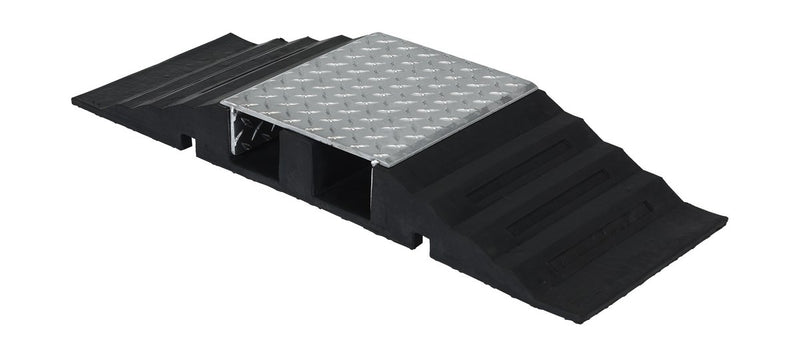

Aluminum-insert model for light, slow traffic

Warranty

Vestil 30-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 30 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Package Quantity

1

Shipping

Total Ship Weight		38 lbs
Package 1 Size		17"W x 33"D x 6"H
Freight Type		Parcel
Freight Class		70
Country of Origin Name		US

Warranty

Manufacturer Warranty		30 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Uniform Capacity (lb.): 2,400 lb · Material: Rubber · Color / finish: Black

Compare all sizes & specifications

Vestil Molded Rubber Hose and Cable Crossovers: specifications by model
Model	Overall width	Overall length	Overall height	Usable Span Width (in.)	Usable Span Height (in.)	Assembled weight
RHCB-12A	12 in	32-5/8 in	3-13/16 in	3 in	2-7/8 in	38 lb

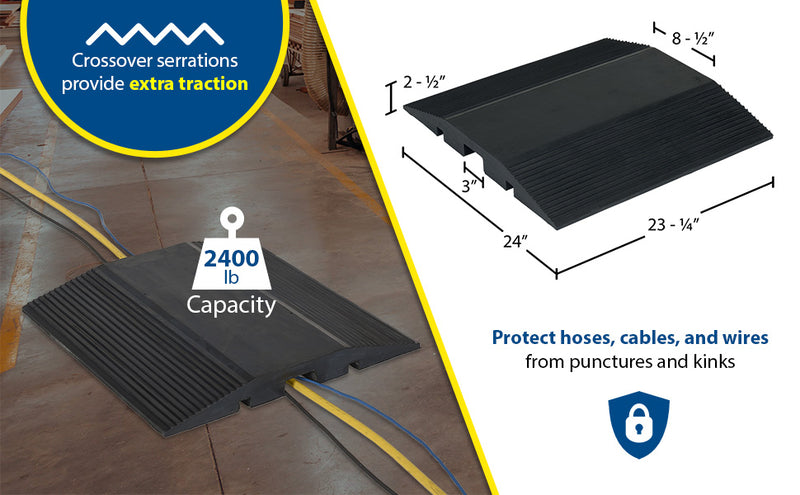

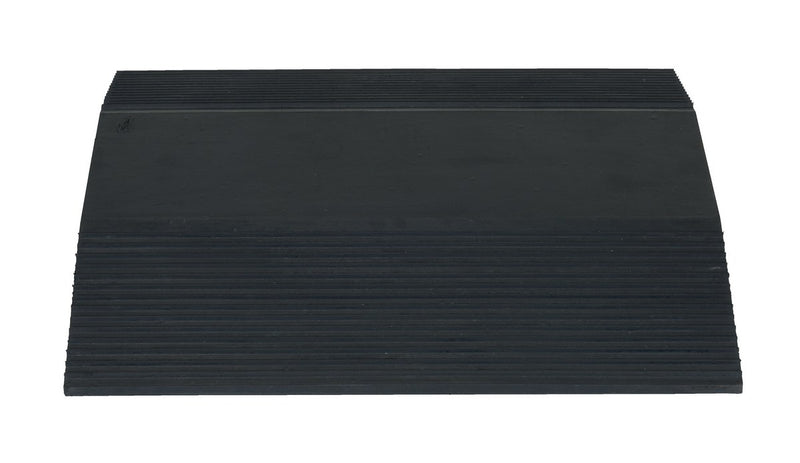

MRBR-24	24 in	23-1/4 in	2-1/2 in	3 in	1-1/2 in	36 lb
RHCB-12	12 in	32-5/8 in	3-1/2 in	3-1/2 in	2-7/8 in	32 lb
