Vestil Pallet Master Servers

Name: Vestil Pallet Master Servers
Brand: Vestil
Price: 7494.99 USD
Availability: InStock

Brand: Vestil SKU: PMPS-50-DC Only 2 left

Authorized dealer

$7,249.00 - $7,494.99

$7,494.99

$7,249.00 - $7,494.99

$7,494.99

Product Highlights

Pallet and skid straddle design
Hand pendant control
Floor lock

Ships in 50 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN PMPS-50-DC

Capacity 4,000 lb

Overall width 58 in

Overall length 66 in

Overall height 77 in

Individual fork width 4 in

Fork length 36 in

Assembled weight 984 lbs

Material Steel

Color / finish Blue

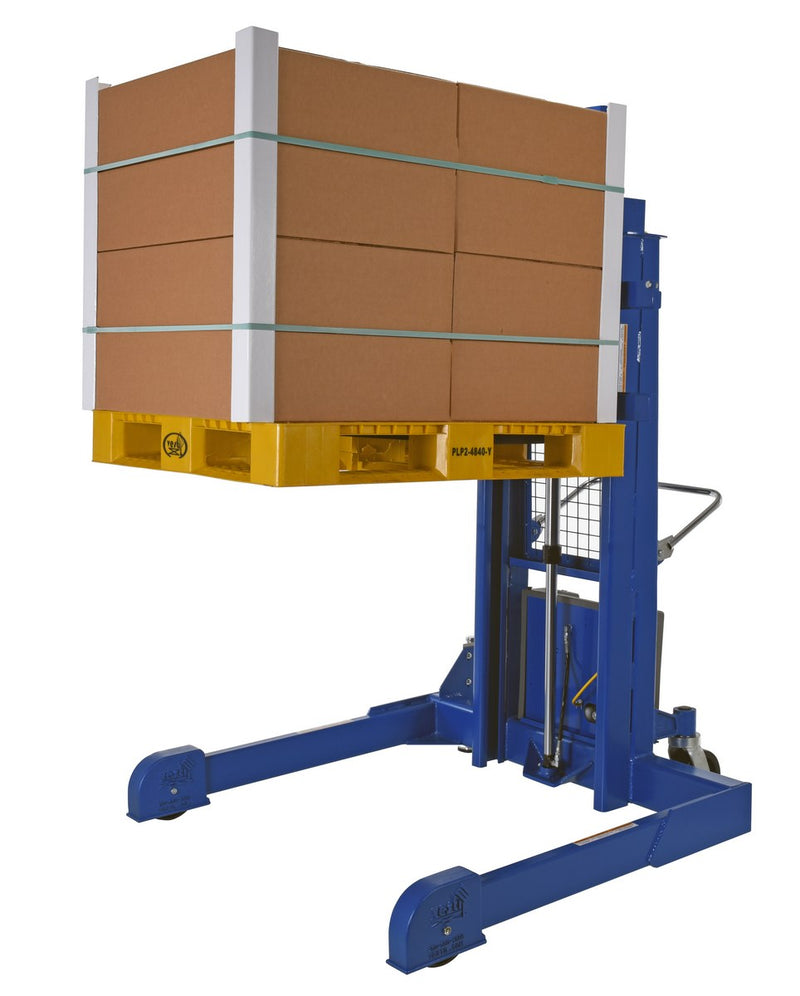

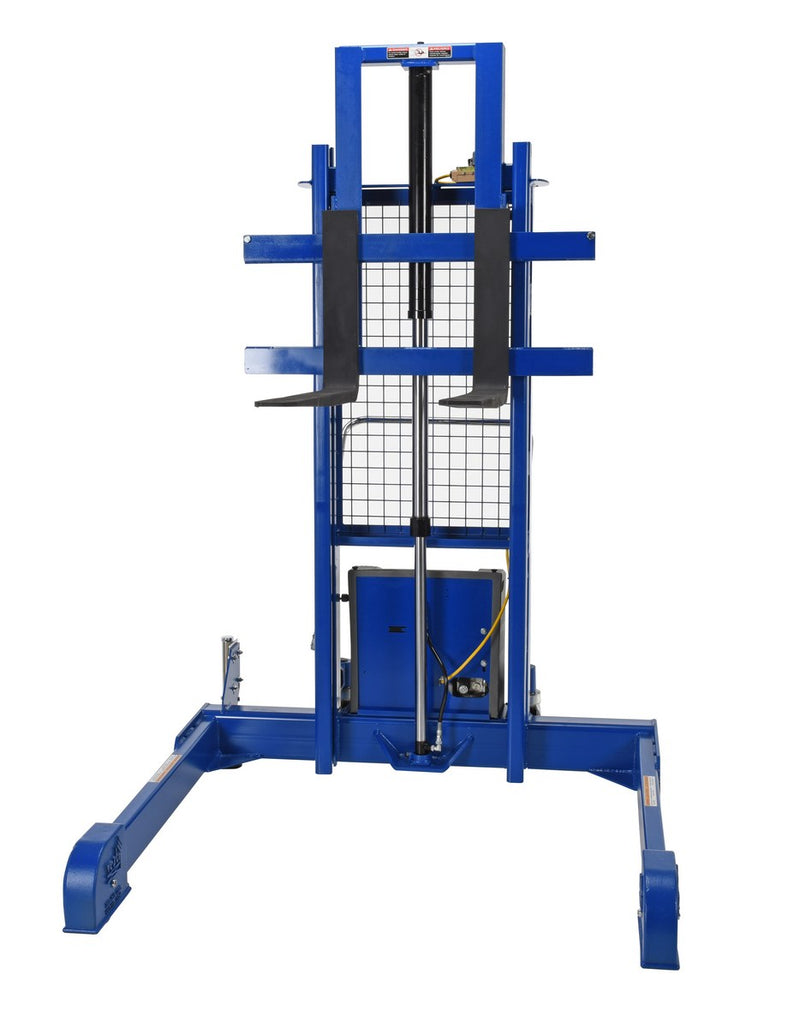

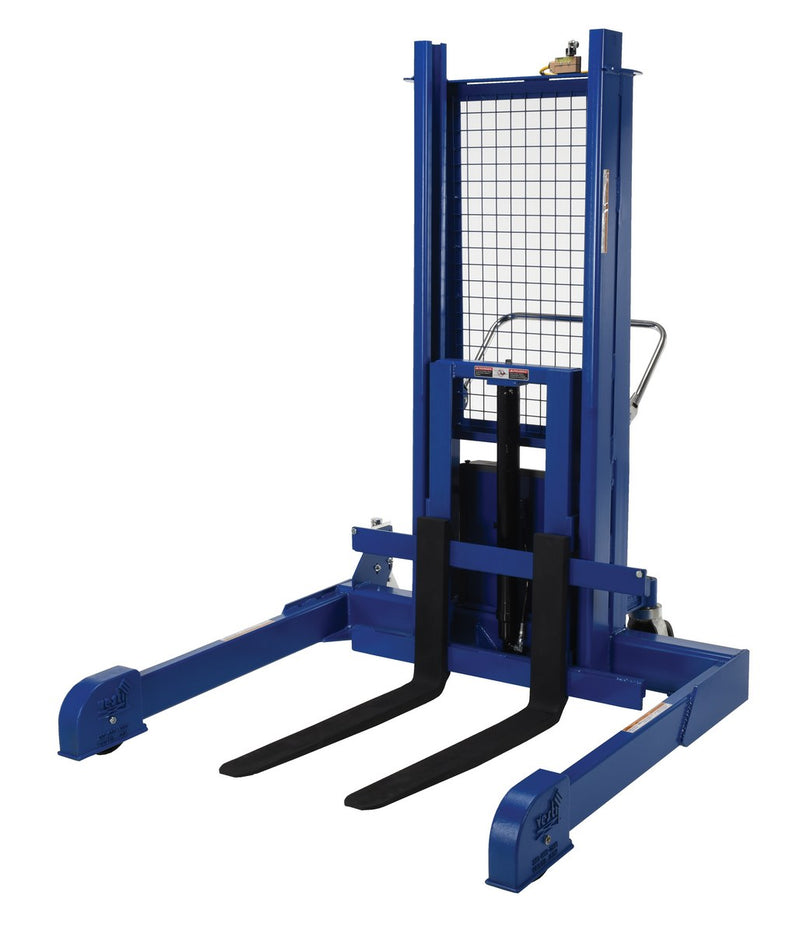

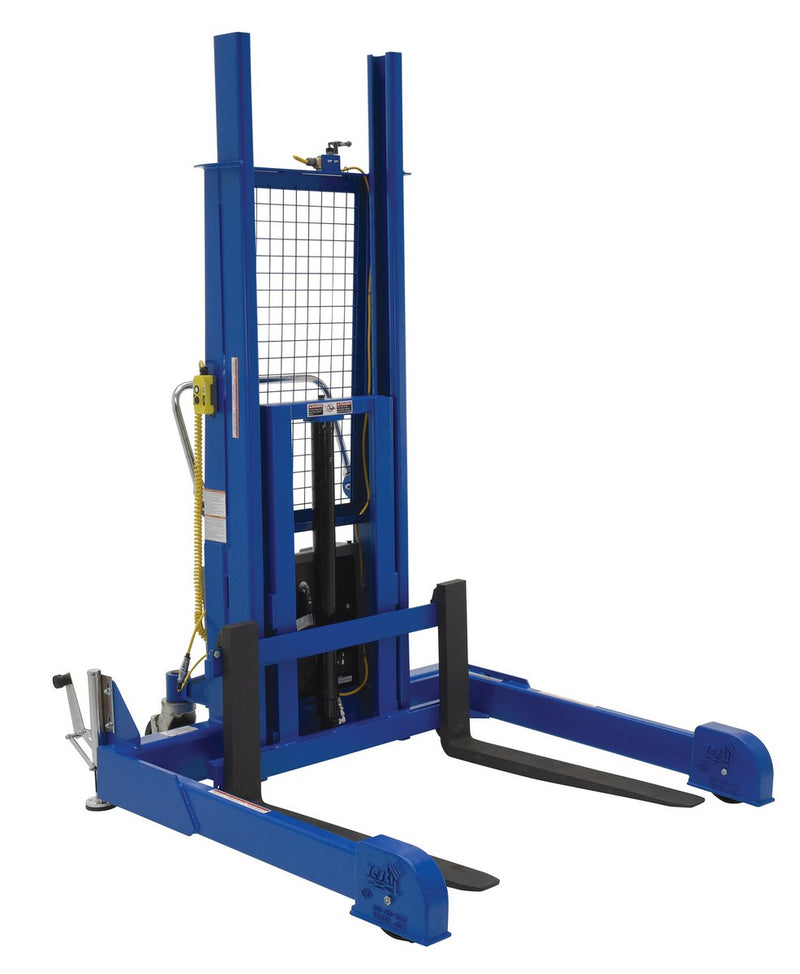

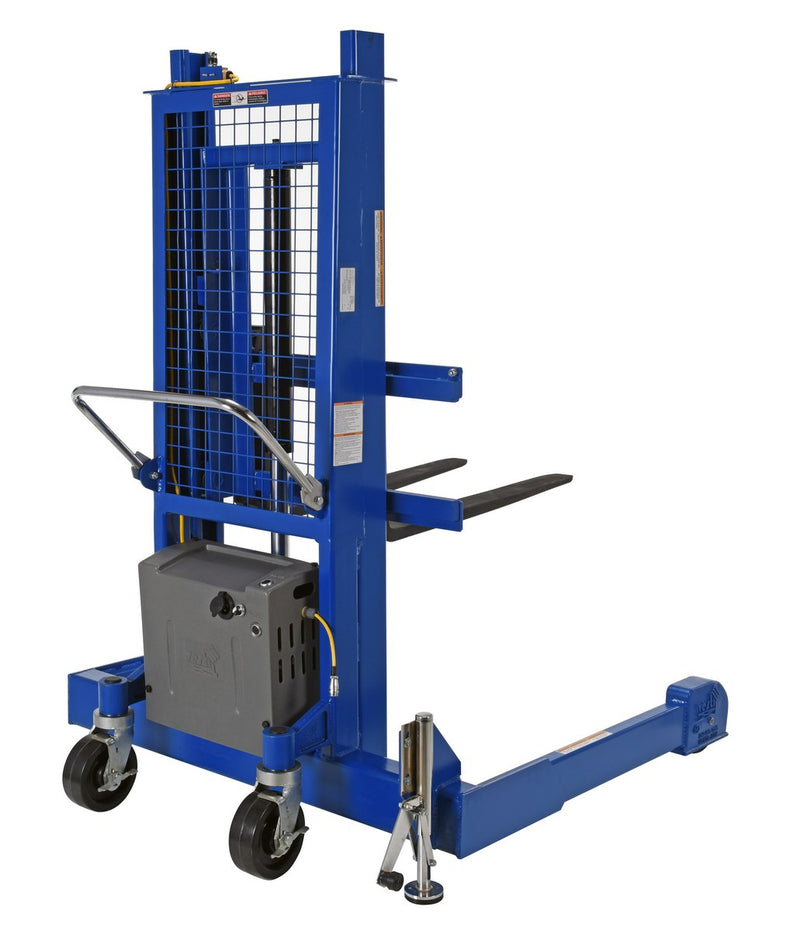

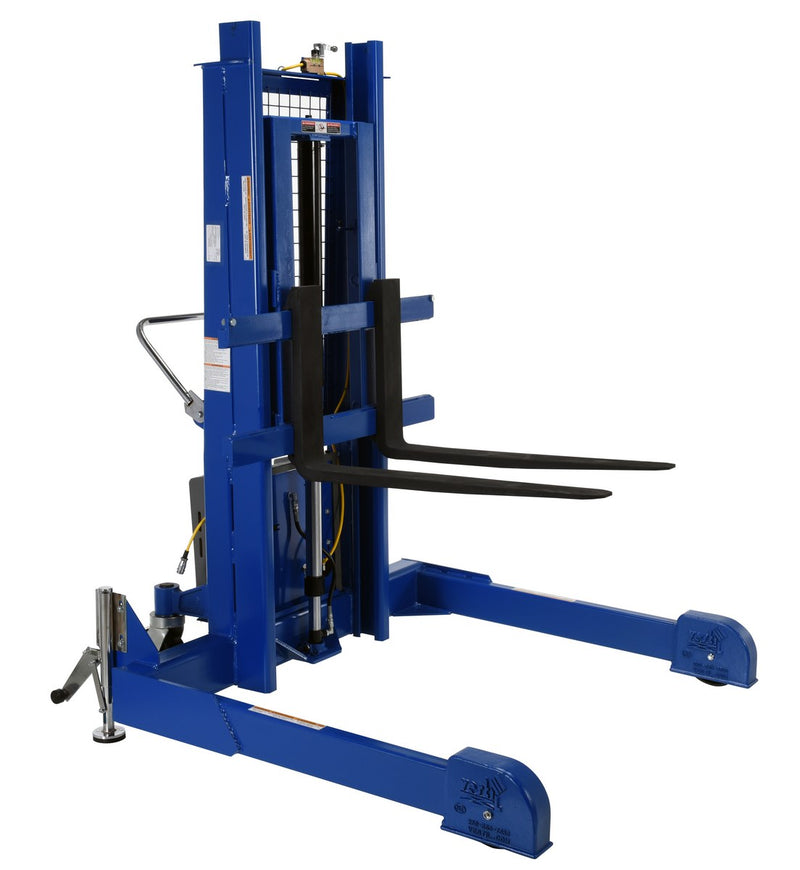

Vestil Pallet Master Servers

Move loaded pallets with a pallet master server using its straddle layout. The design accommodates pallets and skids with or without an understructure.

A hand pendant operates the lift from a coil cord, while a floor lock holds the unit at the work area. The frame uses welded steel construction.

Pallet Master Servers Features

Straddle pallet handling
Hand pendant lift control
Floor lock
Welded steel frame

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Operation		(1) 12V DC
Service Range (in.)		3 to 50
Adjustable Fork Spacing (in.)		8 to 37
Leg Spacing (in.)		49-1/2
Handle Height (in.)		36
Coil Cord Length (in.)		96
Rear Swivel Caster Quantity/Diameter/Width (in.)		(2) 8 x 3
Rear Caster Material		Phenolic
Front Wheel Quantity/Diameter/Width (in.)		(2) 8 x 2
Front Wheel Material		Glass Filled Nylon
Overall Raised Height (in.)		91
Overall Lowered Height (in.)		77
Maximum Fork Height Before Carriage Exceeds Height of Mast (in.)		36-1/2
Steel Construction		ASTM A-36 Minimum
Fully Welded Frame		Yes
Handle Material		Steel
Maximum Travel Distance (in)		47
Power Source		Electric
Voltage (V)		12
Battery Type		FLA (Flooded Lead Acid)

Shipping

Ship weight		1173 lbs
Freight Type		LTL Palletized
Package Width (in)		64
Package Depth (in)		64
Package Height (in)		83
Freight Class		200
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts
Manufacturer Warranty #2		90 Days
Warranty Type #2		Wearable Parts warranty

Size & Specification Comparison

All models: Capacity: 4,000 lb · Overall width: 58 in · Overall length: 66 in · Individual fork width: 4 in · Fork length: 36 in · Material: Steel · Color / finish: Blue

Compare all sizes & specifications

Vestil Pallet Master Servers: specifications by model
Model	Overall height	Assembled weight
PMPS-50-DC	77 in	984 lbs
PMPS-60-DC	87 in	1029 lbs
