Vestil Portable Hand Winch Mini Stackers

Name: Vestil Portable Hand Winch Mini Stackers
Brand: Vestil
Price: 939.0 USD
Availability: InStock

Brand: Vestil SKU: HWL-260 Only 2 left

Authorized dealer

$939.00 - $1,149.00

$939.00

$939.00 - $1,149.00

$939.00

Product Highlights

Compact hand winch stacker
Enclosed belt housing
Maneuvering handle

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Warranty PDF

Overview

Main Specifications

MPN HWL-260

Capacity 260 lb

Overall width 18-1/2 in

Overall length 27-1/2 in

Overall height 54-1/8 in

Assembled weight 75 lbs

Material Steel

Color / finish Yellow / Black

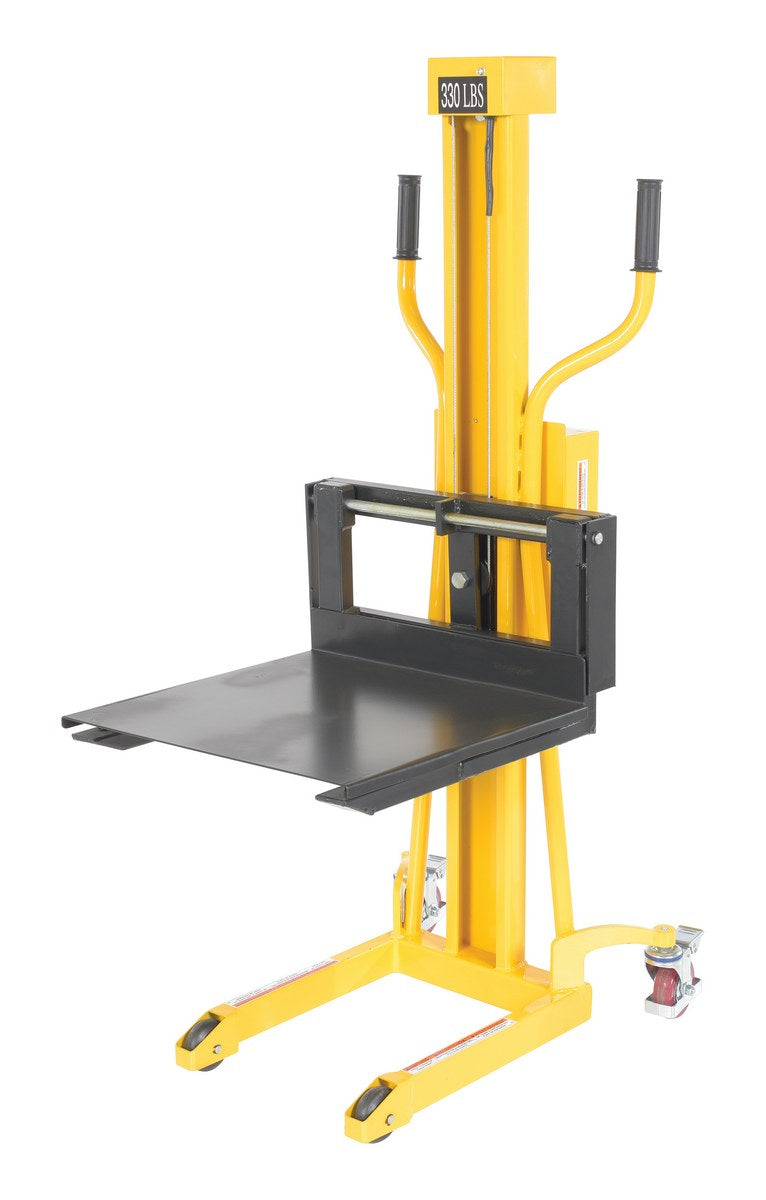

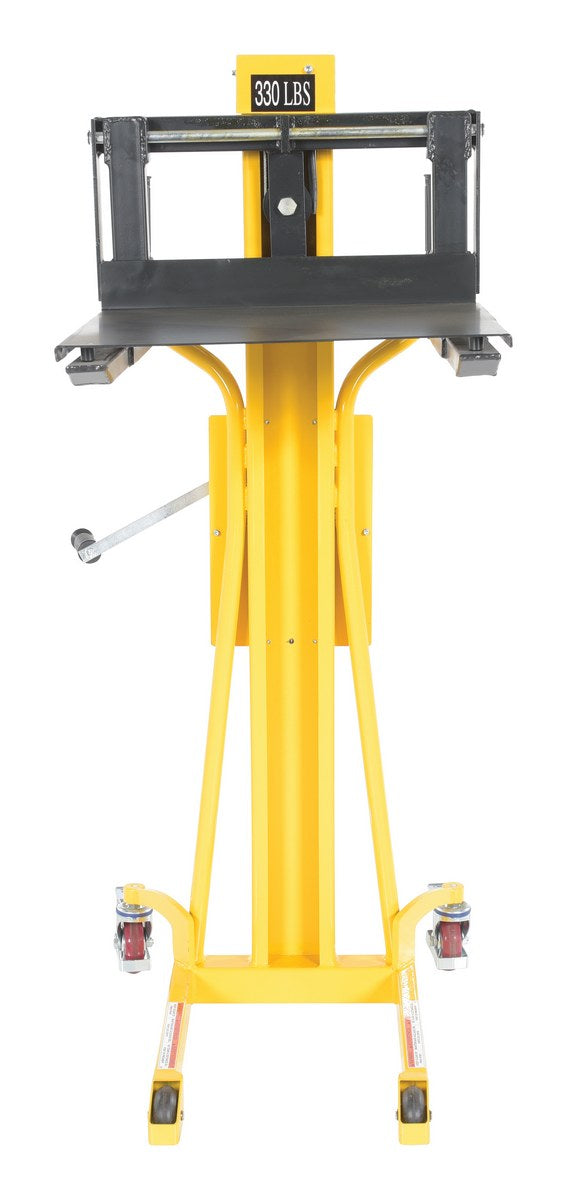

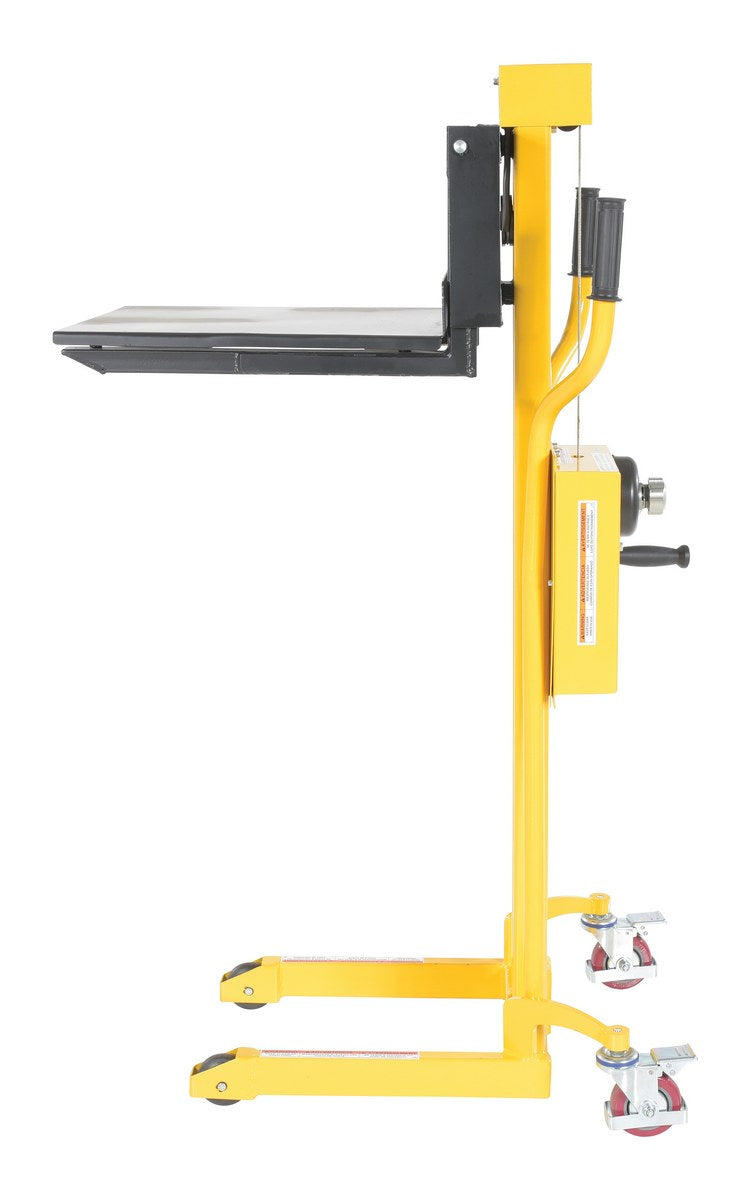

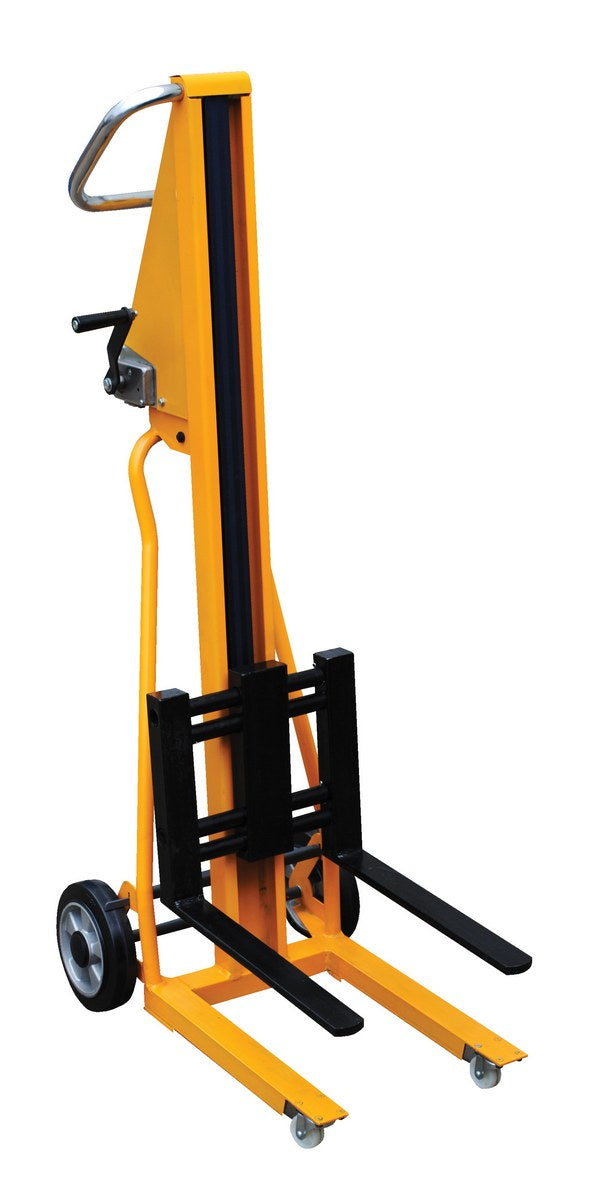

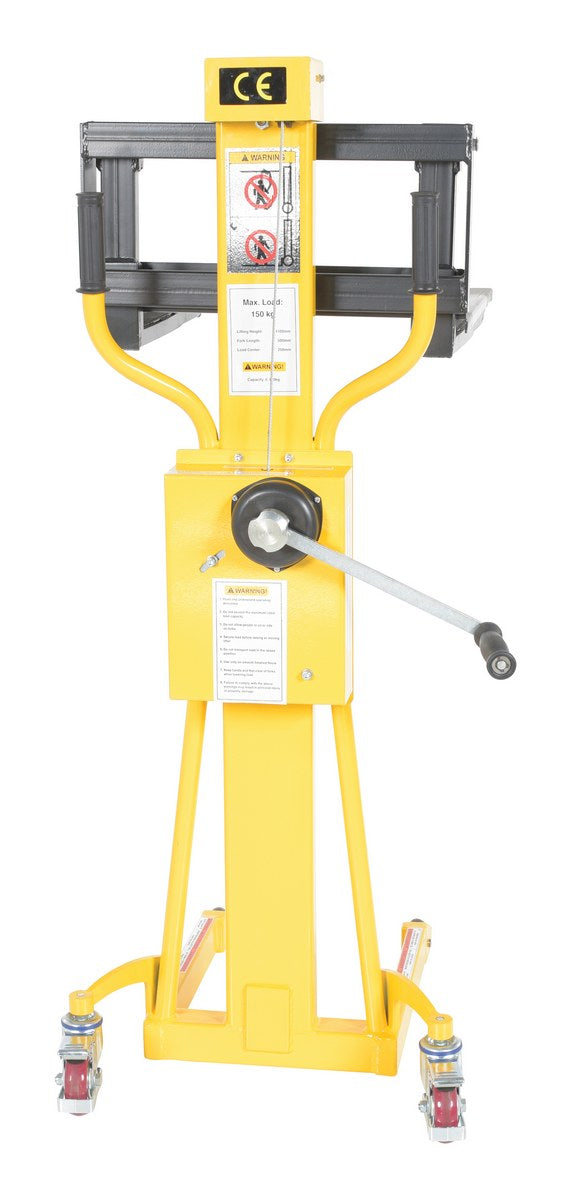

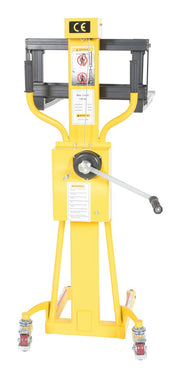

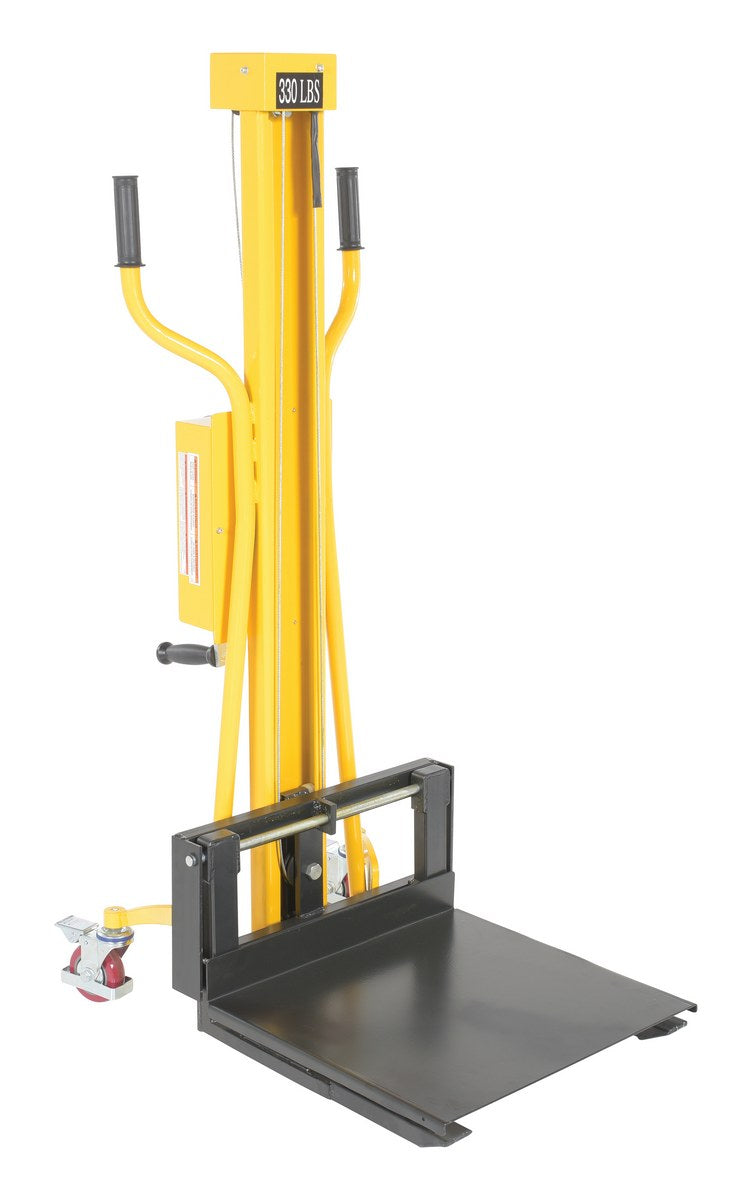

Vestil Portable Hand Winch Mini Stackers

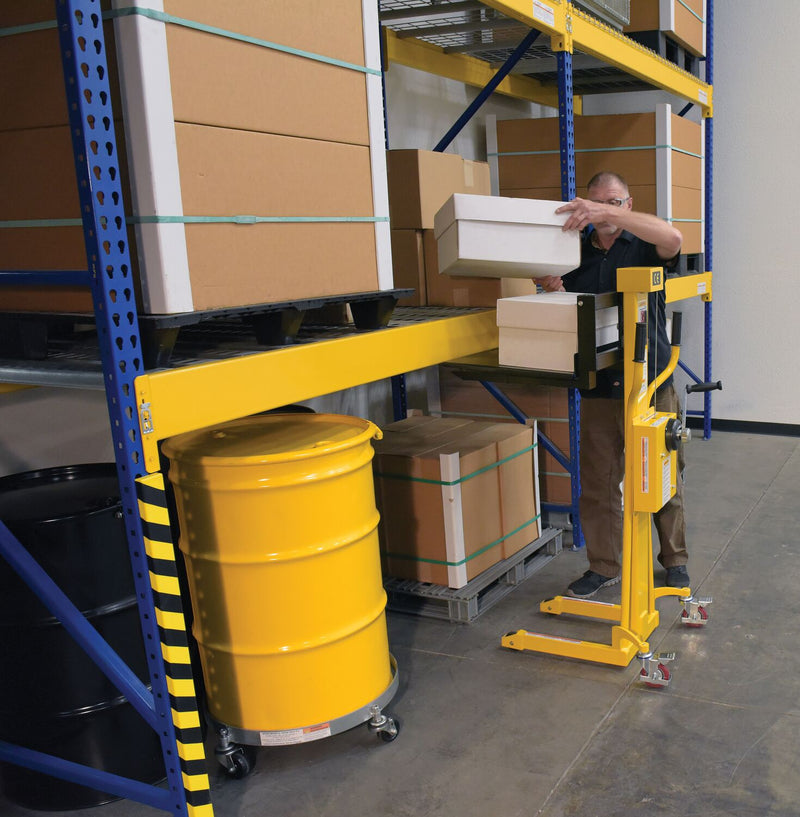

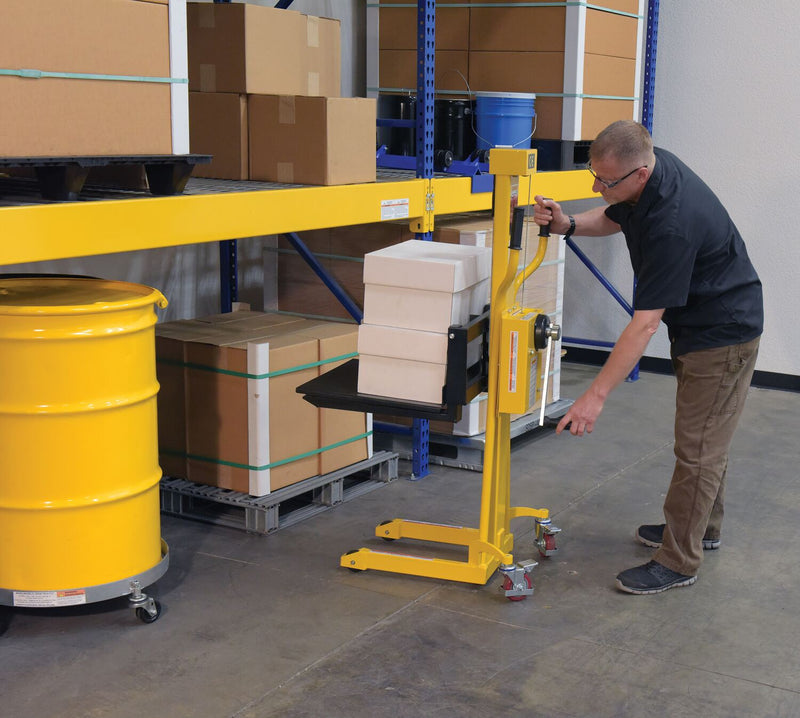

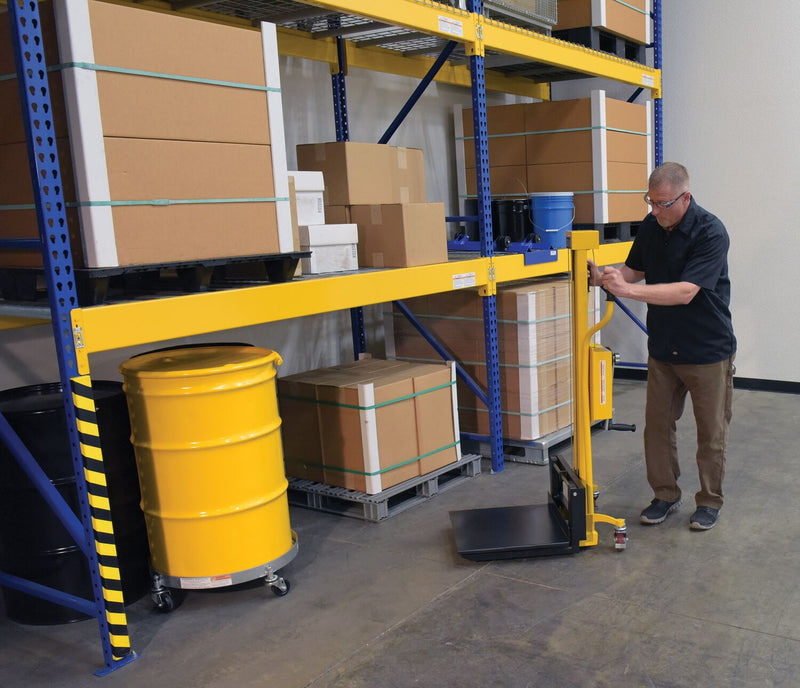

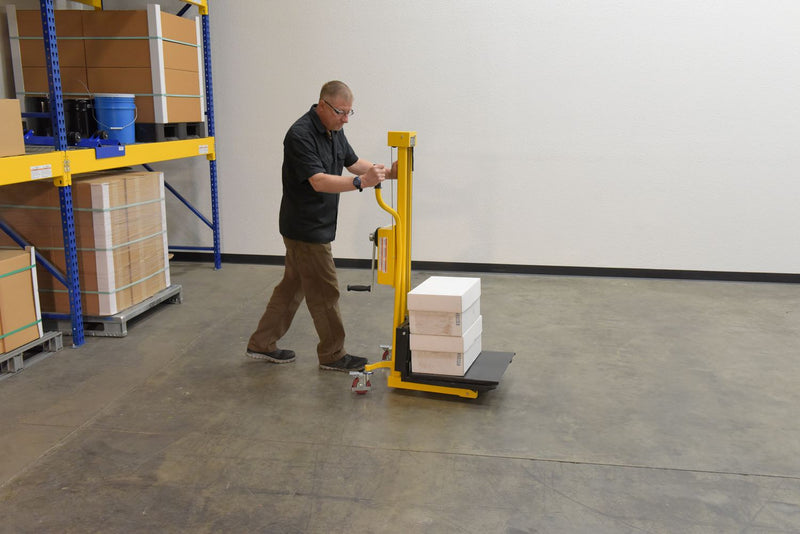

Deposit and collect goods at shelves with a portable mini hand winch stacker. Its compact construction supports handling in narrow spaces.

An enclosed belt housing covers the lifting mechanism. A maneuvering handle and hand brake support movement and positioning.

Portable Hand Winch Mini Stackers Features

Compact shelf handling
Hand winch operation
Enclosed belt housing
Hand brake

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Fork Length (in.)		16
Fork Width (in.)		2
Back Wheel Diameter (in.)		8
Back Wheel Width (in.)		2
Front Wheel Diameter (in.)		2
Front Wheel Width (in.)		1
Caster Material		Phenolic
Minimum Fork Height (in.)		3-1/2
Maximum Fork Height (in.)		41-1/2
Overall Fork Width Minimum (in.)		13-1/4
Overall Fork Width Maximum (in.)		18-1/2
Brake Width (in.)		17-1/2
Operation Type		Hand Winch
Handle Width (in.)		11-1/2
Power Source		Manual
Minimum Lift Height (in)		3-1/2
Maximum Travel Distance (in)		38
Adjustable Forks		Yes
Minimum Width Between Forks (in)		13-1/4
Maximum Width Between Forks (in)		18-1/2
Adjustable Legs		No
Leg Width (in)		22-1/4
Minimum Width Between legs (in)		22-1/4
Maximum Width Between legs (in)		22-1/4
Number of Casters / Wheels		4
Rear Wheel Diameter (in)		8
Overall Depth (in)		27-1/2

Shipping

Ship weight		112 lbs
Freight Type		LTL Palletized
Package Width (in)		48
Package Depth (in)		40
Package Height (in)		60
Freight Class		175

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / finish: Yellow / Black

Compare all sizes & specifications

Vestil Portable Hand Winch Mini Stackers: specifications by model
Model	Capacity	Overall width	Overall length	Overall height	Assembled weight
HWL-260	260 lb	18-1/2 in	27-1/2 in	54-1/8 in	75 lbs
HWL-330	330 lb	22-1/4 in	31-1/2 in	58-1/2 in	110 lbs
