Name: Vestil Rolling Warehouse Ladders - 6 to 11 Steps
Brand: Vestil
Price: 1409.0 USD
Availability: InStock

Overview

Main Specifications

MPN LAD-6-14-G-EZ

Overall width 34-1/4 in

Overall length 62-3/8 in

Overall height 90 in

Assembled weight 165 lbs

Material Steel

Color / finish Blue

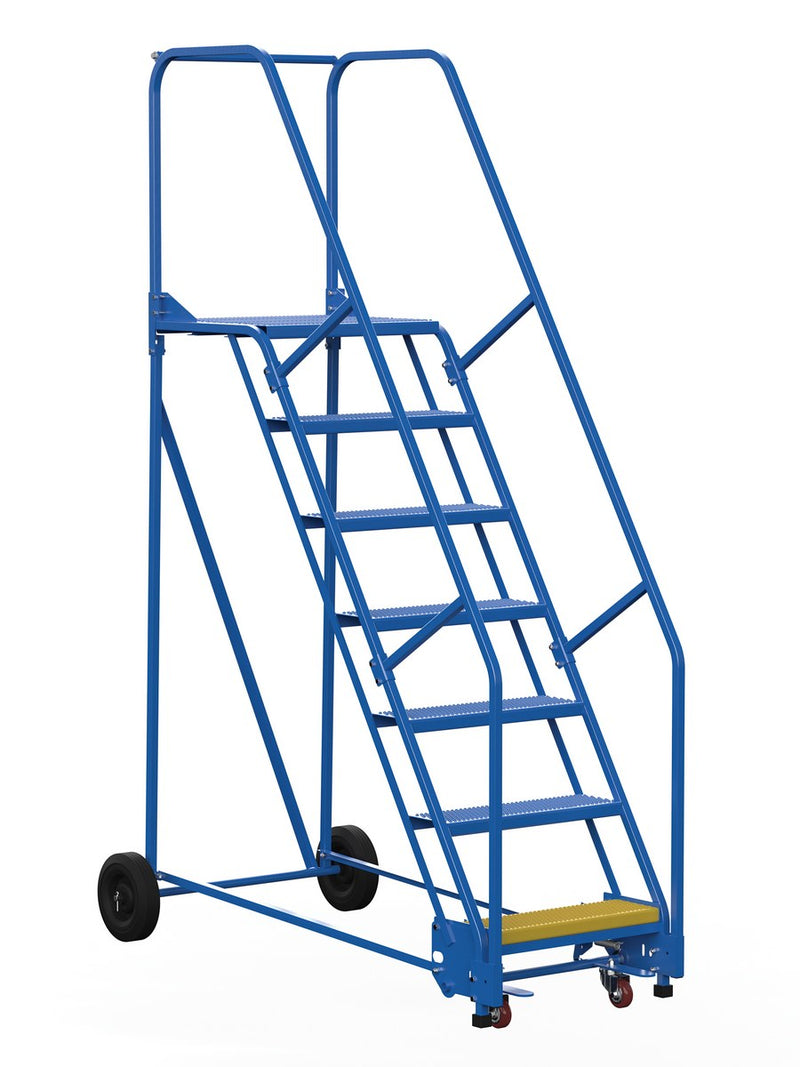

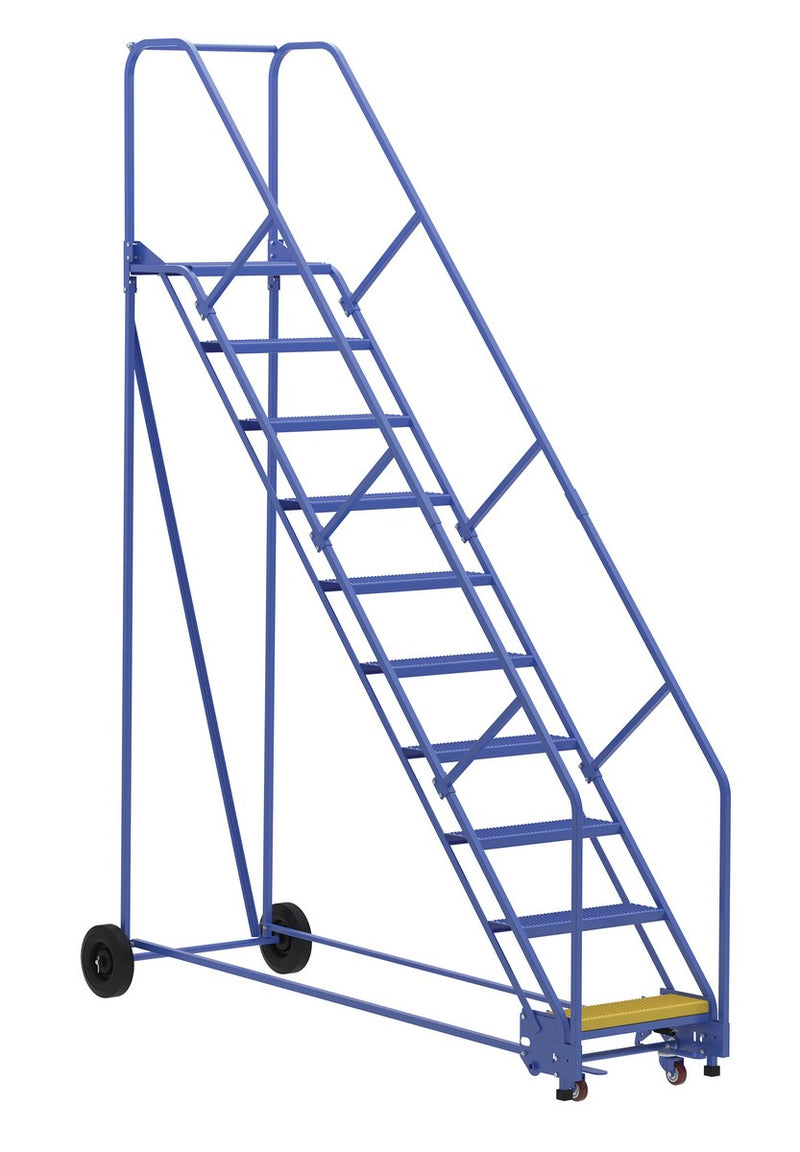

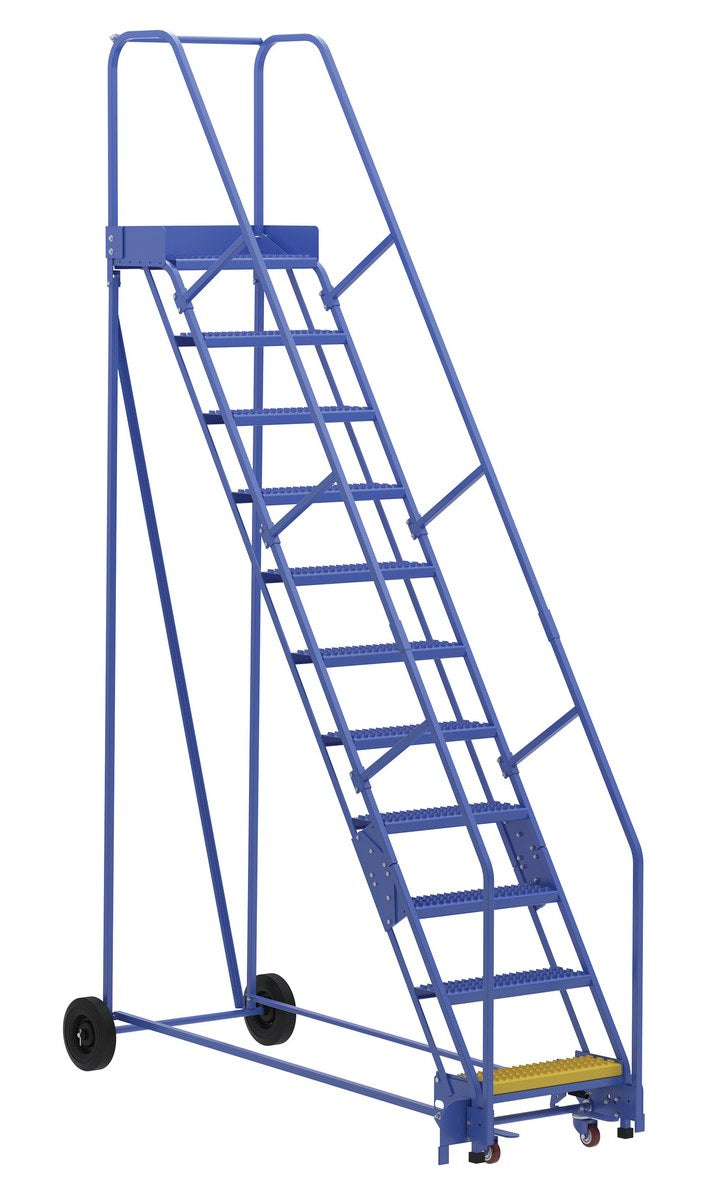

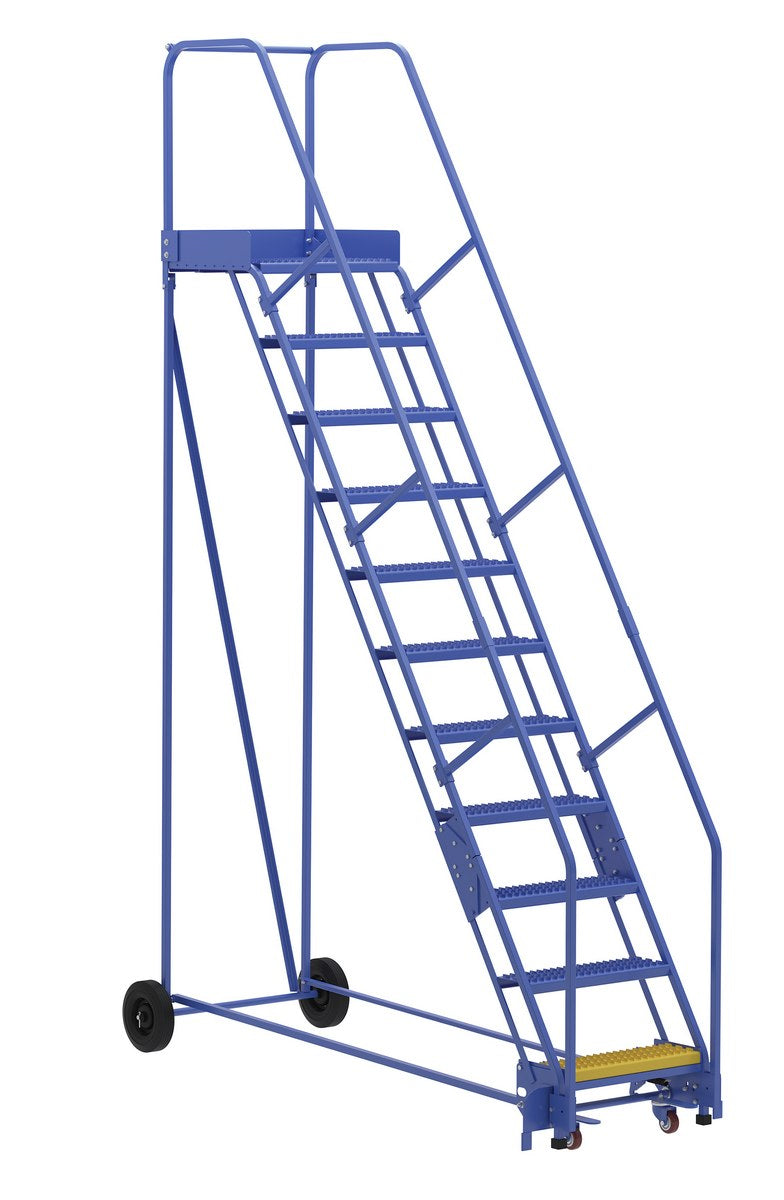

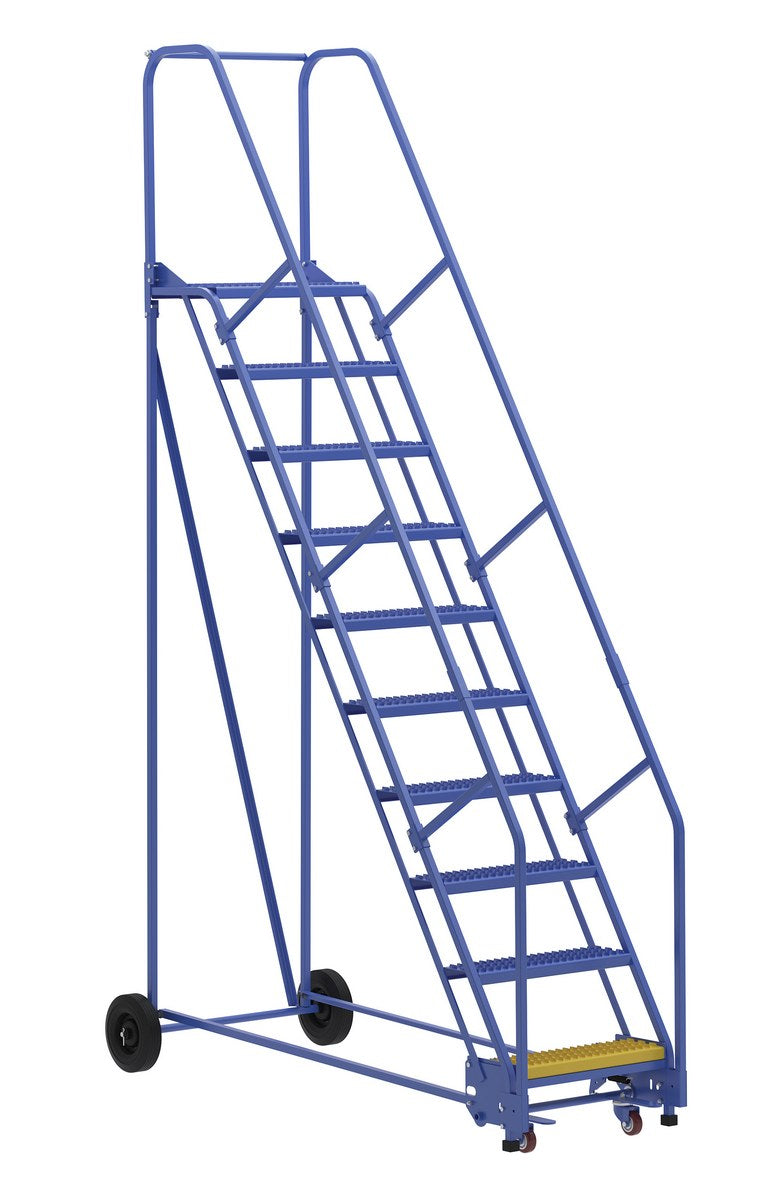

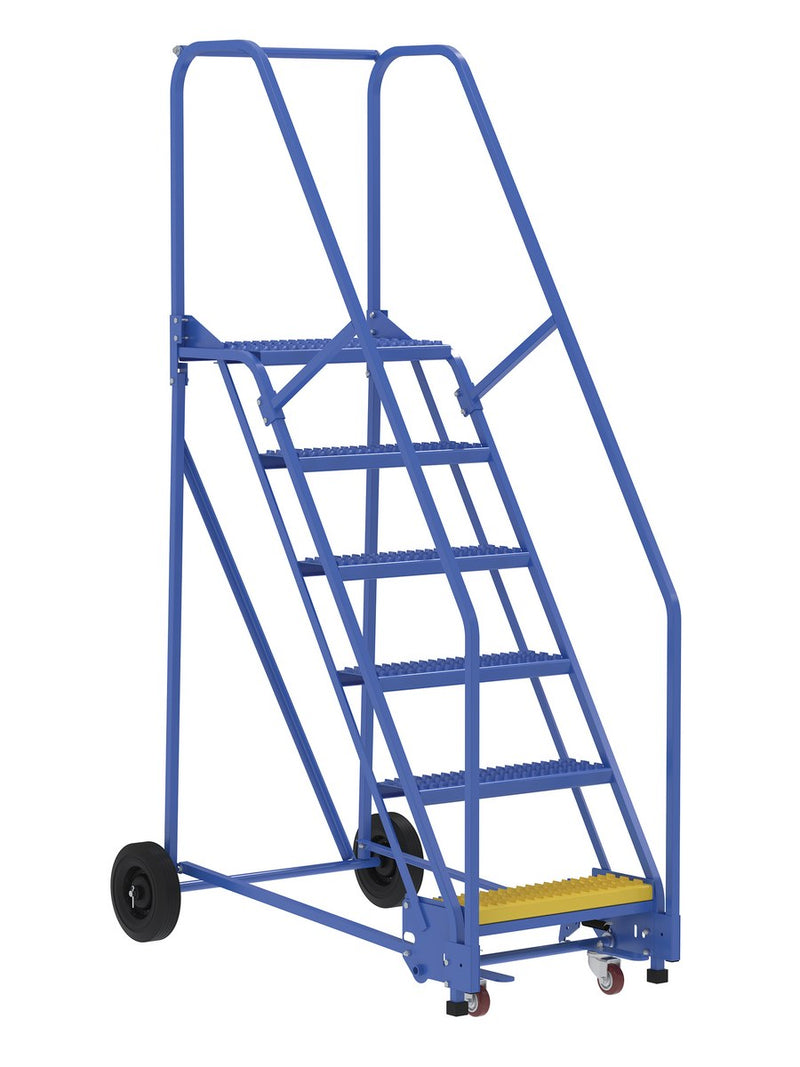

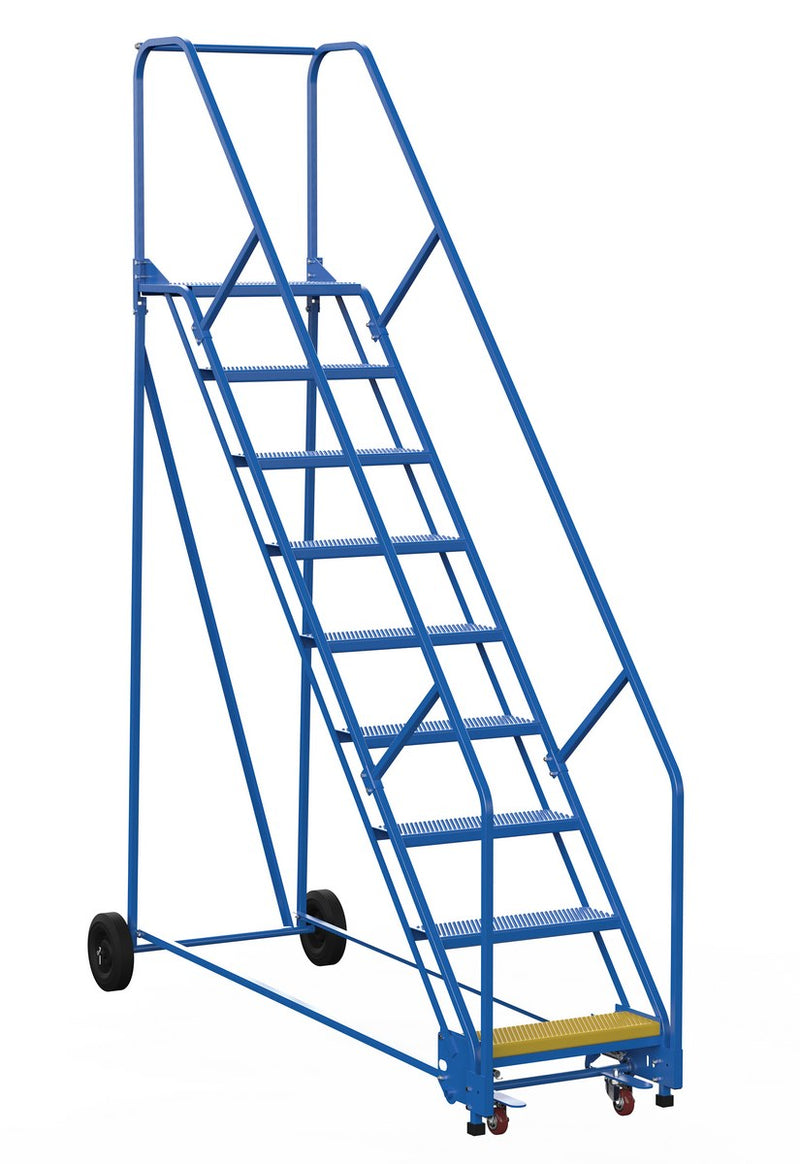

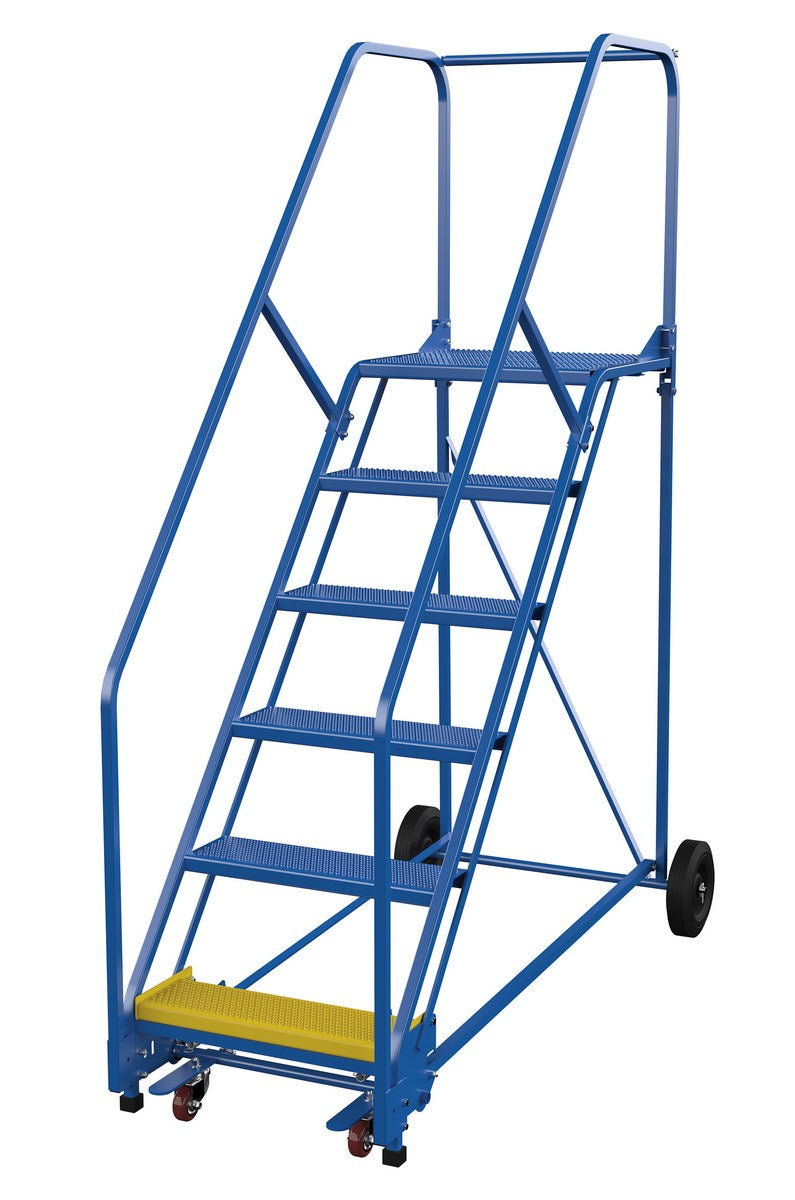

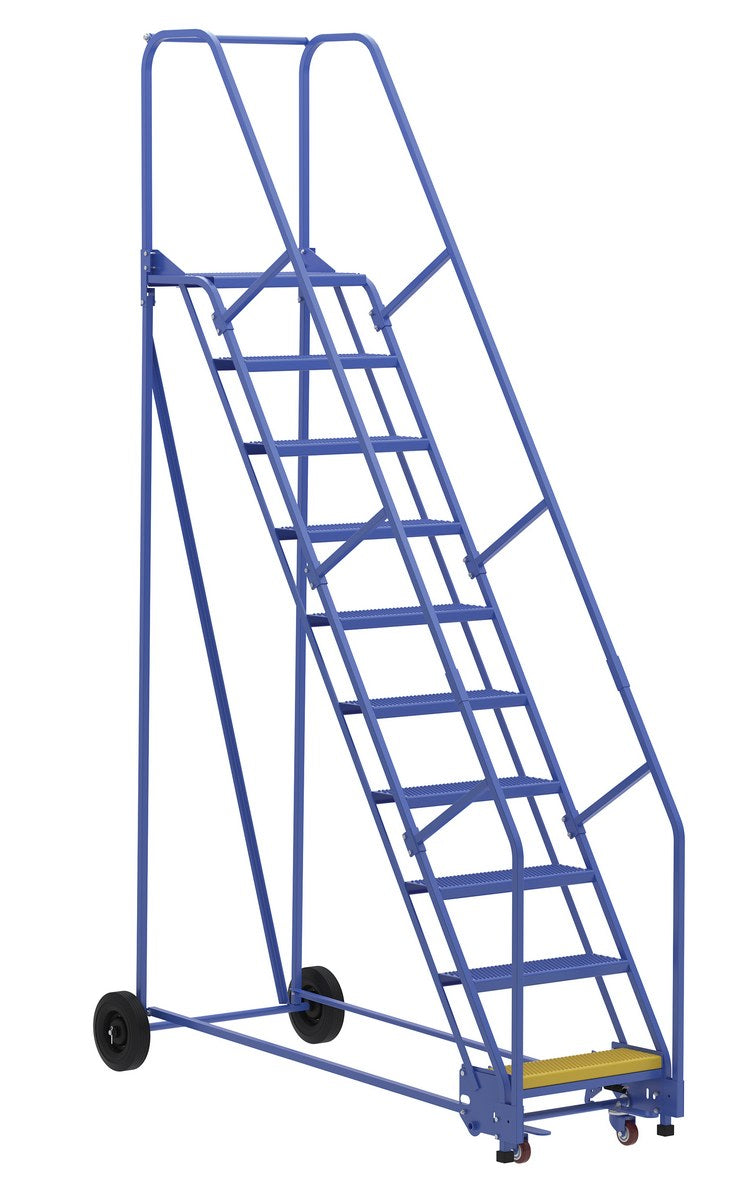

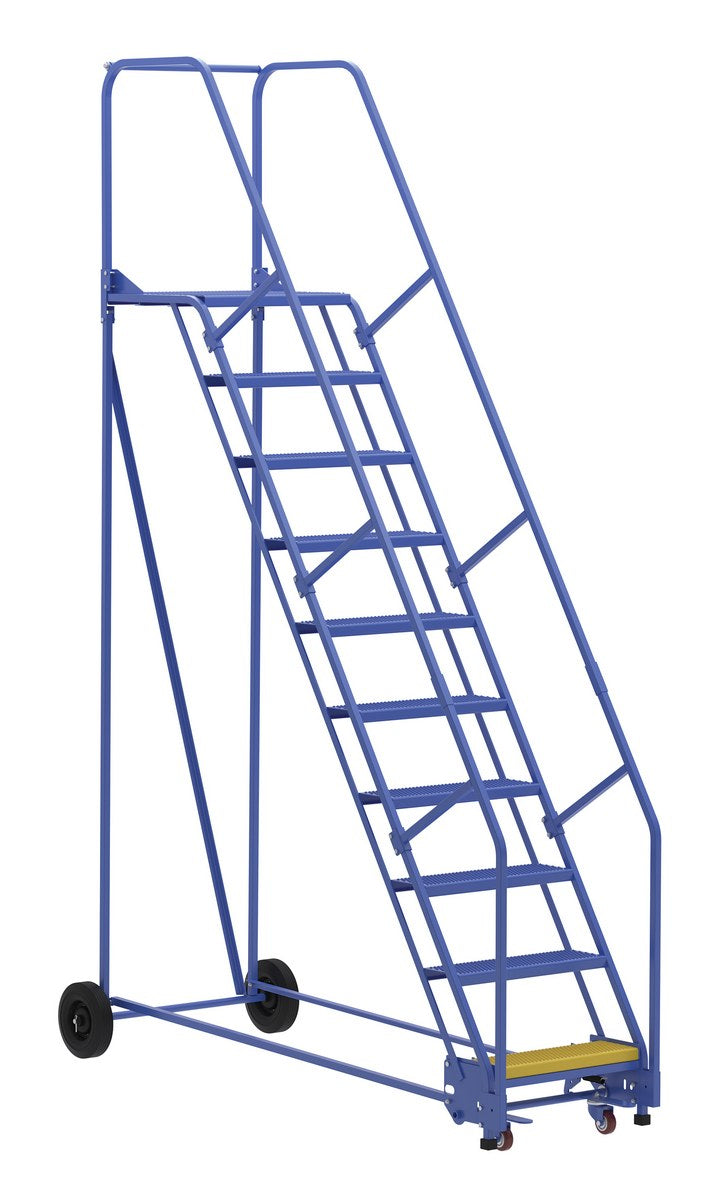

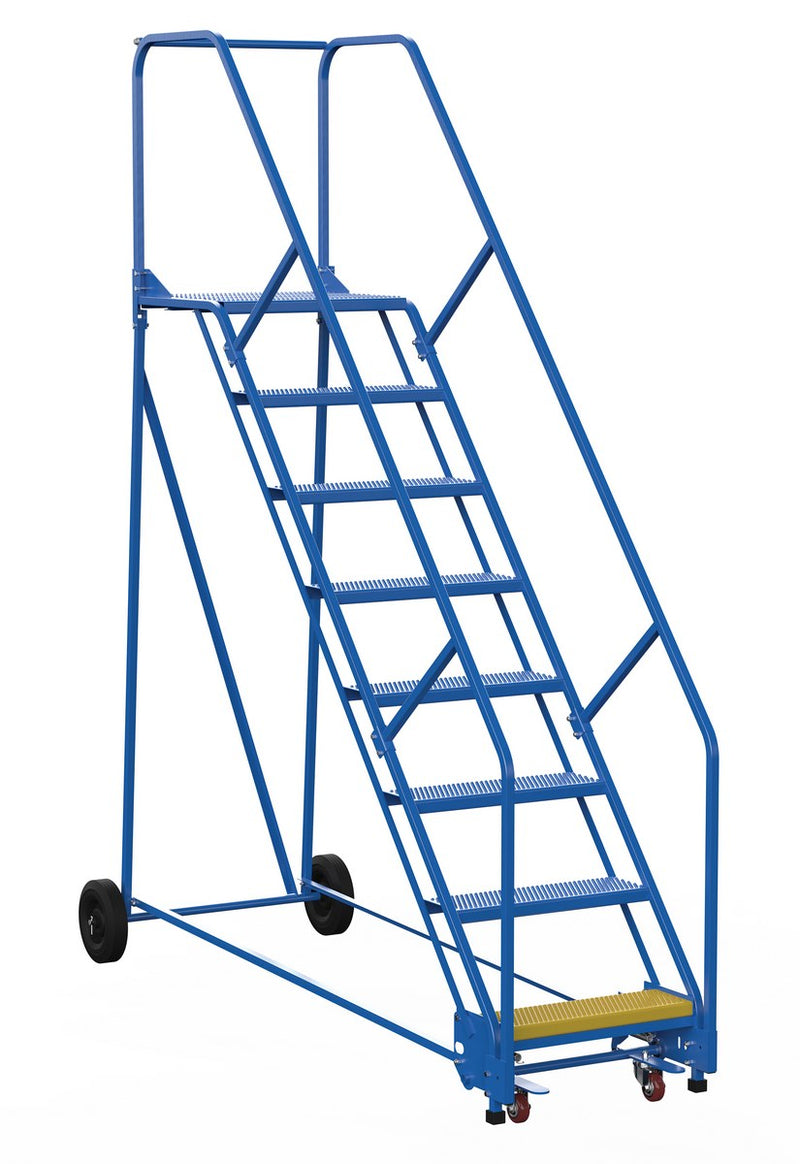

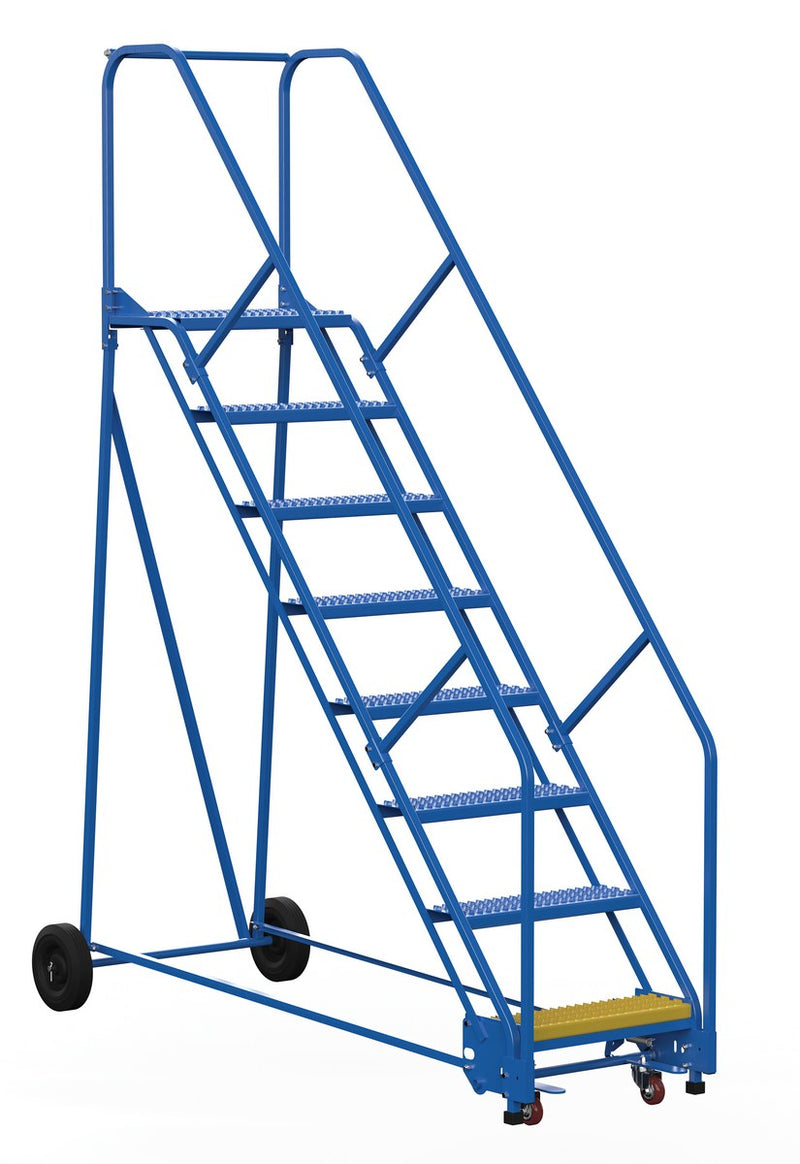

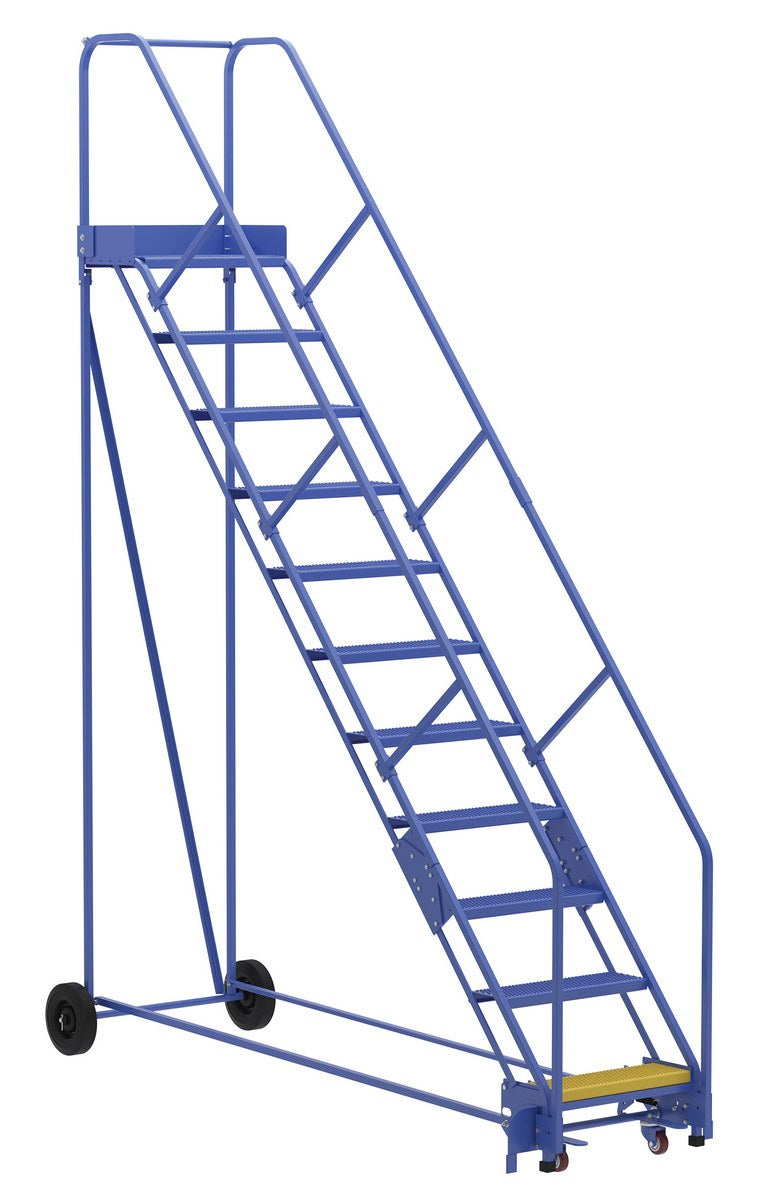

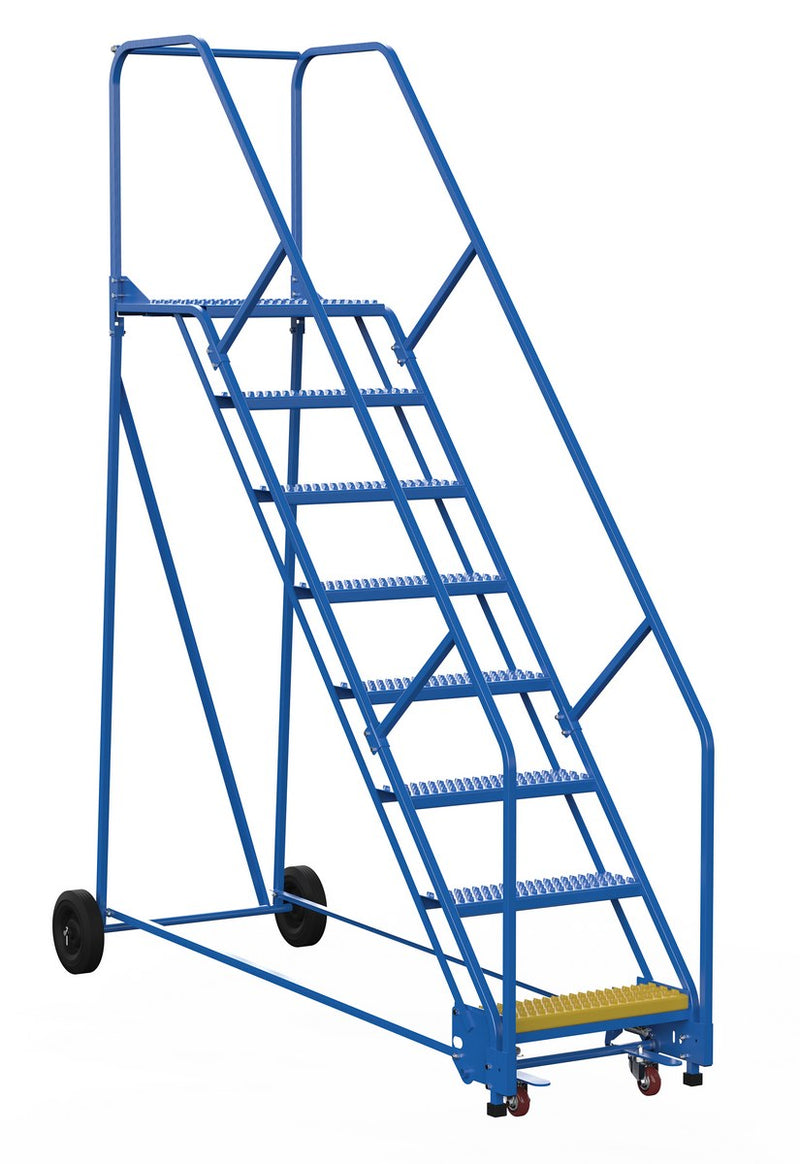

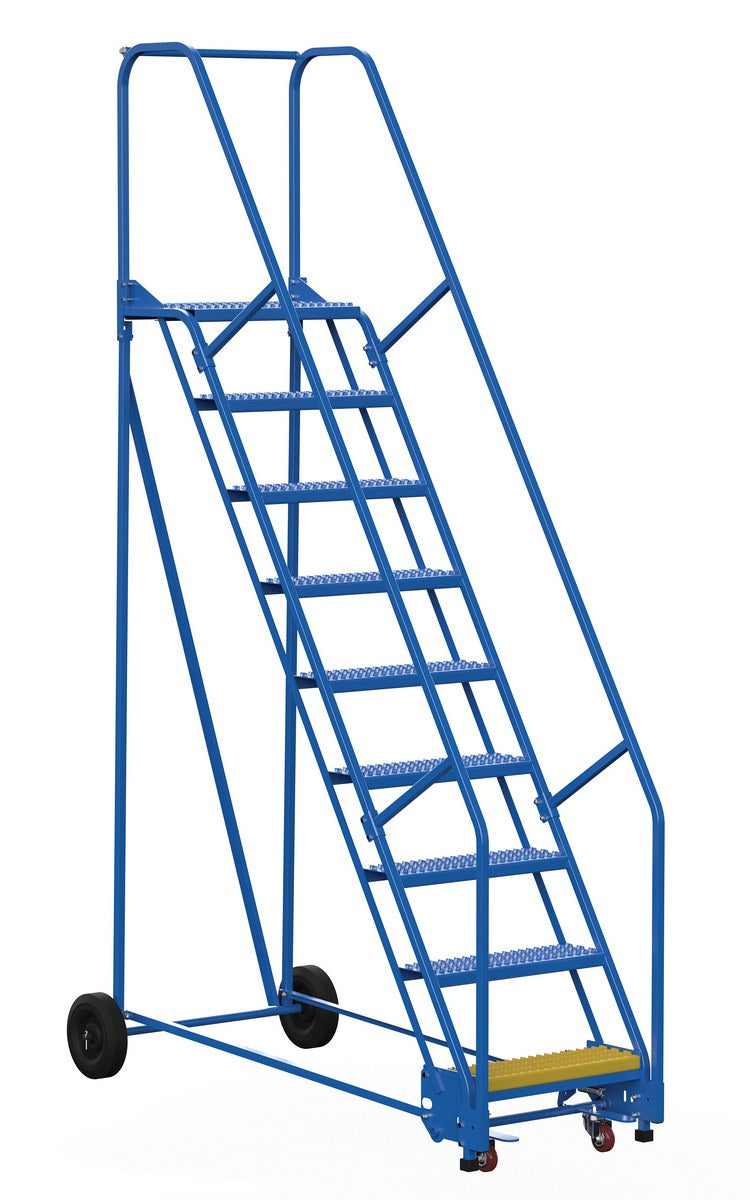

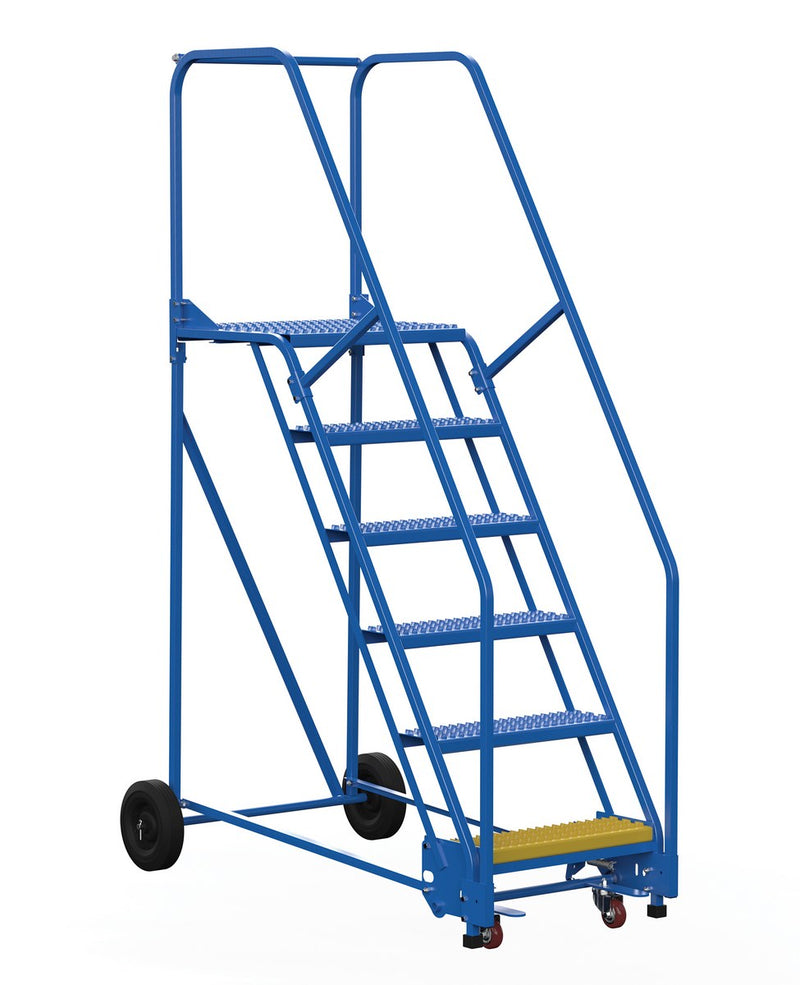

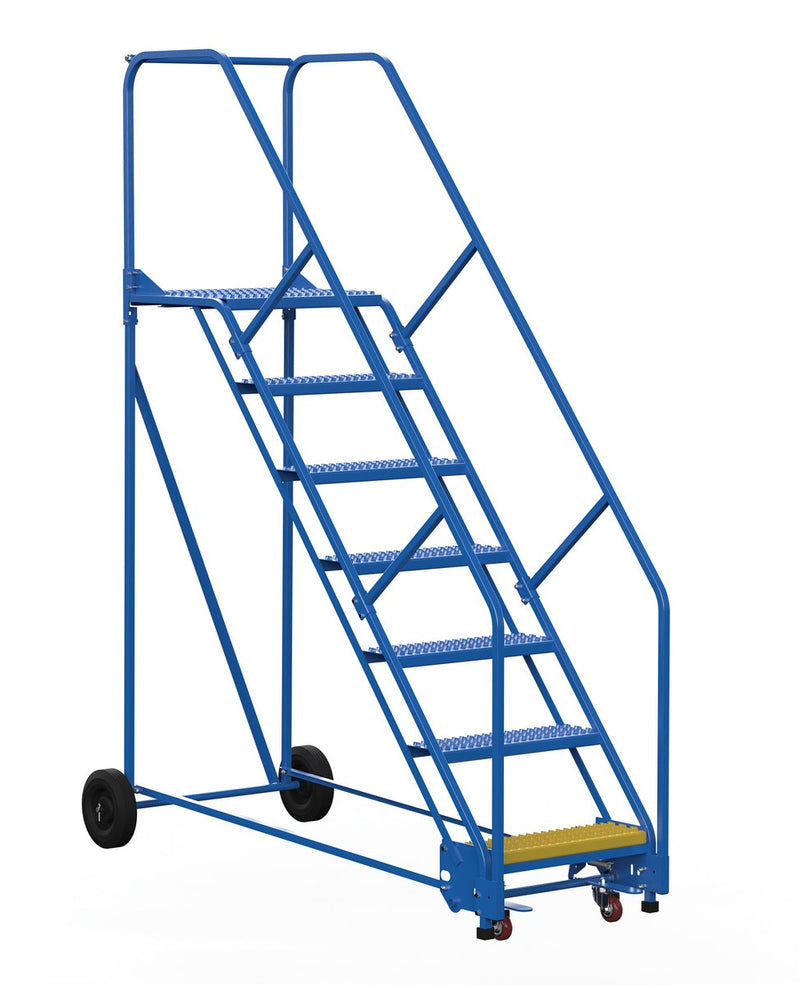

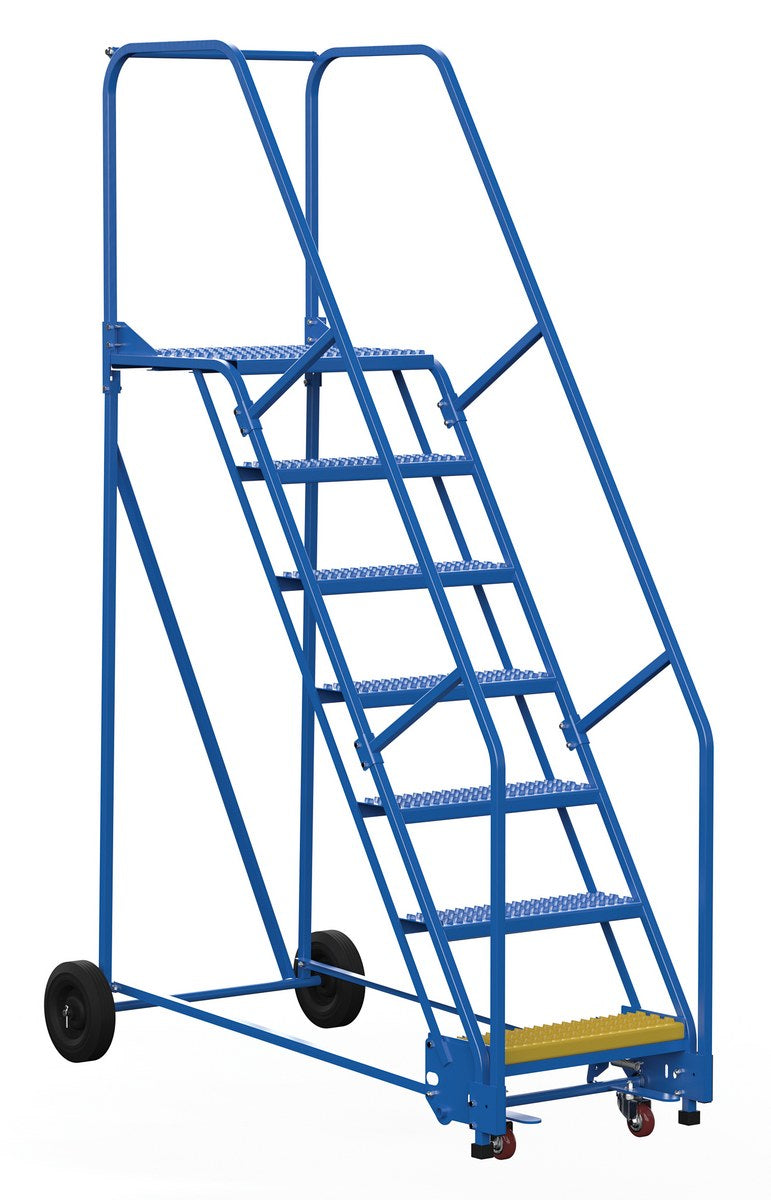

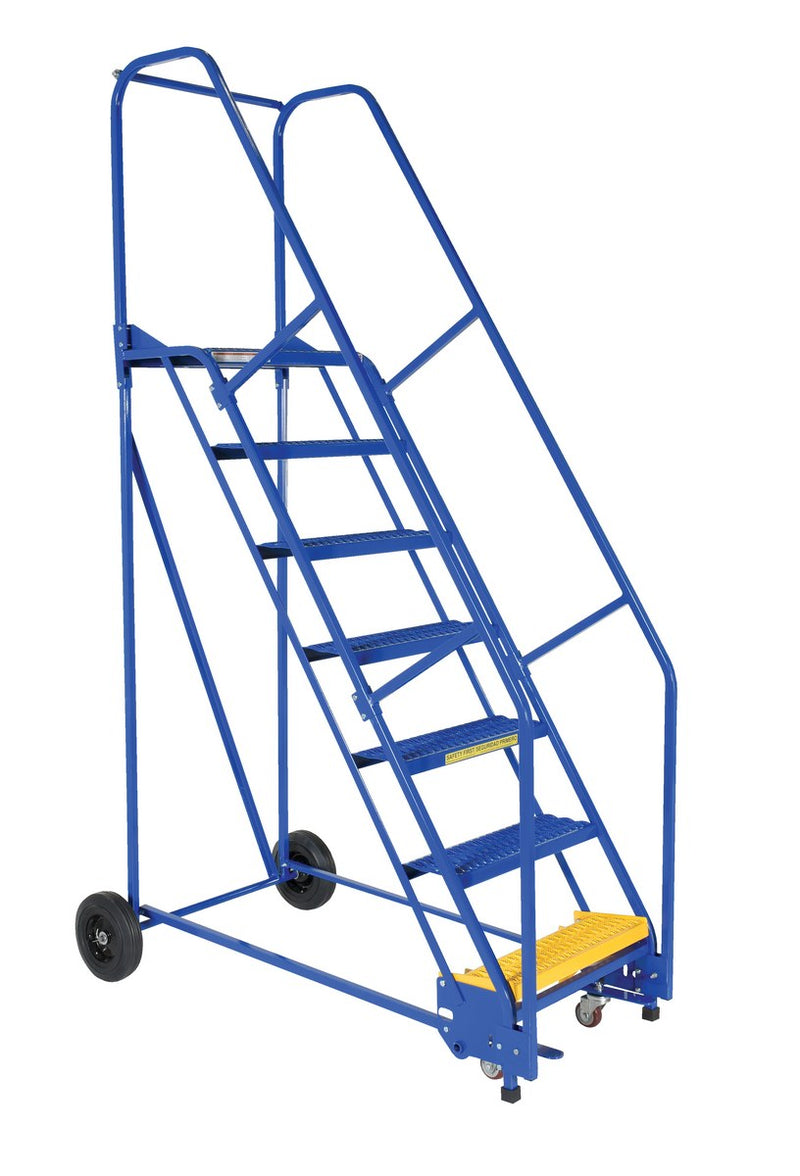

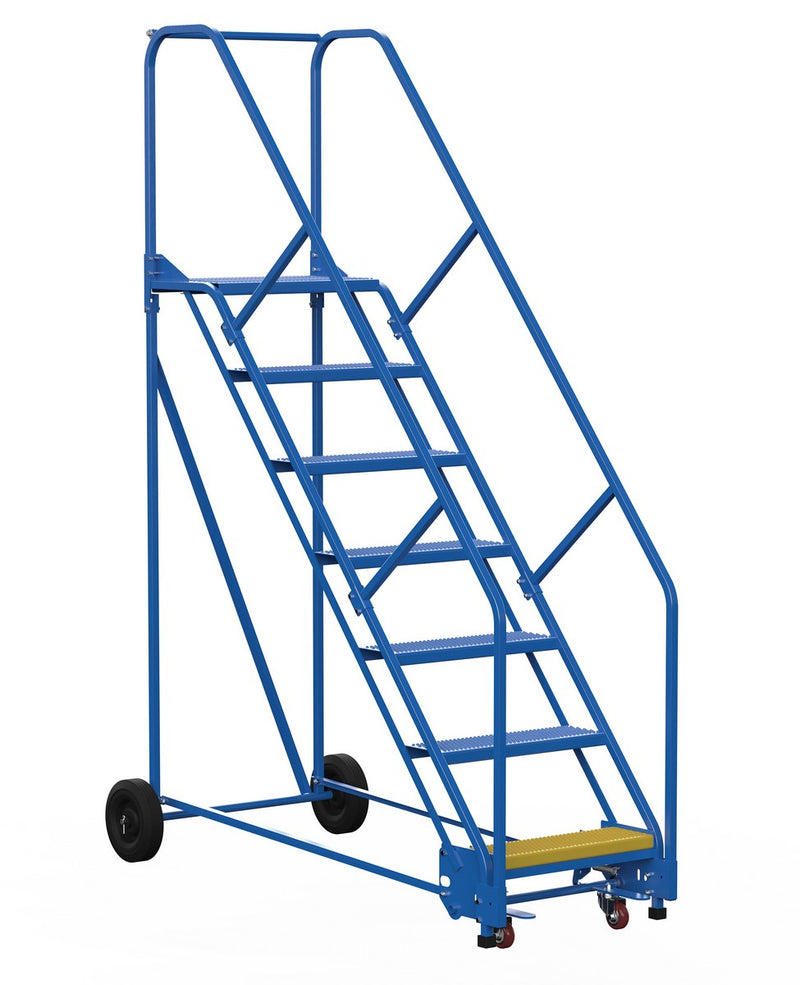

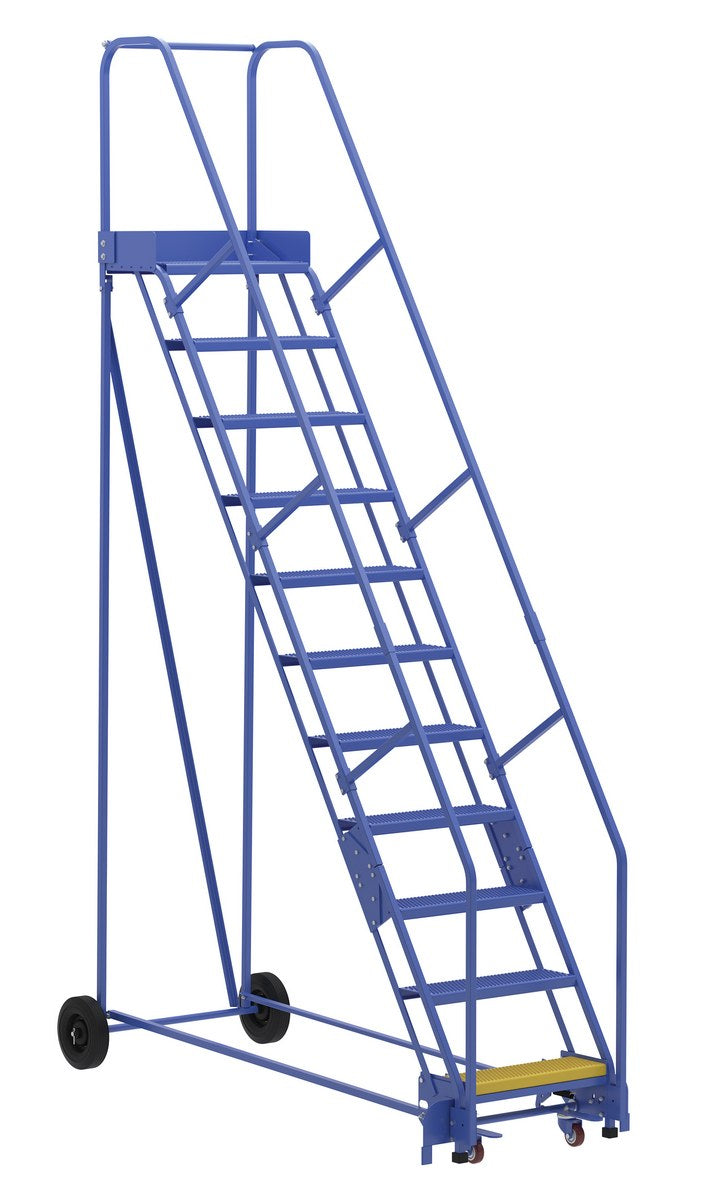

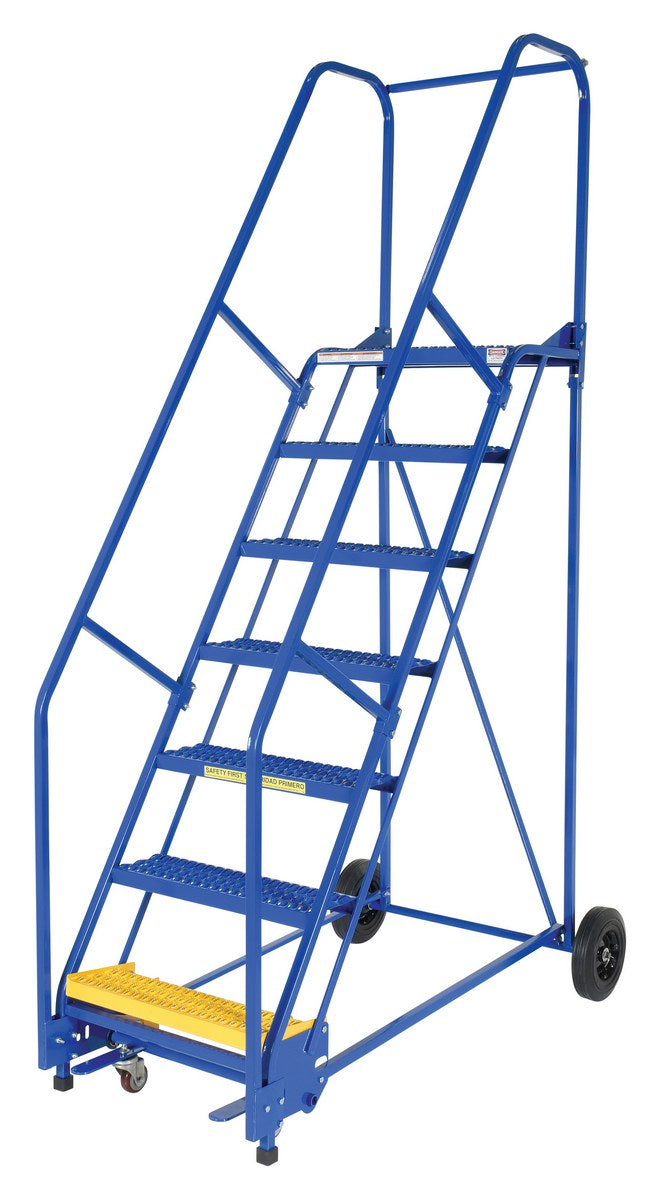

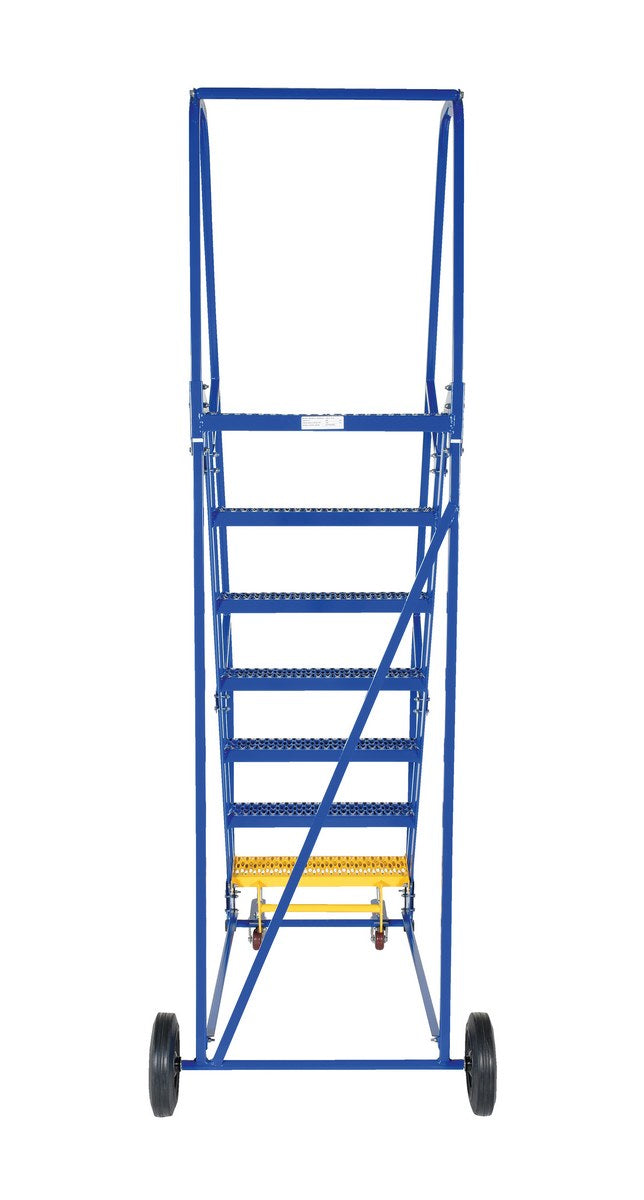

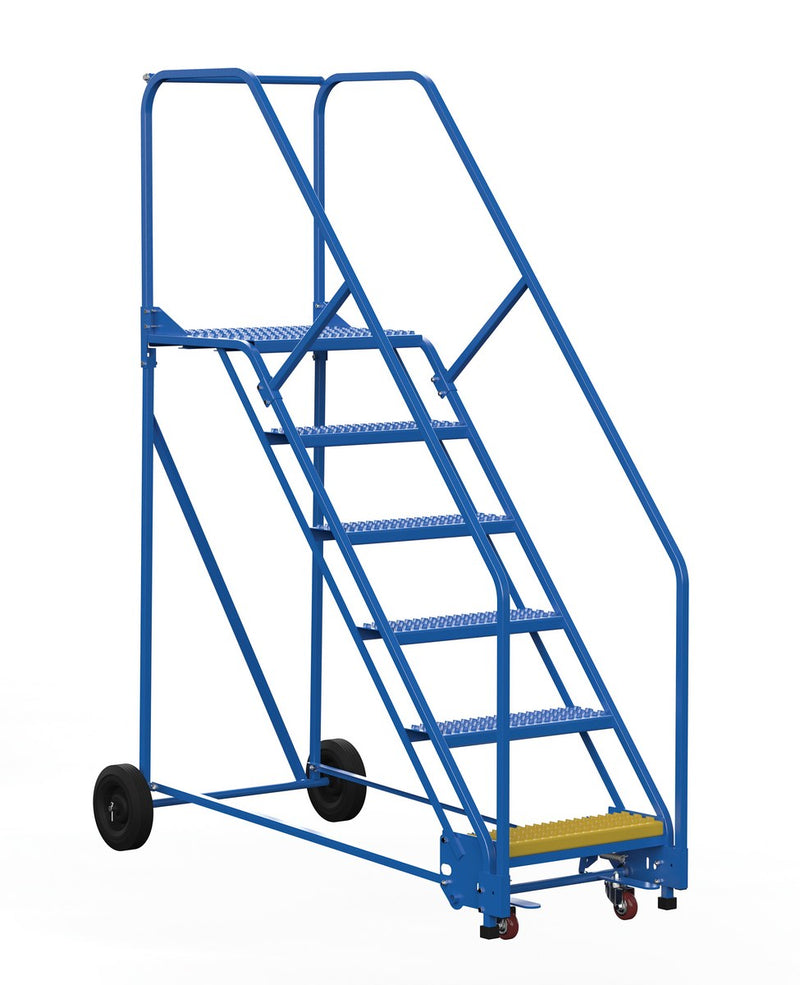

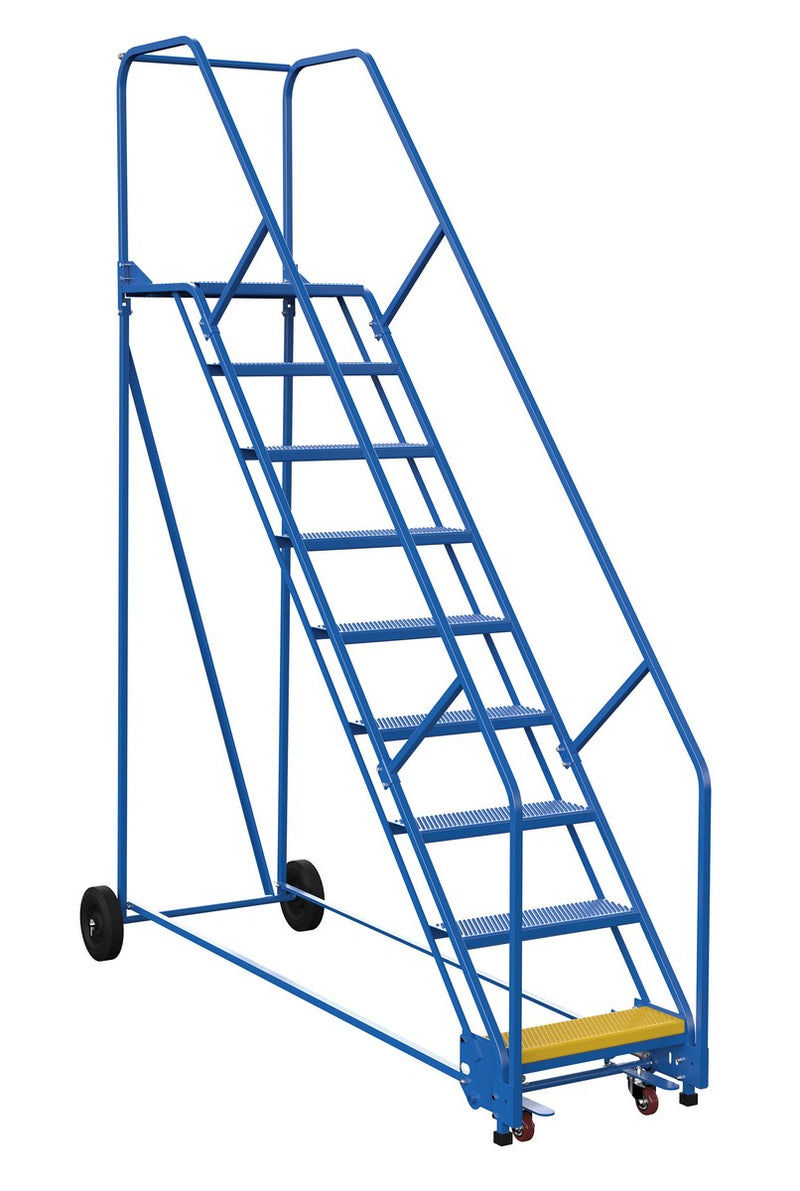

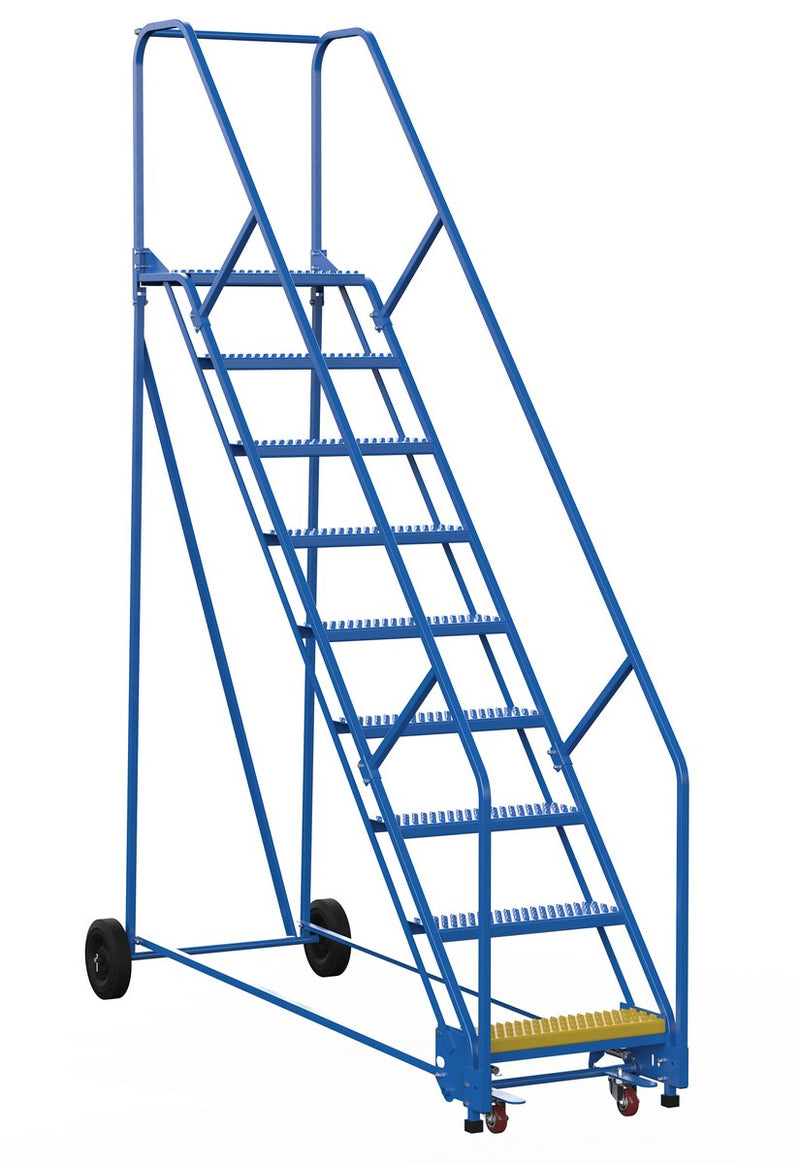

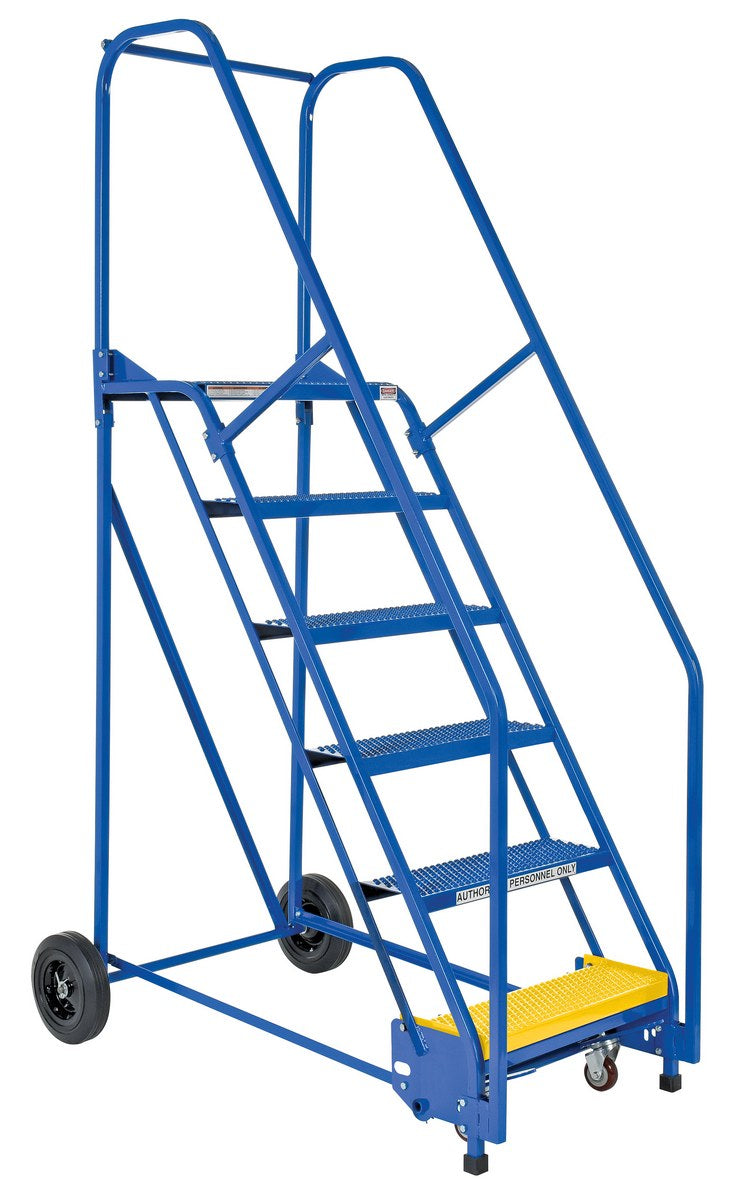

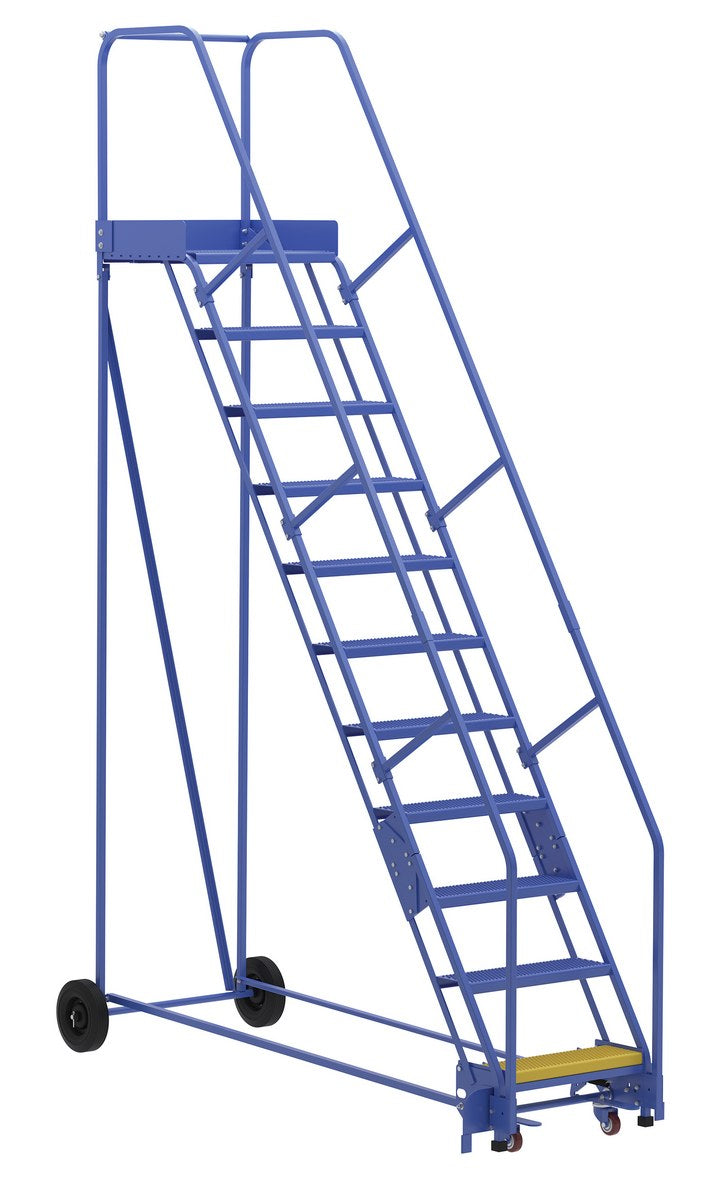

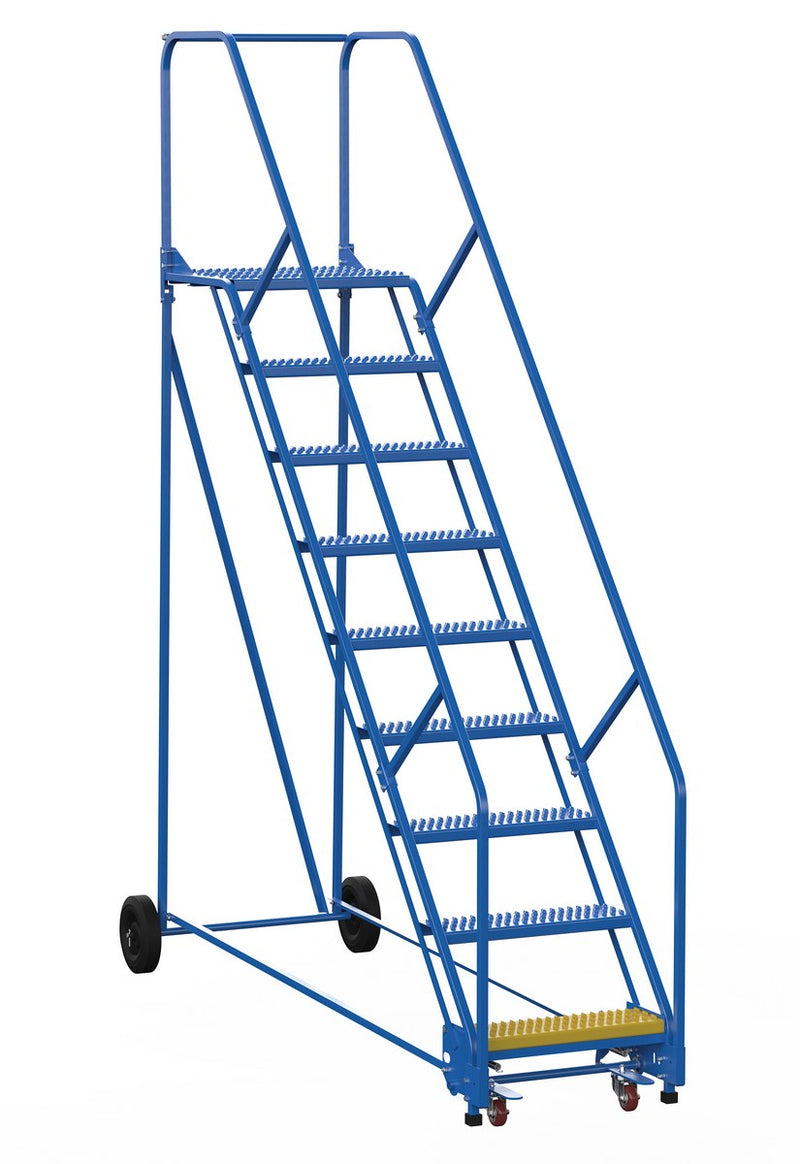

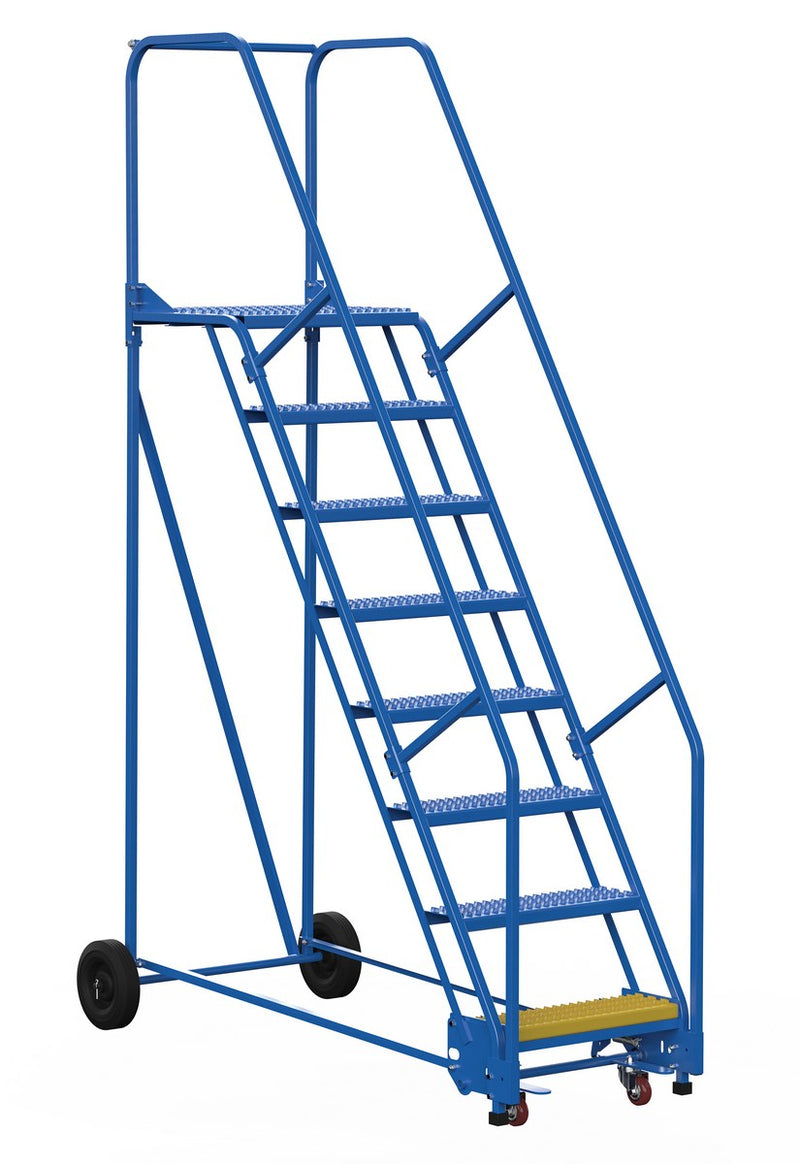

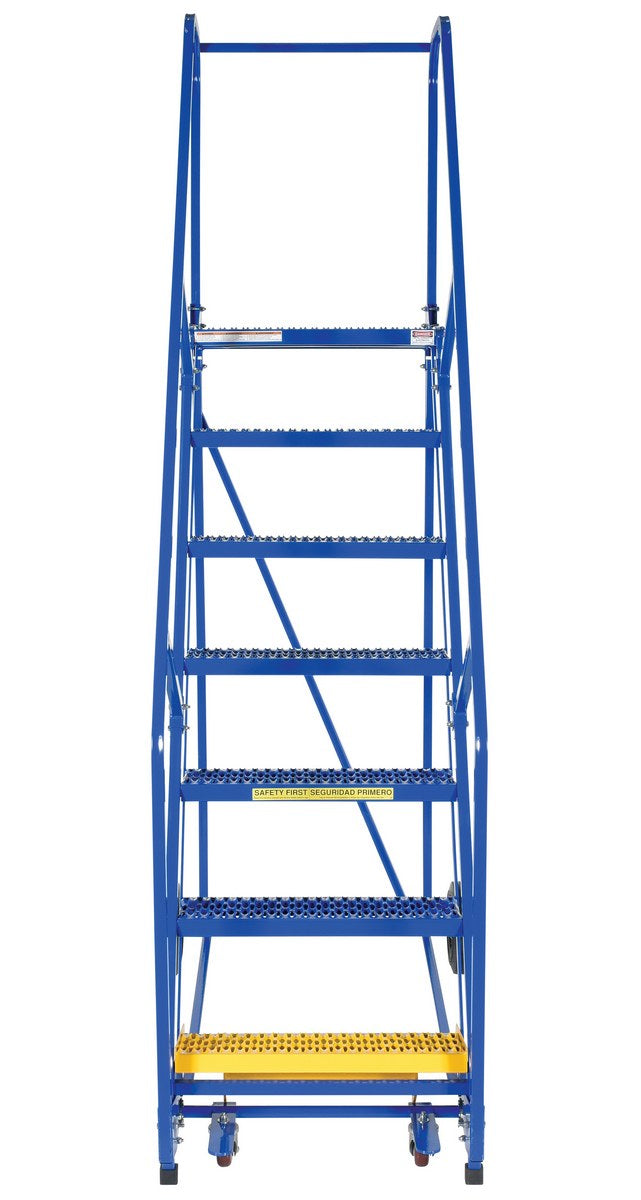

Vestil Rolling Warehouse Ladders - 6 to 11 Steps

Serve mid-height warehouse access tasks with a rolling ladder built from powder coated steel. The bottom step uses a yellow finish.

Available upper step depths and climbing configurations suit different access needs. Select the tread surface and step count for the installation.

Rolling Warehouse Ladders - 6 to 11 Steps Features

Powder coated steel

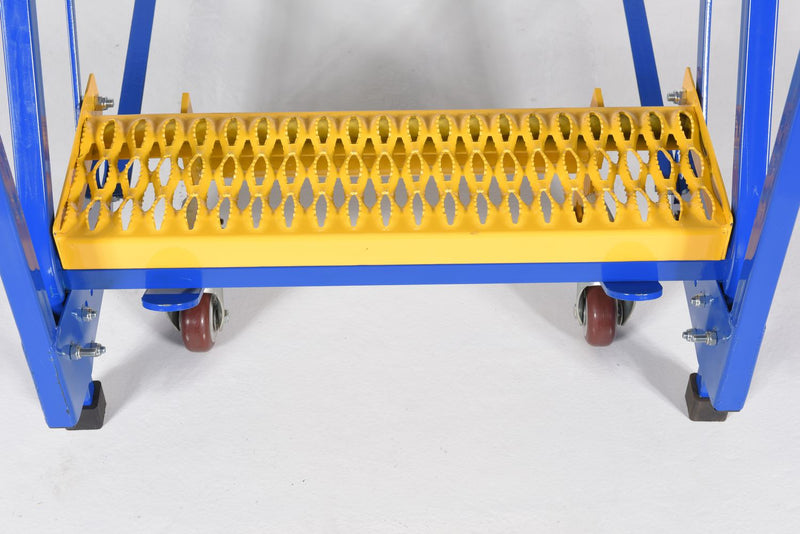

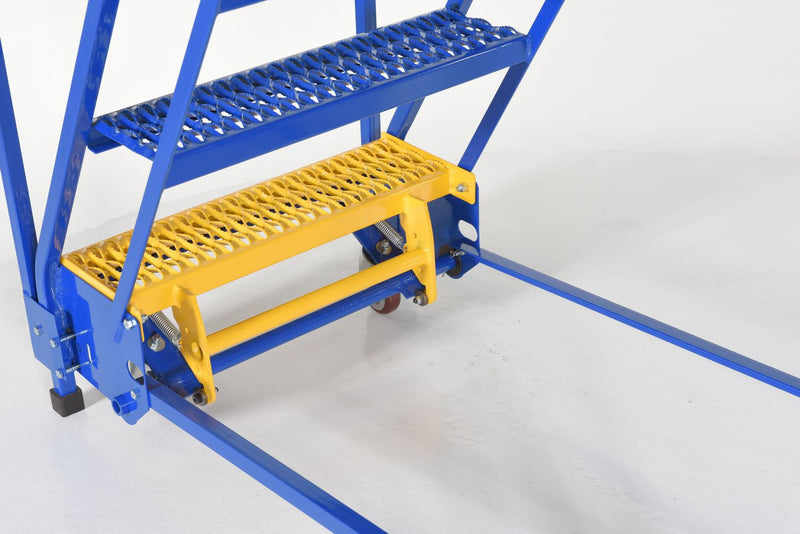

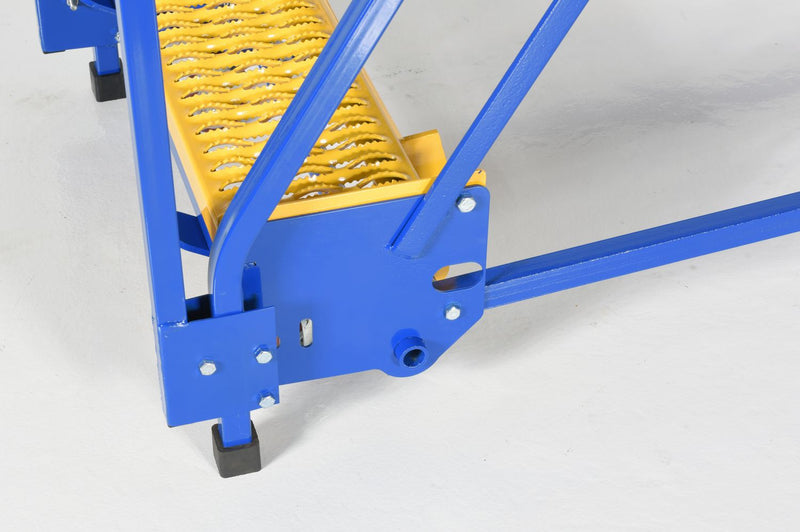

Yellow entrance step
Selectable tread surface
Choice of climbing configuration

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Uniform Capacity (lb.)		350
Number of Steps (qty.)		6
Step Angle (degrees)		50
Top Step Height (in.)		60
Top Step Depth (in.)		14
Step Depth (in.)		7
Usable Width (in.)		23-9/16
Usable Length (in.)		55-3/4
Step Type		Grip Strut
Step Spacing (in.)		10
Front Swivel Poly Caster Quantity/Diameter/Width (in.)		(2) 3x1-1/4
Rear Rigid Hard Rubber Caster Quantity/Diameter/Width (in.)		(2) 10x2-1/2
OSHA		1910-9/31
ANSI		A14-7/10
ANSI Ladder Rating		Type IA
Rung/Step Width (in)		23-14/25
Number of Casters / Wheels		4
Caster / Wheel Material		Front Polyurethane Rear Hard Rubber
Rear Wheel Width (in)		2-1/2
Rear Wheel Diameter (in)		10
Front Wheel Width (in)		1-1/4
Front Wheel Diameter (in)		3
Handrail Included		Yes
Handrail Height (in)		90
Spring Loaded		No
OSHA Compliant		Yes
ANSI Compliant		Yes

Shipping

Ship weight		212 lbs
Freight Type		LTL Palletized
Package Width (in)		40
Package Depth (in)		84
Package Height (in)		22
Freight Class		300
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Overall width: 34-1/4 in · Material: Steel · Color / finish: Blue

Compare all sizes & specifications

Vestil Rolling Warehouse Ladders - 6 to 11 Steps: specifications by model
Model	Overall length	Overall height	Assembled weight

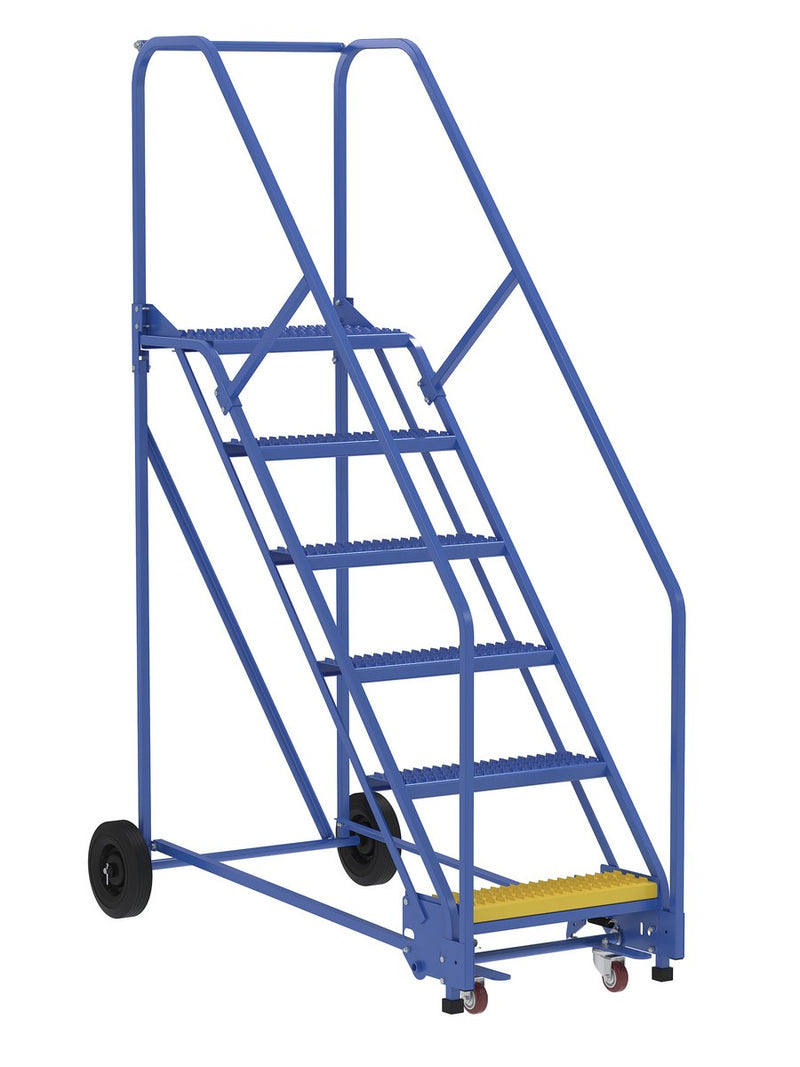

LAD-6-14-G-EZ	62-3/8 in	90 in	165 lbs
LAD-6-14-G	53-15/16 in	90 in	161 lbs

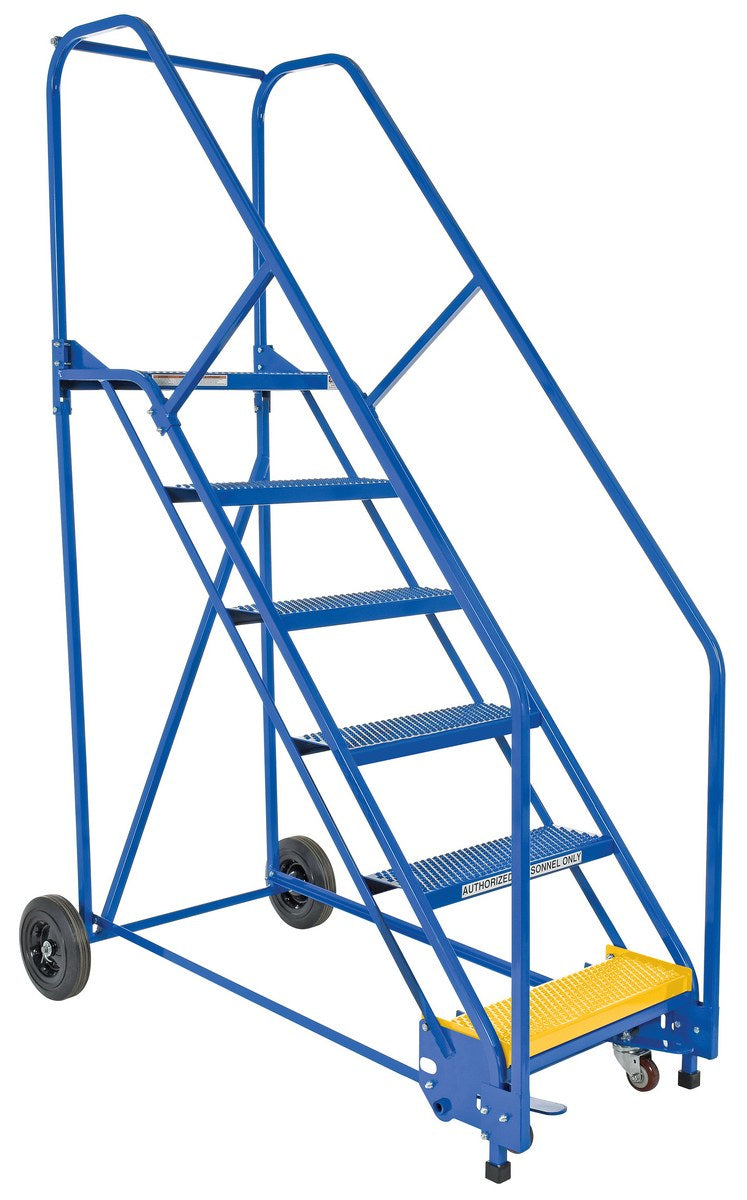

LAD-6-14-P-EZ	62-3/8 in	90 in	163 lbs
LAD-6-14-P	53-15/16 in	90 in	159 lbs
LAD-6-21-G-EZ	70-15/16 in	90 in	176 lbs
LAD-6-21-G	60 in	90 in	172 lbs
LAD-6-21-P-EZ	70-15/16 in	90 in	174 lbs

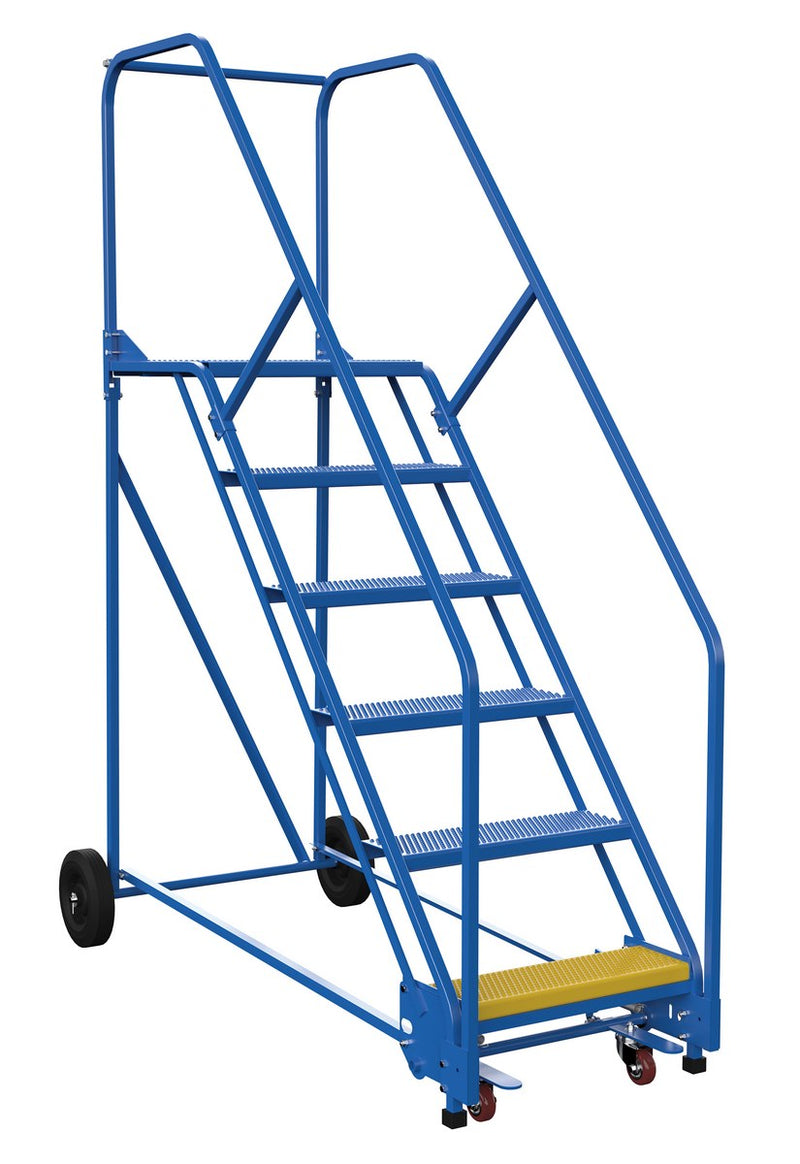

LAD-6-21-P	60 in	90 in	170 lbs

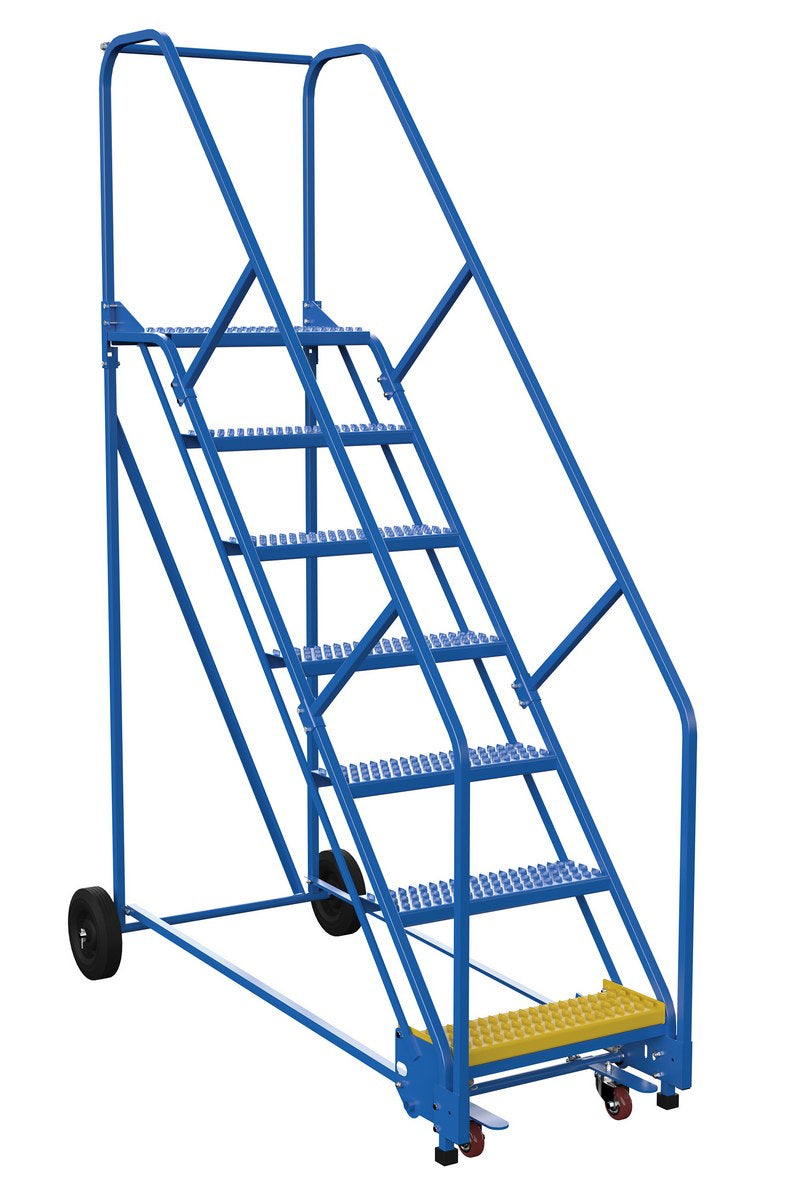

LAD-7-14-G-EZ	70-7/8 in	100 in	185 lbs

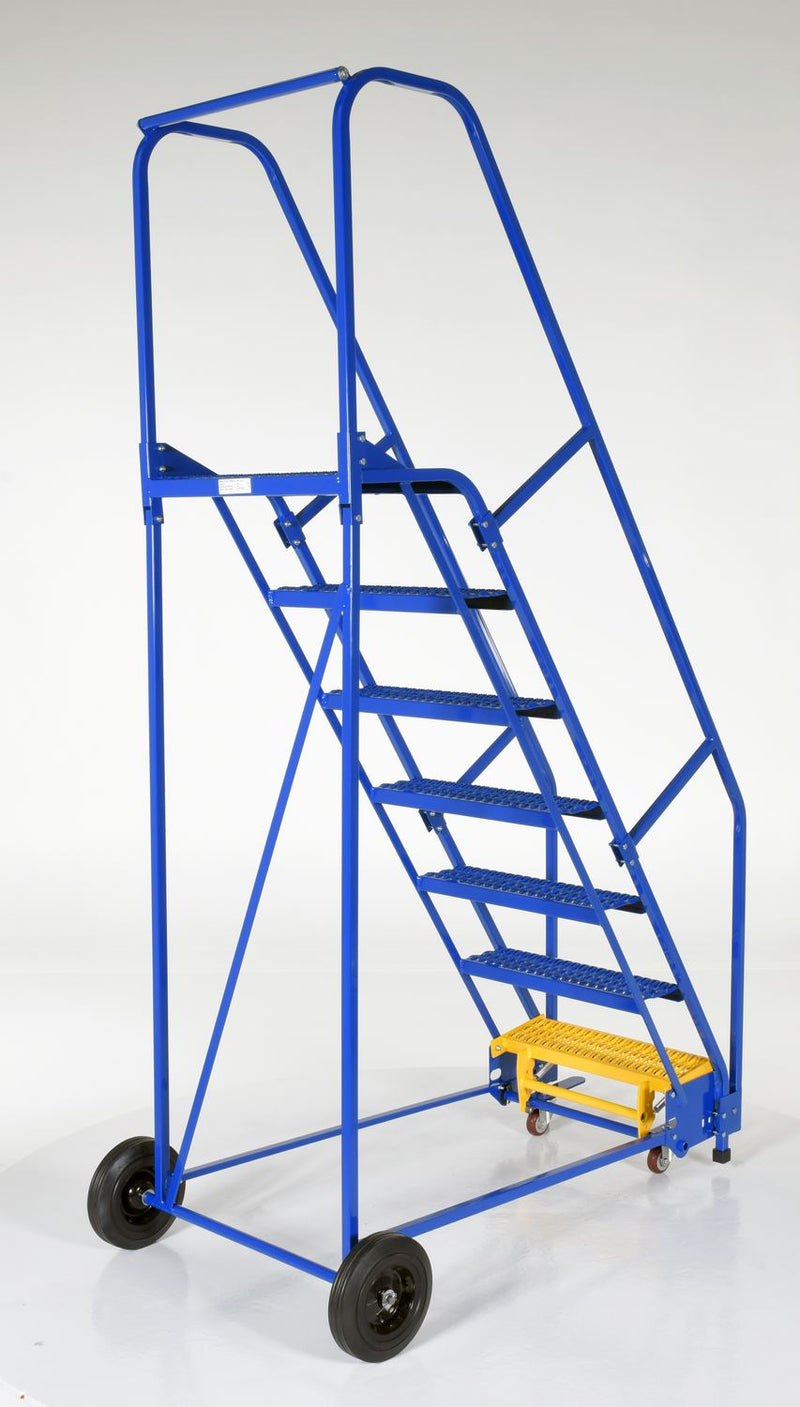

LAD-7-14-G	60-1/16 in	100 in	180 lbs
LAD-7-14-P-EZ	70-7/8 in	100 in	183 lbs

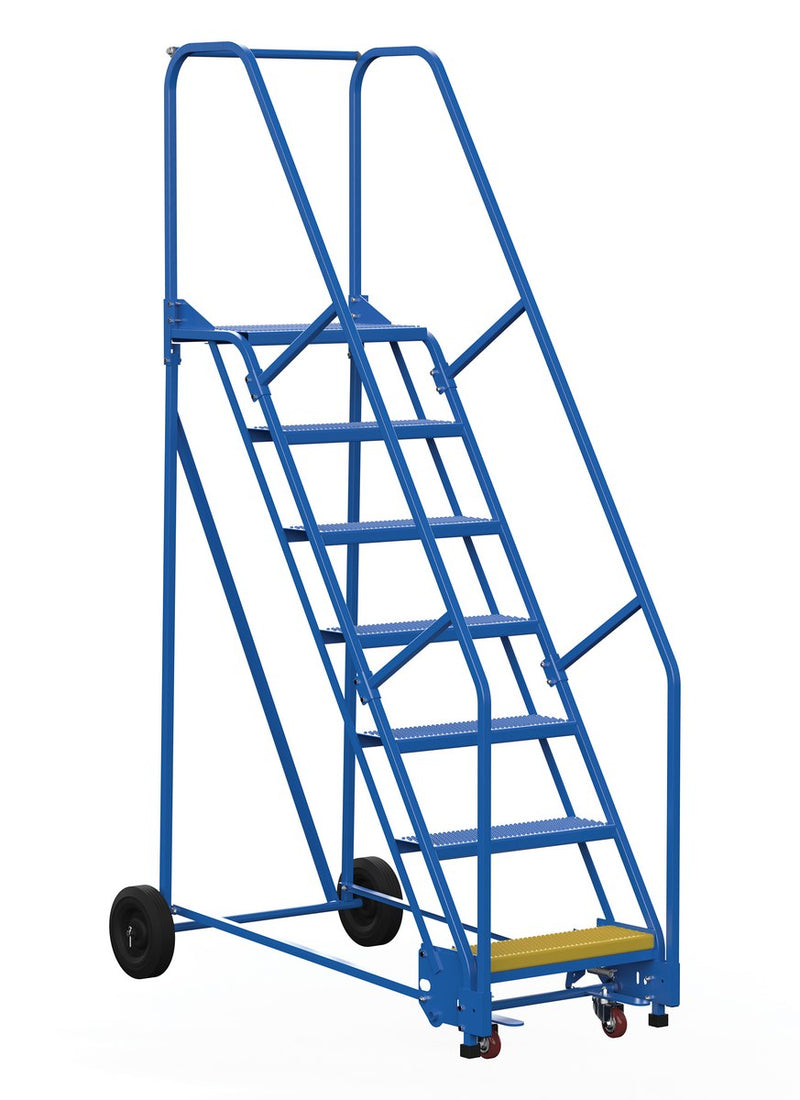

LAD-7-14-P	60-1/16 in	100 in	178 lbs
LAD-7-21-G-EZ	78-15/16 in	100 in	197 lbs
LAD-7-21-G	66-15/16 in	100 in	191 lbs

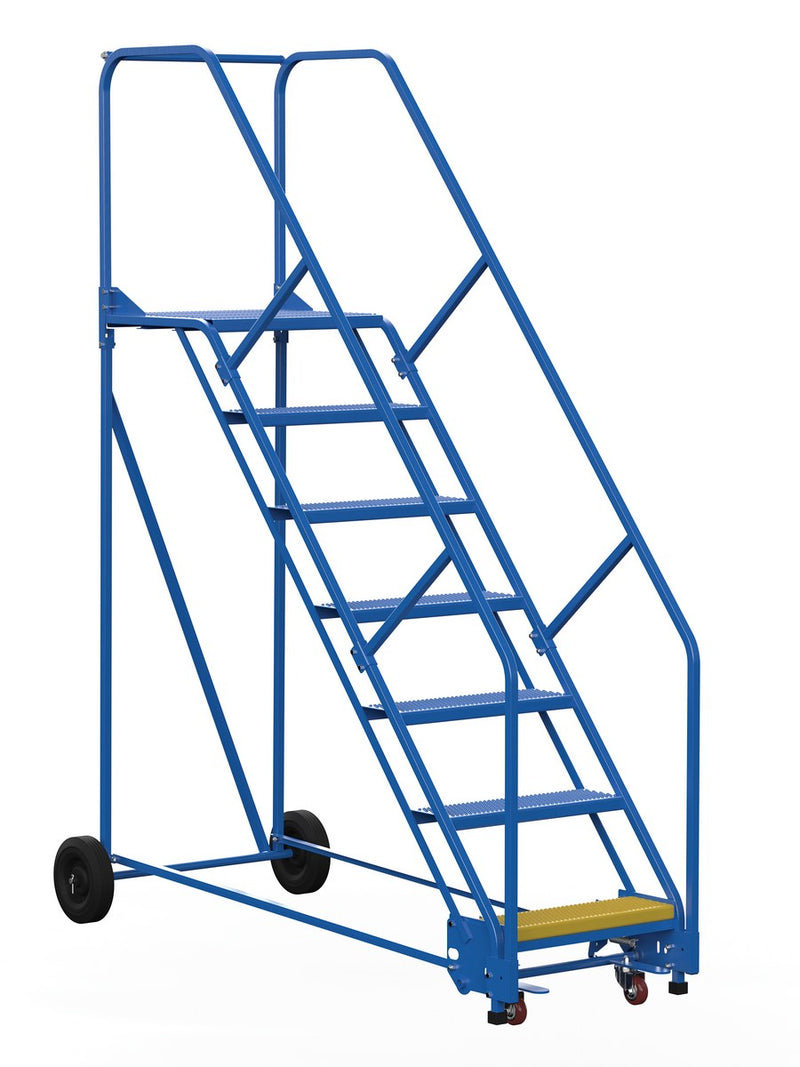

LAD-7-21-P-EZ	78-15/16 in	100 in	195 lbs
LAD-7-21-P	66-15/16 in	100 in	189 lbs
LAD-8-14-G-EZ	85-5/16 in	110 in	203 lbs

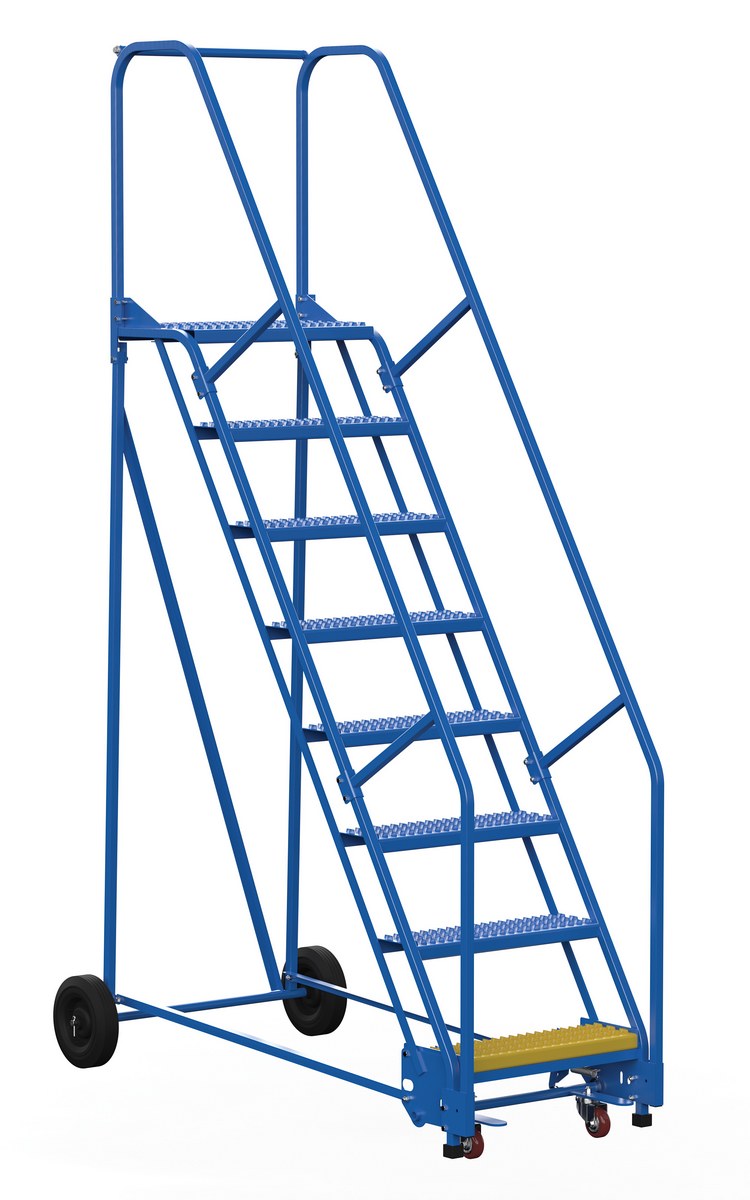

LAD-8-14-G	66-15/16 in	110 in	196 lbs

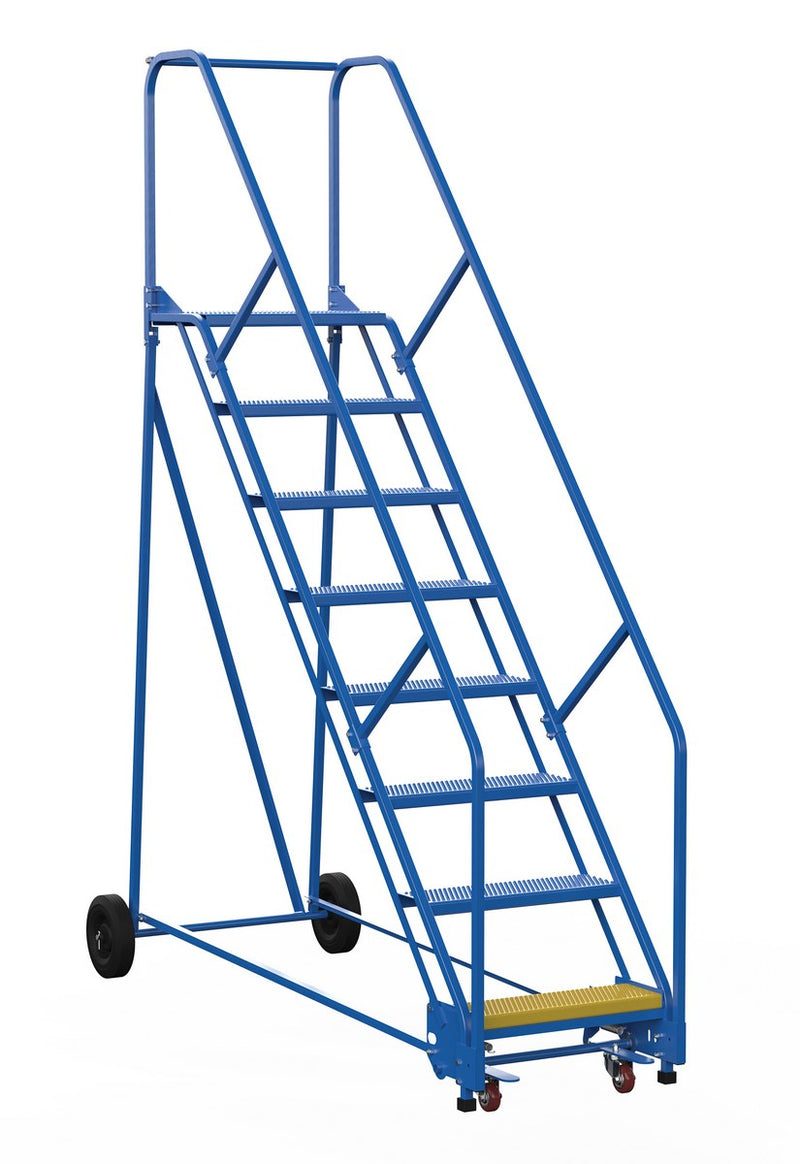

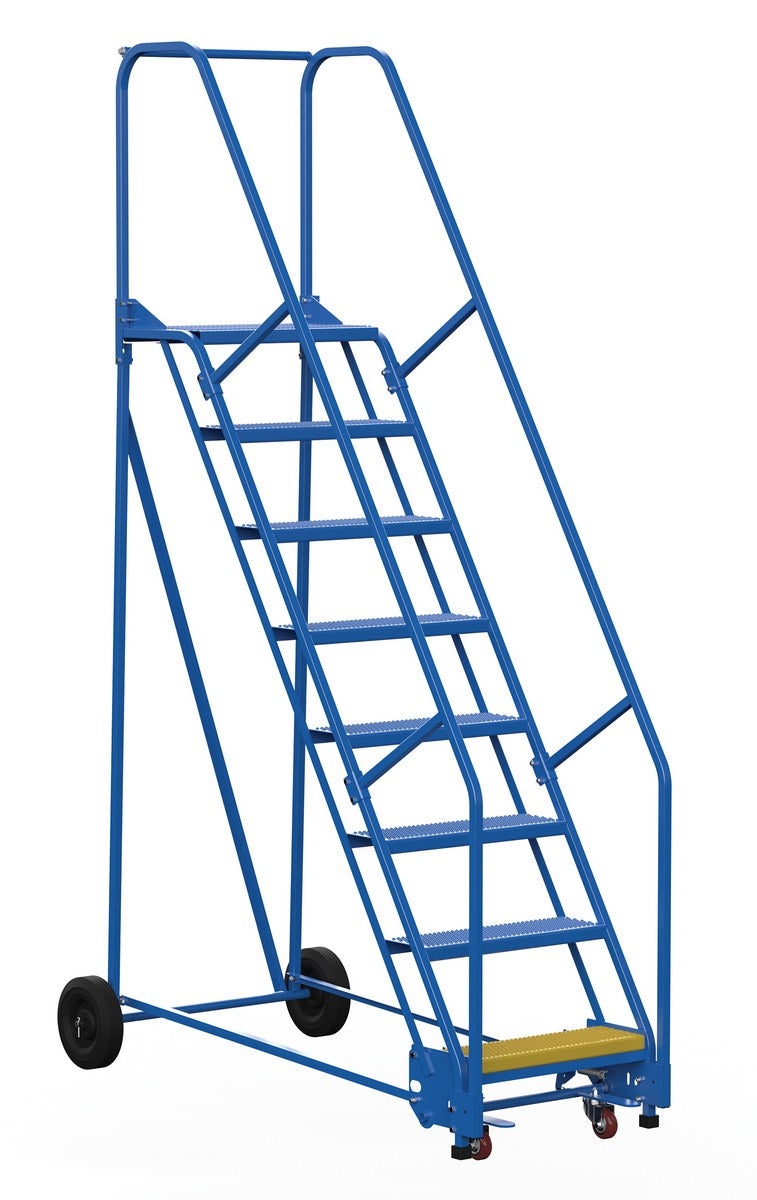

LAD-8-14-P-EZ	85-5/16 in	110 in	201 lbs
LAD-8-14-P	66-15/16 in	110 in	194 lbs
LAD-8-21-G-EZ	91-9/16 in	110 in	214 lbs
LAD-8-21-G	72-5/8 in	110 in	207 lbs
LAD-8-21-P-EZ	91-9/16 in	110 in	212 lbs

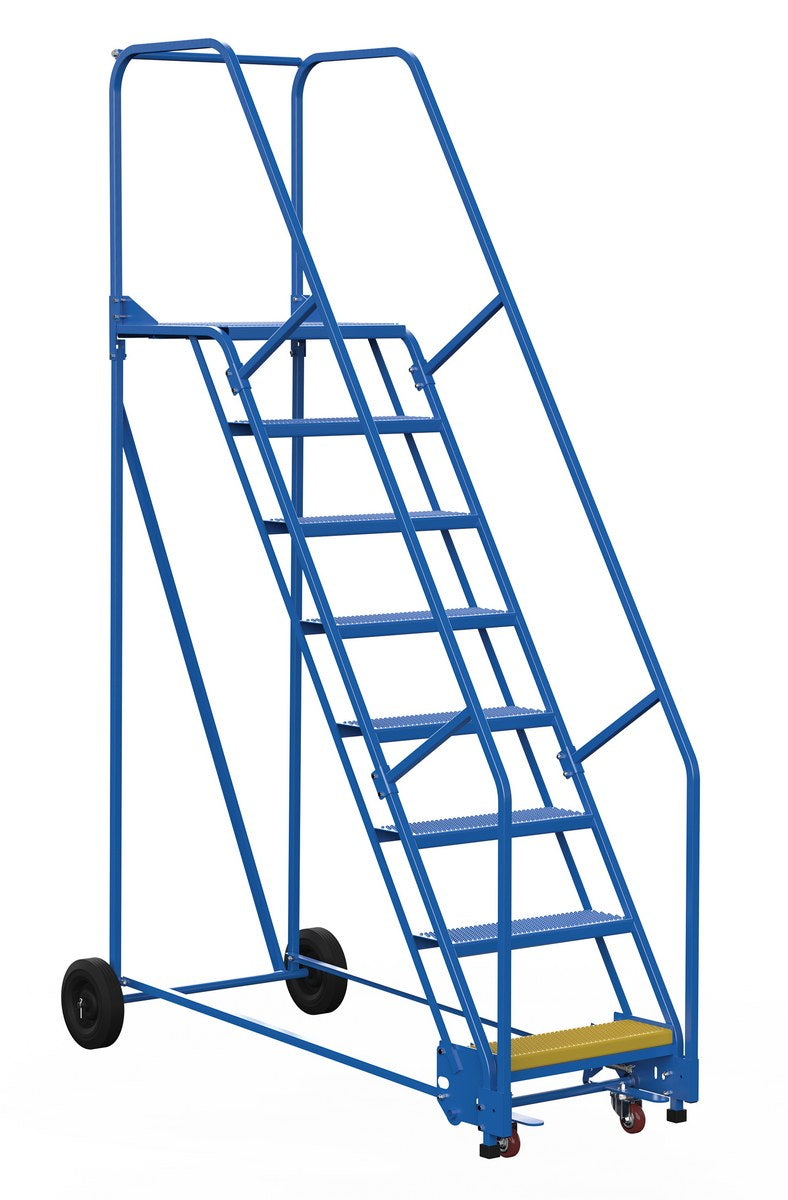

LAD-8-21-P	72-5/8 in	110 in	205 lbs
LAD-9-14-G-EZ	91-1/2 in	120 in	218 lbs
LAD-9-14-G	72-11/16 in	120 in	209 lbs
LAD-9-14-P-EZ	91-1/2 in	120 in	217 lbs
LAD-9-14-P	72-11/16 in	120 in	210 lbs
LAD-9-21-G-EZ	97-3/4 in	120 in	228 lbs

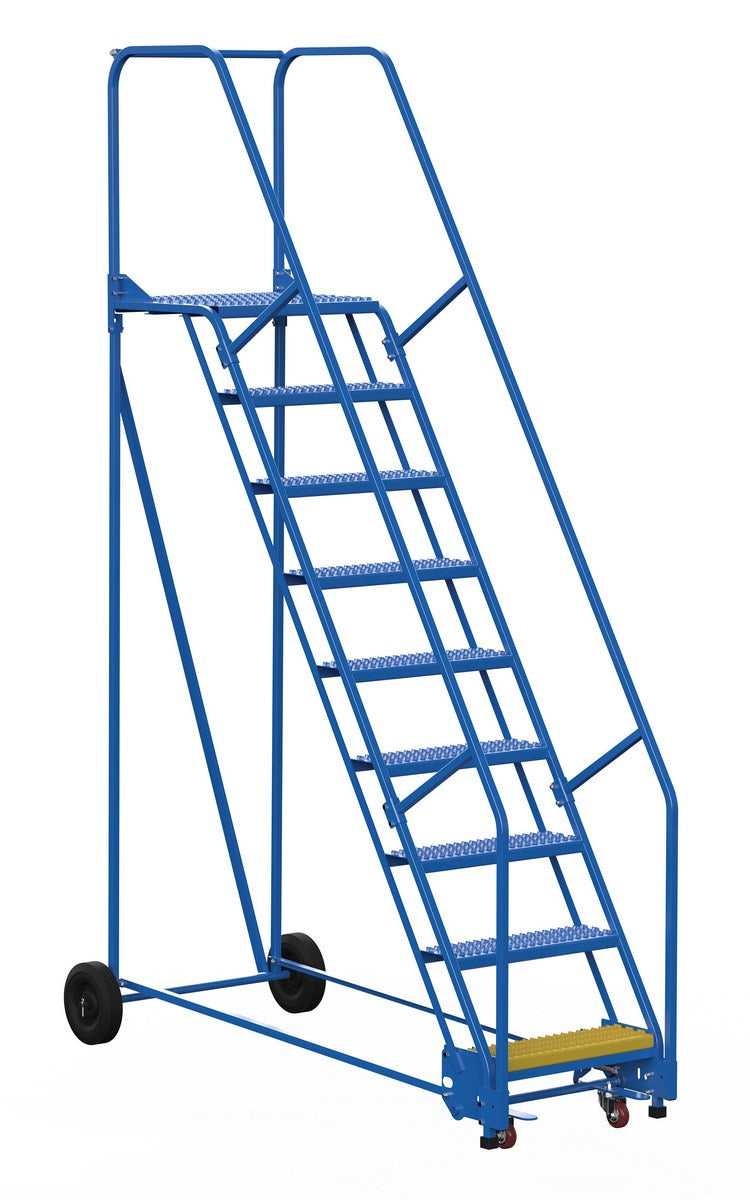

LAD-9-21-G	78-15/16 in	120 in	223 lbs
LAD-9-21-P-EZ	97-3/4 in	120 in	228 lbs

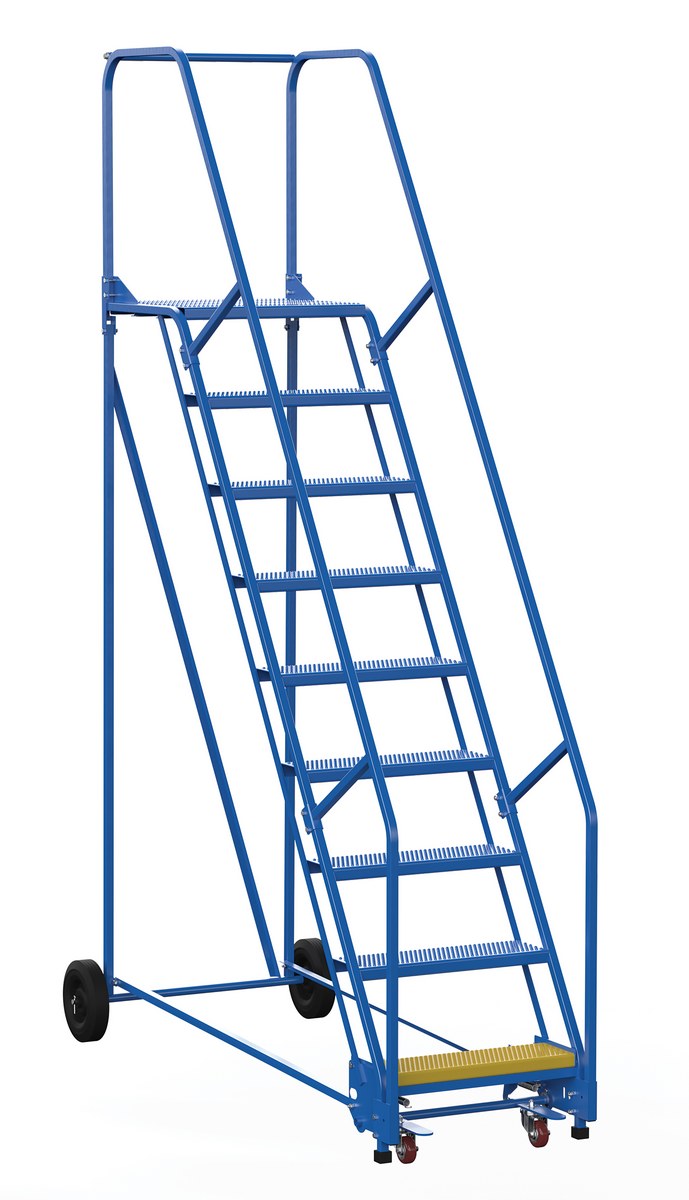

LAD-9-21-P	78-15/16 in	120 in	221 lbs
LAD-10-14-G-EZ	97-11/16 in	130 in	241 lbs
LAD-10-14-G	78-15/16 in	130 in	233 lbs
LAD-10-14-P-EZ	97-11/16 in	130 in	239 lbs
LAD-10-14-P	78-15/16 in	130 in	230 lbs

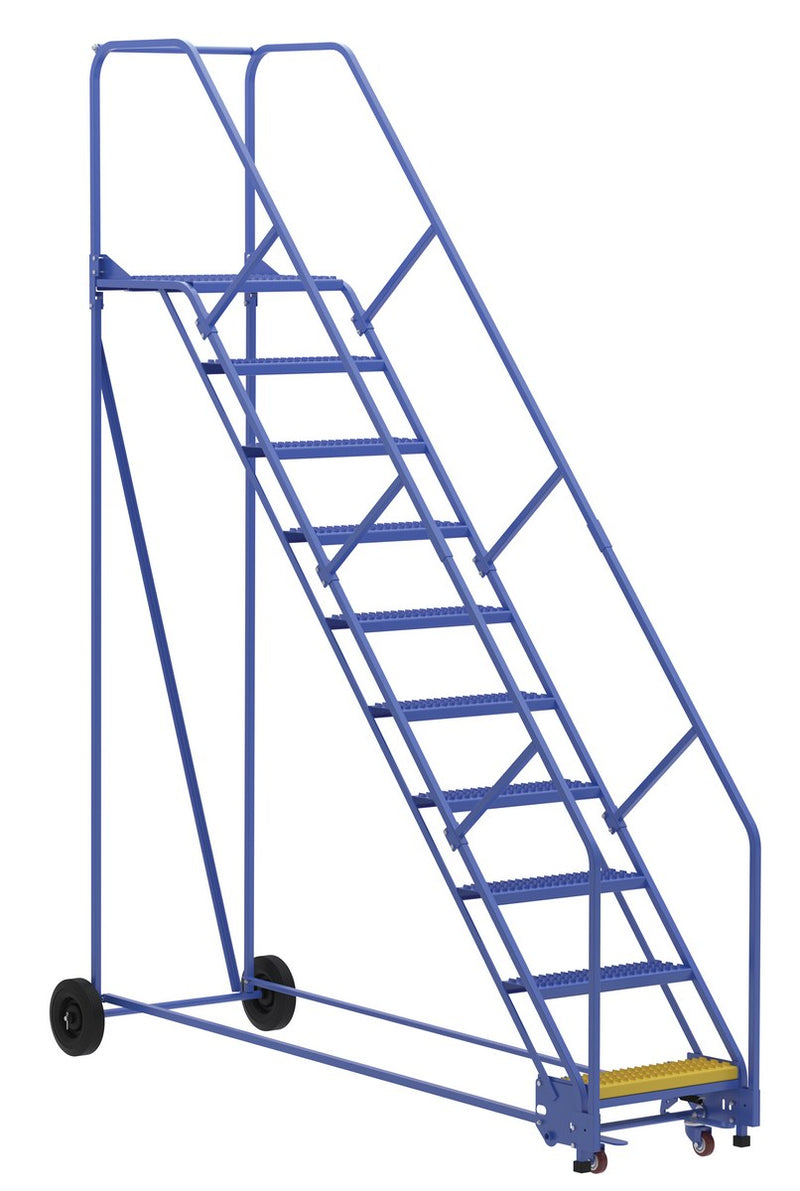

LAD-10-21-G-EZ	103-15/16 in	130 in	252 lbs

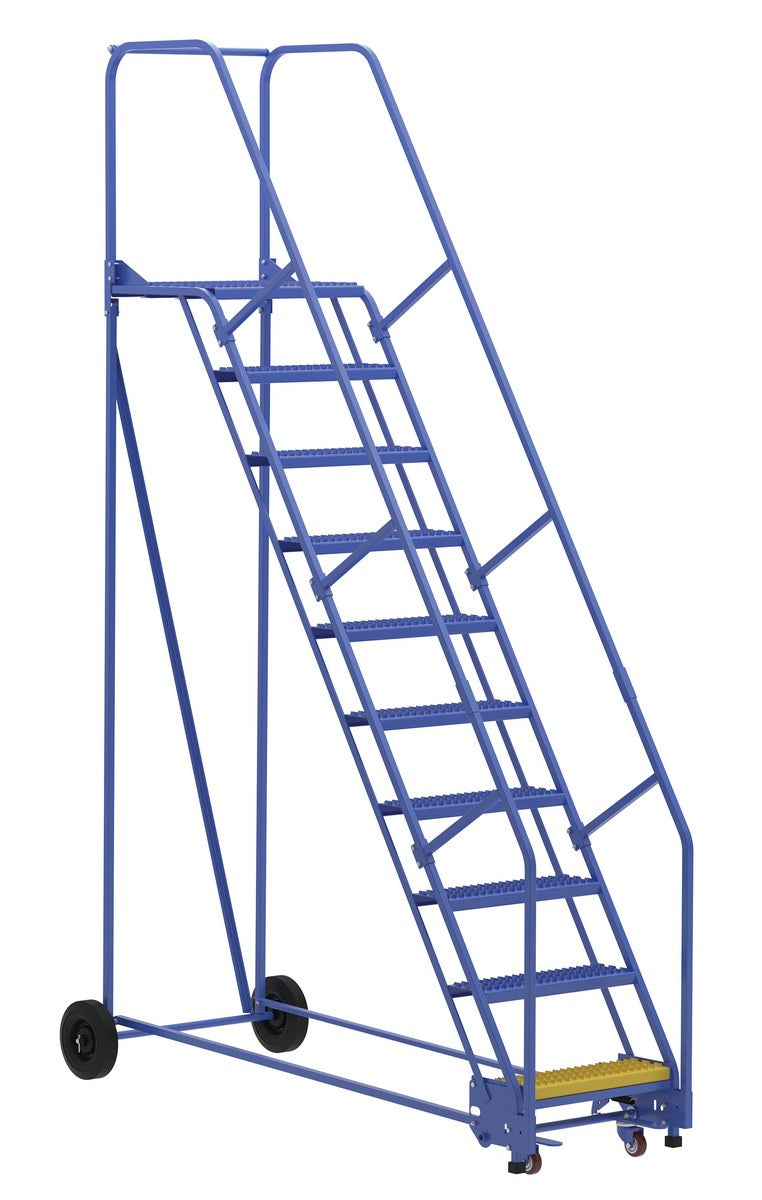

LAD-10-21-G	85-3/16 in	130 in	244 lbs

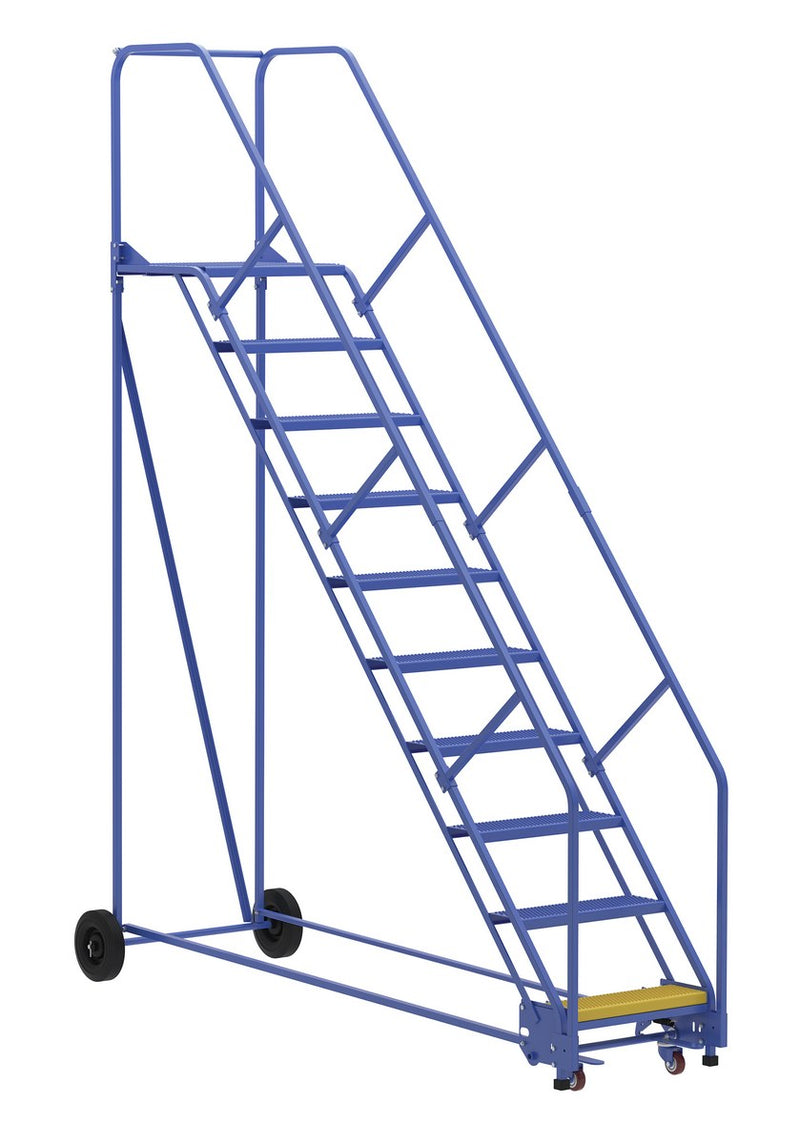

LAD-10-21-P-EZ	103-15/16 in	130 in	250 lbs

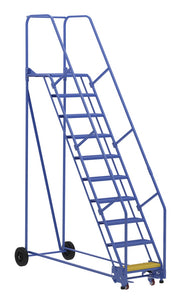

LAD-10-21-P	85-3/16 in	130 in	241 lbs

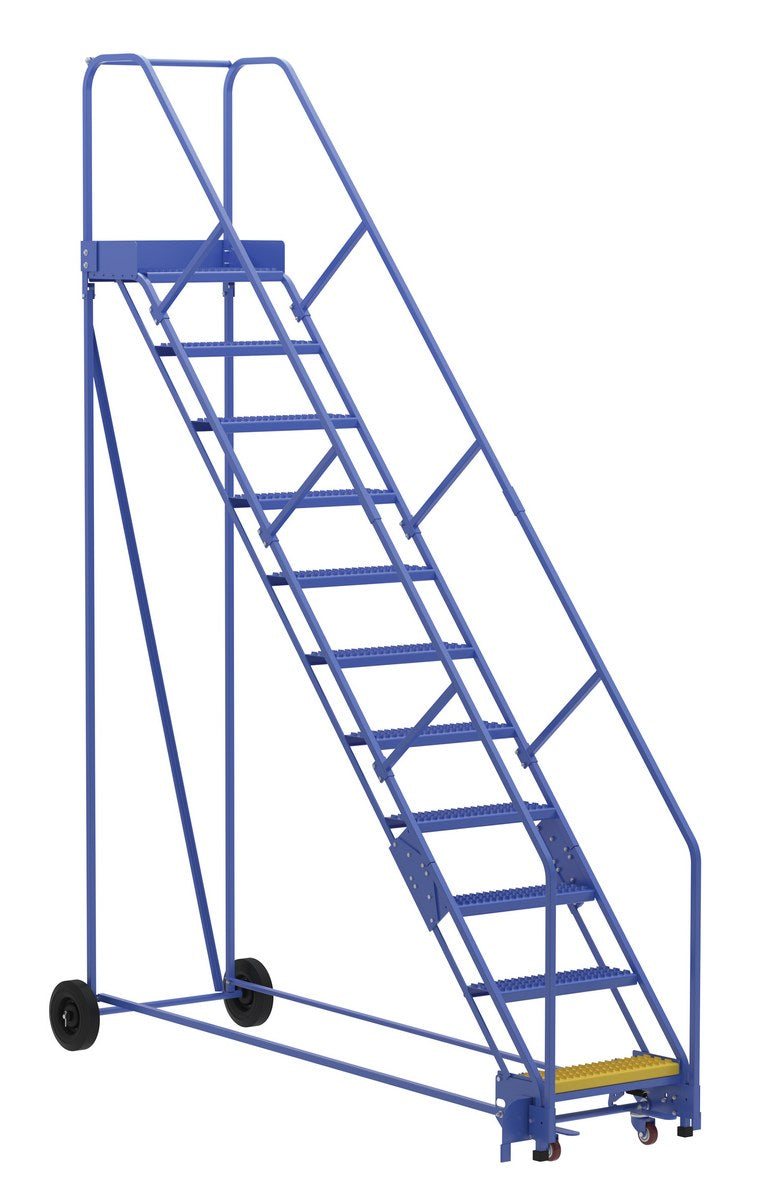

LAD-11-14-G-EZ	103-7/8 in	140 in	285 lbs
LAD-11-14-G	85-1/16 in	140 in	276 lbs
LAD-11-14-P-EZ	103-7/8 in	140 in	282 lbs

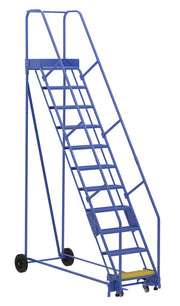

LAD-11-14-P	85-1/16 in	140 in	273 lbs

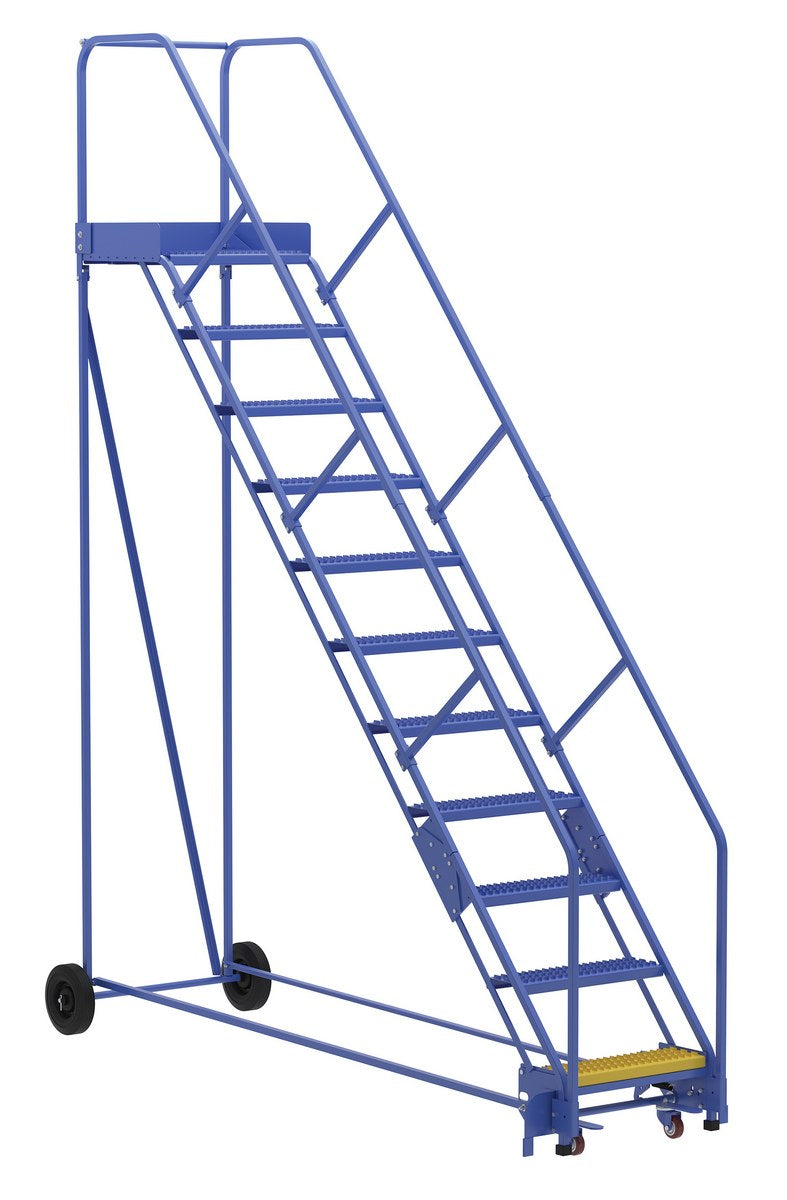

LAD-11-21-G-EZ	110-7/8 in	140 in	298 lbs
LAD-11-21-G	91-1/4 in	140 in	289 lbs

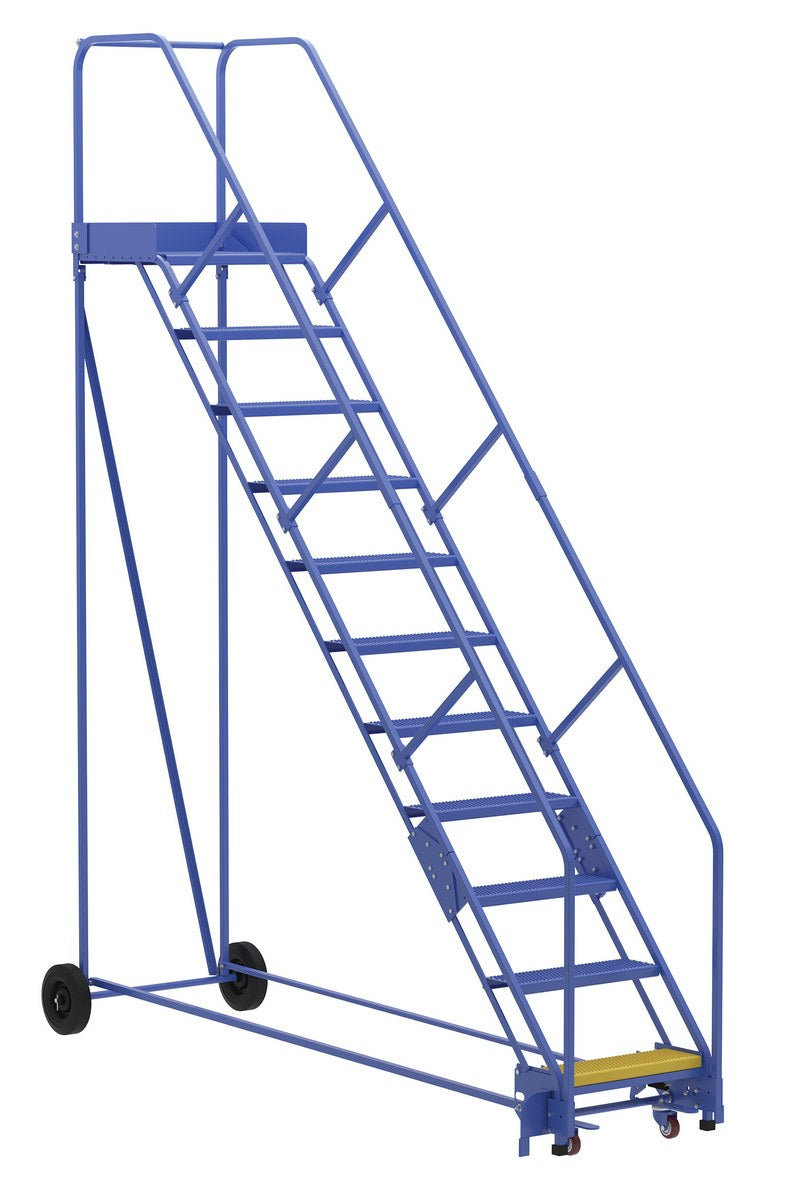

LAD-11-21-P-EZ	110-7/8 in	140 in	295 lbs
LAD-11-21-P	91-1/4 in	140 in	286 lbs
