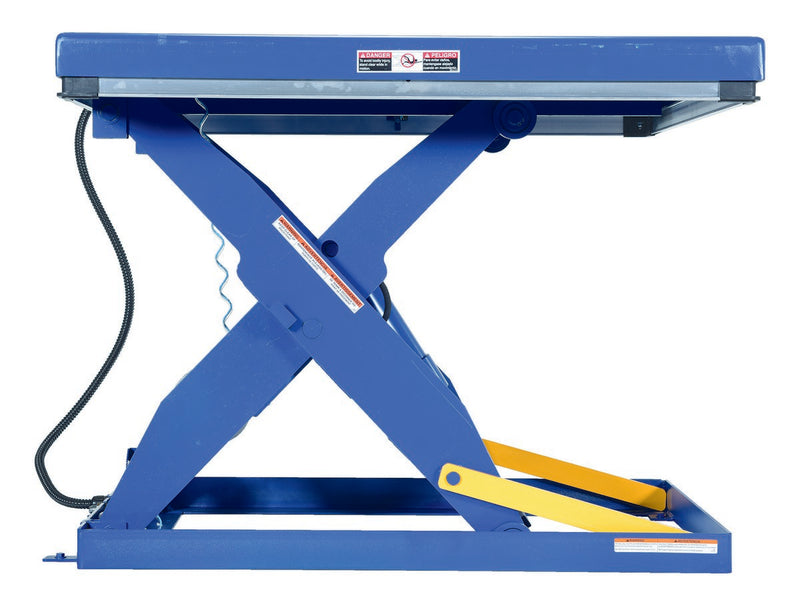

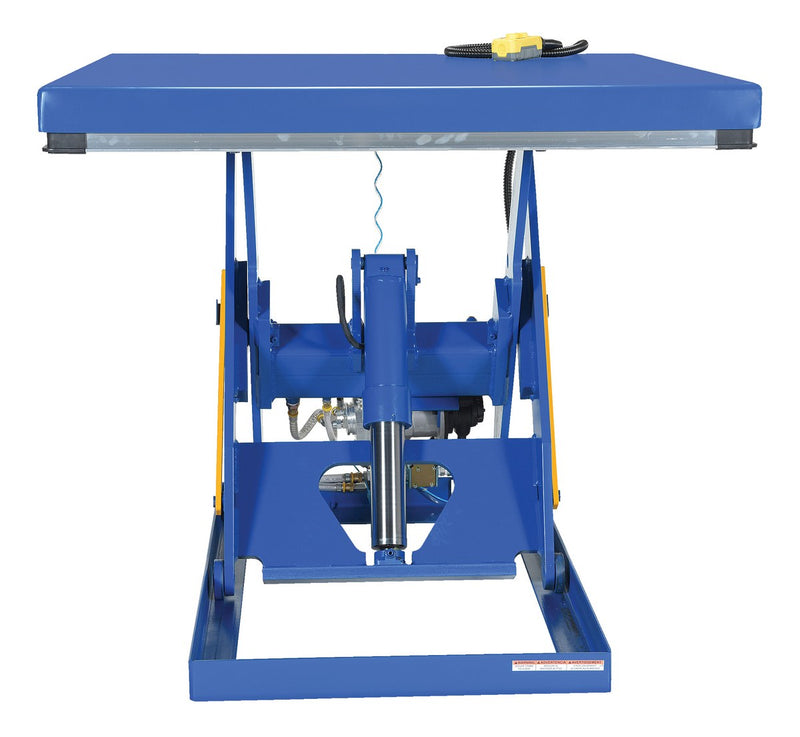

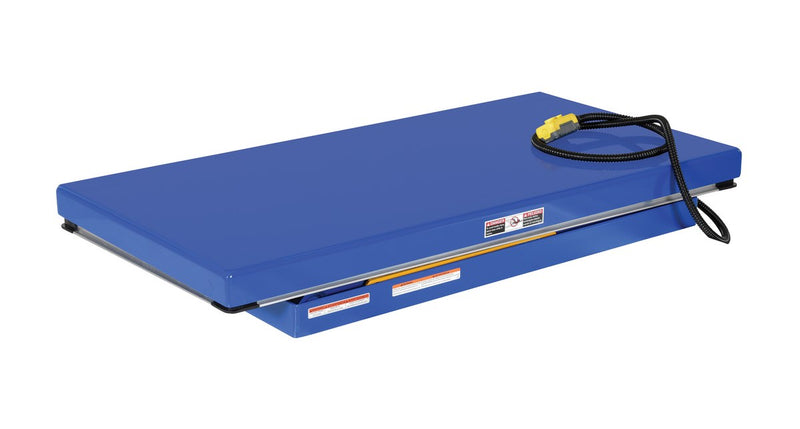

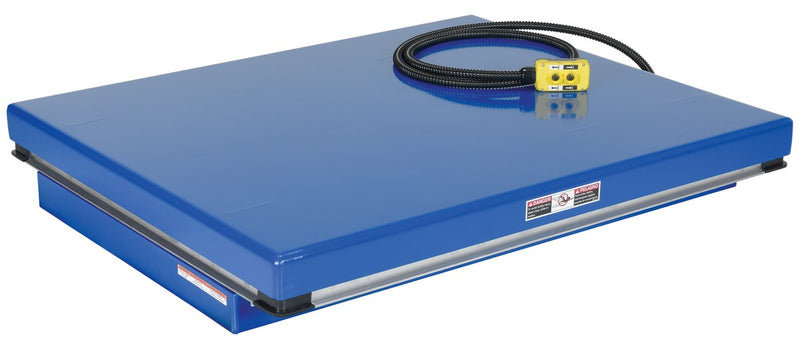

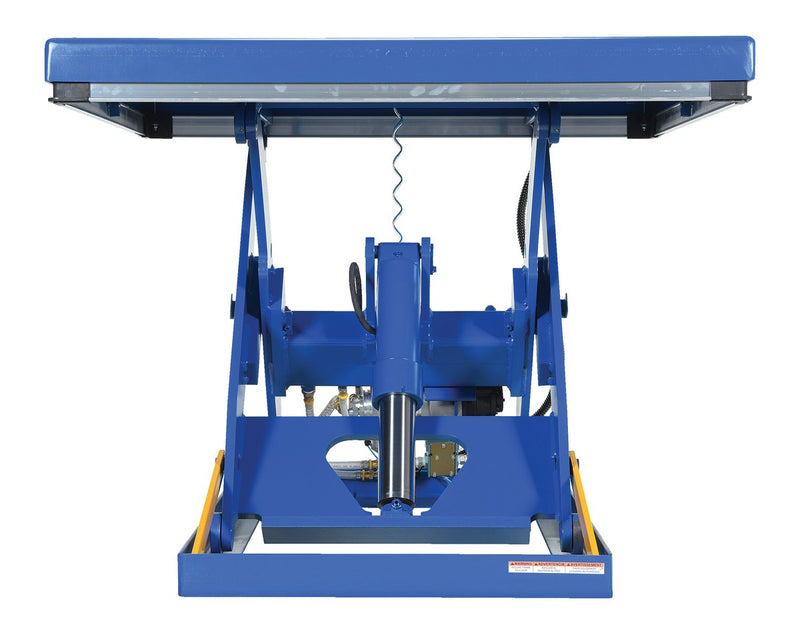

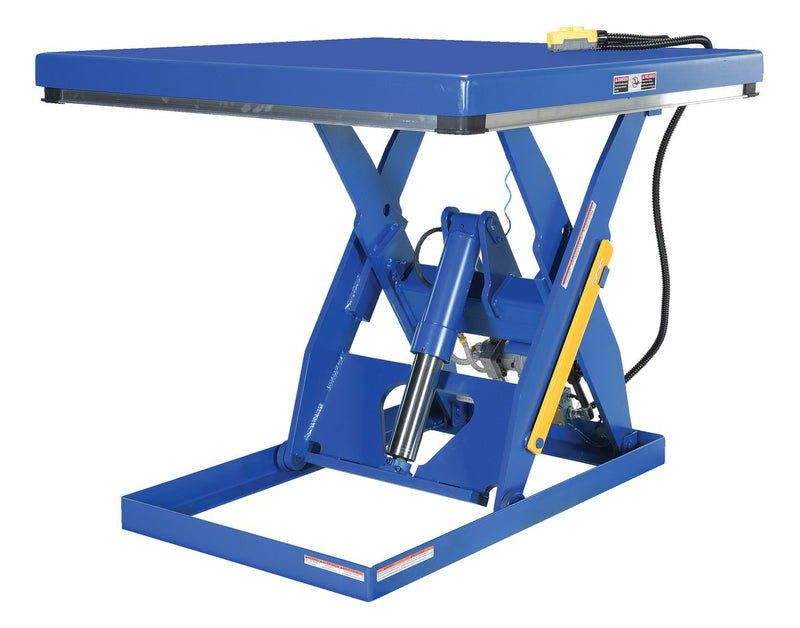

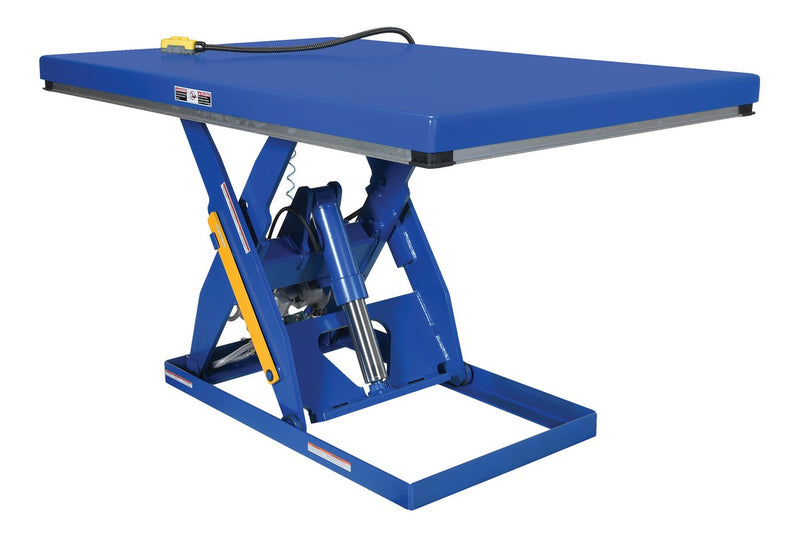

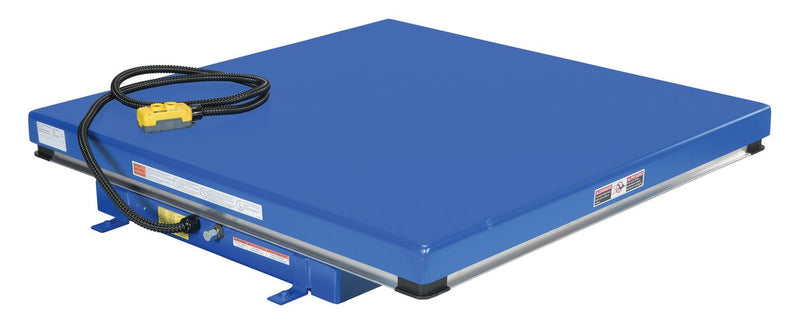

Vestil Rotary Air Hydraulic Scissor Lift Tables

Brand: Vestil SKU: AHLT-2448-3-43 Only 2 left
Authorized dealer
$5,769.00 - $5,945.99
$5,845.99
$5,769.00 - $5,945.99
$5,845.99

Product Highlights

  • Rotary air-driven hydraulic tables
  • Filtered and regulated air connection
  • Two-button pendant control
Ships in 50 business days
Capacity: 3,000 lb
Nominal Platform Size: 24 in x 4 ft
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Instruction manual PDFWarranty PDF

Overview

Main Specifications

MPN AHLT-2448-3-43
Capacity 3,000 lb
Overall width 24-3/8 in
Overall length 51 in
Overall height 7 in
Platform width 24-3/8 in
Platform length 48-3/8 in
Assembled weight 606 lbs
Material Steel
Color / finish Blue

Vestil Rotary Air Hydraulic Scissor Lift Tables

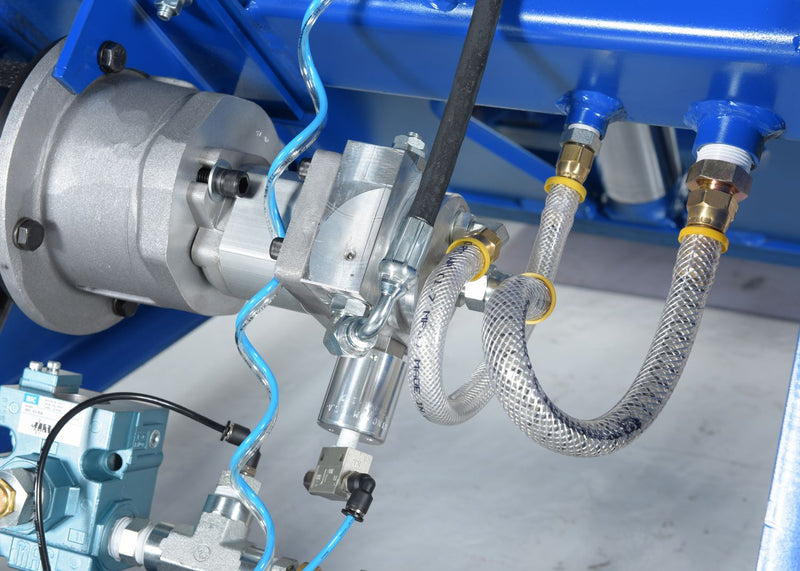

Power a hydraulic scissor lift from factory air with a rotary air/hydraulic table. Connect the supply through a filter, regulator and lubricator.

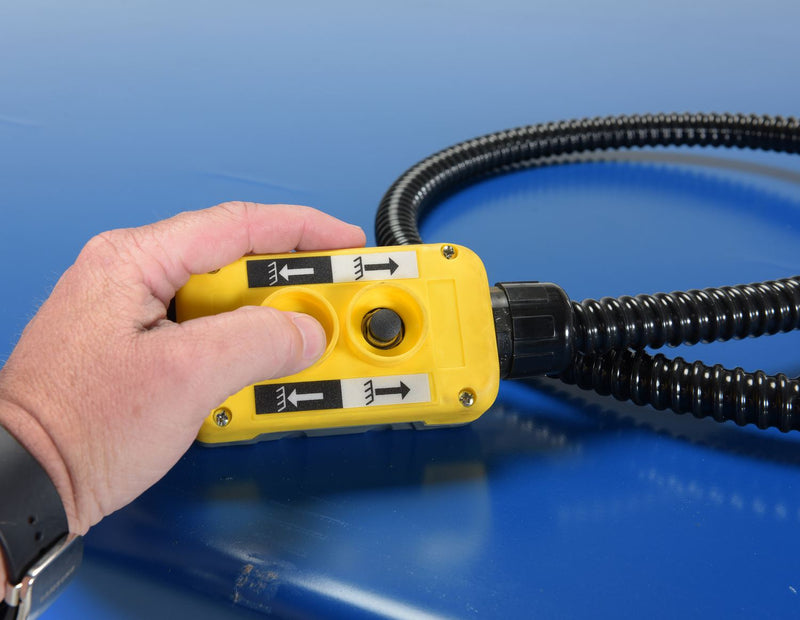

A two-button hand control operates the lift. Pneumatic upper travel limits, toe guards and an internal cylinder safety velocity fuse support platform movement.

Rotary Air Hydraulic Scissor Lift Tables Features

  • Factory-air hydraulic drive
  • Two-button hand control
  • Pneumatic upper travel limit
  • Cylinder safety velocity fuse
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Platform Raised Height (in.) 43
Platform Lowered Height (in.) 7
Minimum Supply (in.) 3/4
Air Inlet Size (in.) 1/2
Minimum (psi) 80
Minimum (cfm) 80
Control Handheld, 2 Button Pendant
Pneumatic Toeguards OSHA Compliance 1910-53/250
Power Source Pneumatic
Scale Included No
Operation Method Hand Operated
Portable No
Number of Casters / Wheels No Wheels / Casters
Maximum Travel Distance (in) 36

Shipping

Ship weight 662 lbs
Freight Type LTL Palletized
Package Width (in) 56
Package Depth (in) 36
Package Height (in) 16
Freight Class 55
Country of Origin Name US

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts
Manufacturer Warranty #2 90 Days
Warranty Type #2 Wearable Parts warranty

Size & Specification Comparison

All models: Capacity: 3,000 lb · Overall height: 7 in · Material: Steel · Color / finish: Blue

Compare all sizes & specifications
Vestil Rotary Air Hydraulic Scissor Lift Tables: specifications by model
ModelOverall widthOverall lengthPlatform widthPlatform lengthAssembled weight
AHLT-2448-3-4324-3/8 in51 in24-3/8 in48-3/8 in606 lbs
AHLT-3060-3-4330-3/8 in60-3/8 in30-3/8 in60-3/8 in703 lbs
AHLT-4048-3-4340-3/8 in51 in40-3/8 in48-3/8 in700 lbs
AHLT-4848-3-4348-3/8 in51 in48-3/8 in48-3/8 in732 lbs
AHLT-4872-3-4348-3/8 in72-3/8 in48-3/8 in72-3/8 in845 lbs
