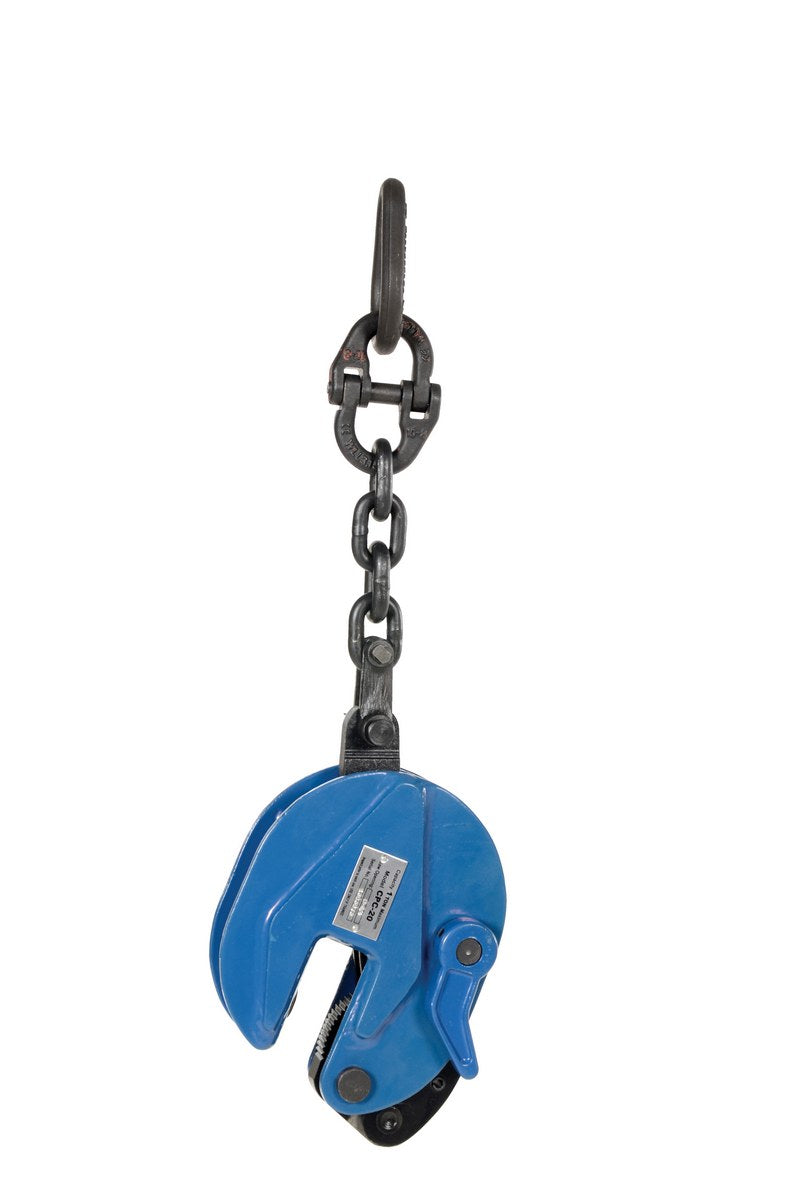

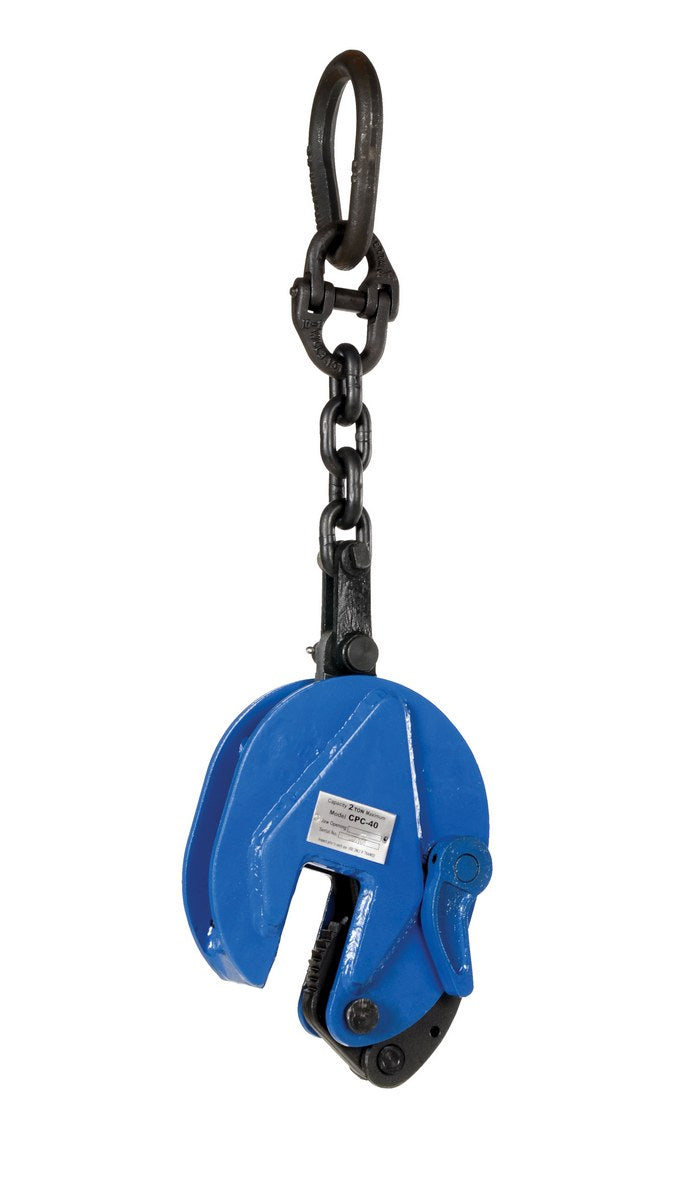

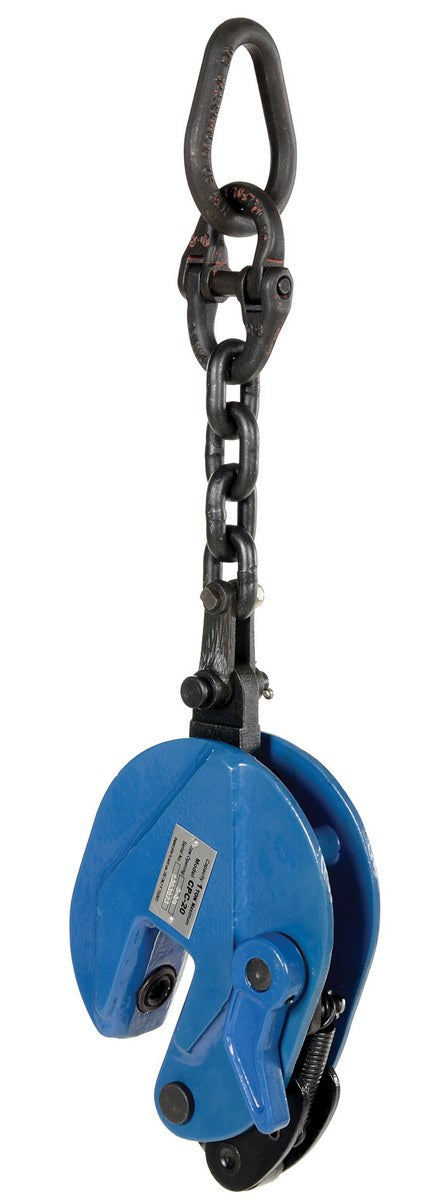

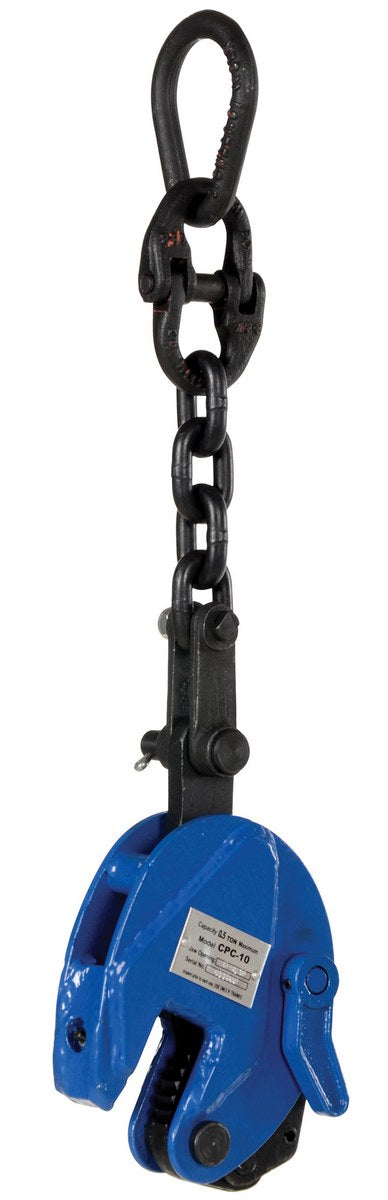

Vestil Vertical Plate Clamps with Chain

Brand: Vestil SKU: CPC-40 12 in stock
Authorized dealer
$313.99 - $539.00
$539.00
$313.99 - $539.00
$539.00

Free shipping on this item

Product Highlights

  • Chain-equipped lifting eye
  • Vertical plate orientation
  • Steel clamp construction
Ships in 2 business days
Capacity: 4,000 lb
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Instruction manual PDFWarranty PDF

Overview

Main Specifications

MPN CPC-40
Material Steel
Overall Width (in.) 2-3/4
Overall Length (in.) 7
Overall Height (in.) 23-1/2
Assembled Weight 16 lbs
Uniform Working Load Limit (lb.) 4,000
Color / Finish Blue

Vestil Vertical Plate Clamps with Chain

Lift plate material vertically with a steel clamp whose lifting eye includes a chain. The chain provides flexibility at the connection to the lifting equipment.

Choose a chain-equipped clamp for the plate thickness and working load shown in its specifications. These models are not designed for stainless steel or aluminum plate and support material with a surface hardness up to 30 RC (300 HB).

Vertical Plate Clamps with Chain Features

  • Chain included at the lifting eye
  • Vertical plate clamp orientation
  • Steel construction for plate handling
  • Plate thickness and load ratings vary by model
Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components and wearing parts: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Min Uniform Plate Weight (lb.) 800
Throat Depth (in.) 3
Bale Opening (in.) 3.75
Maximum Jaw Opening (in.) 1-1/2
Overall Thickness (in.) 2
Clamp Lock Mechanism Automatic
Minimum Plate Thickness (in.) 0
Maximum Plate Thickness (in.) 1
Lifting Clamp Type Plate Clamp
Lifting Clamp Style Vertical

Shipping

Freight Type Parcel
Freight Class 60

Warranty

Manufacturer Warranty 90 Days
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Color / Finish: Blue

Compare all sizes & specifications
Vestil Vertical Plate Clamps with Chain: specifications by model
ModelOverall Width (in.)Overall Length (in.)Overall Height (in.)Assembled WeightUniform Working Load Limit (lb.)
CPC-101-1211/1250416-7/85 lbs1,000
CPC-202-1/26-1/22214 lbs2,000
CPC-402-3/4723-1/216 lbs4,000
