TG-1200-ROLL, TG-1600-ROLL, TG-600-ROLL, TG-800-ROLL

Vestil Clear Vinyl Strip Door Material Rolls

Name: Vestil Clear Vinyl Strip Door Material Rolls
Brand: Vestil
Price: 709.0 USD
Availability: InStock

Brand: Vestil SKU: TG-600-ROLL Only 1 left

Authorized dealer

$499.00 - $887.99

$709.00

$499.00 - $887.99

$709.00

Free shipping on this item

Product Highlights

Clear strip material supplied in rolls
Smooth PVC vinyl
Strip-width and roll-length choices

Ships in 2 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Warranty PDF

Overview

Main Specifications

MPN TG-600-ROLL

Overall width 6 in

Overall length 3/50 in

Overall height 3600 in

Assembled weight 36 lb

Material PVC Vinyl

Color / finish Clear

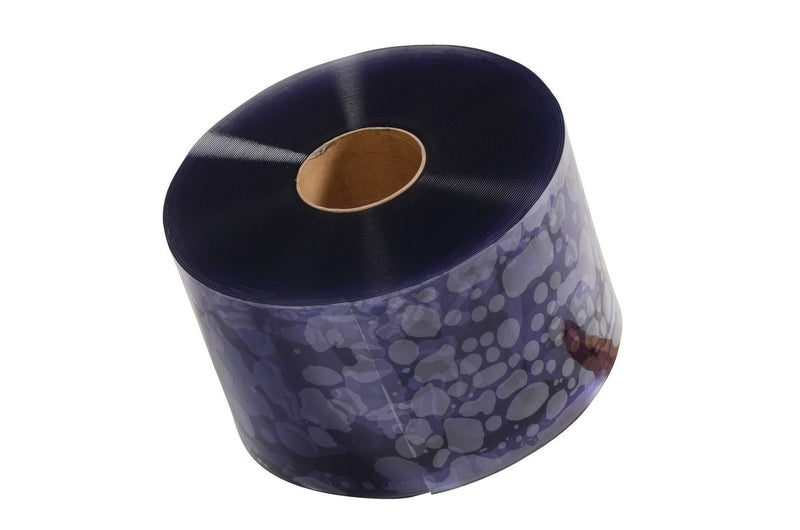

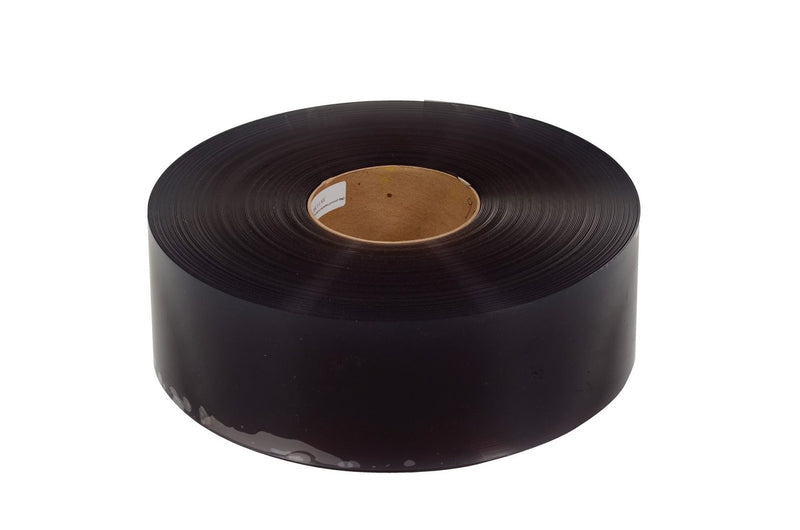

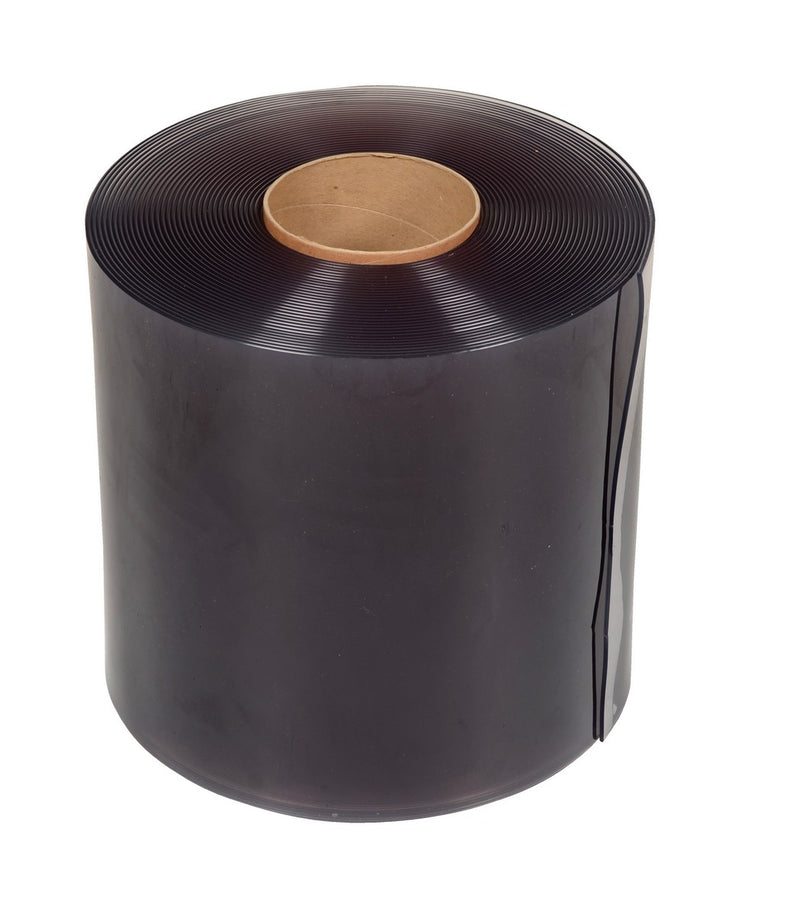

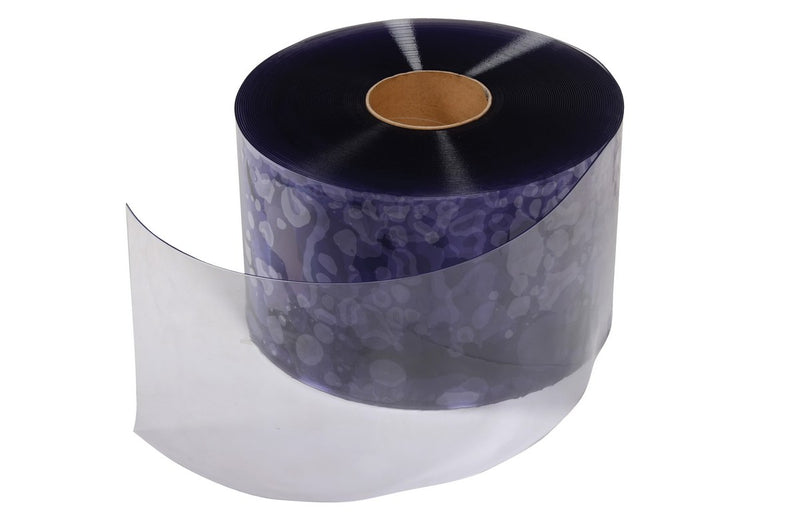

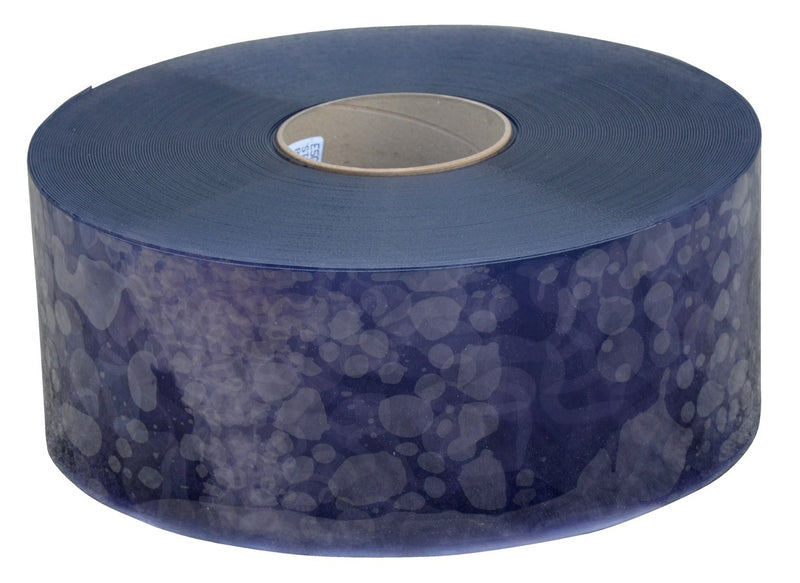

Vestil Clear Vinyl Strip Door Material Rolls

Cut clear vinyl strip door material from a roll to add strips or renew damaged ones. The smooth vinyl allows visibility through the doorway.

Choose the roll width and nominal roll length to match the doorway arrangement. The rolls provide material for strip replacement or additions.

Clear Vinyl Strip Door Material Rolls Features

Clear PVC vinyl material
Smooth strip surface
Rolls for cutting strips to length
Helps limit doorway drafts

Warranty

Vestil 90-Day Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components and wearing parts: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Tensile Strength (PSI)		2635
Maximum Tensile Elongation (percent)		388
Graves Tear Load (lb.)		35.4
Graves Tear Extension (in.)		2.07
Load at 100% Elongation (lbs.)		32.2
Strength at 100% Elongation (PSI)		1181
Stiffness in Flexure -23 degrees Celsius (PSI)		1805
Brittleness Temperature by Impact (degrees Celsius)		35
Recommended Operating Temperature - Range (degrees Fahrenheit)		-10 to 140
Specific Gravity		1.22
Haze Transmittance (percent)		6.30
Luminous Transmittance (percent)		82.80
Package Quantity		1

Shipping

Total Ship Weight		56 lbs
Package 1 Size		18"W x 18"D x 7"H
Freight Type		Parcel
Freight Class		125
Country of Origin Name		US

Warranty

Manufacturer Warranty		90 Days
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: PVC Vinyl · Color / finish: Clear

Compare all sizes & specifications

Vestil Clear Vinyl Strip Door Material Rolls: specifications by model
Model	Overall width	Overall length	Overall height	Assembled weight
TG-600-ROLL	6 in	3/50 in	3600 in	36 lb
TG-800-ROLL	8 in	2/25 in	3600 in	107 lb
TG-1200-ROLL	12 in	3/25 in	2400 in	128 lb
TG-1600-ROLL	16 in	4/25 in	1200 in	146 lb
