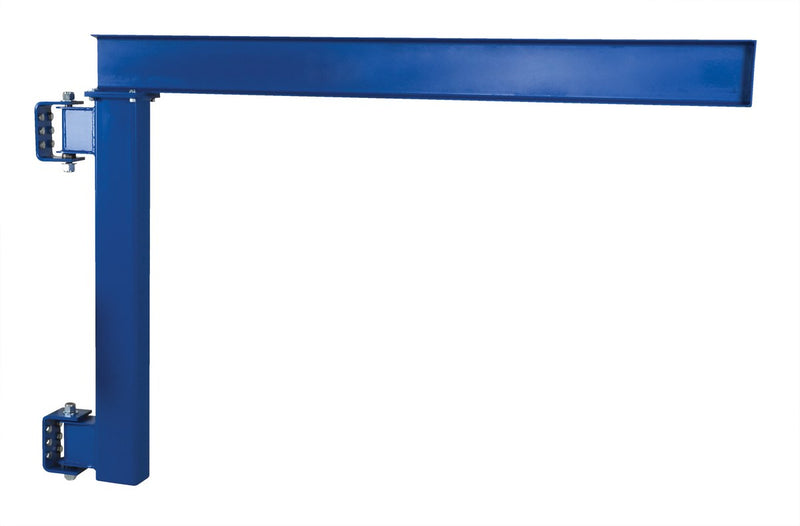

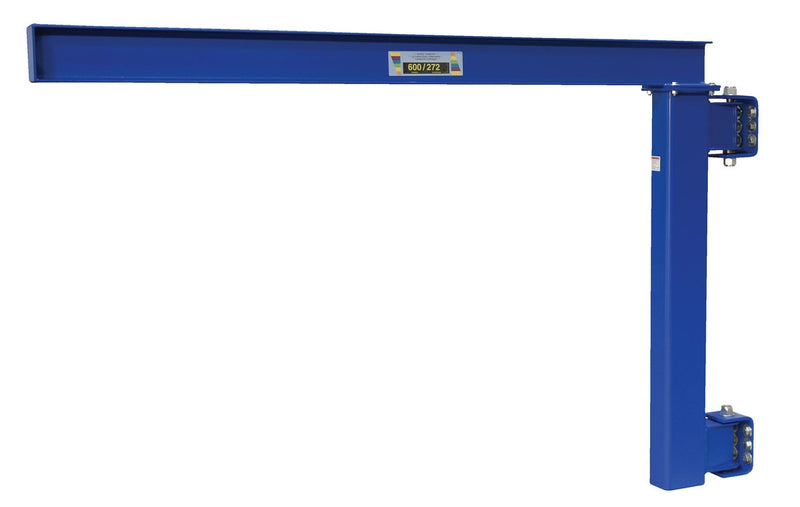

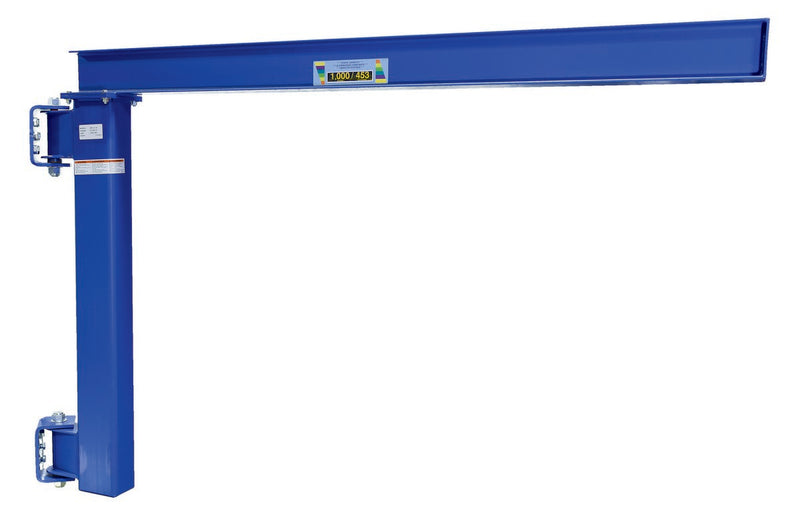

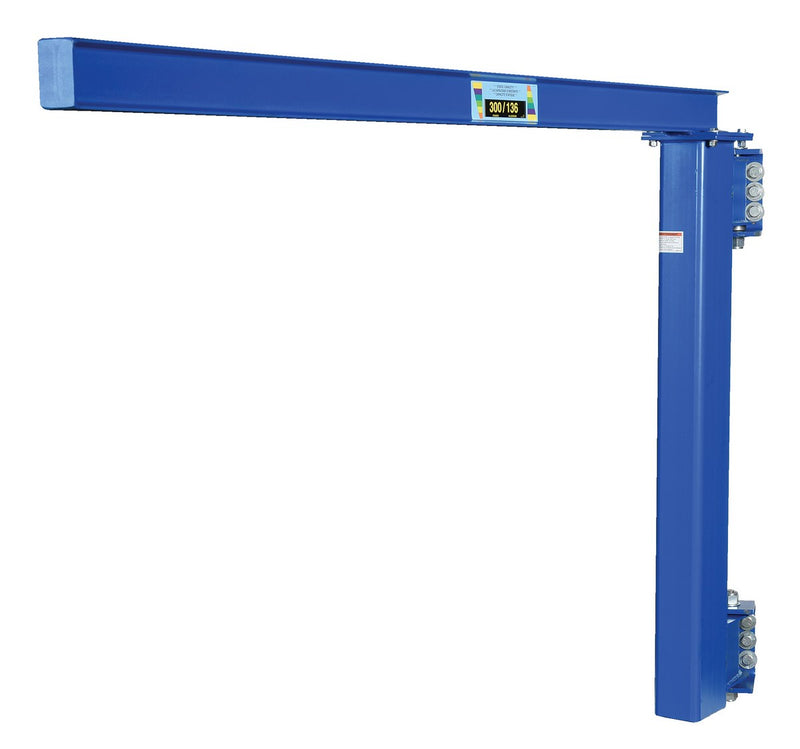

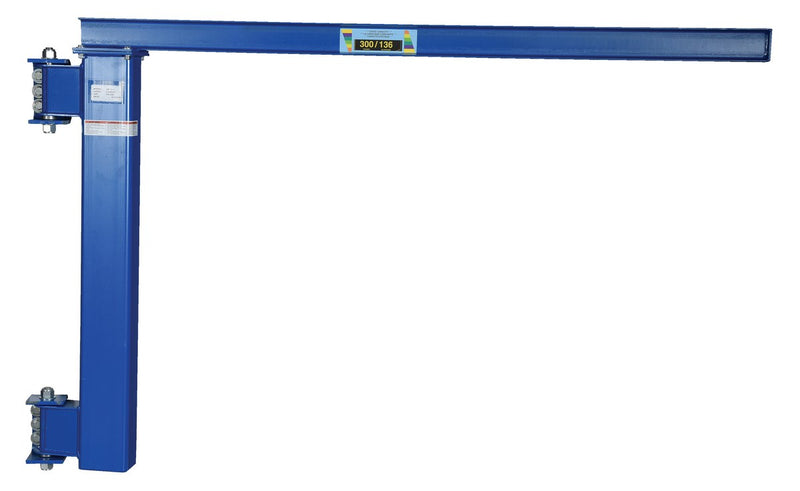

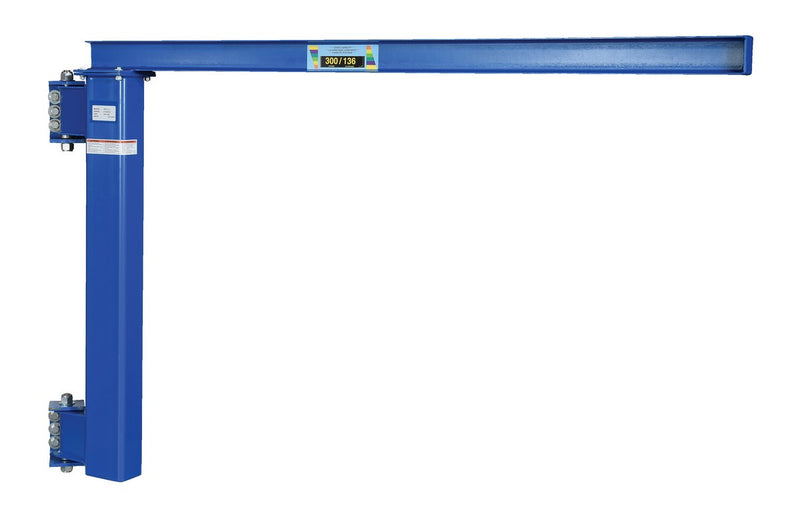

JIB-LC-10, JIB-LC-20, JIB-LC-3, JIB-LC-6

Vestil Wall Jibs

Name: Vestil Wall Jibs
Brand: Vestil
Price: 1239.0 USD
Availability: InStock

Brand: Vestil SKU: JIB-LC-10 Only 2 left

Authorized dealer

$1,239.00 - $1,285.99

$1,239.00

$1,239.00 - $1,285.99

$1,239.00

Product Highlights

Wall Jibs
Wall jib design assists workers in the maneuvering of materials
Achieves maximum headroom where low ceilings are of concern

Ships in 40 business days

Quantity

Estimated delivery:

Ships direct from Vestil

Genuine, full warranty
30-day returns See the return policy
Only CA orders are taxed
Mon–Fri 9 AM–6 PM PT

Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

Instruction manual PDF Warranty PDF

Overview

Main Specifications

MPN JIB-LC-10

Material Steel

Overall Width (in.) 8

Overall Length (in.) 96-1/8

Overall Height (in.) 63-1/4

Assembled Weight 292 lbs

Uniform Capacity (lb.) 1,000

Color / Finish Blue

Vestil Wall Jibs

Maneuver loads with wall jibs and a compatible lifting device.

Check the beam, mounting and operating-clearance requirements of the selected wall jibs before installation.

Wall Jibs Features

Wall jib design assists workers in the maneuvering of materials
Achieves maximum headroom where low ceilings are of concern
Cantilever style jib mounts to true vertical wall members
Increase personnel productivity by lifting awkward material capacities

Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
Vestil provides a replacement for a covered part. Labor and freight are not covered.
Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Under I-Beam to Bottom Frame (in.)		57-1/4
I-Beam (Flange x Height) (in.)		4 x 6
Overall I-Beam Length (in.)		88
Usable I-Beam Length (in.)		80
Rotation Degree		180
Operation Mode		Manual
Overall Jib Length (in.)		96-1/8
Beam Height (in)		6
Beam Length (in)		80
Flange Width (in)		4
Maximum Rotation ()		180
Tie Rod Length (in)		80
Tie Rod Diameter (in)		0
Installation Hardware Included		No

Shipping

Total Ship Weight		399 lbs
Package 1 Size		44"W x 96"D x 15"H
Freight Type		LTL Palletized
Freight Class		100
Country of Origin Name		US

Warranty

Manufacturer Warranty		1 Year
Warranty Type		Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Overall Width (in.): 8 · Overall Length (in.): 96-1/8 · Color / Finish: Blue

Compare all sizes & specifications

Vestil Wall Jibs: specifications by model
Model	Overall Height (in.)	Assembled Weight	Uniform Capacity (lb.)
JIB-LC-10	63-1/4	292 lbs	1,000
JIB-LC-20	67-3/8	329 lbs	2,000
JIB-LC-3	61-1/4	259 lbs	300
JIB-LC-6	63-1/4	292 lbs	600
