Vestil Work Area Portable Steel Gantry Cranes

Brand: Vestil SKU: FPG-10 Only 2 left
Authorized dealer
$1,155.99 - $2,019.00
$1,589.00
$1,155.99 - $2,019.00
$1,589.00

Product Highlights

  • Work Area Portable Steel Gantry Cranes
  • For light-duty material lifting
  • Lightweight design allows for easy mobility
Ships in 2 business days
Capacity: 1,000 lb
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Instruction manual PDFWarranty PDF

Overview

Main Specifications

MPN FPG-10
Material Steel
Overall Width (in.) 47-3/4
Overall Length (in.) 81-1/2
Overall Height (in.) 94
Assembled Weight 330 lbs
Uniform Capacity (lb.) 1,000
Color / Finish Blue

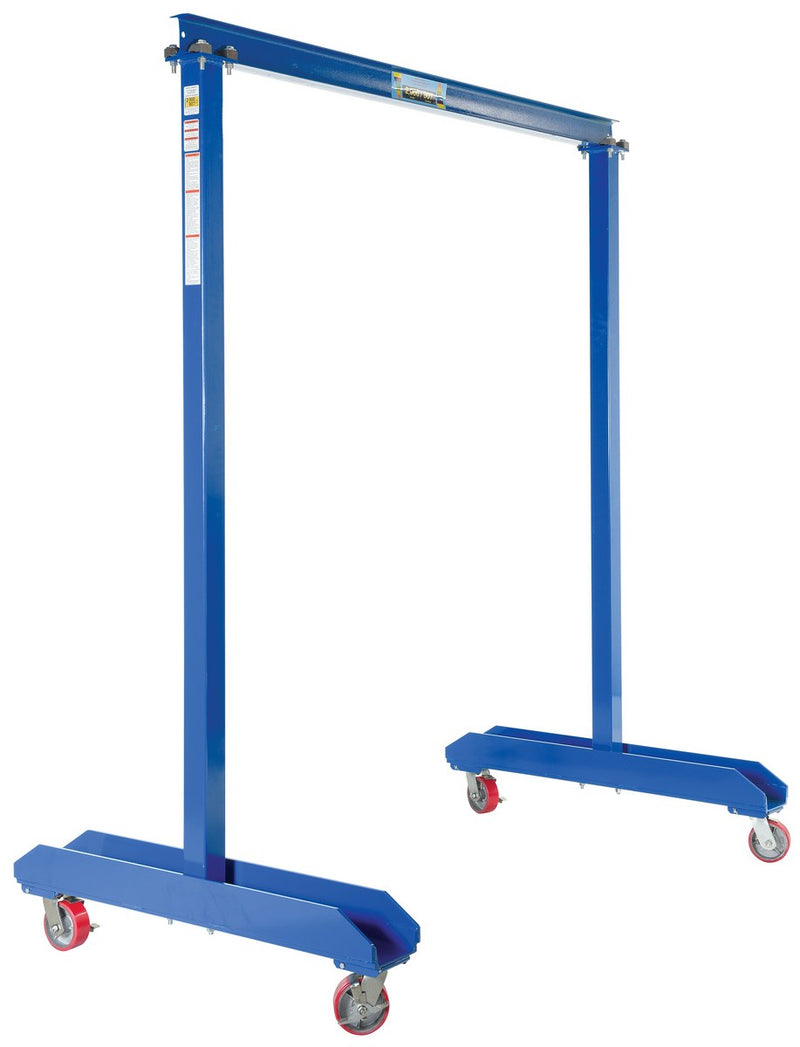

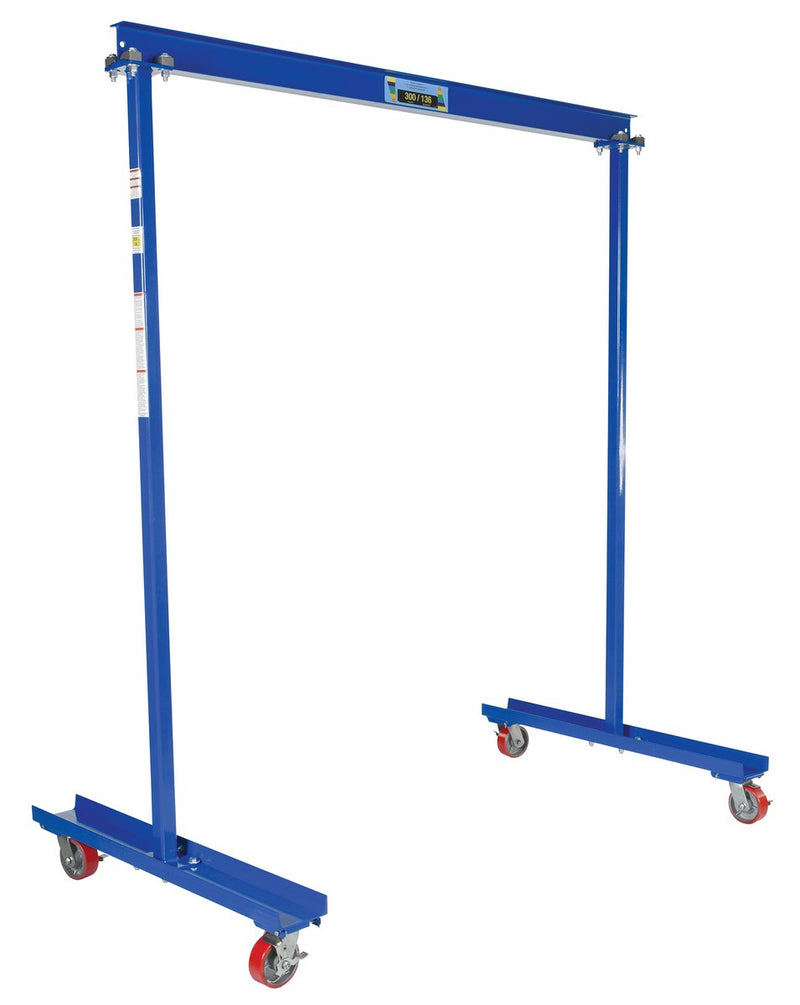

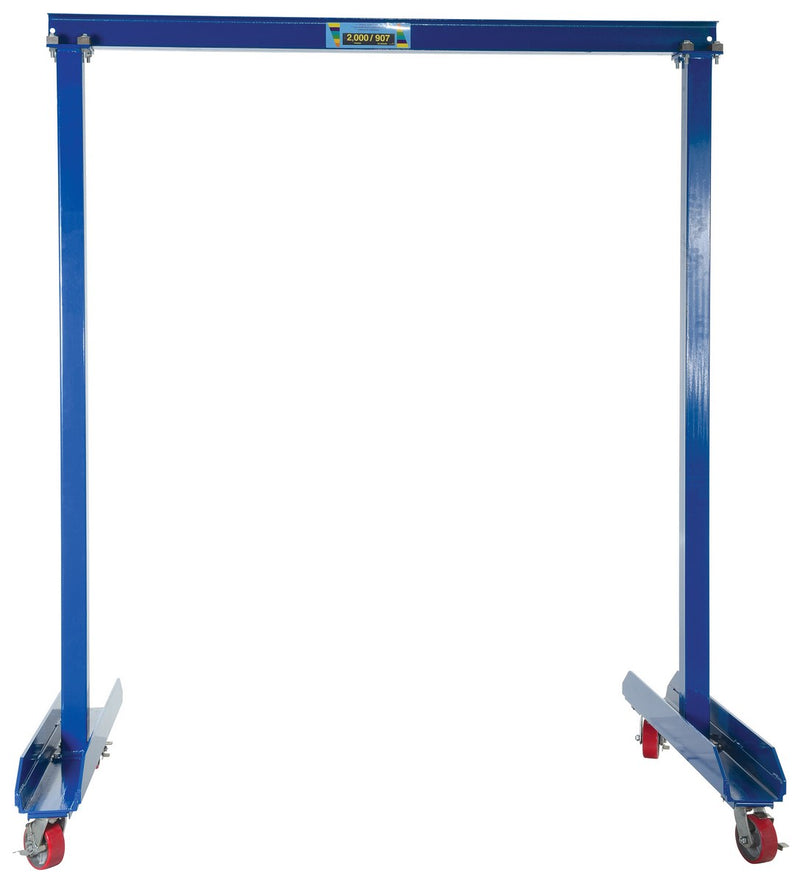

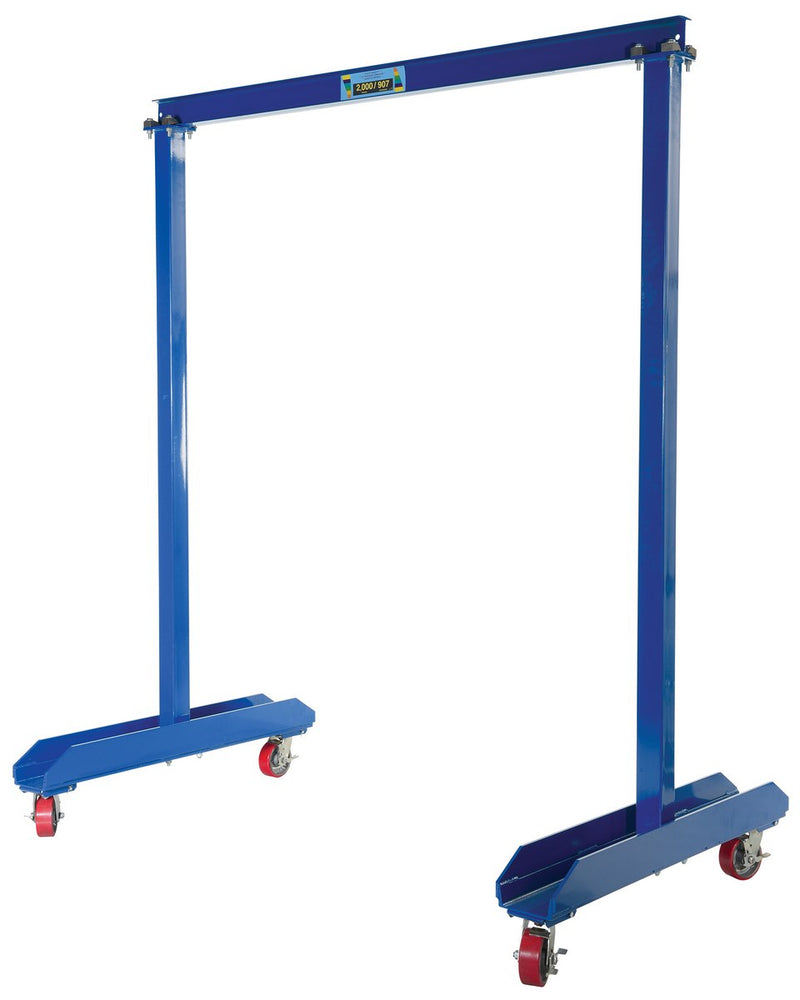

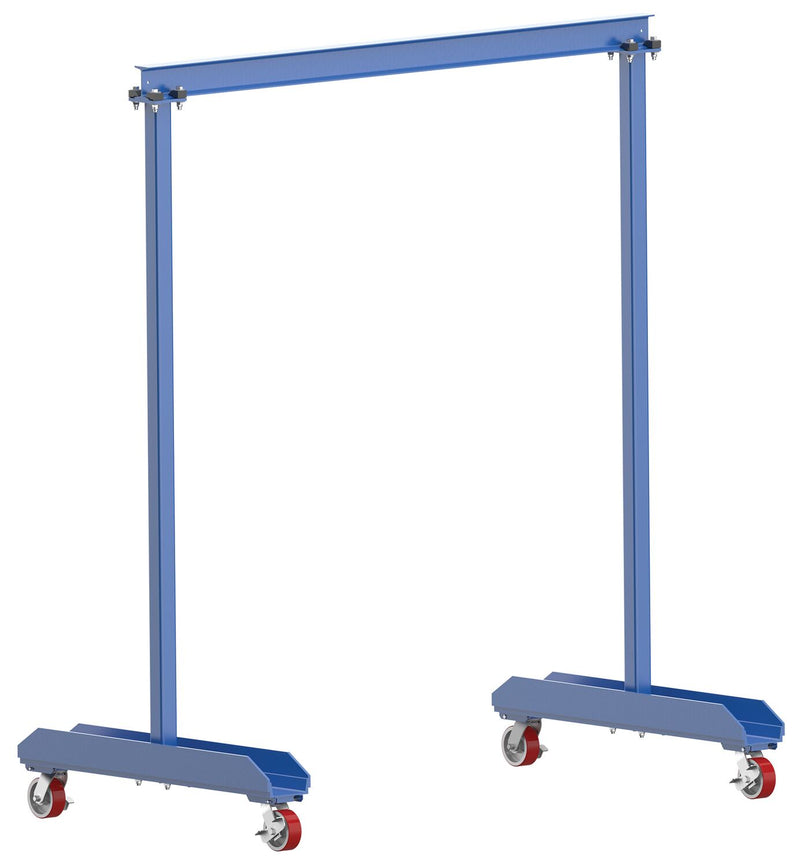

Vestil Work Area Portable Steel Gantry Cranes

Position materials along the beam with work area portable steel gantry cranes.

The steel work area gantry uses a bolt-together frame and casters for mobility.

Work Area Portable Steel Gantry Cranes Features

  • For light-duty material lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel construction with powder coat finish
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Under I-Beam to Ground Length (in.) 90
I-Beam (Flange Width x Height) (in.) 2-11/16 x 4
Base Width (in.) 47-3/4
Overall I-Beam length (in.) 79-3/4
I-Beam Usable length (in.) 69-3/4
Straddle Length (in.) 68
Caster Quantity/Diameter/Width (in.) (4) 5x2
Caster Material Poly-on-Steel
Caster Type Swivel with Brake
Usable Width (in.) 36-5/16
Beam Height (in) 4
Beam Length (in) 79-3/4
Usable Beam Length (in) 69-3/4
Flange Width (in) 2-11/16
Base Length (in) 81-1/2
Maximum Overall Height (in) 94
Adjustable Height No
Maximum Clearance (in) 90
Minimum Clearance (in) 90
Number of Casters / Wheels 4
Wheel Material Poly-on-Steel
Wheel Diameter (in) 5
Wheel Width (in) 2

Shipping

Total Ship Weight 376 lbs
Package 1 Size 30"W x 92"D x 15"H
Freight Type LTL Palletized
Freight Class 77.5
Country of Origin Name US

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts

Size & Specification Comparison

All models: Material: Steel · Overall Width (in.): 47-3/4 · Overall Height (in.): 94 · Color / Finish: Blue

Compare all sizes & specifications
Vestil Work Area Portable Steel Gantry Cranes: specifications by model
ModelOverall Length (in.)Assembled WeightUniform Capacity (lb.)
FPG-1081-1/2330 lbs1,000
FPG-2080-1/2317 lbs2,000
FPG-380-3/4235 lbs300
FPG-680-3/4235 lbs600
