Vestil Workstation Electric Hydraulic Scissor Tables

Brand: Vestil SKU: EHLT-WS-2436-1.5-31 Out of stock
Authorized dealer
Sold out
$2,629.00 - $3,239.00
$2,629.00
$2,629.00 - $3,239.00
$2,629.00

Product Highlights

  • Workstation tables with power-unit choices
  • Hand-controlled platform lift
  • Compact industrial installation
Capacity: 1,500 lb
Nominal Platform Size: 24 in x 36 in
Power Unit: External
Estimated delivery:
Ships direct from Vestil
  • Genuine, full warranty
  • 30-day returns See the return policy
  • Only CA orders are taxed
  • Mon–Fri 9 AM–6 PM PT
Prefer to talk? Call a specialist (805) 261-2630

Sizing, shipping and volume pricing. Mon–Fri 9 AM–6 PM PT.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Warranty PDF

Overview

Main Specifications

MPN EHLT-WS-2436-1.5-31
Capacity 1,500 lb
Overall width 24 in
Overall length 36 in
Overall height 31 in
Assembled weight 385 lbs
Material Steel
Color / finish Yellow

Vestil Workstation Electric Hydraulic Scissor Tables

Raise material to a working height on a workstation electric hydraulic scissor table. A steel platform supports manufacturing and warehouse tasks in a compact installation.

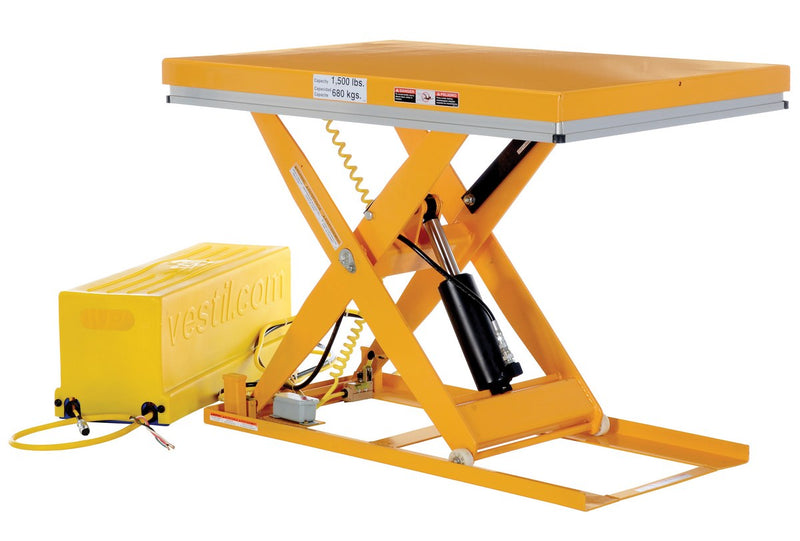

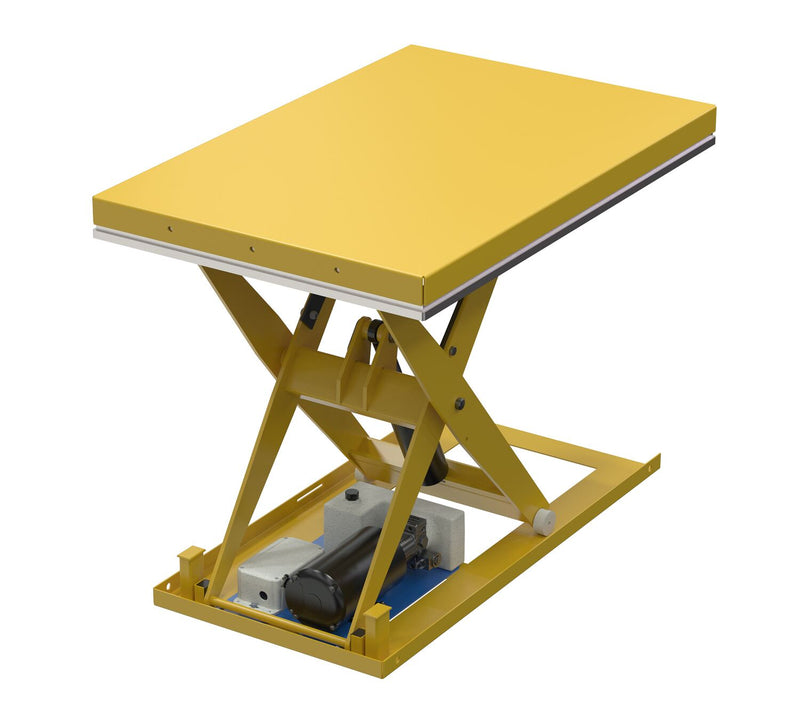

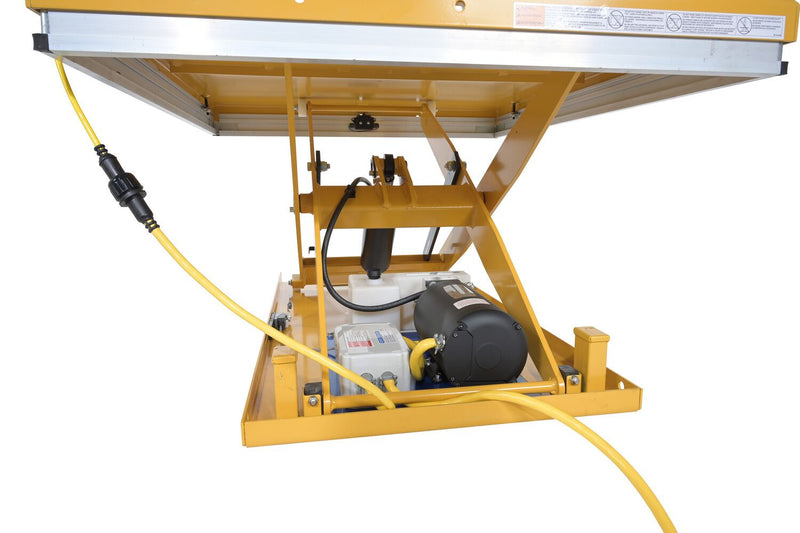

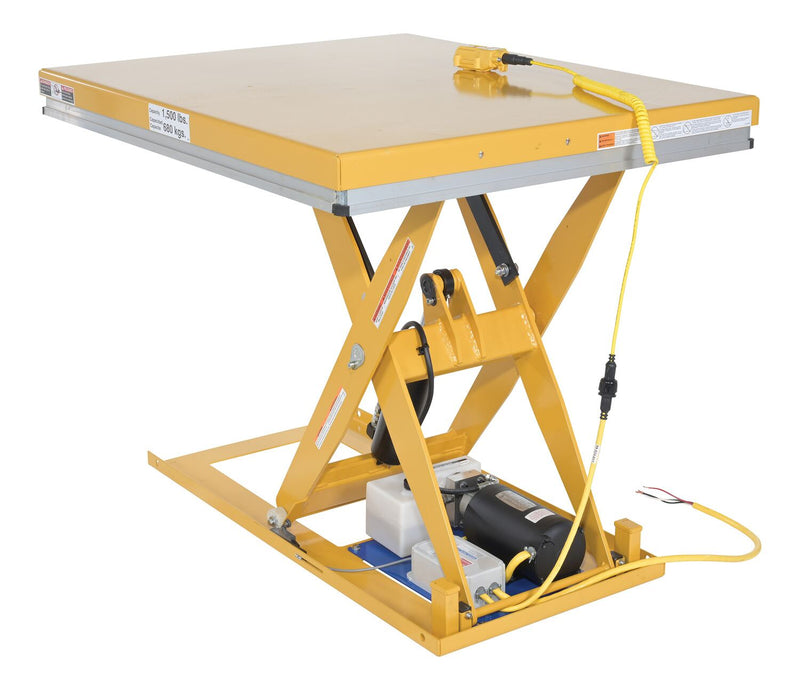

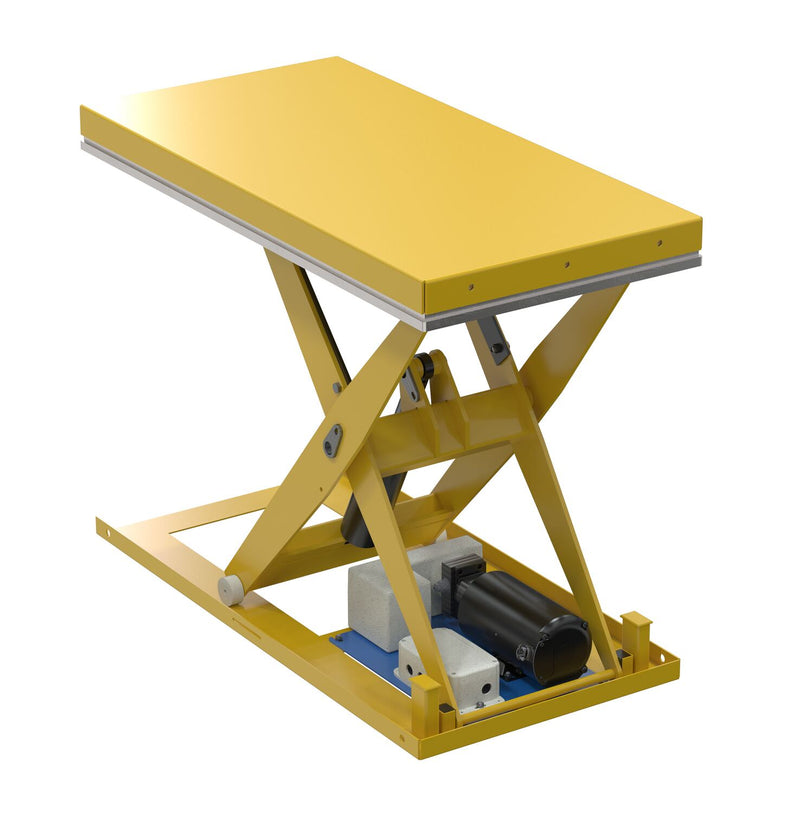

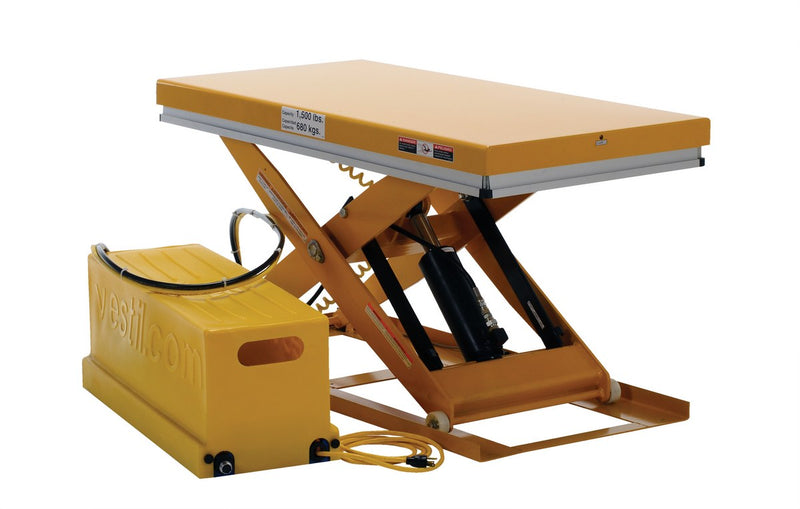

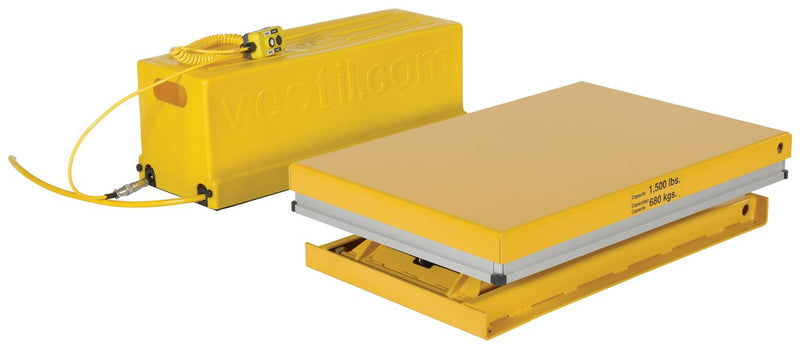

Choose an external or internal power-unit configuration. External units can be located away from the table, while hand controls and electric toe guards support operation.

Workstation Electric Hydraulic Scissor Tables Features

  • Powered workstation height adjustment

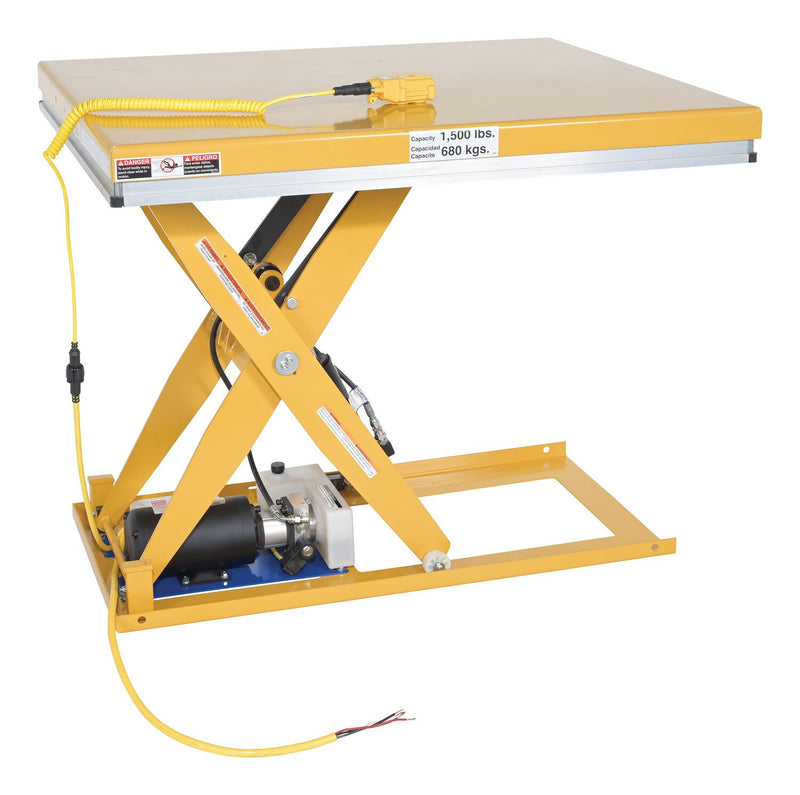

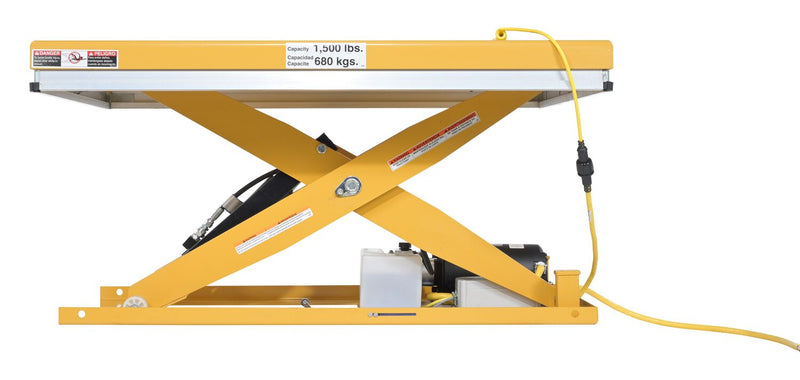

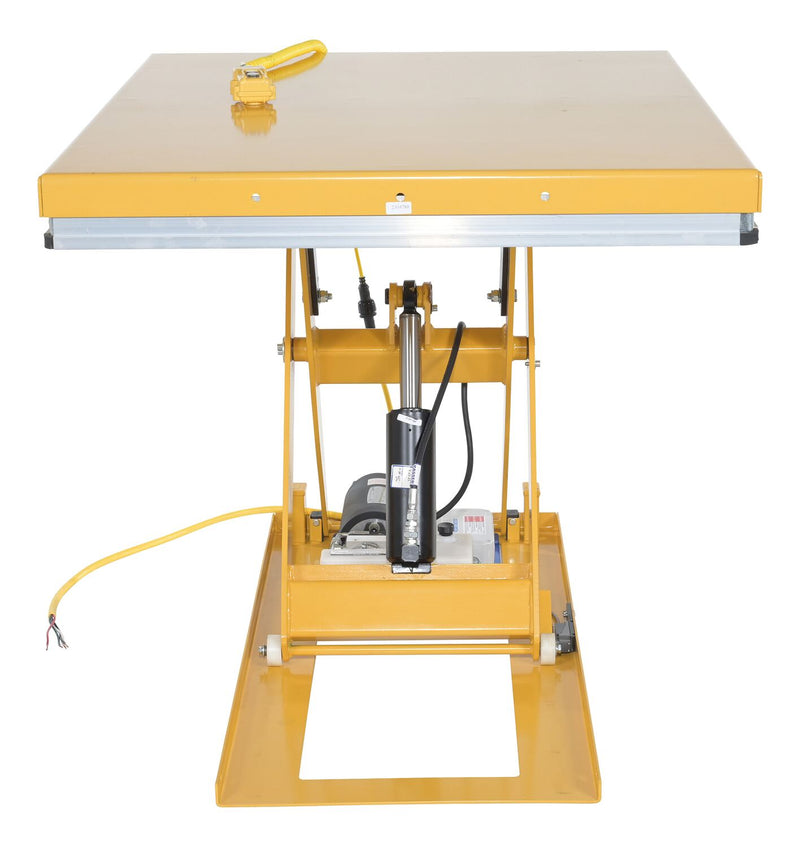

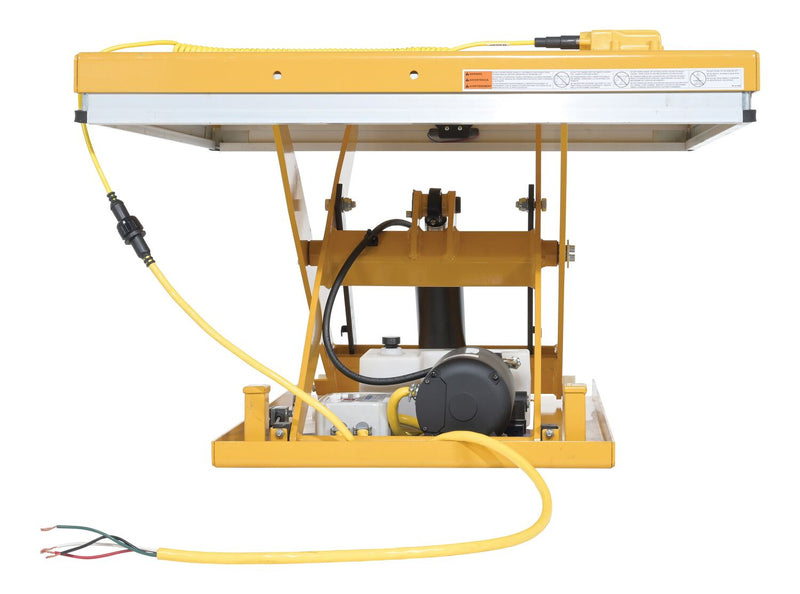

  • Internal and external power units

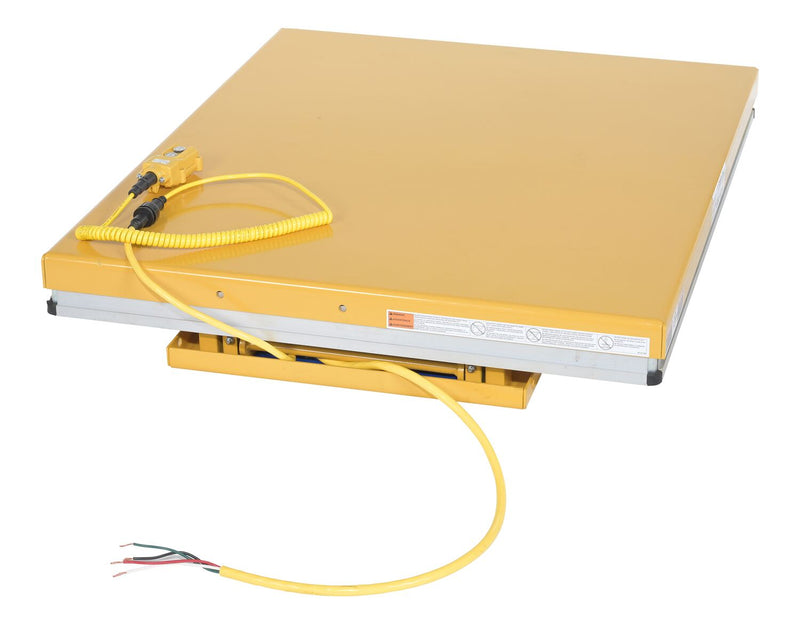

  • Hand control operation

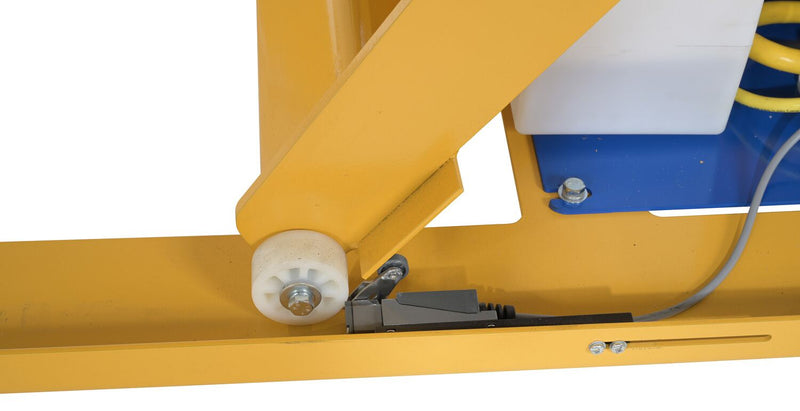

  • Electric toe guard
Warranty

Vestil 1-Year Limited Warranty

Vestil Manufacturing backs this product with a limited parts warranty against defects in material and workmanship. The warranty period starts on the ship date.

  • Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders): 1 year
  • Wearing parts such as bearings, hoses, wheels, seals, brushes and batteries: 90 days
  • Vestil provides a replacement for a covered part. Labor and freight are not covered.
  • Misuse, improper maintenance, corrosion, shipping damage and unauthorized modifications void the warranty.

See the Warranty document on this page for the full terms.

Full Specifications

Specifications

Lower/Raised Height (in.) 8-5/8 to 31
Travel Time (sec.) 13
Standard Voltage/Phase 460/3
Remote Power Unit Length (in.) 32-1/2
Remote Power Unit Width (in.) 12
Remote Power Unit Height (in.) 12-1/2
Remote Cord (ft.) 8
Power Source Electric - Corded
Platform Length (in) 36
Platform Width (in) 24
Maximum Height (in) 31
Minimum Height (in) 8-5/8
Scale Included No
Controller Cord Length (ft) 8
Overload Protection Yes
Operation Method Push Button
Lifting Speed (sec/ft) 13
Battery Charger Included Not Required
Horsepower (hp) 1-1/2
Portable No
Number of Casters / Wheels No Wheels / Casters
Maximum Travel Distance (in) 22-3/8

Shipping

Ship weight 385 lbs
Freight Type LTL Palletized
Package Width (in) 40
Package Depth (in) 64
Package Height (in) 17
Freight Class 70
Country of Origin Name US

Warranty

Manufacturer Warranty 1 Year
Warranty Type Limited - Parts
Manufacturer Warranty #2 90 Days
Warranty Type #2 Wearable Parts warranty

Size & Specification Comparison

All models: Capacity: 1,500 lb · Material: Steel · Color / finish: Yellow

Compare all sizes & specifications
Vestil Workstation Electric Hydraulic Scissor Tables: specifications by model
ModelOverall widthOverall lengthOverall heightAssembled weight
EHLT-WS-2436-1.5-3124 in36 in31 in385 lbs
EHLT-WS-2448-1.5-3624 in48 in36 in374 lbs
EHLT-WS-3248-1.5-3632 in48 in36 in414 lbs
EHLT-WS-4048-1.5-3640 in48 in36 in497 lbs
EHLT-WSI-2448-1.5-3623-7/16 in47-1/2 in36 in305-3/100 lbs
EHLT-WSI-3248-1.5-3631-7/16 in47-1/2 in36 in330-33/100 lbs
EHLT-WSI-4048-1.5-3639-7/16 in47-1/2 in36 in355-16/25 lbs
