Yutrax Arched ATV Loading Ramps | 90 in x 12 in | 1,500-3,000 lb Capacity | Pair

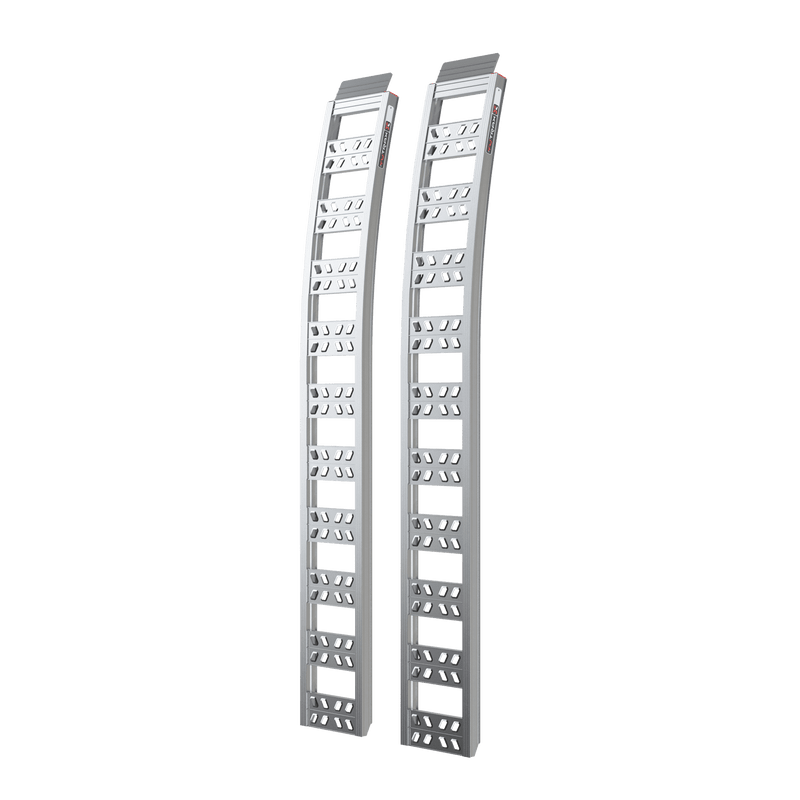

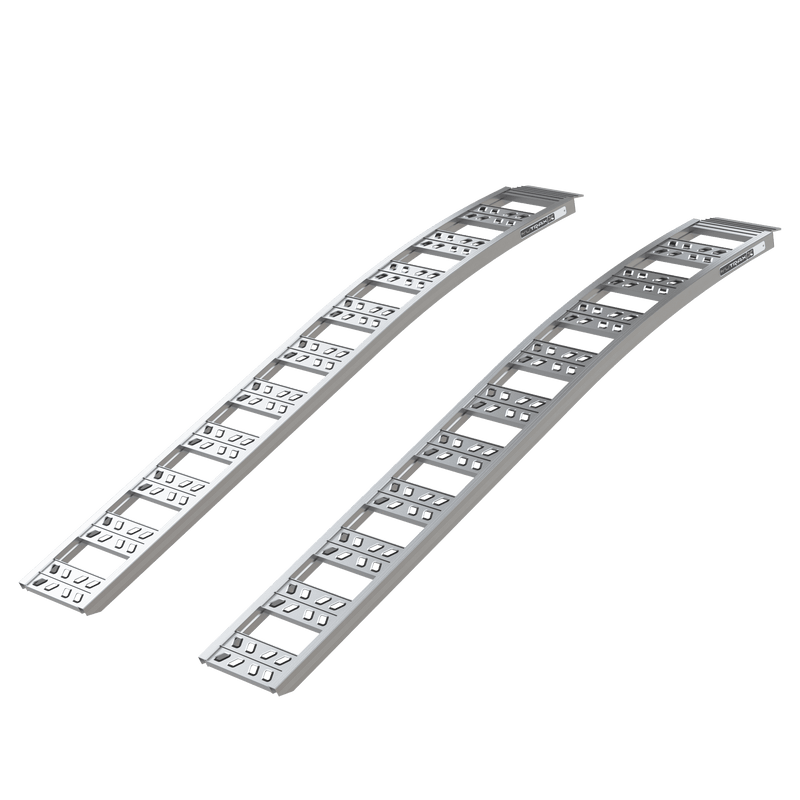

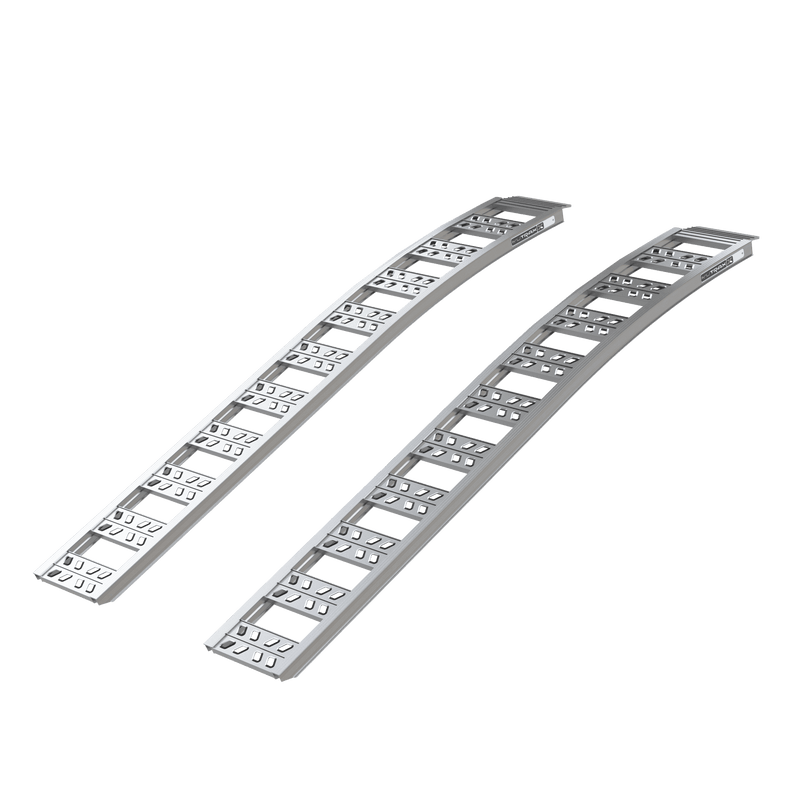

The Yutrax 90 in Arched Ramps are one-piece ATV loading ramps - each ramp is a single welded aluminum section with no hinge and no fold joint. The all-welded design means no parts to work loose over time, and setup is nothing more than setting the ramps in place. The trade-off is honest: you are carrying and storing a full 90 in of ramp, which is why the folding models exist.

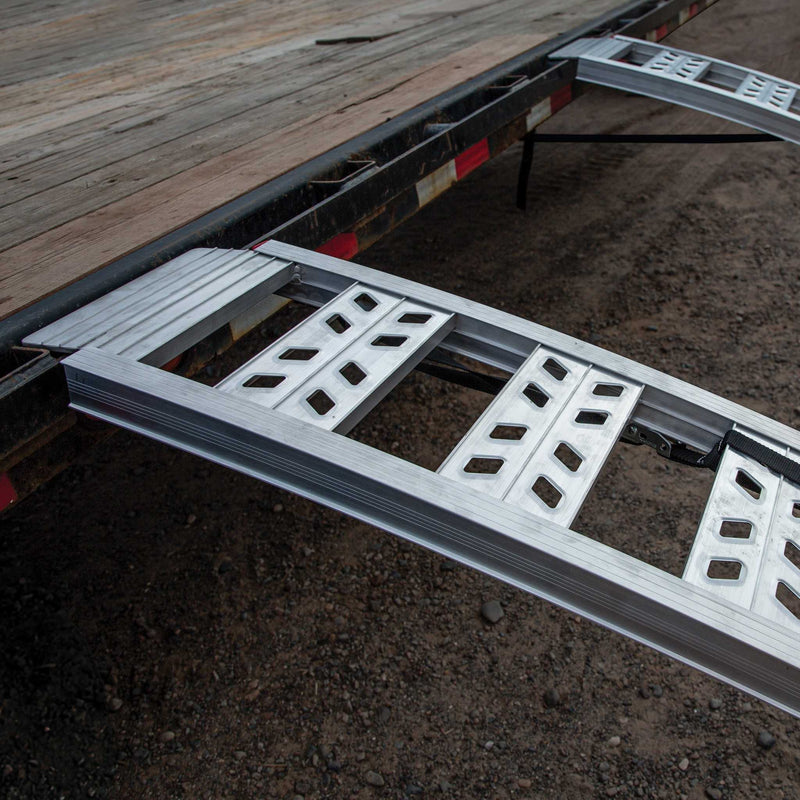

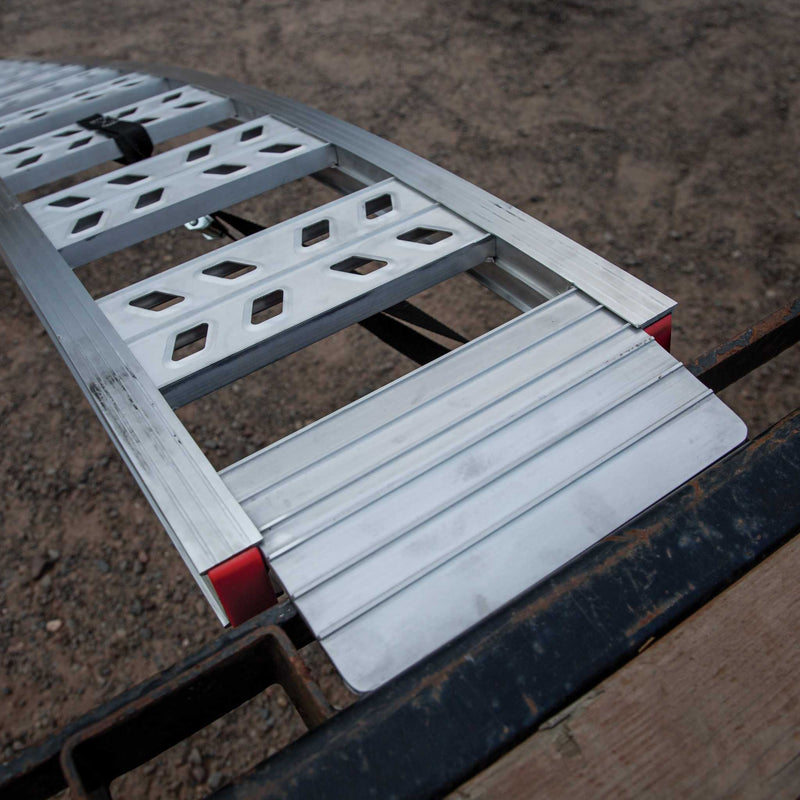

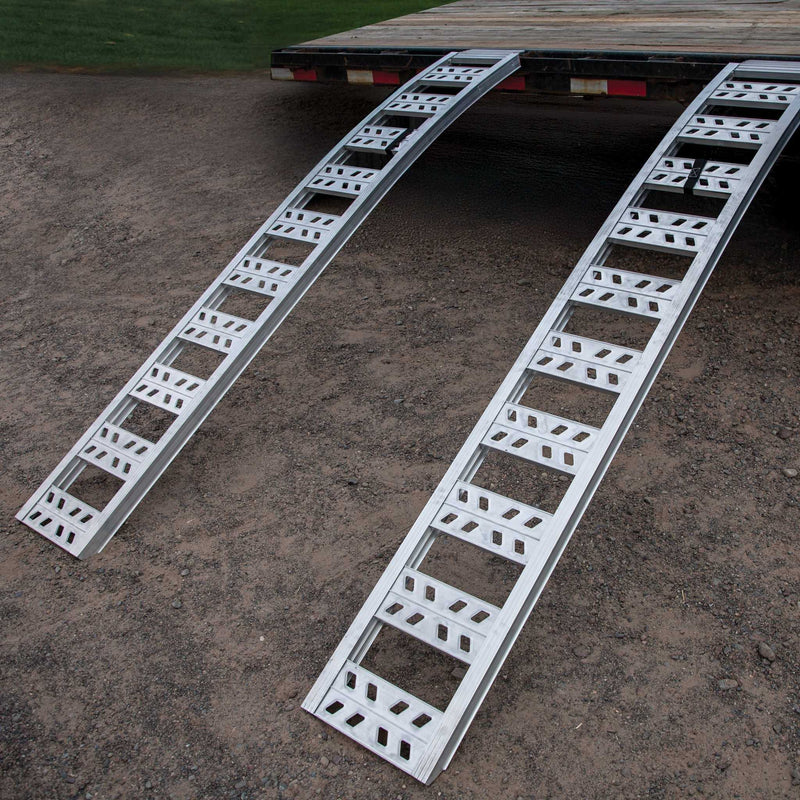

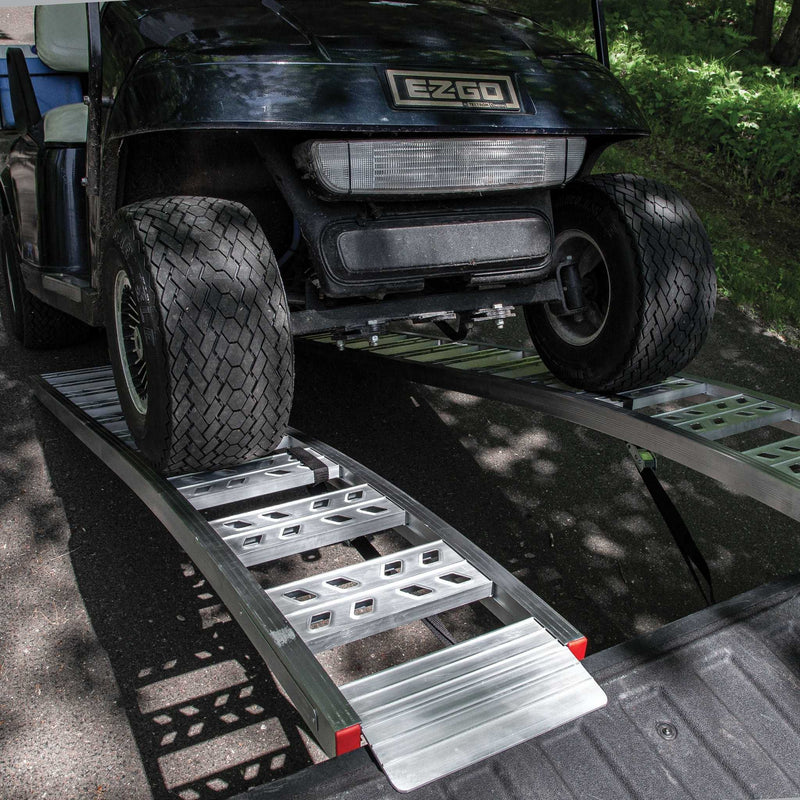

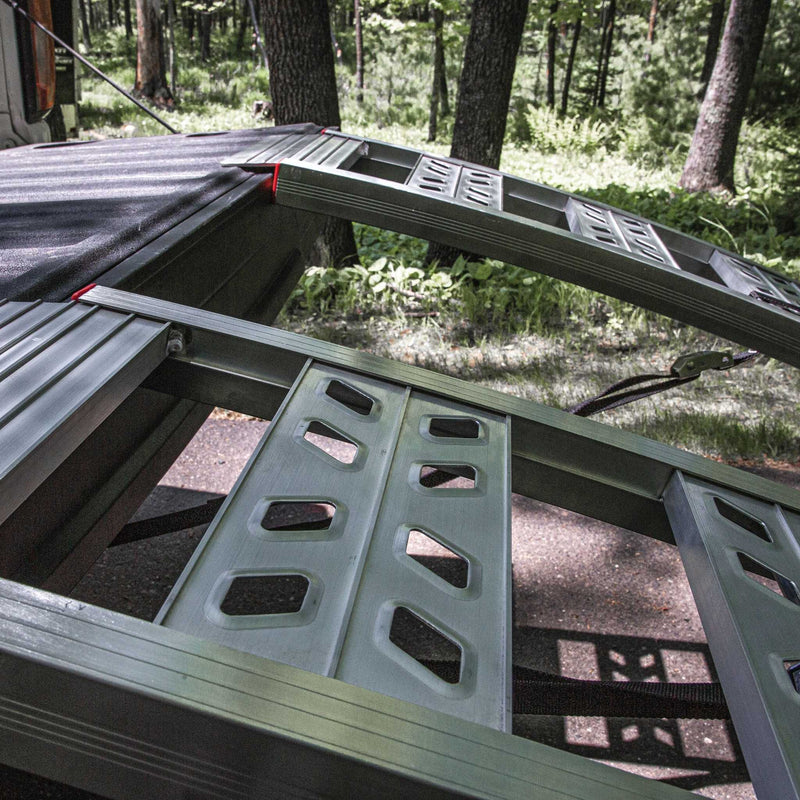

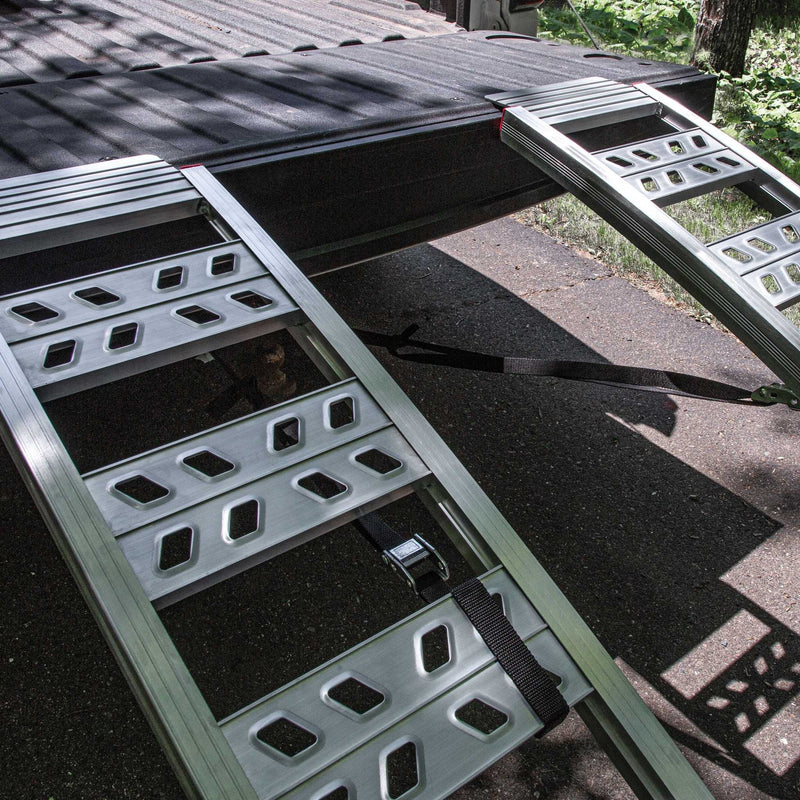

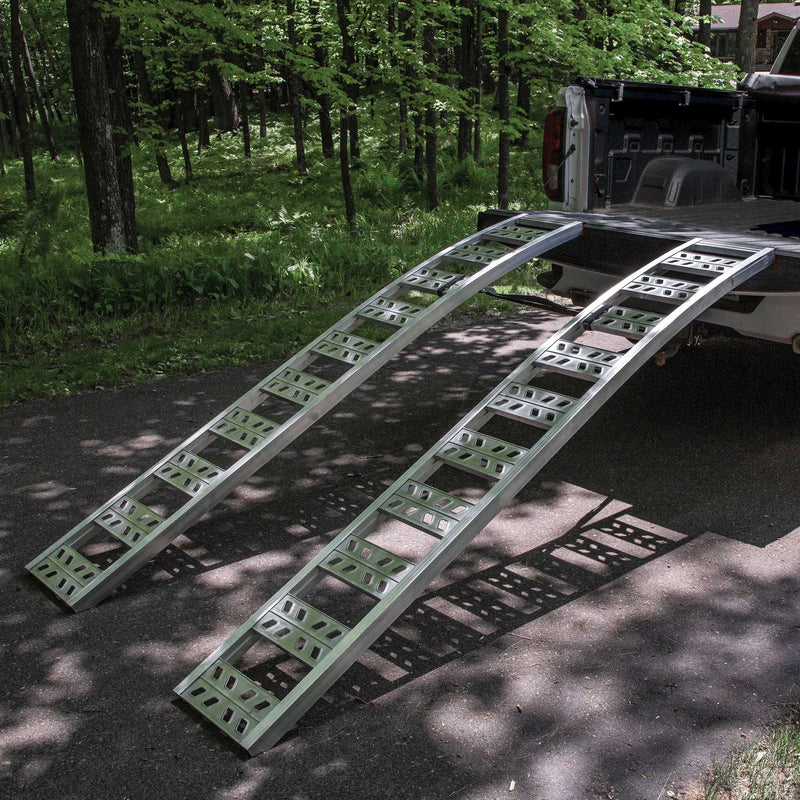

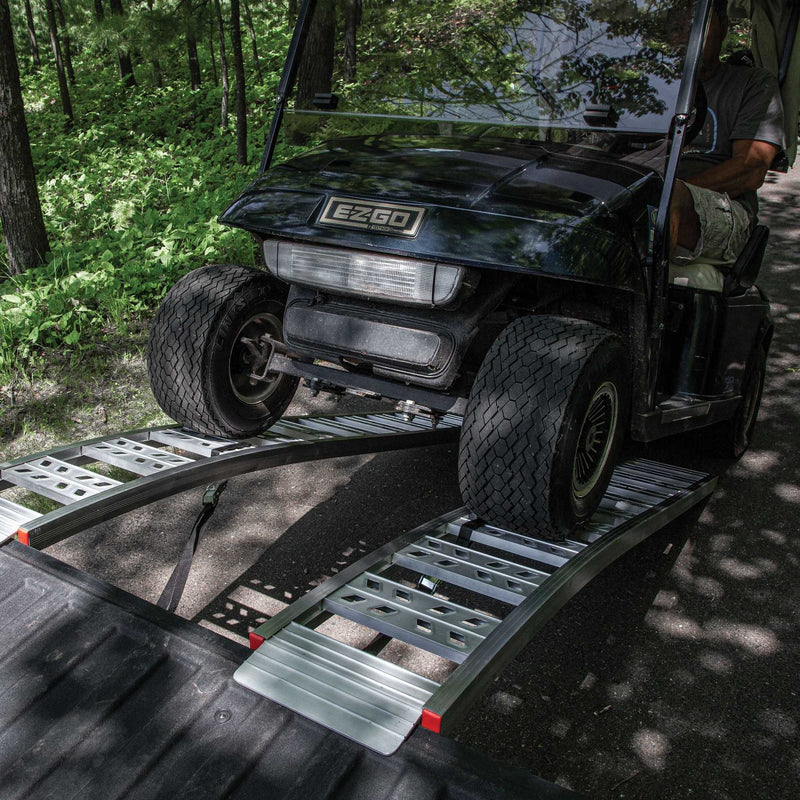

The arched profile prevents bottoming out when loading low-clearance equipment such as mowers and golf carts. On the deck, the wide rung design keeps the gap between rungs to 4 in, so small-wheeled equipment rolls up smoothly, and each rung is embossed for traction while loading and unloading. A full-width top plate maximizes the connection between the ramp and your truck bed or trailer deck.

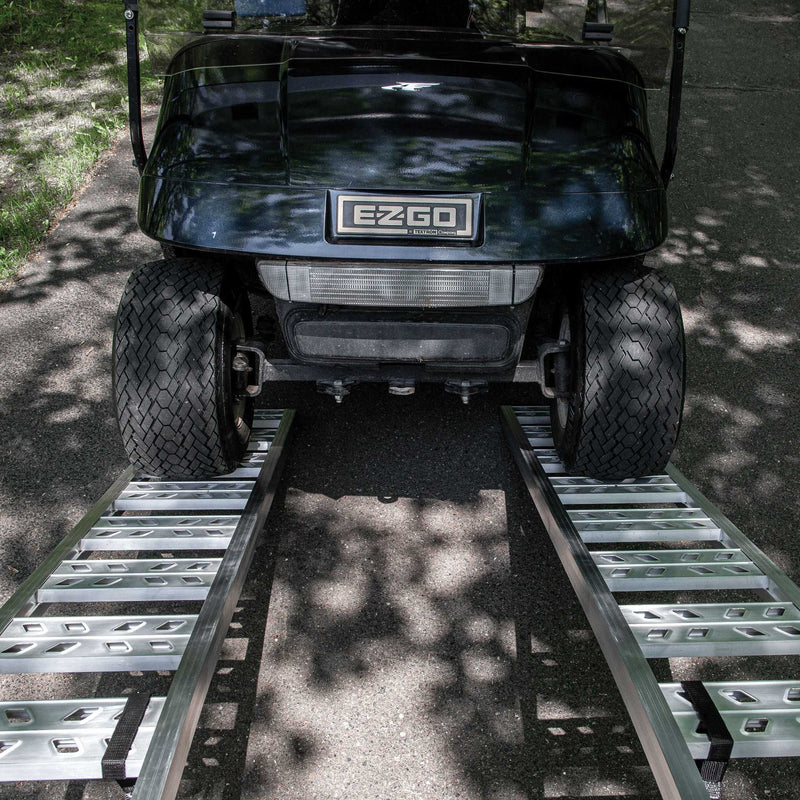

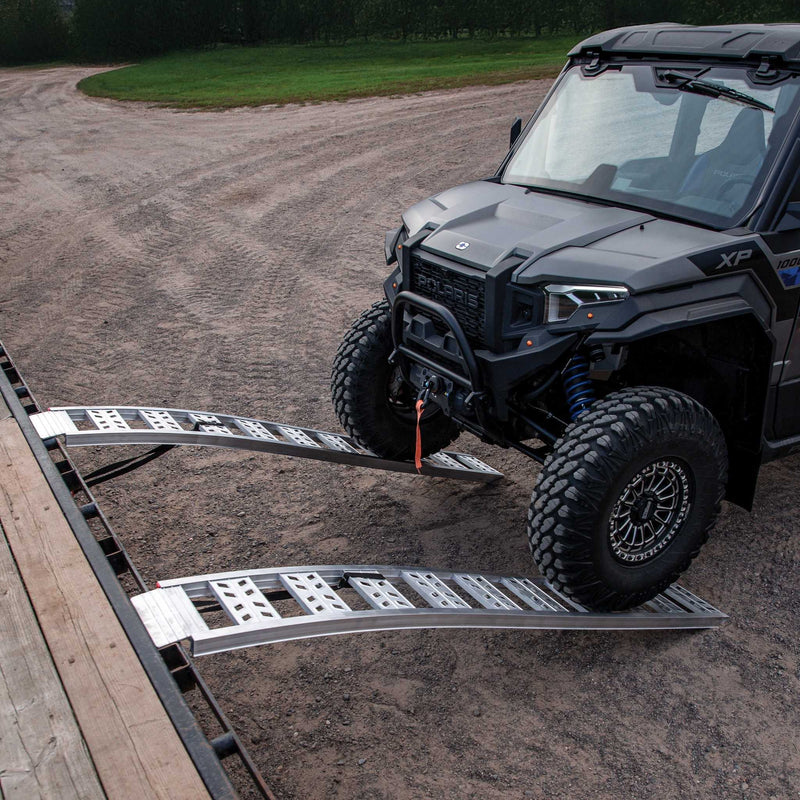

Two capacities are available, and they are rated for different equipment. 1,500 lb per pair (750 lb per ramp), 25 lb per pair, rated for ATVs, riding lawn mowers, golf carts and other small-wheeled equipment. 3,000 lb per pair (1500 lb per ramp), 35 lb per pair, with heavy-duty side rails for the greater load rating, rated for UTVs in addition to ATVs, riding lawn mowers, golf carts and small-wheeled equipment. Load ratings are for the pair, with each ramp supporting one side of the load. Choose a rating comfortably above the loaded weight of your equipment.

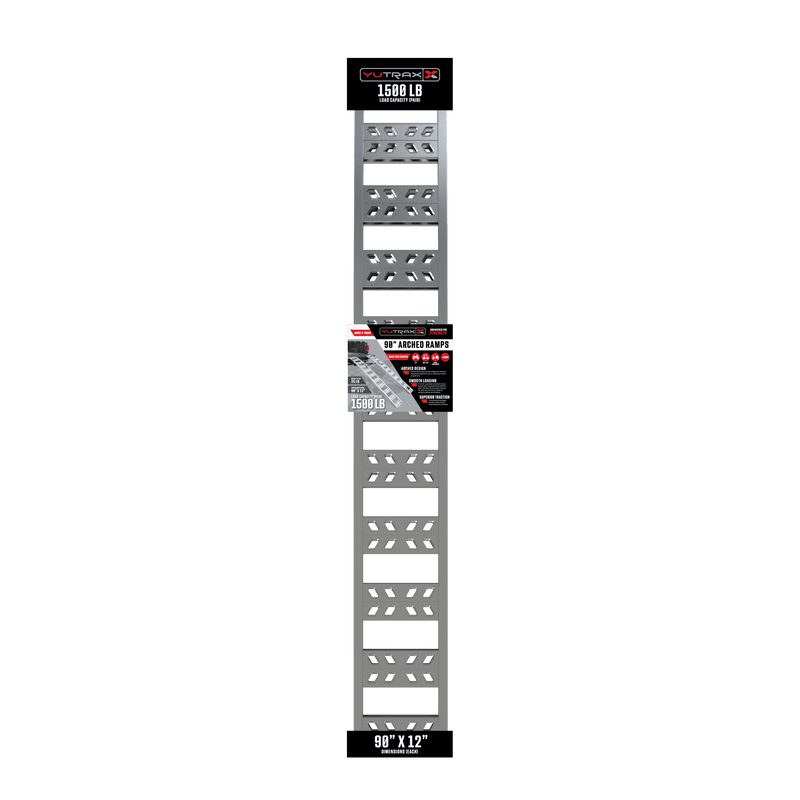

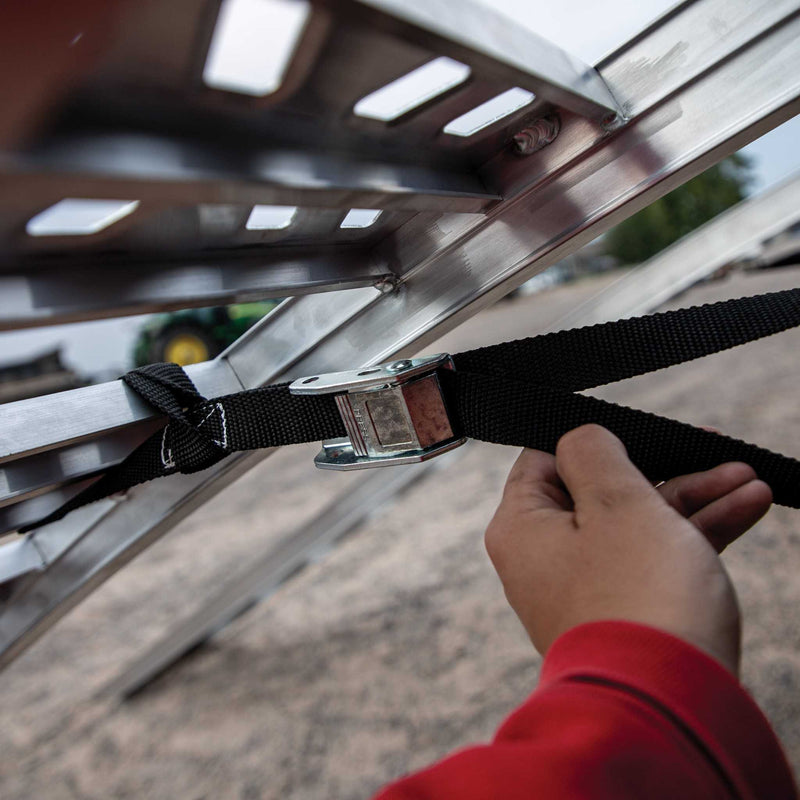

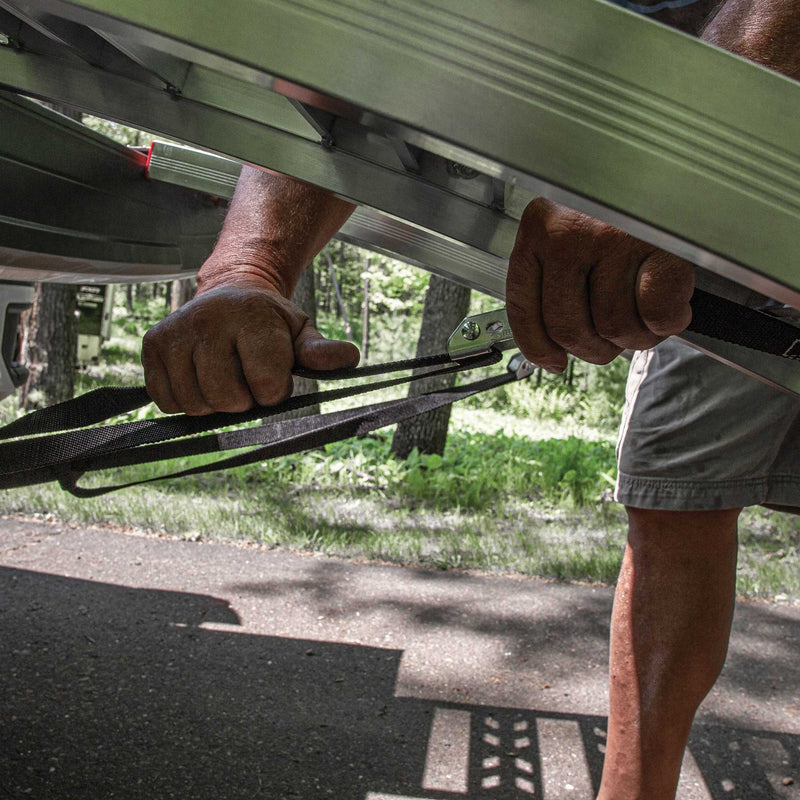

Both capacities measure 90 in x 12 in per ramp and are built from high-strength extruded aluminum, rustproof and corrosion-resistant for years of outdoor use. A set of adjustable safety straps is included to secure the ramps to your vehicle.
Product Features
- One-piece welded aluminum - no hinge, no fold joint, no parts to loosen
- Choice of 1,500 lb or 3,000 lb capacity per pair
- 3,000 lb version adds heavy-duty side rails and a UTV rating
- Arched profile prevents bottoming out on low-clearance equipment

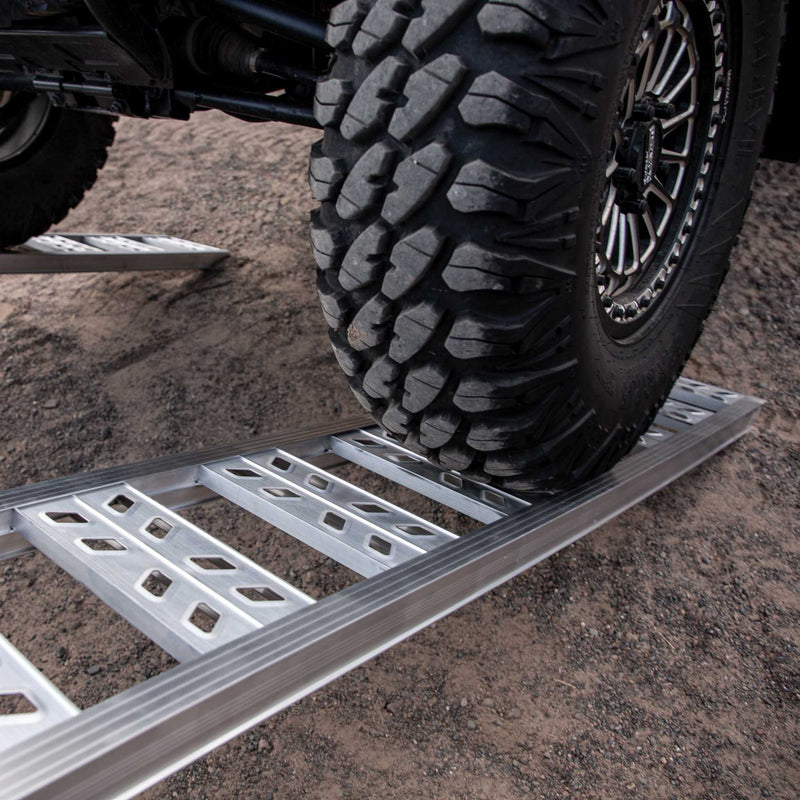

- Wide rung design, 4 in rung gap, embossed rungs for traction
- Full-width top plate for a solid connection to bed or trailer
- 90 in x 12 in per ramp; 25 lb or 35 lb per pair
- Adjustable safety straps included
Warranty
1-Year Limited Warranty
Yutrax, a division of Ardisam Incorporated, provides a one-year limited warranty against defects in materials and workmanship for the service life of the product, not to exceed twelve consecutive months from the date of purchase. It applies to the original owner with proof of purchase and is not transferable. Coverage does not apply to products subjected to negligent use, misuse, alteration, or accident, or to products repaired by anyone outside the factory. This warranty supersedes all other warranties, express or implied. Warranty work must be performed by Ardisam or an authorized service center, and requires prior approval and a return material authorization (RMA) number before shipping; all items ship prepaid. Ardisam will repair or replace any qualifying defective part at its discretion at no charge.
To register a new product for warranty coverage or submit a warranty claim, please visit Yutrax at: https://yutrax.com/pages/product-warranty.
